NMX-TCR-30 · ENGINEERED TO ORDER — TURBOCHARGER TEST RIGS

The turbocharger is the small part. The hard part is the gas that drives it.

Name: Turbocharger Test Rig
Brand: Neometrix

To test a turbocharger you have to reproduce what an engine's exhaust does to it — a controlled mass flow at a controlled temperature and pressure, held steady while the turbo's own operating point moves underneath it. So the rig is really a hot gas stand, and most of its cost and nearly all of its control difficulty sit upstream of the unit under test. Two things follow. The machine runs beyond 100,000 rpm, where the bearing system is the product and the oil is a controlled test variable rather than a utility. And because a rig exists to run units to and past their limits, a wheel burst is an expected event — so containment is sized by energy, not chosen by appearance. What the customer actually buys is none of that: it is the map. Equipment of this class has been quoted against a turbocharger test rig requirement for a defence vehicle manufacturer; no delivered turbocharger test rig is claimed — the class is engineered to order.

Enquire — turbocharger test rig Capability sheet (PDF)

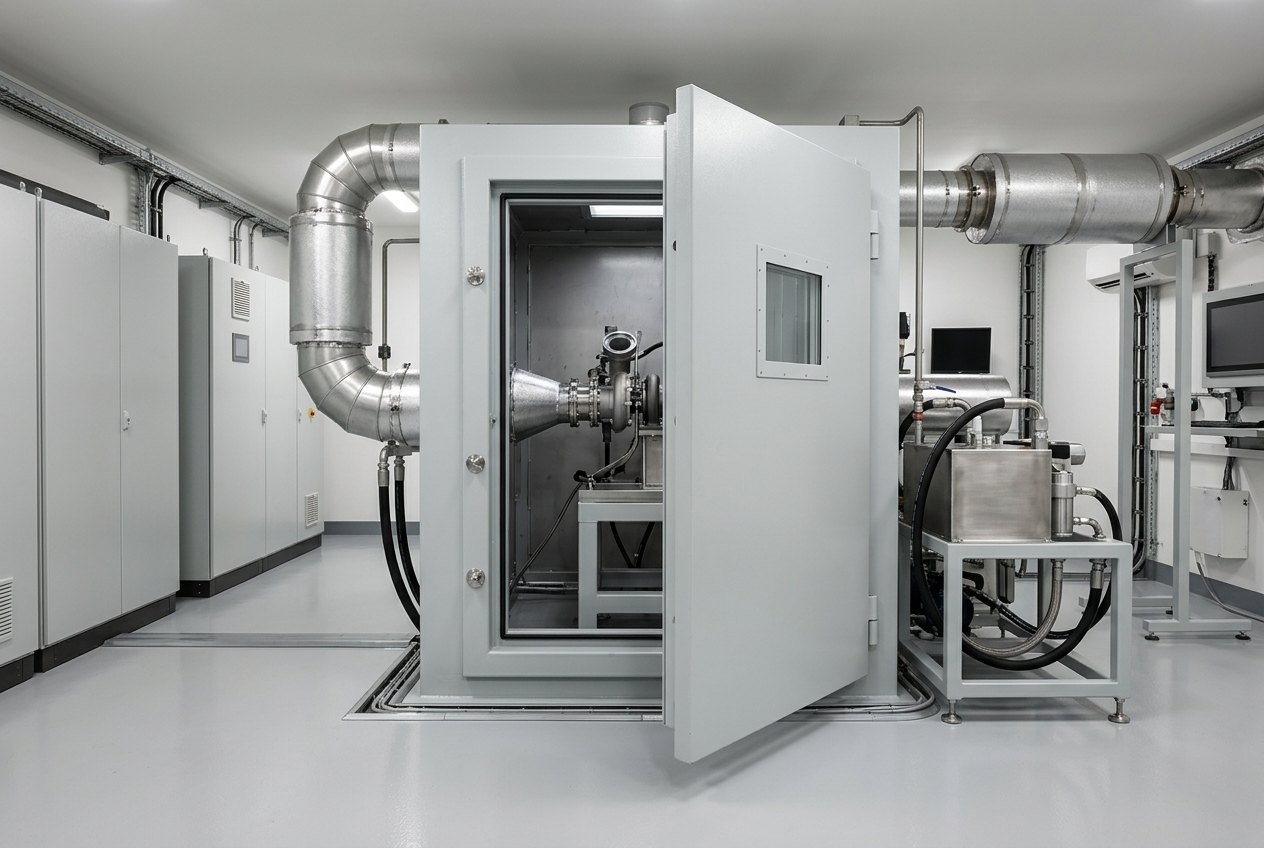

Illustrative of the class — a turbocharger test cell seen through its open access door: a heavy light-grey painted steel containment enclosure with a thick hinged front panel carrying a small laminated viewing window, large insulated stainless gas ducting entering from the left and leaving through a lagged silencer, a compact stainless oil conditioning skid on a light-grey frame alongside with braided hoses, plain light-grey instrument cabinets with completely blank panels along the wall, clean epoxy floor, no people, nothing running and no readable markings

Fig · 01 The cell — and the enclosure is sized by what happens if a wheel lets go, not by what looks reassuring

Really a

hot gas standthe turbo is small

Runs at

>100,000 rpmbearings are the product

Oil is

a test variablenot a utility

Deliverable

the mapsurge to choke

Status

engineered to orderquoted class

ISO 9001 / 14001 Engineered to order Turbomachinery test Containment & safety case Noida · India

Overview

You cannot test it without building an engine's worth of exhaust.

Which is why the interesting engineering is all in the part of the rig that has nothing to do with turbochargers.

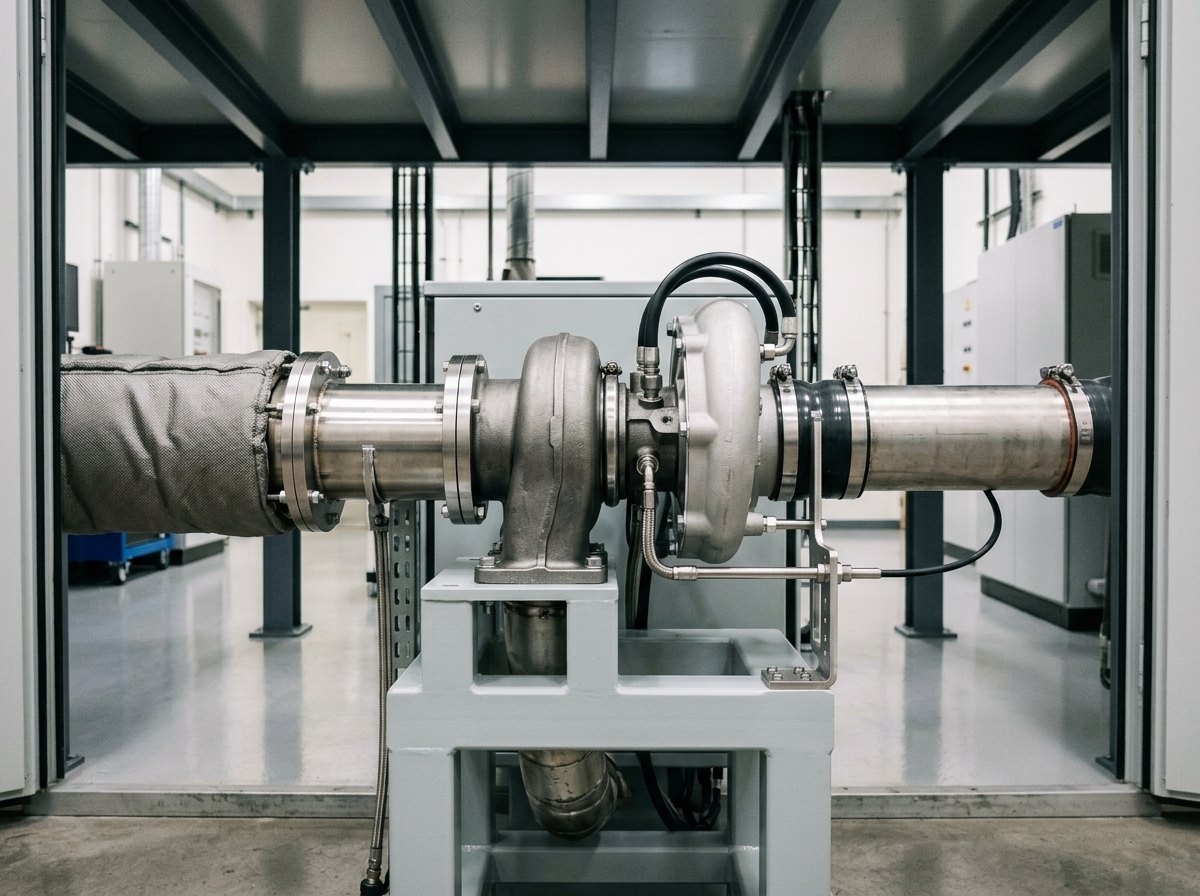

Illustrative of the class — close view inside an opened test section: a medium automotive-size turbocharger mounted on a light-grey painted steel cradle, its two spiral volute housings in bare unpainted cast aluminium and cast iron with completely smooth unmarked surfaces, a machined stainless adapter flange bolting the turbine housing to insulated gas ducting, a short stainless compressor outlet duct opposite, two braided oil feed and drain lines with clean fittings running to the bearing housing, and a slim stainless speed probe on a machined bracket at the compressor inlet, no people, nothing running and no readable markings

Fig · 02 The unit under test — two small oil lines decide more about the result than anything else in shot

The rig has to become the engine. A turbocharger is driven by exhaust gas, so a bench that tests one has to manufacture that gas: air delivered at the right mass flow, heated to the right turbine inlet temperature, at the right pressure, and held there while the machine under test changes what it is drawing. That is a genuinely awkward control problem, because the turbocharger and the gas supply are coupled — move the operating point and the demand on the supply changes with it. The consequence for a buyer is uncomfortable but simple: the specification that matters is the gas supply envelope, not the size of turbocharger the rig can physically bolt on. Rigs bought on the latter routinely turn out to be unable to reach the corner of the map the customer actually cared about.

Then there is the speed. Beyond a hundred thousand revolutions per minute, ordinary intuitions stop applying. The rotor is not running in bearings so much as floating on oil films, and those films — their thickness, their stability, their damping — are set by the oil's supply pressure and its temperature. Change either and the machine behaves differently, which is why oil is treated here as a test variable that is specified, conditioned and measured, rather than a service that is merely plumbed in. It is also why the rotordynamics matter: at these speeds the critical speeds sit inside the operating range, so the machine passes through them as a matter of routine, and the instrumentation has to be quick enough to watch it do so.

And the rig is deliberately operated near failure. That is not a risk to be managed down — it is the purpose. Mapping requires approaching surge, which is the condition that damages compressors; qualification requires overspeed; endurance testing runs units until something gives. A rig designed on the assumption that nothing will burst is a rig designed for a use case that does not exist.

Equipment of this class has been quoted against a turbocharger test rig requirement for a defence vehicle manufacturer. No delivered turbocharger test rig is claimed: the class is engineered to order, and the record is stated as it stands.

Upstream

Sized on the gas supply

The envelope the rig can reach — not the unit it can bolt on.

Conditioned

Oil as a variable

Pressure, temperature, filtration and flow — specified and measured.

Contained

Built for the burst

Sized by energy, interlocked for access — because the rig exists to find limits.

Architecture

Make the gas, hold the inlet, then draw the map.

The schematic follows the test rather than the hardware — gas made, inlet held, unit spun, map drawn — then the four blocks behind it: hot gas supply, test section, oil conditioning, and instrumentation with containment.

FIG · 03TURBOCHARGER TEST RIG ARCHITECTURE · HOT GAS SUPPLY / TEST SECTION + MOUNTING / OIL CONDITIONING / INSTRUMENTATION, CONTROL + CONTAINMENT

Fig · 03 The gas is most of the machine; the map is what is actually bought

Arc · 01

Hot Gas Supply

Air supply, burner or heater, control — holding turbine inlet temperature and pressure while the operating point moves.

Arc · 02

Test Section & Mounting

Adapters, ducting, oil feed and drain — and the ability to change units quickly, because throughput is the rig's real economics.

Arc · 03

Oil Conditioning

Pressure, temperature, filtration, flow — held and measured, because the bearing system is what is really being tested.

Arc · 04

Instrumentation & Containment

Fast enough to see surge, strong enough for a burst — with mapping automation and interlocked access.

Specifying a rig, or finding an existing one cannot reach the map? Send the turbocharger range, the turbine inlet envelope required, the maps you need and the acceptance standard — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Sized on the envelope, not on the unit.

The parameters below describe the engineering approach. Gas supply capacity, burner rating, ducting, oil conditioning, instrumentation and containment all follow from four givens: the range of turbochargers to be tested, the turbine inlet envelope required to reach the whole map, the maps and endurance regimes the laboratory has to produce, and the acceptance standard that applies.

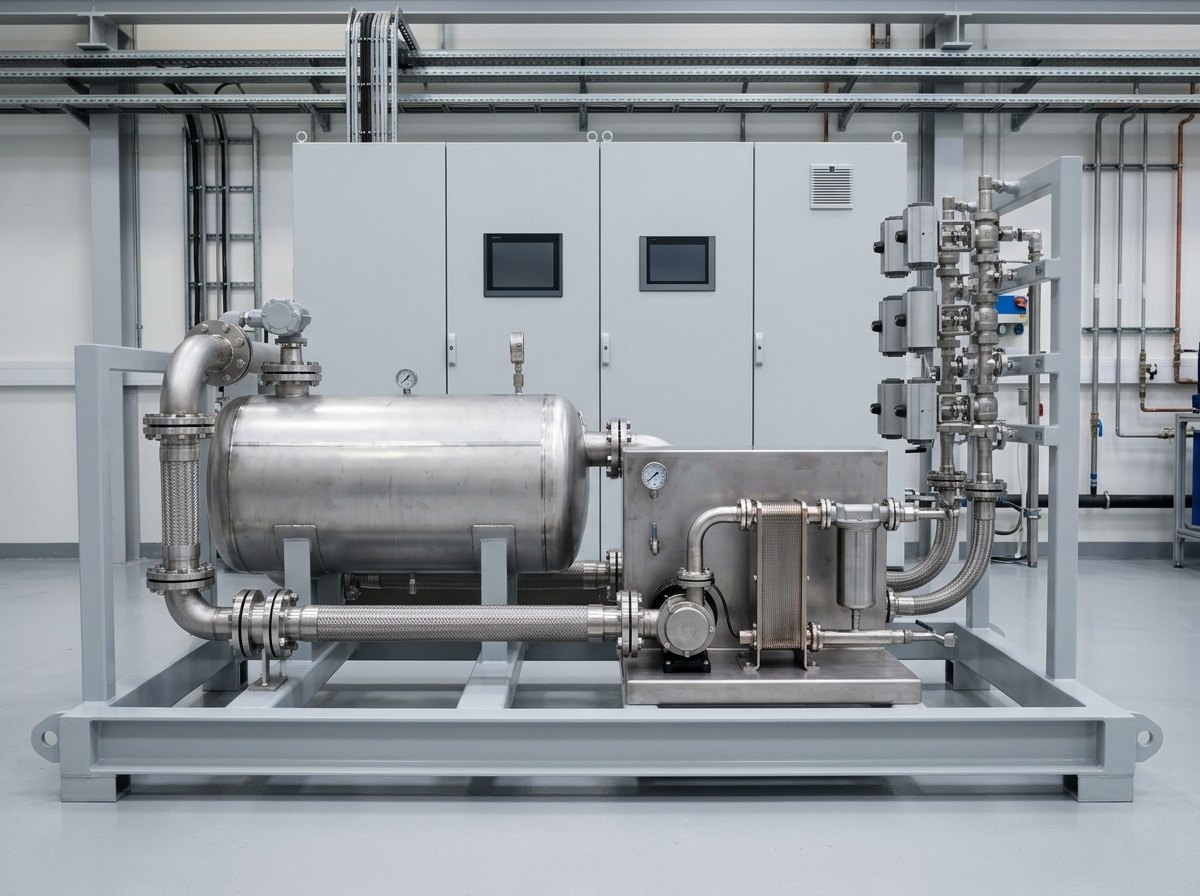

Illustrative of the class — a gas supply and oil conditioning skid in a clean test laboratory: a light-grey painted steel skid frame carrying a horizontal cylindrical insulated air heater vessel with a stainless jacket, a compact stainless oil conditioning module alongside with a small pump, a plate heat exchanger and a filter housing, heavy stainless pipework with bolted flanges and clean braided flexible hoses, a bank of stainless control valves with plain unmarked actuators, and a plain light-grey control cabinet with completely blank panels and dark switched-off screens behind, no people, nothing running and no readable markings

Fig · 04 The skid — the part of a turbocharger test rig that is not a turbocharger, and is most of the job

Where these rigs go wrong

Sized on the turbocharger rather than on the gas supply — the rig accepts the unit and then cannot reach the turbine inlet conditions needed for the top speed lines, which is discovered at commissioning when it is expensive. Turbine inlet temperature that drifts as the operating point moves, so points taken at different times are not comparable and the map is quietly wrong. Oil treated as a utility — then bearing behaviour, the thing actually under test, varies between runs for reasons nobody recorded. Instrumentation too slow to see surge onset, so the first indication of surge is damage rather than data. Containment specified by appearance instead of by burst energy. And flow measurement accurate at one end of the range and useless at the other, leaving holes in the map exactly where the interesting behaviour lives.

So the discipline runs the other way. The gas supply envelope is the first specification — mass flow, temperature and pressure at the turbine inlet, across the whole intended map — and the rest of the rig is derived from it. Inlet conditions are controlled, not merely supplied, and held while the operating point is walked. Oil is conditioned and its parameters logged with the test data, so a run can be reproduced. Instrumentation rates are set by the fastest phenomenon of interest, which is surge onset rather than steady operation. Flow measurement is chosen for range, not peak accuracy. And the containment is engineered against burst energy, with interlocked access, remote operation and a written safety case — then proved at commissioning rather than asserted.

Full specification — expand

System	Turbocharger test rig — hot gas supply, test section & mounting, oil conditioning, instrumentation, control & containment
Governing Idea	It is really a hot gas stand. Most of the rig, most of the cost and nearly all of the control difficulty sit upstream of the unit under test
Sized On	The gas supply envelope — mass flow, turbine inlet temperature and pressure across the whole intended map — not on the size of unit the rig can physically accept
Speed	Beyond 100,000 rpm, an order of magnitude past most rotating machinery, with critical speeds inside the operating range rather than outside it
Why Oil Is A Variable	The rotor floats on oil films whose thickness, stability and damping are set by supply pressure and temperature — so oil is specified, conditioned, measured and logged with the test data
The Deliverable	The map — pressure ratio against corrected mass flow along constant-speed lines, with efficiency islands, bounded by surge and choke
Why Mapping Is Hard	Finding the surge line means deliberately and repeatedly approaching the condition that damages the machine, under control, while holding a speed line
Instrumentation	Rates set by the fastest phenomenon of interest — surge onset, not steady operation. Flow measurement chosen for range rather than peak accuracy at one point
Containment	A design case sized by burst energy, not a guard chosen by appearance — because the rig exists to run units to and past their limits: overspeed, endurance, run-to-failure
Access	Remote operation, nobody in the cell while it runs, and interlocks that make presence impossible rather than merely discouraged
The Split	The dynamometer engine test rig tests the whole engine under load; this tests one component of it with the engine replaced by a gas supply. The transient engine test bench follows a duty cycle — and turbocharger lag is one of the very effects it exists to capture, which is characterised here first. And the compressor test rig runs a compressor on its own bench, driven by a motor; here the compressor is driven by a turbine on the same shaft, which is what makes the machine interesting and the rig difficult
Scope Boundary	Ours: rig design & integration, hot gas supply & control, test section, mounting & ducting, oil conditioning, instrumentation & data acquisition, automation & mapping integration, burst containment and the safety case, installation, commissioning, correlation, documentation, training, spares & AMC — including build to the customer's specification. Bought-in certified: burners, compressors and blowers, transducers and analysers, control hardware. The customer's: the turbochargers to be tested, the operating envelope and the test programme
Status	Engineered to order — equipment of this class quoted against a turbocharger test rig requirement for a defence vehicle manufacturer; no delivered turbocharger test rig is claimed

PDF · 1 page

Turbocharger Test Rig — Capability Sheet

Tender Response

Send the turbocharger range, inlet envelope & maps required — compliance matrix in two working days

Variants

One principle, four rigs.

What changes is how hot the gas has to be, how long the run lasts, and whether the answer is a map or a pass mark.

Var · 01

Hot Gas Stand for Development

The full instrument — the whole map, to the corners, with the gas supply sized for the hardest speed line.

Var · 02

Cold-Flow / Compressor-Only Bench

No burner — the compressor driven without hot gas, for aerodynamic work where turbine conditions are not the question.

Var · 03

Endurance & Thermal Cycling Rig

Built to run for weeks — thermal cycling and run-to-failure, where containment and unattended operation dominate the design.

Var · 04

Production Acceptance Stand

Throughput, not curiosity — a short defined test, fast unit changes, and a pass or fail rather than a map.

Applications

Wherever a turbocharger has to be believed.

Development, qualification and acceptance — three different questions, one machine.

A · 01Engine & turbocharger development

A · 02Defence vehicle powerplants

A · 03Commercial vehicle & off-highway

A · 04Marine & genset engines

A · 05Remanufacture validation

A · 06Institutional research

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 Why is the gas supply the thing to specify?

Because it is the only part that limits what you can find out. A turbocharger's performance is described across a range of operating points, and to reach each one the rig has to deliver a particular combination of mass flow, temperature and pressure at the turbine inlet. The demanding corners — high speed, high pressure ratio — need the most gas at the highest temperature, and those are precisely the corners that matter for a modern engine. So the honest specification of a turbocharger rig is a gas supply envelope: how much flow, how hot, at what pressure, and how steadily it can be held. What tends to get specified instead is the physical size of unit the rig can accept, because that is easy to write and easy to verify. The two are almost unrelated. A rig can happily bolt on a large turbocharger and then be unable to drive it above a fraction of its speed range, which produces a map with the top half missing — and the top half is usually the reason the machine was being tested. The awkward part is that this is discovered late: the rig accepts the unit, runs, produces plausible data at low speeds, and only reveals its limit when someone asks for the speed line that matters. Establishing the envelope first, and sizing the burner, blower and ducting from it, is the whole discipline.

Q · 02 Why is oil treated as a test variable rather than a service?

Because at these speeds the bearing system is effectively what is being tested, and it is made of oil. A turbocharger rotor does not run in bearings in the way a gearbox shaft does; it floats on thin films of oil, and in many designs on a second film outside a floating sleeve as well. The thickness of those films, their stiffness, their damping and their stability are all set by the oil's supply pressure, its temperature and therefore its viscosity. Change the oil temperature by a modest amount and you change the film, and with it the rotor's behaviour, its vibration, its response through critical speeds and ultimately its life. This has two consequences for a rig. First, oil has to be conditioned — pressure regulated, temperature controlled, filtered to a defined cleanliness, and its flow measured — because otherwise a variable that strongly affects the result is drifting uncontrolled. Second, its parameters have to be logged alongside the performance data, so that a surprising result can be checked against the conditions that produced it, and so a test can be reproduced months later. Rigs where oil is plumbed in as a service rather than instrumented as a variable produce results that cannot be compared with each other, and the disagreement is usually blamed on the turbochargers.

Q · 03 What exactly is the map, and why is it hard to produce?

The map is the deliverable — the thing an engine designer actually needs. For the compressor it plots pressure ratio against corrected mass flow, with lines of constant corrected speed running across it and islands of constant efficiency drawn on top, and it is bounded on the left by surge and on the right by choke. The turbine gets an equivalent treatment. Producing one is laborious rather than clever: hold a speed line, move the operating point along it by throttling, wait for conditions to stabilise, record, move again. Two things make it genuinely hard. The first is that everything is corrected to reference conditions, so the accuracy of the map depends directly on how well inlet temperature and pressure are measured — an error there propagates into every point. The second is the left-hand boundary. The surge line can only be found by approaching surge, which is an aerodynamic instability that causes violent flow reversal and can damage the machine. So the rig has to creep towards it in a controlled way, detect its onset quickly enough to back off before harm is done, and do that repeatedly on every speed line. That single requirement sets the instrumentation rates, the control response and much of the safety design.

Q · 04 Is a burst containment enclosure really necessary?

Yes, and the reasoning is worth setting out because it is often argued about. A compressor or turbine wheel is a substantial piece of metal turning at extreme speed, and the energy stored in it is large. If it fails — from a material defect, a foreign object, an overspeed, or simply the end of a fatigue life — that energy leaves as fragments, and they leave through whatever is nearest. On a vehicle the surrounding structure provides some protection. On a test rig there is nothing but the enclosure. The argument that this is unlikely misses what a rig is for. A production engine is meant to spend its life inside its operating envelope; a test rig exists to establish where that envelope is, which means running to overspeed, running endurance programmes until something fails, and deliberately approaching aerodynamic instability. Failures are not an unfortunate side effect of testing — on a well-used rig they are part of the schedule. So containment is engineered as a design case: the credible burst energy is established, and the enclosure, its panels, its window and its fixings are sized to absorb it. Alongside that sits the access philosophy, which matters just as much: remote operation, nobody in the cell while it runs, and interlocks that make entry physically impossible rather than merely against the rules.

Q · 05 How does this differ from an engine test bed?

The subject is different, and so is what limits the answer. An engine test bed has a real engine on it and a dynamometer absorbing its output; the engine makes its own exhaust, and the questions are about power, consumption, emissions and durability of the whole machine. A turbocharger rig has no engine at all — the engine has been replaced by a gas supply, precisely so the turbocharger can be studied on its own terms, at operating points an engine might never sustain, and independently of everything else that would otherwise change at the same time. That isolation is the point: on an engine, a change in turbocharger behaviour is entangled with combustion, with thermal state, with control calibration. On a rig it is not. It also means the two are complementary rather than alternatives. A turbocharger is characterised here, on a gas stand, and its map goes into the engine model; then the engine is run on a dynamometer, and if the transient behaviour is being investigated, on a transient bench following a duty cycle — where turbocharger lag shows up as fuel consumed and emissions produced. Laboratories that do serious powertrain work generally have both, and the rig is usually the smaller and less glamorous of the two while producing the data everything else depends on.

Q · 06 What do you build, what is bought in — and what is claimed?

Divided honestly. What Neometrix provides: the rig design and integration — establishing the gas supply envelope from the maps the laboratory needs, and sizing everything else from it; the hot gas supply and its control, including holding turbine inlet temperature and pressure steady while the operating point moves; the test section, mounting and ducting, with adapters and a unit-change arrangement that respects the fact that throughput is the rig's real economics; the oil conditioning system, specified and instrumented as a test variable rather than a service; the instrumentation and data acquisition, with rates set by surge onset rather than by convention, and flow measurement chosen for range; the automation and mapping integration that turns a day of point-taking into a repeatable procedure; the burst containment and the written safety case, with interlocked access and remote operation; and installation, commissioning, correlation, documentation, training, spares and AMC — including build to the customer's own specification. What is bought-in certified: burners, compressors and blowers, transducers and analysers, and control hardware — proprietary products of established makers, integrated rather than imitated. What is the customer's: the turbochargers to be tested, the operating envelope and the test programme. And the record, stated plainly: equipment of this class has been quoted against a turbocharger test rig requirement for a defence vehicle manufacturer, and no delivered turbocharger test rig is claimed. The class is engineered to order, around the map it has to produce.

↗

The engine test family from Neometrix.

The whole engine, the cycle it runs, and the one component that decides both.

↗ Whole engine

Dynamometer Engine Test Rig

The engine under load — here the engine is replaced by a gas supply.

↗ The cycle

Transient Engine Test Bench

Where turbocharger lag shows up as fuel and emissions — characterised here first.

↗ Motor-driven

Compressor Test Rig

A compressor on its own bench — driven by a motor, not by a turbine.

Browse all Neometrix product lines.

Get a quotation

Send the inlet envelope
and the maps you need.

The projects desk replies within two working days with a clause-by-clause compliance matrix and a budgetary quotation. Write to [email protected] or use the form.
