Run it on the bench. Trust it in the field.

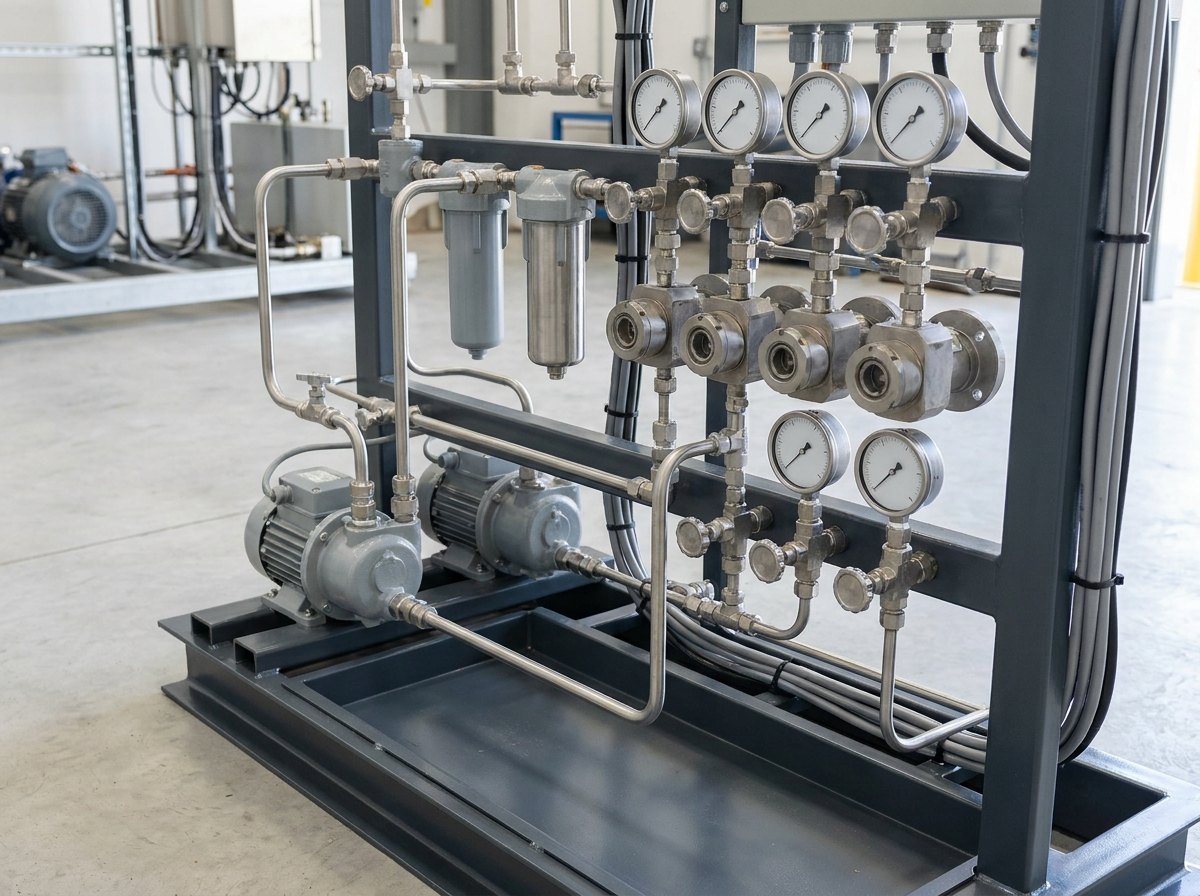

Because the engine is small but the physics is not. A small gas turbine carries the full drama of its big relatives — compressor, combustor, turbine, tens of thousands of revolutions a minute, gas temperatures near the limits of its alloys — compressed into a machine you can lift. Nothing about that is safe to hold in your hands or judge by ear. To learn anything from it you must hold it rigidly but freely along the thrust line, feed it fuel whose flow you can swear to, bring it to light-off the same way every time, and stand somewhere else while it runs. Each of those needs is a system: a flexure stand with a calibrated load cell; a fuel skid with filtration and metering; starting and ignition under sequence control; interlocks that abort faster than human reaction; acquisition that stamps every channel with one clock; exhaust, fire and camera systems that make the whole thing survivable. Leave any one of them out and the remainder is compromised — a bench without honest fuel metering cannot give an honest efficiency figure, and a bench without abort logic will eventually convert a test article into shrapnel. The installation is not ceremony around a small machine. It is the minimum apparatus that turns a dangerous, fast, hot object into a source of numbers you can build a programme on.

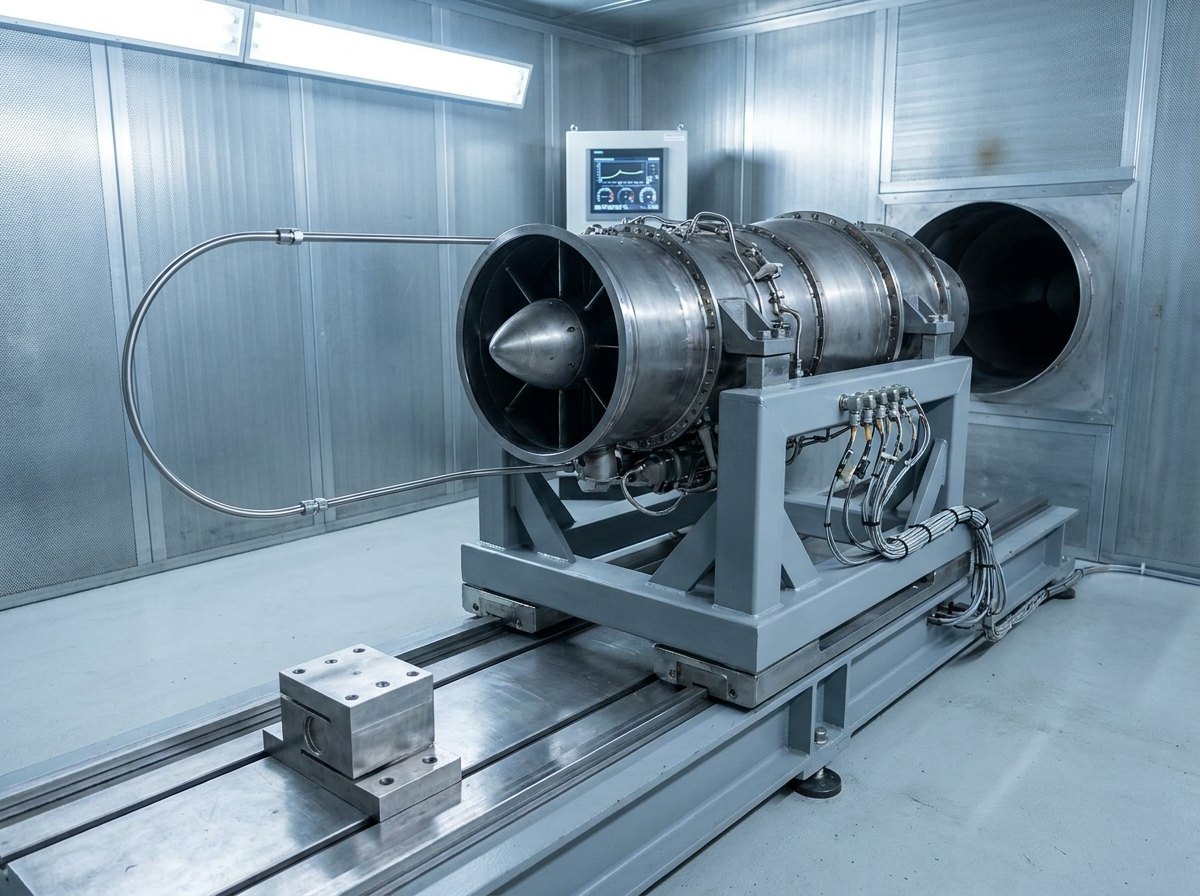

By letting the engine push on exactly one thing, and calibrating that thing relentlessly. The engine sits in a cradle, and the cradle rides on flexures — thin metal elements that are stiff in every direction except along the engine's axis. Along that axis the whole assembly floats, and the only thing stopping it is a load cell. When the engine runs, everything it pushes goes through that one cell. The idea is simple; the honesty is in the housekeeping. Fuel lines, oil lines, instrument cables and exhaust connections all cross from the fixed world onto the floating cradle, and every one of them tugs. So they are routed in gentle loops, entered perpendicular to the thrust line where possible, and their residual pull is measured by tare runs — loading the stand with known forces before and after a campaign and confirming the cell reads what physics says it should. Temperature moves the answer too: a stand that has been running hot all morning is not the stand that was calibrated cold, so zero checks bracket the runs. Done properly, the number that comes off the cell is not a reading. It is a defensible measurement, with a calibration trail an auditor can walk down — which is what separates a thrust stand from a bathroom scale with ambitions.

A fixed liturgy, because comparability is the point. First the checks: fuel state, oil state, instrumentation answering, cameras live, suppression armed, everyone in the cabin. Then a dry spin — the starter turns the engine without fuel or spark, proving the shafts run free, the speed pickups count, and nothing knocks. Then the start proper: the starter brings the shaft to the planned speed, igniters fire, fuel arrives on schedule, and light-off shows itself as a temperature rise and a self-sustaining acceleration to idle. The control system then walks the engine through its programme — hold at idle, step to part power, hold, step again, hold at full power, come back down — each hold long enough for the numbers to settle, because transient numbers flatter and steady numbers tell the truth. All the while the interlocks watch: speed limits, temperature limits, vibration limits, oil pressure floors. Trip any of them and the abort path acts in milliseconds — fuel closed, engine spooling down, suppression ready — long before a human could agree there was a problem. Finally the shutdown and the quiet minutes after, where bearings and residual heat are watched. Then the run file is closed: every channel, one timeline, archived. Two runs done this way can be laid on top of each other — and the difference between them is engineering information, not noise.

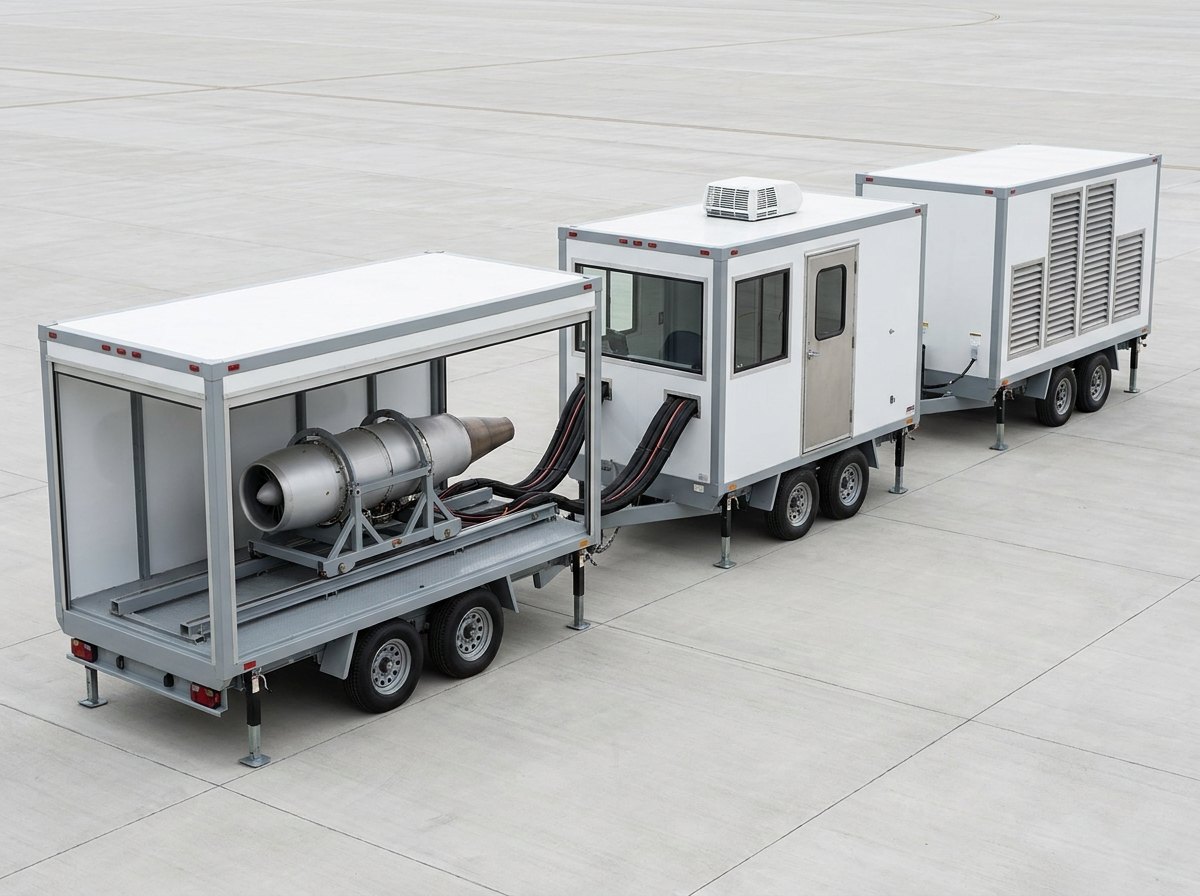

By refusing to leave anything behind. The delivered form of this facility rides on three trailers with the work divided cleanly between them. The test section trailer carries the stand: cradle, flexures, load cell, the engine's local plumbing and instrumentation, and the guarded structure around the running machine. The control cabin trailer is the human end — desks, displays, the control and acquisition systems, air conditioning for the electronics and the people, and a window and cameras onto the test section. The utility trailer carries what a remote site will not provide: generated power for the whole station, the fire suppression plant, stores and consumables. Arrive, park, level, cable the three together, and a piece of open ground becomes a test station — the same interlocks, the same measurement chain, the same records as a fixed cell, because it is the same engineering in a road-going wrapper. The discipline that makes it work is integration: every cable has one home, every hose one length, every setup step one order, so the facility erected this month reads like the facility erected last month. That is what lets a programme trust numbers taken in the field as it trusts numbers taken at home — and it is why the facility's operation and upkeep continue under our care in service.

Everything the engine did, arranged so it can be interrogated years later. The core channels are thrust from the load cell; shaft speed from the pickups; temperatures along the gas path — intake, compressor delivery, turbine region, exhaust; pressures at the stations that matter; vibration from accelerometers on the casings; and fuel flow from the metering run. Around them sit the bench's own health channels — oil pressures and temperatures, fuel state, ambient conditions — because an engine number without its context is half a number. All of it lands on one synchronised timeline and is archived per run, per engine, per campaign. What is it good for? Development teams overlay runs to see whether a change did what it promised. Production teams compare each new engine against the fleet's curve and catch the outlier before it ships. Overhaul teams compare an engine with its own younger self — the most honest comparison there is. And when something does go wrong, the archive turns an argument into an investigation: replay the run, read the sequence, find the second where the story changed. Data discipline is what turns a loud afternoon into engineering — and it is deliberately the same discipline our test-cell acquisition page applies across every bench we build.

Yes — and this page is written on that record. Neometrix has delivered a mini gas-turbine engine test bench with nozzles and accessories to a defence research laboratory, built a trailer-mounted mobile test facility for small turbo-propulsion systems for an engine-research establishment which it still supports in service, and has quoted against further gas-turbine engine test rig requirements. Behind the sentence: the bench and its nozzle kit were delivered against a competed public requirement, accepted on the customer's terms. The mobile facility was engineered from our own design data — test section, control cabin and utility trailers — built, factory-tested, inspected before dispatch and load-tested, and it now runs under a multi-year operation and maintenance engagement: our people, its consumables, its calibration cycles. Customers are described here as classes, never named, and no figure on this page comes from any customer document — both are deliberate. Around the delivered record stands the adjacent engineering this site shows in depth: test-cell data acquisition, engine ancillary rigs, fuel-handling equipment and the wider test-facility integration trade this firm is built on. The honest shape of the next contract is the one the delivered ones followed: compliance stated clause by clause, factory acceptance witnessed, the installation proven on site, operators trained, records complete — and support that does not end at handover.

In layers, each assuming the one before it fails. The first layer is distance and structure: the engine runs inside a guarded test section, people stay in the control cabin, and the window between them is backed by cameras so nobody is ever tempted closer for a better look. The second layer is the interlock logic: hard limits on speed, temperature, vibration and oil pressure, wired to act — not to advise. A trip closes fuel and drops the engine safe in milliseconds; operators are informed, not consulted, because human reaction time is the slowest component in the building. The third layer is fire: detection watching the test section and suppression plumbed to flood it, armed whenever fuel is aboard, tested on a calendar rather than a memory. The fourth is the unglamorous engineering that prevents incidents rather than surviving them — exhaust led away and cooled, fuel plumbing built and inspected like the pressure system it is, bonding and earthing done properly, spill containment under anything that can leak. And the last layer is procedure: one sequence for a run, one order for setup, one person's hand on the abort, checklists that are signed rather than remembered. None of this is decoration. A machine whose working fluid is burning fuel at tens of thousands of revolutions a minute either has safety engineered in depth, or it has luck — and luck has a service life.

Because they are how one bench becomes many benches. A thrust stand is a general-purpose instrument; an engine is a particular machine with its own mounts, its own plumbing positions, its own exhaust geometry. The fittings bridge the two: cradles machined for the engine's hard points, adapters that put fuel and instrumentation where this engine expects them, and test nozzles — exhaust hardware of known geometry fitted for a campaign, so the engine's performance is measured through an exit whose behaviour is understood, and so different builds can be compared through the same reference exit. Delivering these as an engineered kit — the way the first bench of this page's record was delivered, nozzles and accessories together — is what keeps a bench alive for years: when a new engine type arrives, the stand stays, the systems stay, the data discipline stays, and only a fitting set is designed, made and proven. That is also the honest economics of the trade. The expensive things — stand, fuel systems, controls, acquisition, safety — are bought once; the per-engine cost collapses to machined hardware. A customer who specifies the fitting kit as carefully as the bench is a customer who will still be running that bench a decade from now — on engines nobody had drawn when it was ordered.
