NMX-BAL-30 · ENGINEERED TO ORDER — INTEGRATED BALLAST & TRIM CONTROL SYSTEMS

You are not moving water. You are moving the centre of gravity.

Name: Integrated Ballast & Trim Control System
Brand: Neometrix

A ballast system exists to put the hull where it has to be — the draught it floats at, the trim fore and aft, the heel side to side. Every one of those is a statement about where the mass sits, not about how much water is aboard. So the output is a stability condition, and the system is sized by how fast attitude must change and how precisely it must be held — not by litres per hour. Two things follow that catch people out. A part-filled tank is more dangerous than a full or an empty one, because the water runs to the low side as she heels — and the penalty scales with the width of that surface cubed, so subdivision beats capacity. And because ships have been lost to mis-ballasting by sequences of individually reasonable valve operations, the console has to constrain the valves, not merely report on them. Equipment of this class has been quoted across ballast and trim control requirements for a shipyard and an ocean technology institute; no delivered ballast control system is claimed — the class is engineered to order.

Enquire — ballast & trim control Capability sheet (PDF)

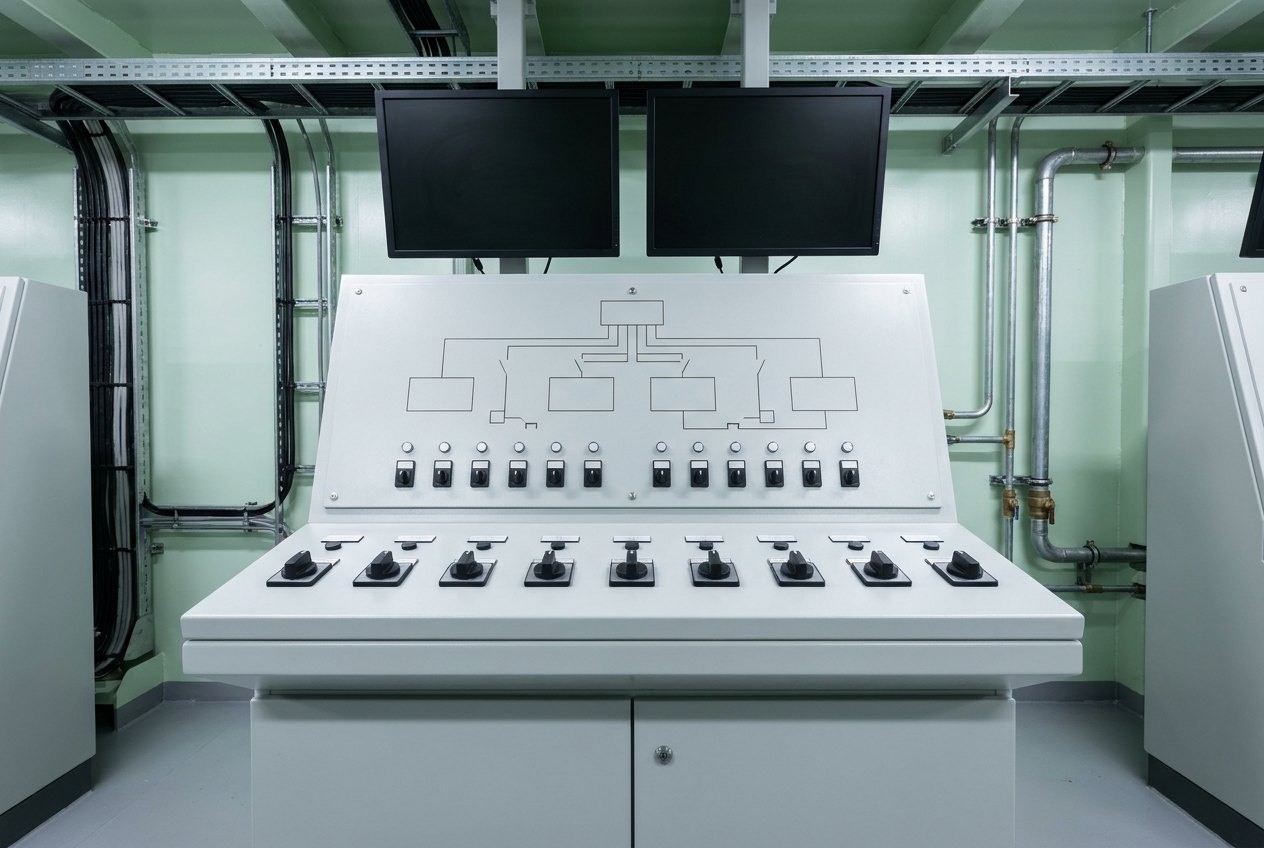

Illustrative of the class — a ballast control console in a newly fitted-out ship control room: a light-grey painted steel console at waist height with a sloped operating face, its upper panel carrying a large unlabelled mimic diagram of thin engraved lines and plain rectangles representing tanks with small round blank indicator lenses and blank rocker switches, a row of plain black rotary selector knobs along the sloped face, two dark switched-off screens above, plain pale-green bulkhead with tidy cable trunking behind, no people and no readable markings

Fig · 01 The console — and its real job is refusing the commands that would put her somewhere dangerous

Controls

draught, trim & heelattitude, not volume

Watch for

free surfacethe half-full tank

Judged on

safe states onlythe console constrains

Sensing

measured, not assumedvalve & level feedback

Status

engineered to orderquoted class

ISO 9001 / 14001 Engineered to order Marine systems Trials & commissioning Noida · India

Overview

Every tank is a weight you have chosen to put somewhere.

Which is why a ballast system is judged as a stability instrument rather than as pipework, and why the most dangerous thing it can do is move water competently to the wrong place.

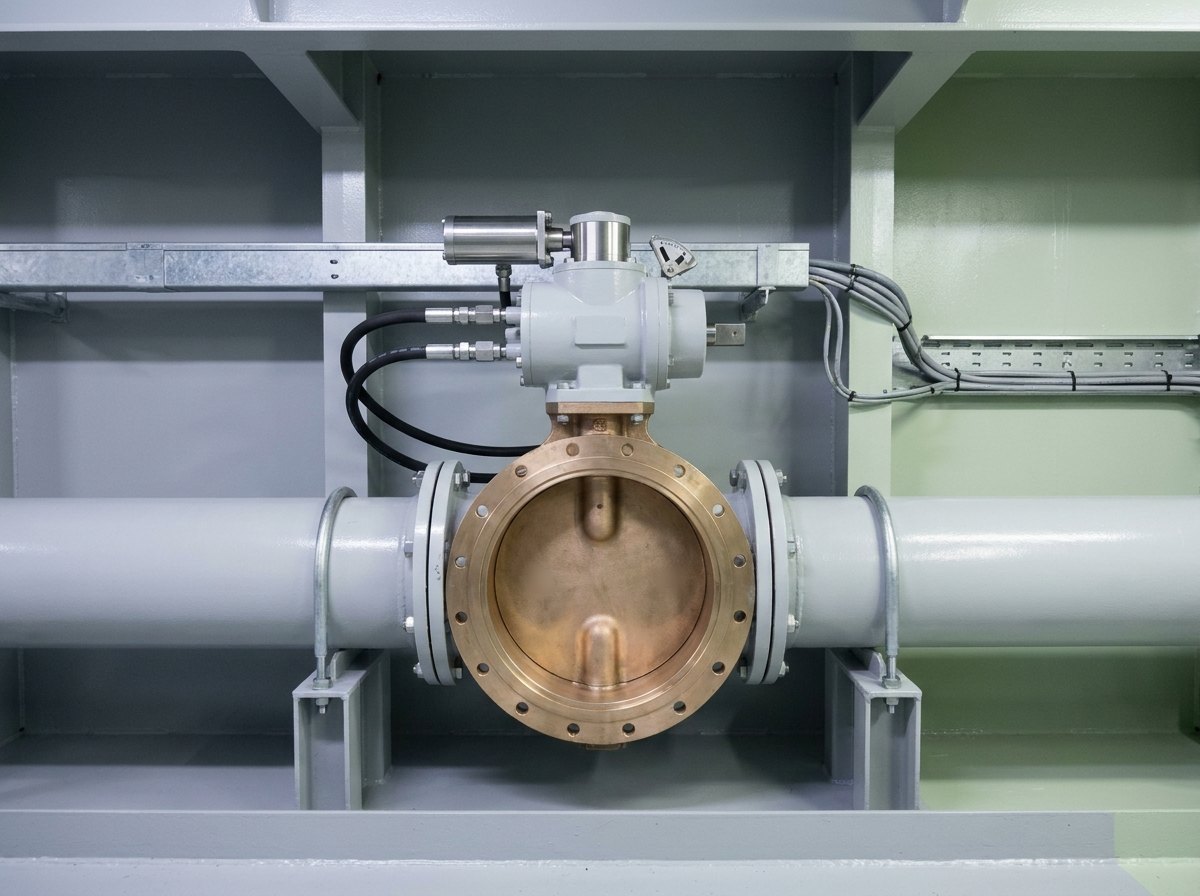

Illustrative of the class — a remote-actuated ballast valve on a pipe run in a machinery space: a large flanged butterfly valve in bare machined bronze set into a heavy epoxy-coated steel pipe, a compact light-grey painted hydraulic rotary actuator bolted to the top with a stainless position feedback unit and a mechanical position pointer beside it, two neat hydraulic hoses with stainless fittings, a square manual override shaft protruding from the actuator housing, galvanised pipe supports and painted steel structure behind, no people and no readable markings

Fig · 02 The valve — and the small stainless unit beside the actuator is what makes the console honest

The output is an attitude, not a level. Operators do not want six hundred tonnes in number three double bottom; they want the vessel upright at a given draught, or trimmed by the stern for a particular operation, or held level while something heavy is lifted over the side. Tank levels are only the means. That distinction sounds pedantic until it reaches the specification, where it decides everything: a system sized on flow answers “how fast can we shift water”, while a system sized on attitude answers “how fast can we change heel, and how finely can we hold it”. Those are different machines. The second needs controllability at small flows, not just capacity at large ones — and fine control near the setpoint is usually the harder half.

And the tanks fight back. The free surface effect is the reason a ballast system can make a vessel less stable while doing exactly what it was asked. Water in a part-filled tank is free to move, so as the hull heels it flows downhill, shifting the centre of gravity in the direction of the heel and reducing the moment that would right her. The loss depends on the shape of the surface, not the weight of the water, and it grows with the width of that surface cubed — so one wide tank half full can cost more stability than several narrow ones holding the same total. Which is why the arrangement drawing matters more than the pump curve, and why transfers are planned to move tanks between full and empty rather than to park them in the middle.

Then there is what the console is allowed to permit. The unhappy pattern in ballast incidents is not a burst pipe. It is a series of operations each of which looked fine — open this to trim, open that to correct a list, leave a valve cracked because it was going to be used again — that together left tanks in free communication with one another or with the sea. Nobody chose the outcome. So the control layer holds the stability model and checks the resulting condition before it opens anything.

Equipment of this class has been quoted across ballast and trim control requirements for a shipyard and an ocean technology institute. No delivered ballast control system is claimed: the class is engineered to order, and the record is stated as it stands.

Attitude

Sized on rate and precision

How fast heel changes and how finely it holds — not litres per hour.

Subdivided

Free surface bounded

Narrow tanks and bulkheads — because the loss goes with width cubed.

Constrained

Safe states only

Checked against the stability model before anything opens.

Architecture

Ask for an attitude, then prove where the mass went.

The schematic follows a command rather than the water — an attitude asked for, checked, achieved and verified — then the four blocks behind it: pumps and piping, valves and feedback, sensing, and the control and safety layer.

FIG · 03BALLAST & TRIM CONTROL ARCHITECTURE · PUMPS + PIPING / VALVES + FEEDBACK / LEVEL, DRAUGHT + ATTITUDE SENSING / CONTROL, STABILITY + SAFETY

Fig · 03 Subdivision bounds the free surface; limited authority bounds the operator

Arc · 01

Pumps, Piping & Sea Connections

Ballast pumps, eductors, mains and branches — sea chests and the valve arrangement that decides what can ever be connected to what.

Arc · 02

Valve Actuation & Feedback

Remote actuation with measured position — feedback that reports what a valve is, plus a manual override path.

Arc · 03

Level, Draught & Attitude Sensing

Tank level, draught, heel and trim — surviving sediment and a corrosive tank, with an independent way of checking it.

Arc · 04

Control, Stability & Safety

Console, stability model, limits, interlocks — alarms, and a defined safe state on loss of power or control air.

Specifying ballast control for a new hull or a re-control? Send the tank arrangement, the loading conditions, the attitude range and rate required, and the classification requirements — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Sized to the hull, not to the pipe.

The parameters below describe the engineering approach. Pump and pipe sizing, valve selection, sensing, console architecture and the limits built into the stability model all follow from four givens: the tank arrangement, the loading conditions the vessel must hold, the attitude range and rate required, and the classification requirements that apply.

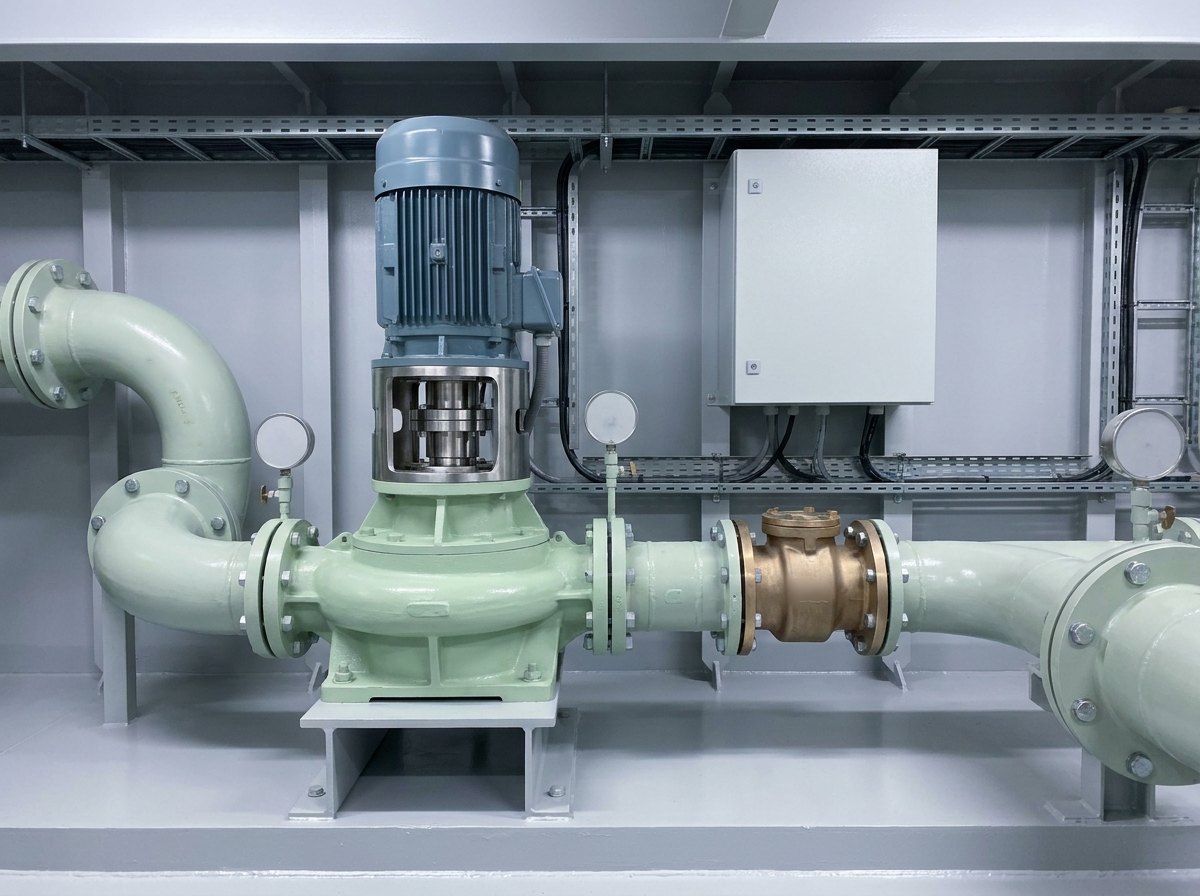

Illustrative of the class — a ballast pump set in a clean machinery space: a vertical centrifugal pump in pale-green marine paint on a light-grey painted steel seating welded to the deck, a blue-grey electric motor directly above on a machined stainless spacer coupling with an open guard, thick epoxy-coated suction and discharge pipework with large bolted flanges, a bare machined bronze non-return valve in the discharge line, blank unmarked pressure gauge bodies with faces turned away, and a plain light-grey local starter cabinet with blank panels on the bulkhead behind, no people and no readable markings

Fig · 04 The pump — almost never the thing that limits the system, and almost always the thing it is specified on

Where these systems go wrong

Sized on pump capacity when the requirement was rate of attitude change and precision of hold — so the vessel can be moved quickly and not placed accurately. Free surface ignored in the tank arrangement, leaving wide compartments that spend their working lives part-filled. Valve position assumed from the command rather than measured, so the mimic shows a tidy picture that the ship does not agree with. Level sensing that fouls with sediment and then reads high for ever, which is worse than no reading because it is trusted. No manual override, so a control fault escalates into an operational emergency at the worst moment. And a console that reports stability but does not constrain the valves — an advisory display beside a set of switches that will happily do the dangerous thing.

So the discipline runs the other way. The attitude requirement is the first input — range, rate and how finely it must be held — and pump and pipe sizing follow from it, with controllability at small flows treated as a requirement rather than an accident. The tank arrangement is assessed for free surface before anything is ordered, because subdivision is a drawing decision and cannot be bought later. Every remotely operated valve has measured position feedback and a manual override. Level sensing is chosen for the actual tank contents and backed by an independent check. And the console is built around the stability model, with the limits enforced ahead of the valve commands and a defined safe state on loss of power or control air — then proved at harbour and sea trials rather than asserted.

Full specification — expand

System	Integrated ballast & trim control system — pumps & piping, valve actuation & feedback, level/draught/attitude sensing, control, stability & safety
Governing Idea	You are not moving water — you are moving the centre of gravity. Draught, trim and heel are all statements about where the mass sits
How It Is Sized	By rate of attitude change and precision of hold, not by litres per hour — with controllability at small flows as a stated requirement
Free Surface	A part-filled tank is more dangerous than a full or an empty one — the water runs to the low side as the vessel heels and reduces the righting effect
Why Subdivision Beats Capacity	The free-surface loss depends on the shape of the surface, not the weight of the water, and scales with its width cubed — so narrow tanks, centreline and swash bulkheads outperform pumping power
The Safety Case	Vessels are lost to mis-ballasting far more often than to mechanical failure, usually through a sequence of individually reasonable valve operations that left tanks in free communication
Control Philosophy	The console constrains the valves: commanded states are checked against the stability model and its limits before anything opens, cross-connections are refused, and the system fails to a safe state on loss of power or control air
Real Failure Points	Valves and level sensing, not pumps. Position feedback must report what a valve is rather than what it was commanded; level sensing must survive sediment and a corrosive tank
Independent Check	A means of verifying level independently of the instrumentation, and a manual override path so that a control fault stays a control fault
Proving	Closed out at harbour and sea trials against the loading conditions, rather than asserted from a datasheet
The Split	Propulsion shafting and stern gear makes the vessel go. Steering gear and the rudder system makes her turn, using a hydrodynamic force on a control surface — this changes attitude using mass instead, which is the sharpest contrast on the site: the same objective by opposite physics. And marine and naval hydraulic deck equipment works on deck and at the hull openings, while this works inside the hull, in the tanks
Scope Boundary	Ours: system design & integration, pump & piping arrangement, valve selection and remote actuation with position feedback, level, draught & attitude sensing, the console and the stability model with its limits and interlocks, fail-safe behaviour, installation, commissioning and setting to work, harbour and sea trials support, documentation, training, spares & AMC — including build to the customer's specification. Bought-in certified: ballast pumps, valves and actuators, level and draught transmitters, and any treatment package. The customer's: the vessel, its tank arrangement, its loading conditions and its classification requirements
Status	Engineered to order — equipment of this class quoted across ballast and trim control requirements for a shipyard and an ocean technology institute; no delivered ballast control system is claimed

PDF · 1 page

Integrated Ballast & Trim Control — Capability Sheet

Tender Response

Send tank arrangement, loading conditions & attitude range — compliance matrix in two working days

Variants

Same physics, four installations.

What changes is the hull it serves, how finely it has to hold, and how much of the system already exists.

Var · 01

Surface Vessel Ballast Control

The integrated installation — pumps, valves, sensing and console, with the stability model built around the vessel's loading conditions.

Var · 02

Variable Ballast for a Submersible

The same physics at its limit — neutral buoyancy and fine trim, with hardware that must work under pressure.

Var · 03

Retrofit & Re-Control

Into an existing tank arrangement — usually new valves, actuation and sensing around pipework that stays.

Var · 04

Console & Stability Integration Only

Where the mechanical system exists — and what is missing is the model, the limits and the authority to enforce them.

Applications

Wherever a hull has to sit exactly where it is put.

The vessels for which attitude is an operational requirement, not a consequence.

A · 01Naval surface vessels

A · 02Shipyard new-build

A · 03Submersibles & deep-submergence vehicles

A · 04Offshore & support vessels

A · 05Dredgers & hopper craft

A · 06Floating docks & heavy-lift

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 Why size the system on attitude rather than on pump capacity?

Because capacity answers a question nobody actually asked. What an operator needs is the vessel at a particular draught, trim and heel, reached within an acceptable time and then held. Tank levels are only the mechanism by which that is achieved. Sizing on flow rate optimises for how quickly water can be moved, which is related to the requirement but is not the same thing — and the two diverge most exactly where it matters. Consider correcting a small list: the total mass to move is modest, so capacity is irrelevant, but the system must deliver a small quantity accurately, stop cleanly and not overshoot into a list the other way. That is a controllability problem, and a large pump with a coarse valve is poorly suited to it. Now consider a large planned trim change: here capacity does matter, but so does the route the vessel takes through intermediate conditions, because some of those may be less stable than either the start or the end. So the specification we work to states the range of attitude, the rate at which it must change, and the precision with which it must be held, and pump and pipe sizing, valve characteristics and control strategy are all derived from that. Capacity emerges from the requirement rather than defining it — and the resulting system is usually more controllable at small flows than one specified the other way round.

Q · 02 What exactly is the free surface effect, and why is width cubed?

It is the loss of stability caused by liquid that is free to move inside a tank. When a vessel heels, water in a part-filled tank flows to the low side. That shifts the centre of gravity of the whole vessel in the direction she is already leaning, which reduces the moment available to right her — so she heels further for a given disturbance, and in a bad case the effective stability can be reduced to the point where she does not return upright at all. The striking part is what governs the size of the loss. It is not the weight of the water: it depends on the geometry of the free surface, and it scales with the breadth of that surface cubed. Doubling the width of a tank multiplies the free-surface penalty roughly eightfold, even though the water in it may weigh the same. This one relationship drives most of the practical design. It is why tanks are subdivided by centreline bulkheads, turning one wide surface into two narrow ones and cutting the penalty dramatically; why swash bulkheads are fitted to interrupt the flow; and why a tank arrangement is assessed for free surface before any equipment is chosen, since subdivision is a drawing decision that cannot be retrofitted cheaply. It is also why operating philosophy matters: transfers are planned to take tanks from full to empty or empty to full, rather than leaving several tanks sitting at half, which is the condition that quietly costs the most.

Q · 03 What does it mean for the console to “constrain the valves”?

It means the control system holds a model of the vessel's stability and has the authority to refuse, rather than being a convenient way of operating valves from a chair with a display beside it. In an advisory arrangement, an operator selects valves and pumps, and a separate loading instrument shows the consequences — often after the fact, and often on a different screen from the one being used. Every ingredient of a serious incident is available in that arrangement: the individual actions are legitimate, the display is accurate, and nobody assembles the picture in time. A constraining console works the other way round. A commanded end state is evaluated before anything opens: does this condition stay inside the permitted envelope, and does the route to it stay inside it too? Certain configurations are simply not obtainable — particularly cross-connections that would put tanks in free communication with each other or with the sea, which is the mechanism behind a large share of ballast accidents. Alongside that sit ordinary interlocks: pumps that cannot run against a closed system, valves that cannot be operated without a confirmed position, and a defined safe state on loss of power or control air so a failure produces a known configuration rather than whatever the valves happened to be doing. None of this removes the operator's judgement. It removes their ability to reach a condition the naval architect has already ruled out.

Q · 04 Why insist on measured valve position rather than the command?

Because a valve that has been told to shut and a valve that is shut are different facts, and only one of them affects the ship. Remotely operated ballast valves fail in ordinary ways: an actuator loses hydraulic pressure and stops part-way; debris in a line prevents a butterfly disc from seating; a linkage slips; a solenoid sticks. In every one of those cases the command was issued correctly, so a mimic driven by commands will show exactly the arrangement the operator intended — while water quietly moves somewhere it should not. This is a particularly dangerous class of error, because the display is not merely unhelpful, it is actively reassuring. So each remotely operated valve carries position feedback taken from the valve itself, reported as an actual state including the intermediate one, so “in transit” and “stuck at forty percent” are distinguishable from open and shut. The stability model uses the measured positions rather than the commands, which means it can also detect the mismatch and alarm on it. For the same reason we insist on a manual override at the valve and an independent means of checking tank contents: if the control system is wrong, the crew must have a way to find out and a way to act that does not depend on the thing that is wrong.

Q · 05 How does a submersible’s variable ballast differ?

Same physics, far less margin. A surface vessel is inherently stable in the vertical sense: it floats at a draught set by its weight, and if a little too much water goes in, it simply sits lower. A submerged vehicle has no such restoring behaviour — once fully submerged, buoyancy no longer changes with depth in the way it does at the surface, so a small excess of weight means it keeps descending and a small deficiency means it keeps rising. The system's job is therefore to achieve and maintain neutral buoyancy, and the quantities are small and precise rather than large and approximate: fine adjustment of a modest mass, held accurately, with trim controlled separately so the vehicle stays level while doing it. The hardware constraints are also different. Everything must work against ambient pressure that rises with depth, which changes what pumps can do and makes the direction of transfer matter; components must tolerate that pressure and cycle reliably at it; and because internal volume is scarce, tanks and machinery are packed tightly, which makes the arrangement work harder. What does not change is the control philosophy. If anything it matters more, because the consequences of an unintended state arrive faster and the vehicle cannot simply be stopped while somebody thinks. The same principles apply — measured positions, limits enforced ahead of the command, and a defined safe state.

Q · 06 What do you build, what is bought in — and what is claimed?

Divided honestly. What Neometrix provides: the system design and integration — establishing the attitude requirement and deriving the pump, pipe and valve arrangement from it rather than from a catalogue; the piping arrangement and valve selection, including which connections are deliberately made impossible; remote actuation with measured position feedback and a manual override at every remotely operated valve; level, draught and attitude sensing chosen for the actual tank contents, with an independent means of checking it; the control console and the stability model that sits behind it, with its limits, interlocks, alarms and its defined safe state on loss of power or control air; and installation, commissioning and setting to work, harbour and sea trials support, documentation, training, spares and AMC — including build to the customer's own specification. What is bought-in certified: the ballast pumps, the valves and their actuators, the level and draught transmitters, and any treatment package required for the water carried — proprietary products of established makers, integrated rather than imitated. What is the customer's: the vessel, its tank arrangement, its loading conditions, and the requirements of its classification society. And the record, stated plainly: equipment of this class has been quoted across ballast and trim control requirements for a shipyard and an ocean technology institute, and no delivered ballast control system is claimed. The class is engineered to order, around the hull it has to hold in place.

↗
