NMX-NSQ-30 · ENGINEERED TO ORDER — SHOCK QUALIFICATION & SHOCK TEST MACHINES

Survive the blow. Then switch it on.

Name: Shock Qualification & Shock Test Machines
Brand: Neometrix

A warship is designed to survive a severe underwater shock event near the hull — but the ship is only as capable as the equipment that keeps working when the hull rings. So navies qualify equipment ashore, on standard machines whose honesty is brutal: severity is geometry — a known mass through a known height, set in kilograms and metres and read from an indexed quadrant, not from an amplifier. Hammer machines to the MIL-S-901 class geometry; guided drop and pneumatic tables shaping half-sine and sawtooth pulses of stated g and milliseconds (10–300 g, 3–30 ms class, payloads to 1000 kg and beyond); bump machines for the thousands-of-bumps question — and a pass that is functional: the equipment working afterwards. Machines of this class have been quoted across pneumatic shock-machine, drop-table shock and bump-machine requirements; no delivered shock machine is claimed — the class is engineered to order.

Enquire — shock test machines Capability sheet (PDF)

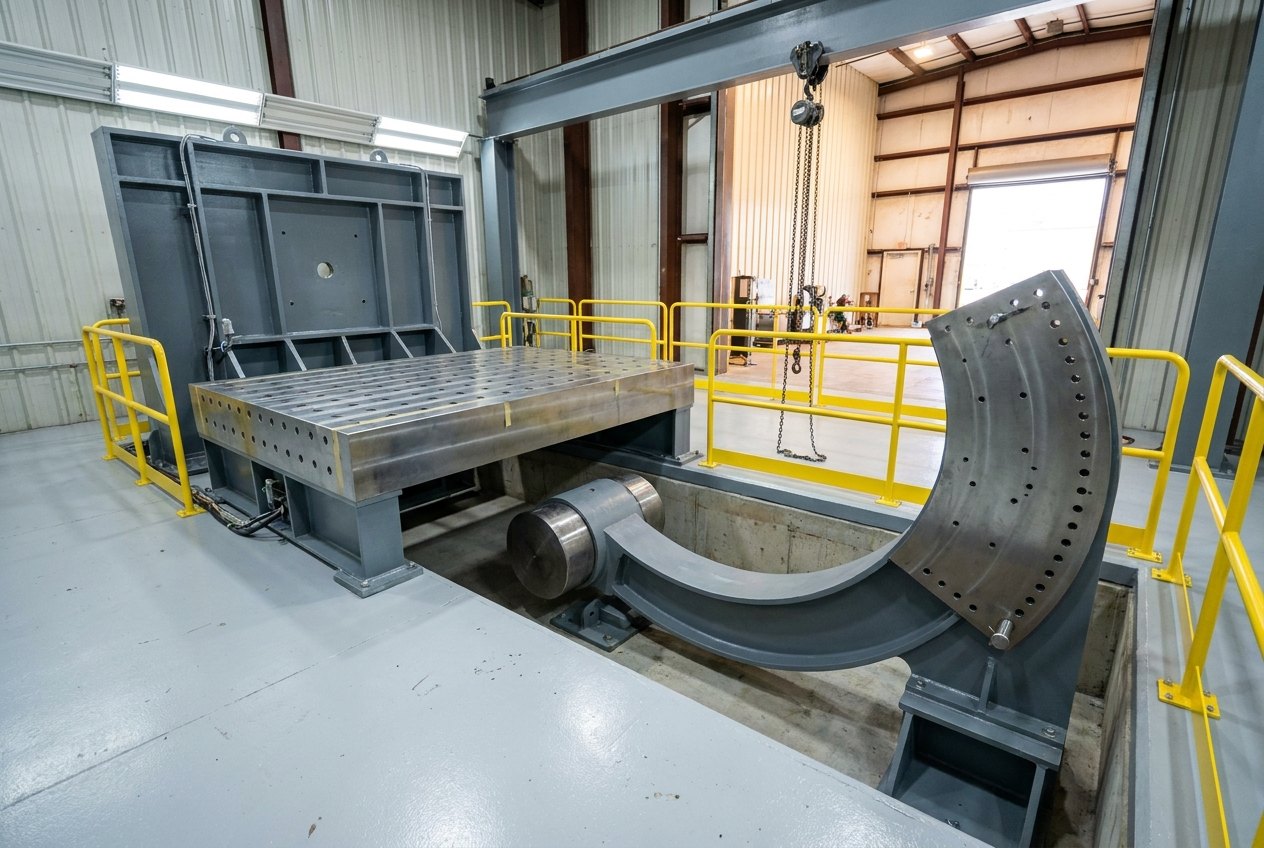

Illustrative of the class — a medium-weight-class naval shock qualification machine in a clean tall test hall: a heavy fabricated steel frame in fresh machine-grey paint standing over a shallow concrete pit, a very thick anvil table with a bright machined top drilled with a neat grid of tapped holes, a massive curved hammer arm with a cylindrical head resting at the bottom of its arc beneath the table, a tall curved steel quadrant plate carrying a row of plain drilled index holes and a locking pin, a chain hoist hanging from the frame beam, fresh yellow safety railing around the pit edge, clean light floor, no people and no readable markings

Fig · 01 The medium-weight-class geometry — a hammer below, an anvil table above, and a drop height read from a row of drilled index holes

Severity

kg & metresset by geometry, indexed

Pulse

half-sine / sawtooth10–300 g · 3–30 ms class

Payload

to 1000 kg+pneumatic assist beyond gravity

The pass

it works afterfunction is the verdict

Status

engineered to orderhammer · drop · bump family

ISO 9001 / 14001 Engineered to order MIL-S-901-class geometry Dynamics test franchise Noida · India

Overview

One calibrated collision, witnessed honestly.

An electrodynamic shaker plays a waveform; a shock machine delivers a collision. The whole engineering problem is making that collision exactly as severe as the standard demands, orientation after orientation, article after article — and proving the equipment still works once it has been hit.

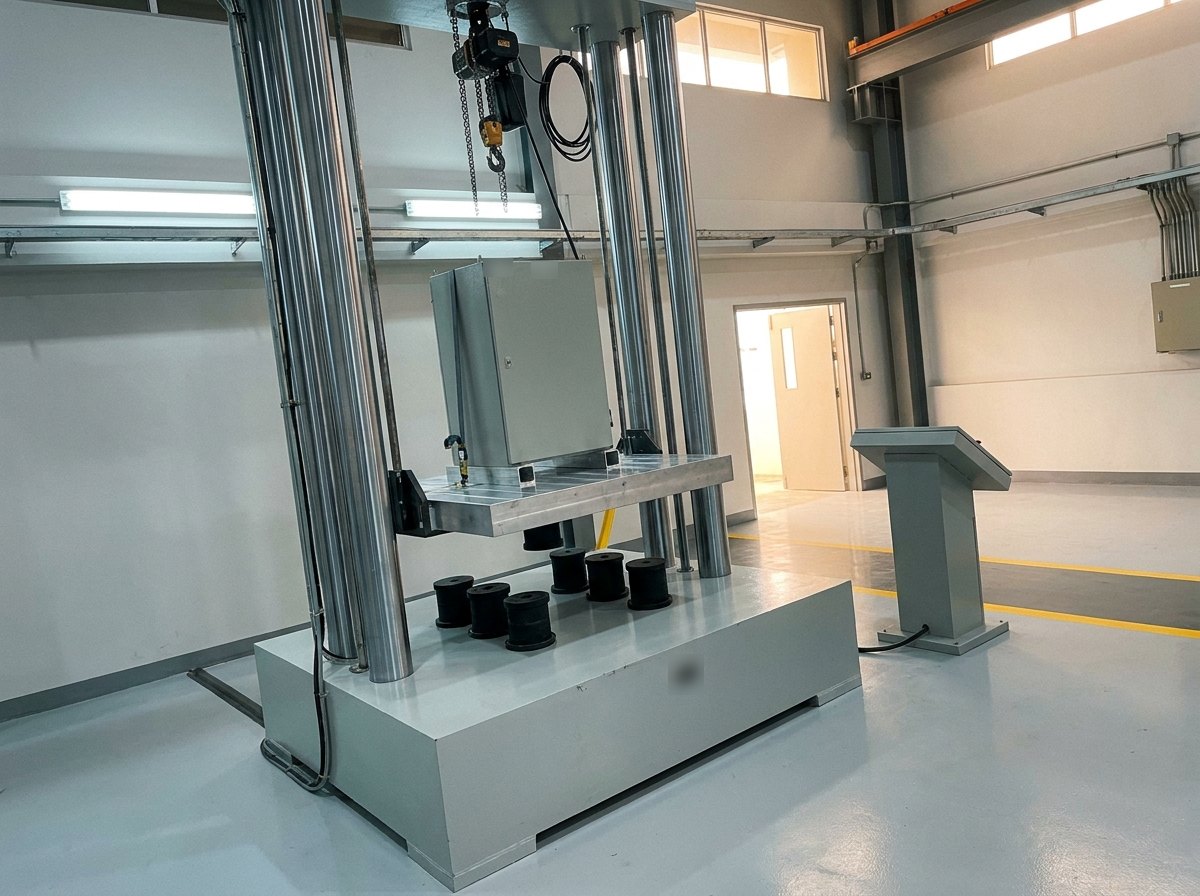

Illustrative of the class — a guided drop-shock test machine in a clean laboratory hall: two tall polished steel guide columns rising from a broad painted seismic base block, a machined drop table riding between the columns carrying a plain grey equipment cabinet on a mounting fixture, short cylindrical black elastomer pulse-shaper elements arranged on the base beneath the table, an electric chain hoist and release mechanism at the top of the columns, a small control pedestal standing apart with its panel angled away, clean light floor with a yellow line, no people and no readable markings

Fig · 02 The drop table — the payload rides down, the shapers crush, and the arrest is the test

The naval machines are geometry you can audit. Energy is weight times drop, so the hammer machines set severity in kilograms and metres: the lightweight-class machine swings its hammer into the mounting plate's side and top, the medium-weight-class machine swings a heavy hammer up beneath an anvil table carrying the article, and the drop height is read from an indexed quadrant — a locking pin in a drilled hole, repeatable for decades. The largest items go afloat on a floating shock platform, for which we supply cradles and fixtures rather than the trial itself.

Below warship scale, shock is made on a guided drop table — the quoted family. The payload rides a table falling onto pulse shapers: elastomer, felt, lead or honeycomb elements whose controlled crush turns the arrest into a defined half-sine or sawtooth pulse of stated g and milliseconds — the 10–300 g, 3–30 ms class, payloads to 1000 kg and beyond. Pneumatic assist accelerates the table past gravity for heavy payloads and tall equivalent drops; a seismic reaction mass keeps the blow out of the building. Bump machines add the statistical cousin: thousands of modest repeated bumps from a cam-lifted table — endurance by count, for transport and rough handling.

And there is no second take. The discipline is a short series of defined blows per orientation — so the fixture, the instrumentation, the recording and the safety must work the first time, every time. The verdict is not a trace on a screen: it is the equipment working afterwards, and for mission-critical items, working through the blows.

Machines of this class have been quoted across pneumatic shock-machine, drop-table shock and bump-machine requirements — for defence laboratories, a defence production body and equipment manufacturers. No delivered shock machine is claimed: the naval hammer geometry is capability within the same discipline, and the class is engineered to order.

Geometric

Severity you can audit

A known mass through a known height — kilograms and metres, not electronics — indexed, recorded, repeatable.

One-shot

No second take

Fixture, trigger, capture and guarding proven before the blow — because the blow will not be repeated for the instrumentation's sake.

Functional

The pass is the switch-on

Accelerometers record the event, but the verdict is the article working afterwards — and through it, where the duty demands.

Architecture

Lift, release, strike, verify.

The schematic follows the blow — the article bolted on as it would be aboard, the severity set in metres, the strike delivered, the function verified — and the machine underneath: hammer geometry, drop table and shapers, fixtures and adapters, instrumentation and the record.

FIG · 03SHOCK MACHINE ARCHITECTURE · HAMMER GEOMETRY / DROP TABLE + PULSE SHAPERS / FIXTURES + DECK ADAPTERS / INSTRUMENT, CALIBRATE + RECORD

Fig · 03 Severity set in metres, verdict read at the switch-on

Arc · 01

Hammer Machines

Lightweight- and medium-weight-class geometry — swinging mass, anvil table and stops, indexed quadrant, release, hoist and interlocks.

Arc · 02

Drop Table & Pulse Shapers

Guided table, shaper crush, pneumatic assist — half-sine and sawtooth pulses of stated g and milliseconds on a seismic reaction mass.

Arc · 03

Fixtures & Deck Adapters

Stiff, measured, managed as test assets — the article must feel the machine, not the fixture's resonance.

Arc · 04

Instrumentation & Calibration

High-g channels, triggered capture, calibration blows — the pulse trace kept beside the functional result.

Qualifying equipment for shock? Send the standard, the payload masses and the severities — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Reference machines, built to the standard.

The parameters below describe reference machines. Hammer class, table size, shaper family, payload range and channel count all follow from three givens: the standard invoked, the payload masses, and the severities the programme must reach.

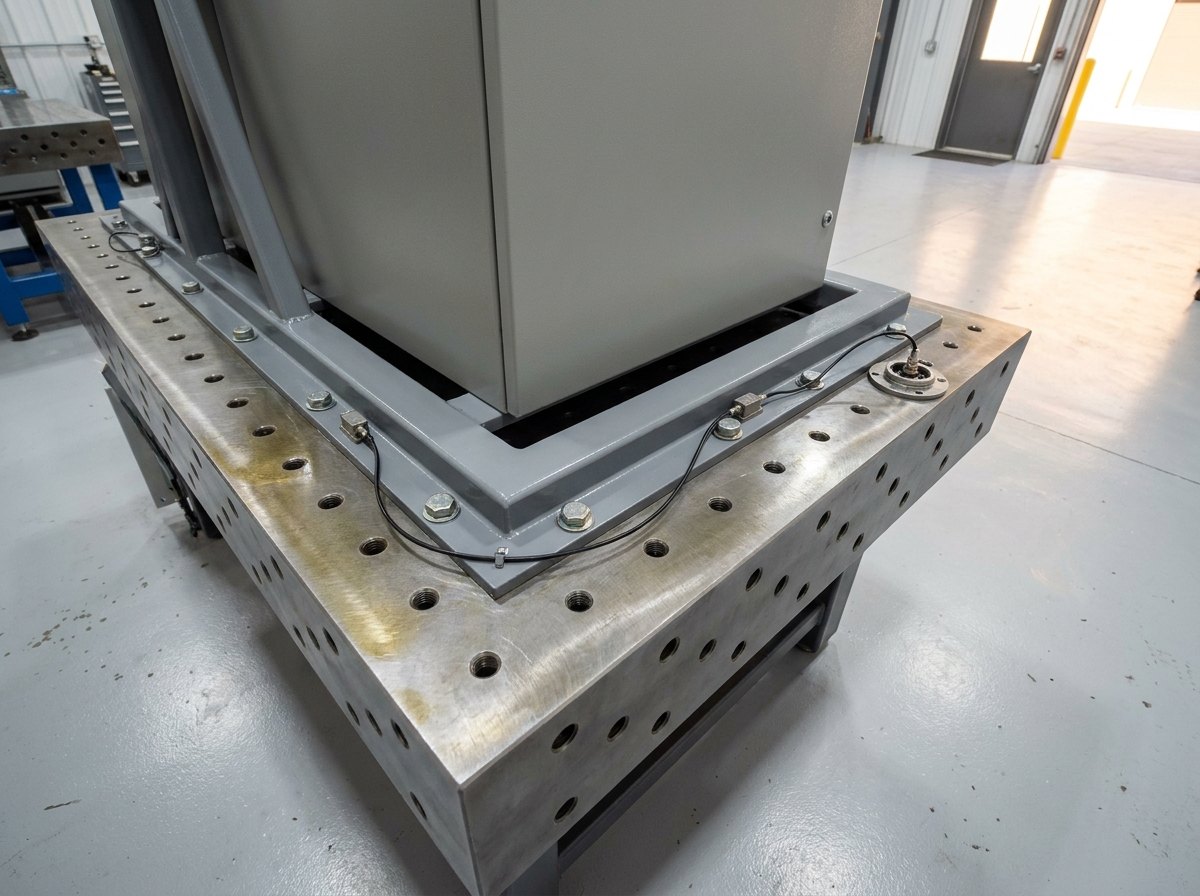

Illustrative of the class — close view of a thick machined anvil table in a clean test hall: a fresh-grey standardised steel mounting frame bolted to the table's grid of tapped holes, a plain grey sheet-metal equipment cabinet fixed inside the frame, small accelerometers with thin black cables clipped along the frame edge running to a round bulkhead connector at the table corner, bright machined table surface, clean light floor behind, no people and no readable markings

Fig · 04 The fixture is part of the article — bolted to the anvil's grid, instrumented, and stiff enough to tell the truth

Where shock machines go wrong

A resonant fixture that softens or sharpens the blow — the article tested against the fixture, not the standard. Pulse shapers reused past their crush life, so g and milliseconds drift batch by batch. Table mass unaccounted — payload plus fixture changes severity, and nobody recalculated the drop. Instrumentation that clips or misses the trigger on a millisecond event that cannot be repeated. Function checked only before, when the standard's question is after — and sometimes during. No calibration blows, so machine wear quietly rewrites the pulse. The building in the load path — no seismic mass, so the laboratory shakes and the pulse distorts. Safety treated casually around a multi-hundred-kilogram swinging or falling mass. And records that stop at “passed”, when the pulse trace beside the functional result is the certification evidence.

So the discipline runs the other way. Fixtures are designed stiff and proven by measurement before the article arrives. Shapers are lot-tracked and retired on schedule; severity is recalculated whenever mass changes. Channels are ranged, conditioned and trigger-proven on calibration blows — the same blows that prove the machine itself against the standard's tolerances as anvils, pivots, guides and shapers wear. Function is checked before, after and where required through the series. Guarding, interlocks and procedure treat the machine with the respect a swinging tonne deserves. And every blow leaves the machine with its trace, its geometry and its functional verdict filed together — which is what lets a laboratory certify the result.

Full specification — expand

System	Shock qualification & shock test machines — naval hammer geometry, guided drop & pneumatic tables, bump machines, fixtures, instrumentation & calibration
Governing Idea	Severity is geometry — a known mass through a known height; kilograms and metres, read from an indexed quadrant, not electronics
Hammer Machines	Lightweight- and medium-weight-class to the MIL-S-901 geometry — hammer beneath an anvil table, drop height indexed by pin and quadrant; for the largest items, floating-platform cradles and fixtures are supplied rather than the trial
Drop & Pneumatic	Guided table onto pulse shapers; pneumatic assist beyond gravity for heavy payloads and tall equivalent drops
Pulse Shaping	Half-sine & sawtooth pulses of stated g and milliseconds — the 10–300 g, 3–30 ms class — from the controlled crush of elastomer, felt, lead or honeycomb shapers
Payloads	To 1000 kg and beyond — payload, fixture and table mass all in the severity calculation, recalculated on every change
Bump Machines	Thousands of modest repeated bumps from a cam-lifted table — endurance by count for transport and rough handling
Fixtures	Stiff mounting frames & deck-simulating adapters, proven by measurement and managed as test assets — the article must feel the machine, not the fixture
Instrumentation	High-g accelerometers, conditioned channels, triggered capture that cannot miss a millisecond event; the trace filed beside the functional verdict
Calibration	Recorded calibration blows prove the machine against the standard's tolerances as anvils, pivots, guides and shapers wear
The Pass	Functional — the equipment working after the blows, and through them where the duty demands; one blow, no second take
The Split	This page is the calibrated collision. The site's vibration & shock test system is the programmable waveform — electrodynamic spectra to MIL-STD-810; the snubber & shock-arrestor facility tests the hardware that absorbs a blow, not the equipment that must survive one
Scope Boundary	Ours: machines, foundations & seismic masses, anvil tables & stops, release & hoist systems, guarding & interlocks, fixtures & deck adapters, pulse-shaper regime, instrumentation integration, calibration-blow procedures, installation, commissioning, documentation, training, spares & AMC — including build to the customer's specification and drawings. Bought-in certified: high-g accelerometers, signal conditioning, DAQ hardware, hoists. The customer's: the equipment under test and its acceptance criteria
The Family	Beside the site's vibration, climatic and dynamics test line — and its naval-deck machinery franchise
Status	Engineered to order — machines of this class quoted across pneumatic shock-machine, drop-table shock and bump-machine requirements; no delivered shock machine is claimed

PDF · 1 page
