Agricultural and industrial gearboxes undergo hundreds of millions of load cycles across their service lives — managing the power transmitted from engines to wheels, axles, and implements across a wide range of speeds and torques. A gearbox that develops excessive noise, vibration, or backlash in service generates warranty claims, customer dissatisfaction, and potential safety issues. End-of-line production testing on a calibrated gearbox test bench catches these problems before the gearbox leaves the factory.
A gearbox test bench applies controlled hydraulic loading to the gearbox output while driving the input at specified speeds, measuring the actual torque and RPM performance across all gear combinations, detecting anomalies, and generating automated pass/fail reports — providing the production quality gate between manufactured gearbox and shipped product.
What the Test Bench Measures
Input vs output RPM: Verifying the gear ratios across all forward and reverse gear combinations match their design specifications. Any ratio anomaly indicates incorrect gear engagement, worn components, or assembly error.
Input and output torque: Measuring the actual torque at both input and output shafts. Torque difference (allowing for mechanical efficiency) reveals abnormal friction or internal damage.
PTO shaft speed (optional): For agricultural gearboxes with power take-off, the PTO shaft speed is measured and verified against the specification for each gear combination.
Hydraulic system parameters: The dual hydraulic power packs’ pressure and flow are monitored throughout — verifying that loading conditions are correctly applied and stable.
Noise and vibration (optional condition monitoring): Acoustic and vibration sensors detect gear mesh anomalies, bearing noise, and structural resonances that indicate production quality issues not revealed by simple torque/RPM measurement.
Dual Hydraulic Power Pack Architecture
Two independent hydraulic power packs provide loading. The dual architecture serves two purposes:
Load simulation: The hydraulic loading system applies controlled resistive torque to the output shaft, simulating the actual load the gearbox will experience in service. The magnitude of this load is programmable across the full test envelope.
Redundancy and range: Different load levels for different gear combinations can be applied using the two packs independently or in combination, providing the load range needed to properly test all gear profiles.
Five Selectable Speed Profiles
The test bench supports five selectable speed profiles — gears I through IV forward, reverse, and high/low range combinations — covering the complete operating range of the target gearboxes (centre-shift, side-shift, 9+3-speed, and DC/TRB types for Escorts Agrimachinery PU-Transmission Division in the reference design).
IIoT Integration and Digital Twin
IIoT connectivity: The Siemens ACS 550 VFD and NI DAQ cards provide real-time data output to the factory network and cloud infrastructure via standard industrial protocols.
Digital twin integration: Test data populates a digital model of each gearbox, allowing statistical analysis of production variation, correlation of test results with field performance data, and predictive maintenance insights for the test bench itself.
Automated reporting: PDF and Excel reports generated automatically at test completion, recording operator ID, shift, gearbox serial number, gear combination, RPM/torque readings, and OK/NG verdict for each test point — providing the complete traceability record required for OEM quality programmes.
Key Specifications
| Parameter | Specification |
|---|---|
| Hydraulic pressure | Up to 250 bar |
| Filtration | 10μm suction, 25μm return |
| Control | Siemens ACS 550 VFD, 10-inch HMI, NI DAQ |
| Reporting | Automated PDF/Excel with serial number traceability |
| Construction | Skid-mounted epoxy-coated steel with drip tray |
| Connectivity | IIoT-enabled, digital twin compatible |
Applications
Agricultural equipment OEM production: End-of-line testing of tractor and implement gearboxes at manufacturing facilities — the primary application, where 100% production testing catches assembly errors and component defects before gearboxes are installed in tractors.
Transmission maintenance and rebuild: Acceptance testing of overhauled gearboxes at rebuild centres, verifying restored performance meets OEM specification before the gearbox is returned to service.
R&D and product development: Characterising new gear designs, validating engineering changes, and mapping performance across the full operating envelope during product development.
Dealer and fleet workshops: For high-value agricultural equipment, testing rebuilt transmission units before reinstallation in field equipment.

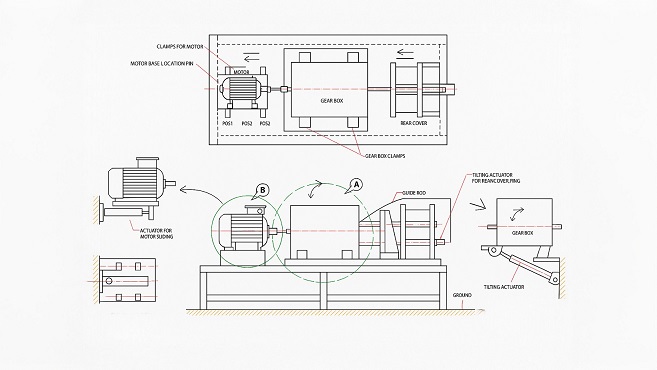

Neometrix Gear Box Test Bench
A purpose-built, skid-mounted gearbox test bench for agricultural and industrial transmission testing. Dual hydraulic power packs, five speed profiles, Siemens ACS 550 VFD, 10-inch HMI, NI DAQ cards, WIKA instrumentation, automated PDF/Excel reporting with serial number traceability, IIoT connectivity, and digital twin integration. Built for Escorts Agrimachinery PU-Transmission Division as reference platform.
→ View Full Specifications
→ Request a Quote
FAQ
Q: What is end-of-line gearbox testing and why is it necessary for agricultural equipment?
A: End-of-line testing applies the same test protocol to every gearbox produced, before it leaves the factory. For agricultural gearboxes, this verifies gear ratios, torque transmission efficiency, and freedom from abnormal noise or vibration across all gear combinations. It is necessary because agricultural gearbox failures in service — even warranty-covered failures — create significant customer impact (tractor unavailable during critical harvest or planting windows), costly field service visits, and reputational damage. Production testing catches assembly errors, component defects, and quality variations before they reach the customer.
Q: What is a digital twin for gearbox testing and what does it enable?
A: A digital twin is a software model of the physical gearbox that is populated with actual test data from the test bench — creating a data-linked virtual representation of each specific unit’s measured performance. Over time and across the production fleet, this enables statistical analysis of production variation (identifying systematic assembly or component issues), correlation of production test data with field warranty claims (identifying which production parameters predict field problems), and early detection of test bench calibration drift (when test bench data trends in ways that cannot be explained by production variation). It transforms test data from a pass/fail record into a continuous quality improvement resource.
Q: What is backlash in a gearbox and can a test bench detect it?
A: Backlash is the angular play at the gear mesh — the amount the output shaft can rotate before the input shaft is engaged, due to clearance between mating gear teeth. Some backlash is designed-in (necessary for lubrication and thermal expansion), but excessive backlash indicates worn gear teeth or incorrect assembly and causes vibration, noise, and imprecise power transmission. A gearbox test bench with appropriate measurement resolution can detect abnormal backlash through vibration signature analysis or dedicated backlash measurement routines, but the primary detection is usually through noise/vibration measurement during loaded rotation across gear transitions rather than direct angular measurement.
Q: Why does the test bench use separate suction and return filtration with different micron ratings?
A: The 10μm suction filter protects the hydraulic pump — preventing particles that could cause cavitation, pump wear, or damage to pump internal surfaces from entering through the suction line. The 25μm return filter is coarser because the return flow is lower-pressure and the priority is capturing wear debris from the system before it recirculates. The different ratings reflect the different protection requirements: fine filtration on the suction to protect the pump; sufficient filtration on the return to maintain circuit cleanliness without excessive pressure drop on the low-pressure return circuit. For servo valve applications, 3μm absolute filtration would be added, but for gearbox loading systems operating at moderate cleanliness requirements, this dual-rating configuration is appropriate.
