NMX-CFM-30 · DELIVERED AGAINST A WON ORDER — COMPOSITION FILLING & ASSEMBLING MACHINE

Dosed to the gram. Closed to the newton-metre.

Name: Composition Filling & Assembling Machine
Brand: Neometrix

Two rules govern this line. Weigh what you deliver — bulk density moves with humidity, batch and settling, so a volumetric doser drifts silently while a gravimetric head on a load cell corrects itself, holding ±2 g on the coarse composition and ±0.5 g on finer marker powders. And a seal is a torque figure, not an instruction — servo tools close to ±0.1 Nm against programmable thresholds, recorded per unit. Between those two rules sit 17 indexed stations: dust-free cleaning of the body, gravimetric filling, multi-layer sealing, robotic assembly, vision-guided labelling — about 500 units an hour, flameproof and interlocked, with nobody at the stations. This machine was delivered against a won order for a central armed police force’s less-lethal store line; further machines of the class have been quoted.

Enquire — filling & assembling machine Capability sheet (PDF)

Illustrative image, not the delivered machine — a compact multi-station filling and assembling line in a clean bay: a circular stainless rotary indexing table ringed by upright station heads inside a guarded cabinet of clear polycarbonate panels in grey framing, a straight feed track holding plain unmarked cylindrical aluminium canister bodies, a blank dark touchscreen on a pedestal, pale epoxy floor and walls, everything clean, empty and unattended, no people and no text

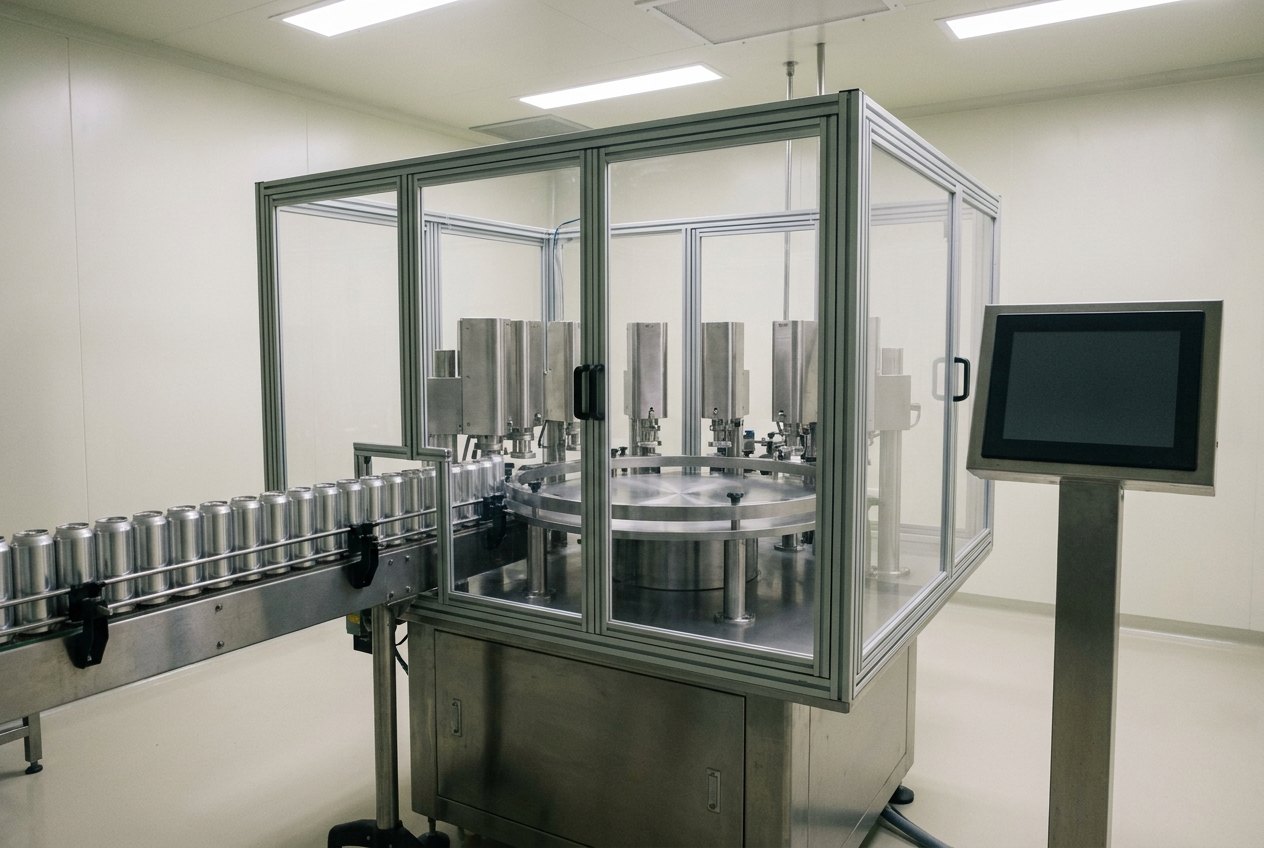

Fig · 01 The line — an indexing table, a ring of stations, and one job done repeatably at each — illustrative, not the delivered machine

Rate

~500 / hourcontinuous · configurable

Dosing

±2 g · ±0.5 ggravimetric · load cell

Torque

±0.1 Nmservo · thresholds

Stations

17, indexedone job each

Status

deliveredwon order · more quoted

ISO 9001 / 14001 Delivered against a won order Flameproof & interlocked Full digital traceability Noida · India

Overview

Weigh what you deliver. Close to a number.

A filling and assembling line is judged on one thing: whether the ten-thousandth unit is the same as the first. Everything that makes that true is a measurement decision rather than a mechanical one — dosing that weighs instead of assuming, closing that works to a torque figure instead of a feeling, and a record that leaves with every unit. The mechanics are settled engineering; the discipline is what gets bought.

Illustrative image, not the delivered machine — close view of a gravimetric dosing head: a polished stainless conical head with a fine tapered nozzle poised a few centimetres above a single plain empty cylindrical aluminium canister body standing on a small square stainless weighing platform, thin tubing and a slim cable running to the head, machined stainless framing behind, spotless and completely empty, no people and no text

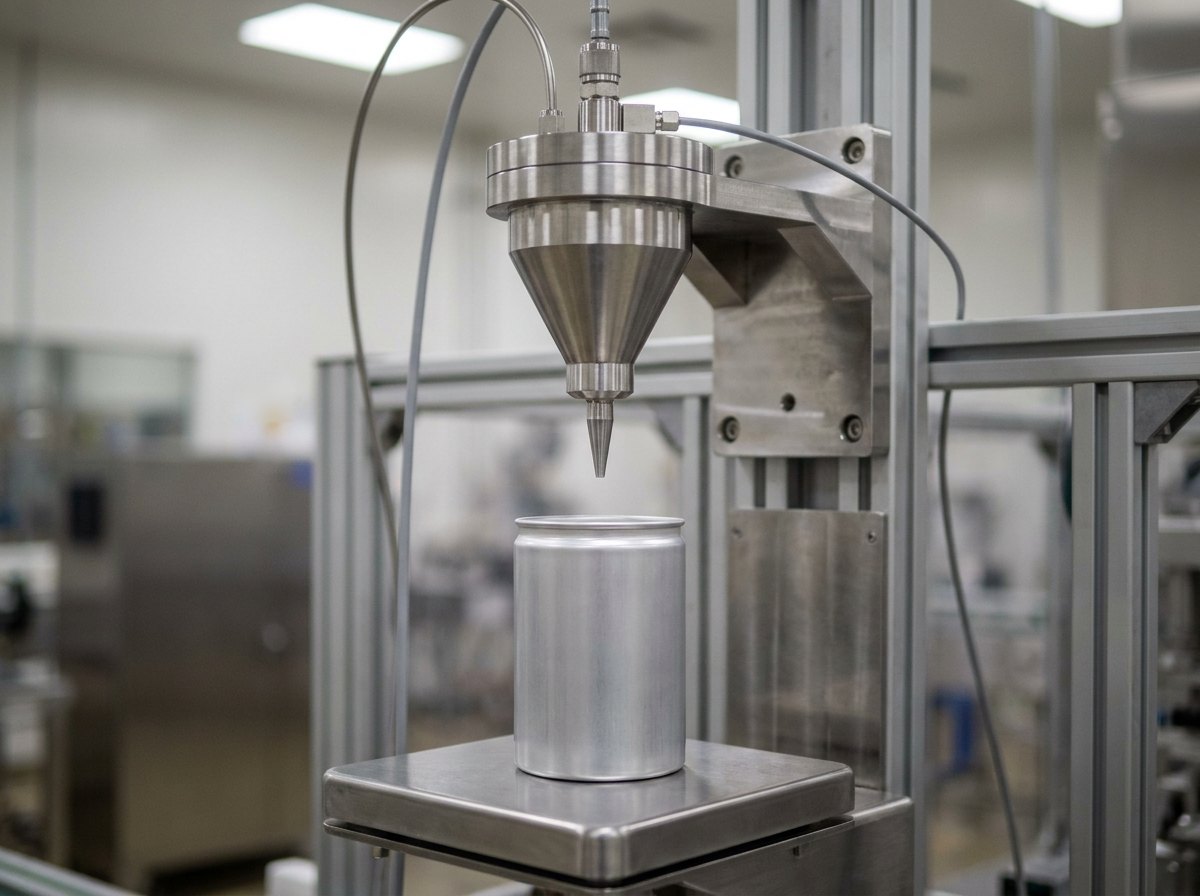

Fig · 02 Gravimetric dosing — the load cell is what turns a filling head into an instrument — illustrative, not the delivered machine

Gravimetric, not volumetric. A volumetric doser delivers a fixed space, and a fixed space is only a fixed mass if bulk density never changes — which it does, with humidity, batch, and how long the hopper has been standing. A machine built on that assumption does not fail loudly; it drifts, and the drift shows up as a rejected lot weeks later. So the delivered line weighs: the station doses onto a load cell and corrects against the target, which is why it holds ±2 g on the coarse composition and ±0.5 g on the finer marker powders rather than quoting a number it cannot repeat.

Closing is a specification. “Tight” is not an engineering instruction. Too little and the seal is not a seal; too much and a thin body deforms — a defect created by the machine meant to prevent them. So closing runs on servo torque tools to ±0.1 Nm with programmable thresholds per station, and the achieved figure is written against the unit. The multi-layer sealing ahead of it is set the same way: to values, not to judgement.

Seventeen stations, because the operations want different conditions. The body is cleaned dust-free first — station one, not housekeeping, because anything left inside becomes a contaminant the downstream stations will faithfully seal in. Then filling, multi-layer sealing, robotic assembly of the components, and vision-guided labelling and verification. Each station does one thing, indexed, repeatably, at about 500 units an hour — and the whole line runs flameproof and interlocked, with nobody at the stations.

This page describes the machine, not the material. The composition, its handling and its licensing are the customer’s and the licensing authority’s to specify — the machine is engineered to the duty they define.

Delivered

Not a proposal

This line was built, delivered and commissioned against a won order for a central armed police force’s less-lethal store line — the figures on this page are its figures.

Measured

Every unit weighed

Gravimetric dosing with load-cell correction, and the achieved fill written per unit — because a doser that is not weighed is a doser that is drifting.

Recorded

Traceability that leaves the machine

Fill weight and torque per unit against the batch, out over standard interfaces to the plant’s supervisory system — not stranded in the controller.

Architecture

Clean, dose, assemble, close.

The schematic follows one unit — the body cleaned, the composition dosed and weighed, the components assembled and sealed, the unit closed to torque and written to the record — and shows the machine behind it: the indexing stations, the gravimetric doser, robotic assembly and sealing, and the torque, vision and traceability end.

FIG · 03CFM ARCHITECTURE · INDEXING STATIONS / GRAVIMETRIC DOSER / ASSEMBLY + SEALING · TORQUE, VISION & RECORD

Fig · 03 Every unit the same unit — and every one of them on the record

Arc · 01

Indexing Stations

17 on the delivered line, each doing one thing repeatably under its own conditions — beginning with dust-free cleaning of the body.

Arc · 02

Gravimetric Doser

Delivers, weighs and corrects on a load cell — ±2 g on the coarse composition, ±0.5 g on finer marker powders.

Arc · 03

Assembly & Sealing

Robotic placement of components and multi-layer sealing — set to values rather than to judgement, station by station.

Arc · 04

Torque, Vision & Record

Servo closing to ±0.1 Nm against thresholds, vision verification, and per-unit traceability out to SCADA.

Have a filling-and-assembling line or a new store nature to run? Send the store, the fill tolerance and the rate — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

As delivered, and as engineered next.

The figures below are the delivered machines’ own. New lines follow the same discipline, sized to three givens: the store and its components, the fill tolerance the specification demands, and the rate and bay the plant can support.

Illustrative image, not the delivered machine — close view of an automatic closing station: a servo torque head on a vertical stainless spindle lowering a plain unmarked flat aluminium cap onto the open top of a cylindrical canister body clamped upright in a machined fixture, a curved feed track alongside holding a row of identical plain caps, polished machine surfaces with light use marks, no people and no text

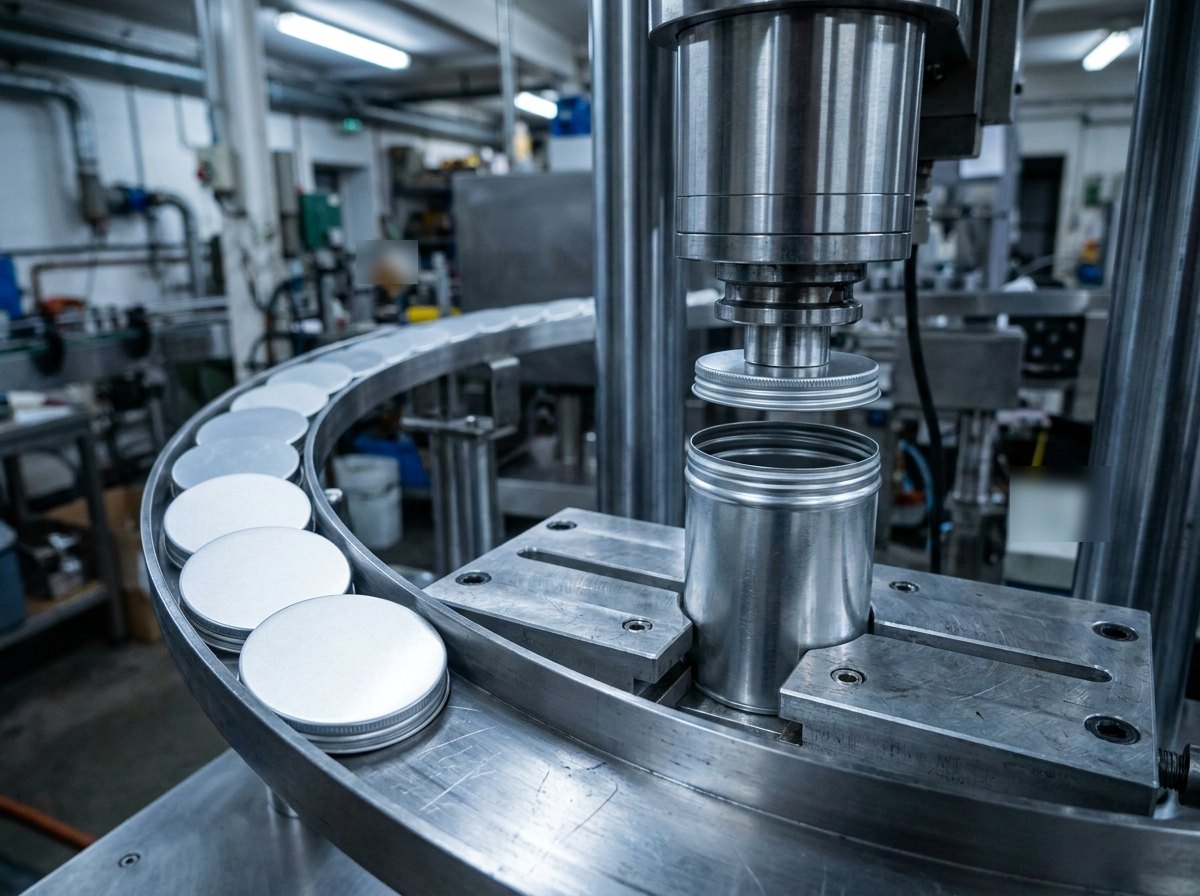

Fig · 04 The closing station — a torque figure against a threshold, recorded per unit — illustrative, not the delivered machine

Where filling-and-assembling lines go wrong

In what is assumed rather than measured. Volumetric dosing trusted without weighing drifts with humidity and batch, invisibly, until a lot is rejected. Closing specified as “tight” produces both leaking seals and deformed bodies from the same line on the same day. Cleaning treated as housekeeping rather than as station one lets a contaminant be sealed in perfectly. Rate is quoted at the headline figure with changeover between store sizes uncosted, so a line that is magnificent on one nature is resented on three. And traceability stops inside the machine, which is the one place it is no use.

So the discipline runs the other way, and it is visible in the numbers on this page. Dosing is gravimetric with load-cell correction. Closing is a torque band with programmable thresholds, achieved figure recorded. Cleaning is station one. Changeover is engineered and timed rather than assumed. The record leaves the machine over standard interfaces to the plant’s supervisory system. And the whole line is built to be worked safely — flameproof, dual-channel emergency stops, interlocked doors, pressure-relief venting and static control — because the stations run with nobody at them for a reason.

Full specification — expand

Machine	Composition filling & assembling machine — multi-station automatic line: body cleaning, gravimetric dosing, multi-layer sealing, robotic assembly, torque closing, vision verification & records
Production Rate	Up to ~500 units/hour in continuous operation, configurable from the controller
Fill Tolerance	±2 g on the coarse composition · ±0.5 g on finer marker powders — gravimetric, with integrated load-cell feedback
Torque Accuracy	±0.1 Nm — servo-driven tools with programmable thresholds, achieved figure recorded per unit
Stations	17 indexed stations — dust-free body cleaning, gravimetric filling, multi-layer sealing, robotic assembly, vision-guided labelling & verification
Footprint	7.5 m × 4.0 m × 3.0 m, modular layout suitable for a standard industrial workshop
Companion Shell Machine	41 ± 2 g fill · cycle time ≤ 7.2 s per unit (≈ 500/hour) · footprint 5.85 × 5.3 × 2.5 m · operating 25 ± 10 °C, RH 40 ± 15%
Power	230 V ± 10%, 50 Hz (single/three-phase) or 100–240 VAC, 50/60 Hz; control 24 V DC isolated with in-built surge protection
Compressed Air	6 bar, moisture-free & oil-free — 200–500 L/min average consumption depending on machine
Materials	SS 304/316 contact surfaces; powder-coated MS structural frame
Noise	≤ 70 dB at full load (companion machine ≤ 72 dB(A))
Safety	Flameproof workflow, dual-channel emergency stops, interlocked access doors, pressure-relief venting, static control — stations run unattended
Data & Traceability	Ethernet, RS-485, USB, SD card & standard industrial fieldbus; optional OPC-UA to SCADA; full digital traceability & remote diagnostics
Standards	Built to ATEX, CE, MIL-STD & NFPA practice as the installation requires
Scope Boundary	The machine and the plant, never the material — the composition, its handling & its licensing are the customer's & the licensing authority's to specify
Sourcing	Controllers & HMI, servo tools, load cells, vision & robotic components are bought-in certified items; Neometrix engineers the stations, dosing, assembly, sealing, torque, records & integration
Status	DELIVERED against a won order for a central armed police force's less-lethal store line · quoted across further filling-and-assembling machine requirements · engineered to order for new natures & rates
