9×19 mm cartridge case manufacturing line. Cup in, case out.

The metallurgy of a 9 mm case

Cartridge brass earns its name. The 70/30 copper-zinc alloy combines the ductility needed for deep drawing with the work-hardening behaviour that gives a finished case its strength gradient — and a 9×19 mm case is exactly that: a strength gradient shaped like a cup. The case head must be hard, because it carries the primer pocket and takes the bolt-face load at peak chamber pressure. The case wall must be springy, expanding to seal the chamber and then relaxing for extraction. The case mouth must be ductile, because it will be crimped over a bullet and must not split.

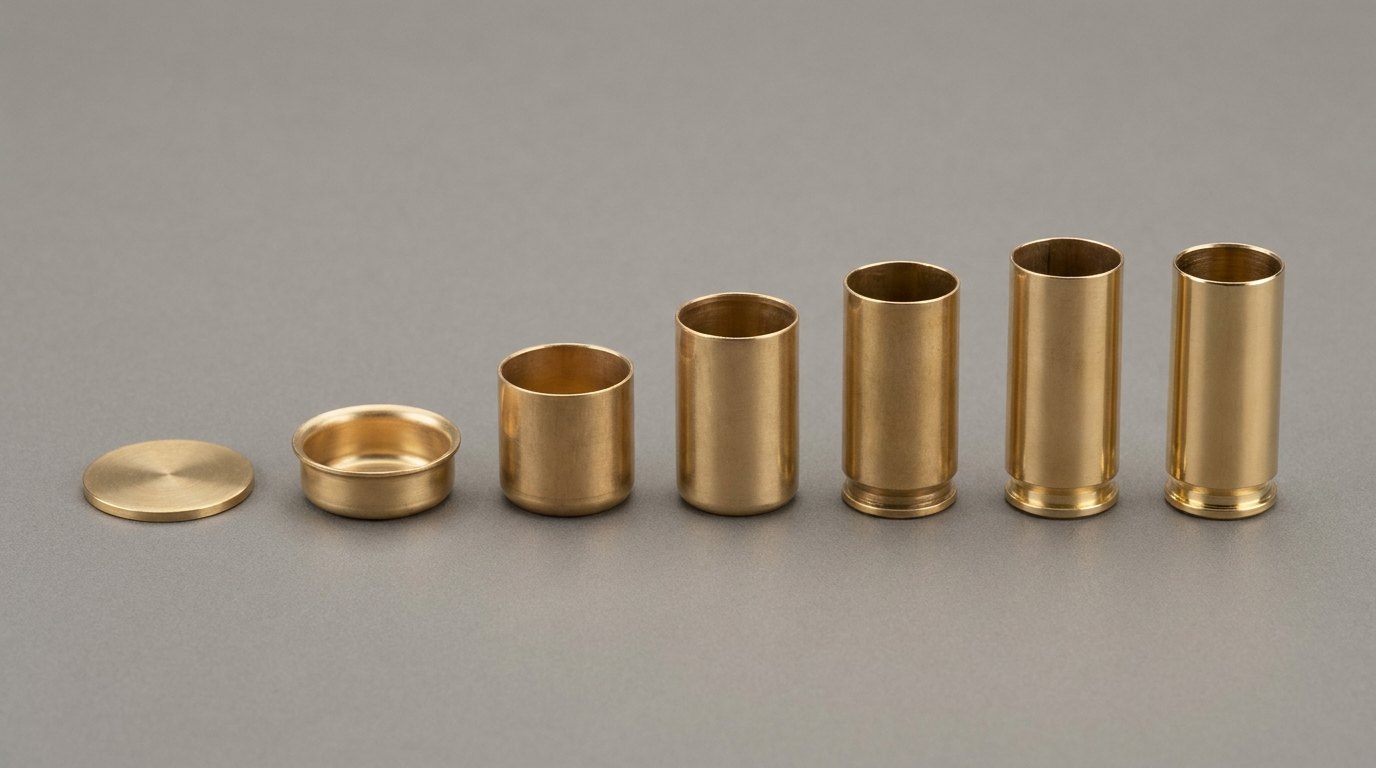

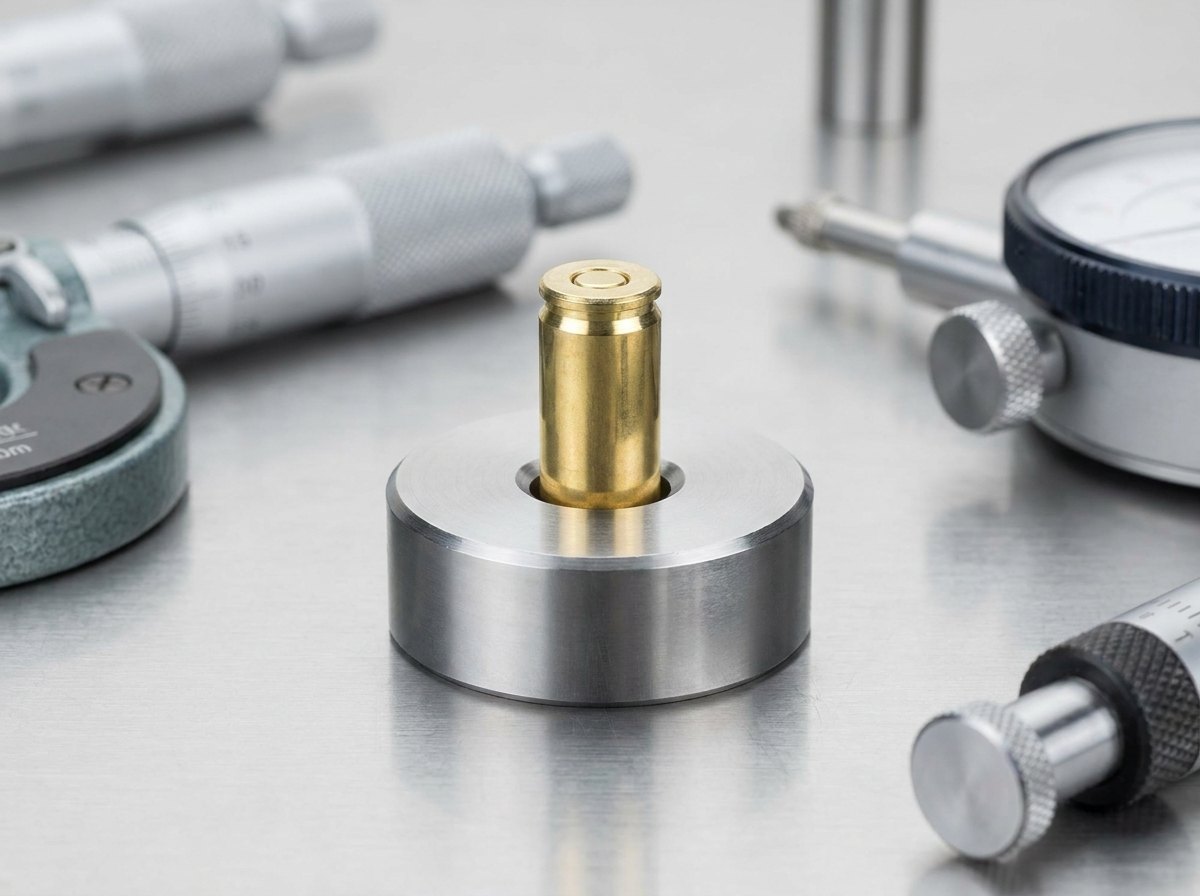

The production line creates that gradient deliberately. Each pass through a draw station thins and lengthens the cup while work-hardening the brass; controlled annealing restores ductility exactly where the next operation needs it — and nowhere else. Head-forming consolidates the base, producing the rim, extractor groove, head stamp, and primer pocket in brass that has been left intentionally hard, and the finished case must clear an enforced minimum-hardness floor at every checked height up the wall, plus a multi-point axial survey across the sectioned head. Skip an anneal and the next draw tears the wall; over-anneal and the head softens. The furnace profile is as much a part of the case design as any diameter on the drawing — which is why the stress-relief furnace runs to ±2 °C with dual controllers and continuous SCADA recording, and why every lot faces the mercurous-nitrate season-cracking test that exposes residual stress the eye cannot see.

Chemistry before and after the press

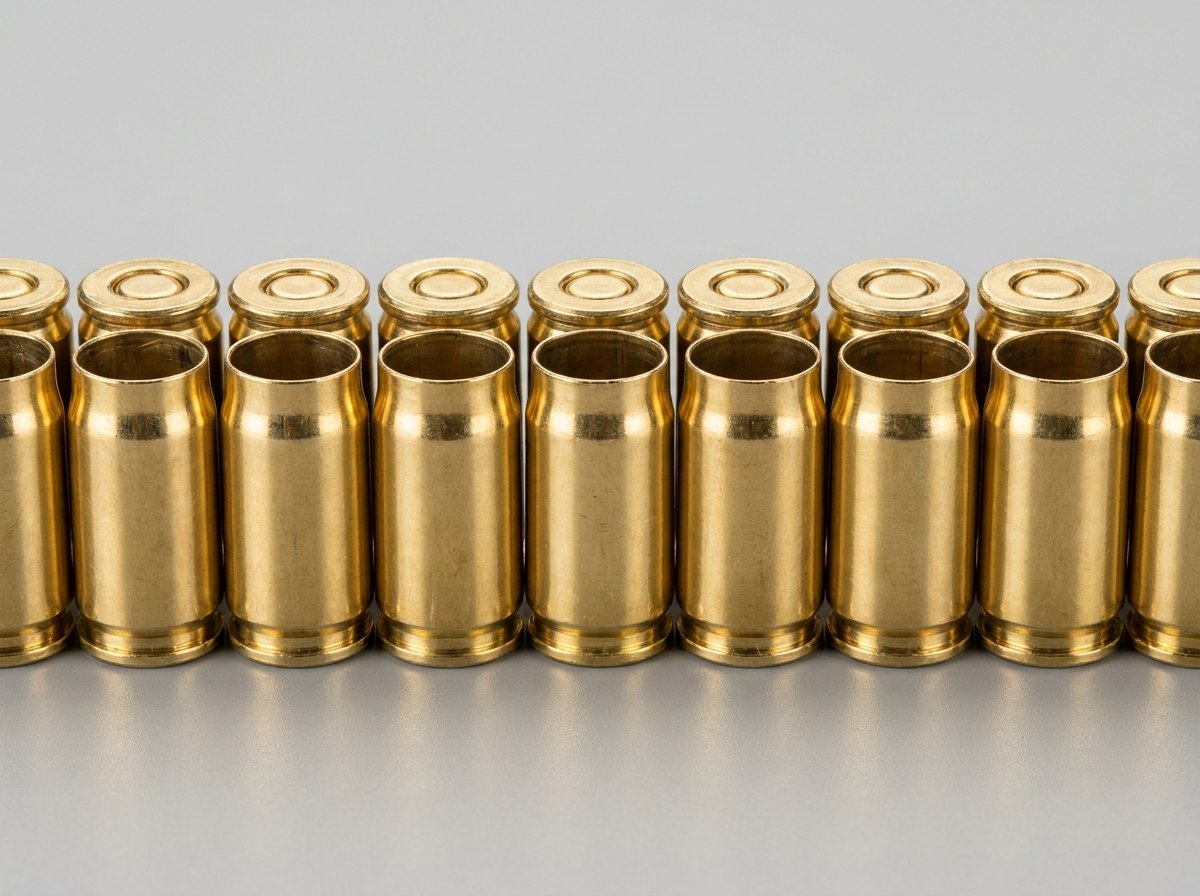

The least glamorous halves of the line decide the visible quality of the product. Upstream, the cup-washing block — acid pickling from room temperature to 80 °C, hot rinsing, soap / draw-lubricant coating at 60–80 °C, and hot-air drying in SS316 tankage — removes oxide and lays down the lubricant film that keeps press tooling alive. Downstream, rotary degreasing at 30,000 cases per hour strips residues to pH 7–8, and twin vibro-bowl passivation with flow-metered chemical dosing stabilises the surface so the bright golden lustre survives years of storage rather than a week. The environmental engineering is part of the same block: acid-fume scrubbing through stainless ducting and effluent handling to CPCB norms. A case that tarnishes in the box was cleaned badly, not stored badly.

Why the line is balanced at two speeds

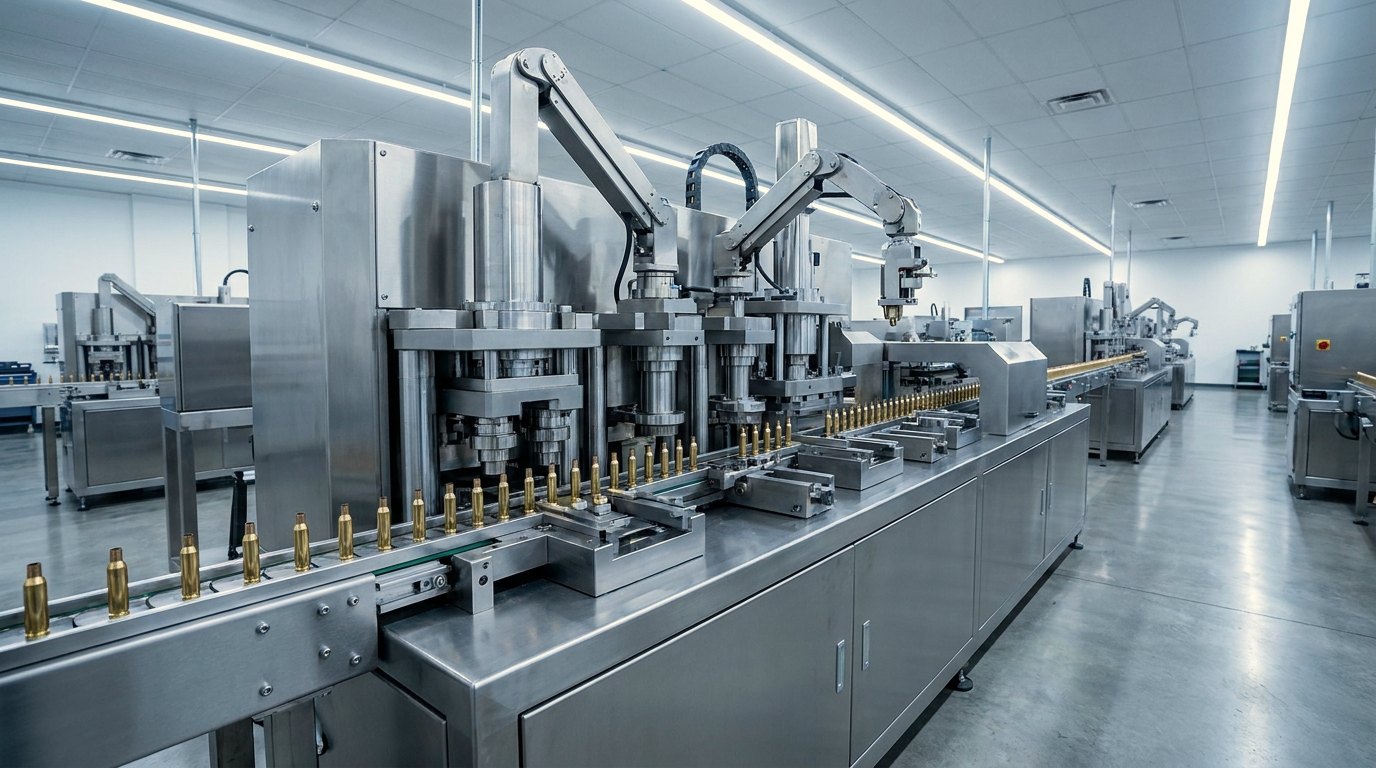

The forming press sets the net output — 15,000 cases per hour. The wet-process and thermal blocks are rated at 30,000 — double — for a simple operational reason: washing, annealing, and finishing run in batches and campaigns, absorb the two degreasing passes, and must never starve or dam the press. A line balanced 1:1 on paper runs below rate in practice; a line with headroom in the slow-to-restart thermal and chemical stages holds rate through shift changes, campaign changeovers, and maintenance windows.

One line, one responsibility

The delivery model is deliberately different from the assembled-piecemeal norm: one engineering authority for the whole flow, from cup intake to gauged case, with interlinking conveyor automation between all eight process blocks and a PLC + HMI layer supervising every one of them — press fault sensing, furnace zone temperatures, wash chemistry cycles, energy metering per machine — on one Ethernet / Profinet backbone with password-controlled access levels and SCADA records exportable to Excel / CSV. One party owns throughput, quality, and commissioning: the plant is proven in a multi-day witnessed run at our works, then again in a continuous performance demonstration at site on both Boxer and Berdan types, with training on the job and a long-term support commitment behind it.

The indigenisation context

Cartridge cases are consumed continuously in peace and war, and a domestic case line is capability that no embargo can switch off. Policy has moved decisively — private-sector participation in ammunition manufacturing has been progressively opened up, positive indigenisation lists bar imports of listed items after set deadlines, and Buy-Indian preference under DAP‑2020 rewards indigenous design and manufacture. This line is precisely where that policy becomes hardware: engineered in Noida against Indian ordnance factory specification requirements, by the team whose component QA already delivers to the Indian Navy.
