NMX‑DML‑50 / Rev 01 / demilitarisation & disposal / access cutting · washout · certification 2026 · Product Page

NMX-DML-50 · ENGINEERED TO ORDER — ACCESS CUTTING, WASHOUT, HANDLING & ANALYSIS

Demilitarisation starts by opening the casing. Everything after that depends on doing it cold.

A demilitarisation plant is a train of stages — preparation and disassembly, energetics removal, destruction or resource recovery, and pollution abatement. This equipment is the first two. Access cutting opens the casing; high-pressure washout takes the fill out. Both feed a destruction or recovery stage rather than replacing it — worth stating plainly, because a front end specified without a defined downstream has nowhere to send what it removes. The cut is made with water because it is a cold process: no heat-affected zone, cut-zone temperatures typically below 100 °C, no thermal ignition source introduced. What water does not do is desensitise the fill — so the governing control is the method rather than the fluid: remote operation, a barricade, and one-way material flow. Equipment of this class has been quoted across cutting, handling and analytical requirements for ammunition demilitarisation plants; no delivered demilitarisation plant is claimed — the class is engineered to order.

Enquire — demilitarisation plant Capability sheet (PDF)

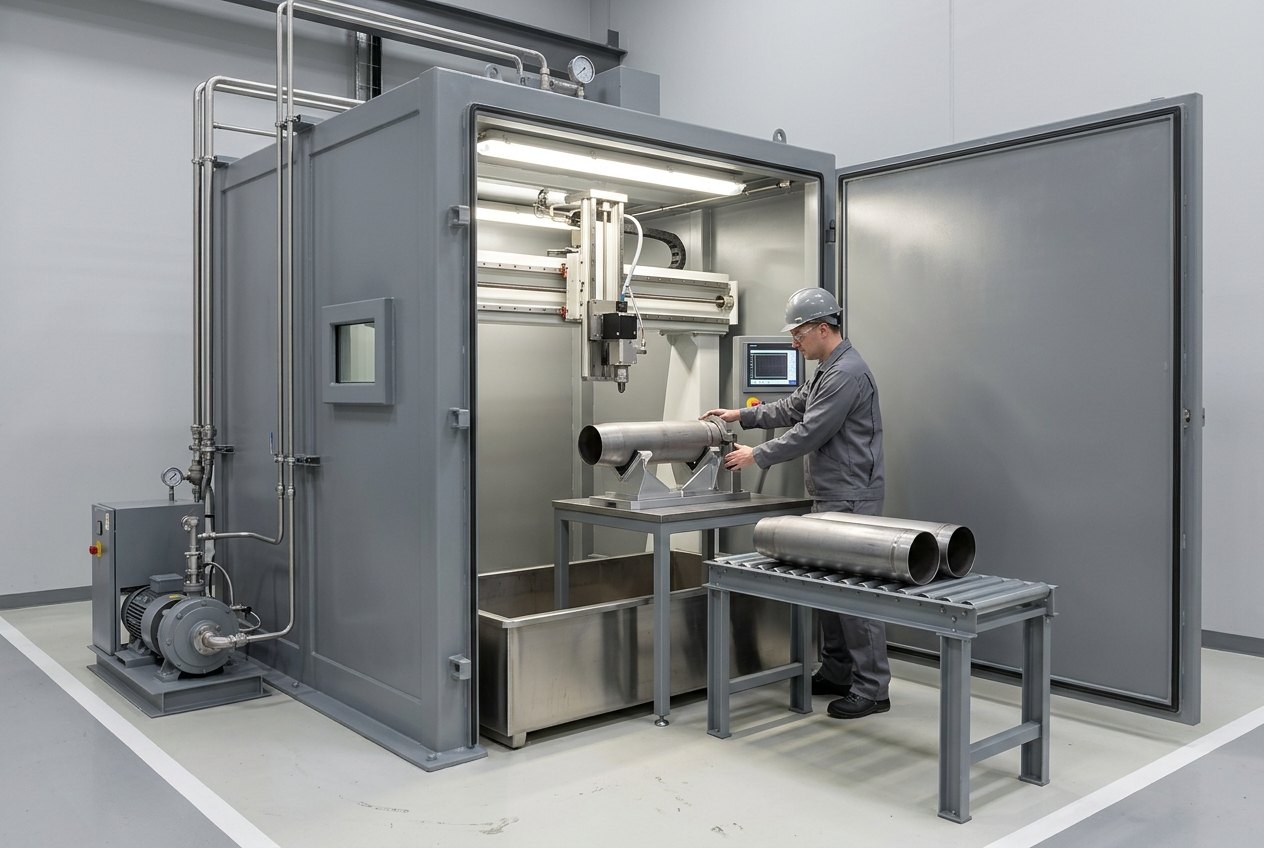

Illustrative of the class — a barricaded access-cutting cell being loaded: a thick fabricated mid-grey steel enclosure about three metres wide with its massive hinged access door swung fully open, a bright machined overhead gantry carrying a compact cutting head on a vertical slide above a wide stainless steel catcher tank set into the floor, and on the work table beneath it a plain hollow unmarked steel shell body lying horizontally in a machined V-cradle fixture while a technician secures the clamp with both hands; a short roller conveyor alongside carries two more identical empty bodies awaiting cutting, with stainless high-pressure tubing running to a grey pump skid — the cell is loaded with the door open and sealed before it runs, and there are no readable markings anywhere

Fig · 01 Loading is done with the door open and people present; the cell is sealed and run remotely

Stage

preparation & removalfeeds destruction or recovery

Cutting

coldno heat-affected zone

Washout

55,000–60,000 psigfill removal, not destruction

Control

remote & roboticthe method, not the fluid

Status

engineered to orderquoted class

ISO 9001 / 14001 Engineered to order Demilitarisation & disposal Recovery & effluent treatment Noida · India

Overview

Cutting and washout prepare. They do not destroy.

That boundary decides what the equipment has to be, what has to sit downstream of it, and which authority approves which part — so it is set out first.

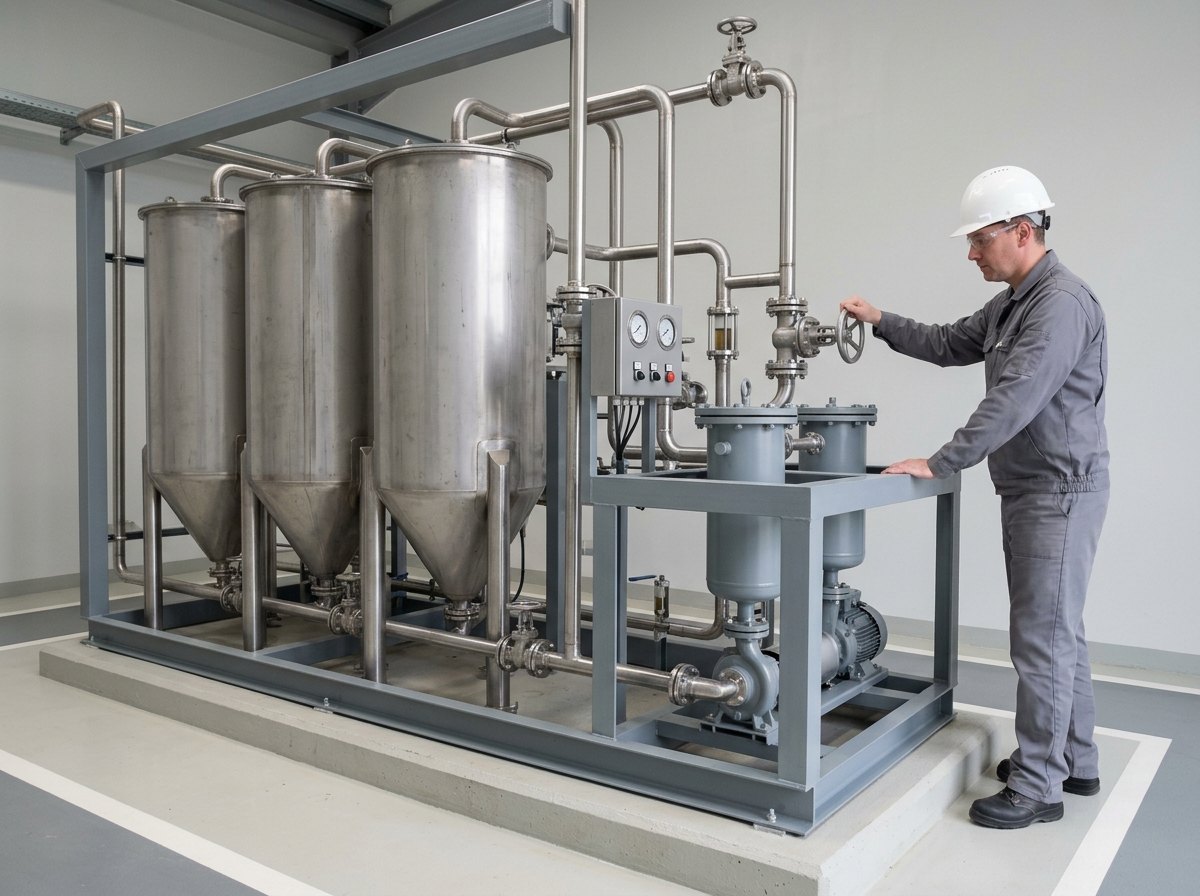

Illustrative of the class — a separation and recovery skid running: three tall cylindrical stainless steel settling tanks with conical bottoms in a row on a low bunded concrete plinth, linked by bright stainless pipework with hand valves, two squat cylindrical filtration vessels alongside on a mid-grey fabricated steel frame, a compact grey pump running on the plinth below, deflected needles on the local instrument panel, condensation on the cold pipework and a visible level in a sight glass, with a technician at the right of the skid, one hand on a stainless hand valve, leaning in to read the panel, no readable markings anywhere

Fig · 02 Once the fill is out, the plant becomes a separation and effluent problem

The stages, in order. A demilitarisation plant runs in four stages: preparation and disassembly, energetics removal, destruction or resource recovery, and pollution abatement. Access cutting is stage one. Washout is stage two. Neither of them destroys anything.

What destroys the fill comes afterwards: contained detonation chambers, contained burn systems and deactivation furnaces. That matters commercially as well as technically. A cutting cell bought without a defined downstream route produces recovered fill with nowhere to go, and a plant that cannot move its output stops.

Two water processes, not one. They get confused constantly, and they are different machines.

Abrasive waterjet cutting drives a garnet-laden jet through the metal casing. It opens the item. It has been used on high-explosive items since 1991, across a wide range of calibres including sensitive components.

High-pressure washout uses plain water, typically at 55,000–60,000 psig, to erode the fill out. That technique dates to the 1920s. The pair is not experimental: more than 250,000 large-calibre projectiles have been cut and washed out at a single plant since 2001.

Why water. The reason is heat, and nothing else. An abrasive waterjet leaves no heat-affected zone. Cut-zone temperatures typically stay under 100 °C, so the process adds no thermal ignition source.

It does not follow that water makes the fill safe. Water does not desensitise energetic material. With aluminised compositions the water is itself a reactive hazard: it can react exothermically and release hydrogen. That is handled by passivation, or by choosing a non-reactive motive fluid.

So the control that matters is the method, not the liquid. Remote and robotic operation, a barricade sized to the credible event, and one-way material flow.

Equipment of this class has been quoted across cutting, handling and analytical requirements for ammunition demilitarisation plants. No delivered demilitarisation plant is claimed: the class is engineered to order, and the record is stated as it stands.

Scope

The front of the train

Preparation and removal — feeding destruction or recovery.

Process

Cold, and only that

No heat-affected zone — but water is not a desensitiser.

Control

Remote and robotic

The method, not the fluid — barricade and one-way flow.

Architecture

Prepare, open cold, remove and recover, then certify what leaves.

The schematic places this equipment inside the wider train, then sets out the four blocks it actually comprises.

FIG · 03DEMILITARISATION FRONT END · FEED + HANDLING / ACCESS CUTTING / WASHOUT + RECOVERY / ANALYSIS + CERTIFICATION

Fig · 03 The detail worth reading twice — what a cold cut does, and what it does not

Arc · 01

Feed & Handling

Where the risk of this route lives — single-file, gentle, non-sparking, remotely driven, stoppable anywhere, with no pinch point that can trap an item.

Arc · 02

Access Cutting

Abrasive waterjet, cold — opens the casing with no heat-affected zone, inside a barricade, operated remotely.

Arc · 03

Washout & Recovery

High-pressure fill removal — then settling, filtration, recovery of fill and clean metal, and effluent treatment sized to the cutting rate.

Arc · 04

Analysis & Certification

What lets output leave — recovered streams and discharges certified by measurement, and the mass balance closed.

Specifying a demilitarisation front end, or the laboratory that certifies it? Send the stock profile and condition, the throughput required, the downstream destruction or recovery route, the site and its safety distances, and the authority to be satisfied — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Sized on the stock and the downstream route, judged on what may leave the site.

Five things decide this plant: the stock profile and its real condition, the throughput required, the downstream destruction or recovery route, the site and its safety distances, and the authority whose approval the plant must earn. Everything else follows — cell size and barricade, handling rate, cutting capacity, washout duty, separation and effluent treatment, and laboratory scope.

Illustrative of the class — a clean analytical laboratory with an analysis in progress: a long light-grey epoxy resin bench top carrying three plain rectangular instrument cases in off-white and mid-grey whose display panels are switched on and showing chromatogram-like traces, a tall glass-fronted fume hood at the far end, bright stainless taps and a small sink set into the bench, a rack of clear glass labware beside a tray of small unlabelled sample vials, and an analyst in a white laboratory coat and gloves seated at the bench steadying a vial with one hand and working the instrument control with the other, no readable markings anywhere

Fig · 04 Nothing may be released as recovered, or as safe to discharge, until it has been measured

Where these specifications go wrong

The front end is scoped as the whole plant. Cutting and washout prepare and remove. They do not destroy. Leave the downstream route out of the specification and the recovered fill has nowhere to go.

Water is treated as a safety agent rather than a cold-cutting medium. It removes the thermal ignition source. It does not desensitise, and with aluminised compositions it brings a reactivity problem of its own.

Handling is under-engineered. This route increases how many times each item is handled compared with destroying it intact. That is exactly where the risk moves, and it is the strongest argument for spending on conveying and remote operation.

Separation is sized to a pump duty instead of the cutting rate, so slurry backs up into the cell. No analytical capability is procured, so recovered streams and effluent cannot be released and the mass balance cannot be closed. And throughput is quoted from clean stock — mixed, corroded, uncertain items do not flow like new ones.

The industry moves away from open burning and open detonation wherever alternatives are technically feasible. The reason has nothing to do with cutting technique. Alternative routes are enclosed and fitted with a pollution abatement system, with monitored effluent, so emissions and community impact are smaller. Containment and abatement are the difference.

It is also why those methods have been displaced rather than abolished. The capability is still needed for items that cannot safely be treated another way. Any claim that it has been eliminated would be wrong.

Full specification — expand

System	Demilitarisation front end — feed & handling, abrasive waterjet access cutting, high-pressure washout, separation & recovery, analysis & certification
Where It Sits	Stages one and two of four: preparation and disassembly, energetics removal, destruction or resource recovery, pollution abatement
What It Does Not Do	It does not destroy. Cutting and washout feed a destruction or recovery stage and cannot replace it
Access Cutting	Abrasive waterjet — a garnet-laden jet that cuts the metal casing. An opening step, applied to high-explosive items since 1991, proven across a wide calibre range including sensitive components
Energetics Removal	High-pressure washout — plain water, typically 55,000–60,000 psig, eroding and removing the fill. In use since the 1920s; more than 250,000 large-calibre projectiles cut and washed out at a single plant since 2001
Why Water	A cold process — no heat-affected zone, cut-zone temperatures typically not exceeding 100 °C, so no thermal ignition source is introduced
What Water Does Not Do	It does not desensitise the fill. With aluminised compositions water is itself a reactive hazard — exothermic reaction and hydrogen release — handled by passivation or by a non-reactive motive fluid
Governing Control	The method, not the fluid — remote and robotic operation, a barricade sized to the credible event, and one-way material flow
The Honest Trade-off	This route increases handling. Opening and washing out an item touches it far more than destroying it intact — that is where the risk moves, and why the conveying and remote-operation engineering has to be right
Recovery (R3)	A first-class outcome, not a by-product — a large majority of demilitarised stock yields a component that is reused, recycled or recovered, and recovered energetics serve as donor charges
Industry Driver	Containment — alternative routes displace open burning and open detonation, where technically feasible, because they are enclosed and fitted with a pollution abatement system with monitored effluent. Displaced, not abolished: the capability remains necessary for items that cannot safely be treated another way
Authorisation	A national explosive-safety authority approves hazard classification, protective construction and a site plan carrying the operating conditions, granted per waste stream and per site — separately from the environmental regulator, which authorises the plant to operate on emissions and discharge grounds
The Split	The heavy duty automatic single row weapon disposal system destroys whole small arms, where the difficulty is a hardened steel workpiece; here the item is filled, and the work is opening it and taking the fill out. The chemical weapon destruction facility addresses a hazard of toxicity, answered by containment and neutralisation; here the hazard is stored energy and the front-end answer is a cold process. And the marine and industrial incinerator is thermal destruction — the downstream family this equipment feeds, and a reminder that destruction is a separate stage
Scope Boundary	Ours: plant layout and the interface to the customer's explosive-safety case, feed & handling design, access-cutting cell integration, remote operation and the control scheme, washout, separation, recovery & effluent design, analytical laboratory fit-out and integration, controls, installation, commissioning, documentation, training, spares & AMC — including build to the customer's specification. Bought-in certified: high-pressure pumps and intensifiers, cutting heads and abrasive metering, analytical and process instruments, control hardware, pumps and valves. The customer's: the material, the explosive-safety and environmental authority interfaces, the site and its safety distances, the disposal authorisations, and the downstream destruction or recovery stage, which this equipment feeds and does not replace
Status	Engineered to order — equipment of this class quoted across cutting, handling and analytical requirements for ammunition demilitarisation plants; no delivered demilitarisation plant is claimed

PDF · 1 page

Ammunition Demilitarisation Plant — Capability Sheet

Tender Response

Send stock profile, throughput, downstream route & authority — compliance matrix in two working days

Variants

Four procurements that belong together.

These are routinely bought separately and specified as though independent. The interfaces between them are where facilities usually come unstuck.

Var · 01

Access-Cutting Cell

Abrasive waterjet inside a barricade — cold cutting, remote operation, relief designed deliberately.

Var · 02

Feed & Handling Line

For stock at its most fragile — single-file, gentle, non-sparking, interruptible, free of traps.

Var · 03

Washout, Separation & Effluent

Where the fill actually comes out — high-pressure removal, settling, filtration, recovery and treatment.

Var · 04

Analytical Laboratory

What lets output leave — certification of recovered streams and discharges by measurement.

Applications

Wherever stock has to be opened before it can be treated or recovered.

Stockpile drawdown, energetics recovery, and feeding a contained destruction train.

A · 01Life-expired stock reduction

A · 02Stockpile drawdown

A · 03Large-calibre & bomb bodies

A · 04Energetics & metal recovery (R3)

A · 05Depot handling upgrades

A · 06Feeding a contained destruction train

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 Is abrasive waterjet cutting a method of demilitarisation on its own?

No, and it is important to be exact about this because specifications are sometimes written as though it were. Industrial demilitarisation is conventionally grouped into preparation and disassembly, energetics removal, destruction or resource recovery, and pollution abatement. Abrasive waterjet cutting sits firmly in the first group: it is an access and size-reduction technique that opens the casing so the fill can be reached. High-pressure washout sits in the second: it removes the fill. Neither destroys anything. What follows them is a separate stage — a contained detonation chamber, a contained burn system, a deactivation furnace or rotary kiln, or a resource-recovery route — and the assessments that compare these technologies are explicit that preparation techniques cannot replace open burning and open detonation, because they are not doing the same job. The practical consequence for a buyer is straightforward: a cutting cell procured without a defined downstream route produces separated energetic material and cleaned metal that have nowhere to go. The front end and the destruction or recovery stage have to be specified as one system even when they are bought as separate packages, which is why the interface between them belongs in the tender rather than in the commissioning phase.

Q · 02 Why cut with water rather than by sawing or thermally?

Because it is the option that introduces no thermal ignition source into the cut. Thermal cutting is excluded immediately: it works by adding heat, which is precisely what must not be added. Mechanical cutting avoids the flame but not the friction — a blade rubbing in a kerf produces local heating that is hard to bound and harder to demonstrate as bounded, and it can pinch or snatch against unexpected internal structure. An abrasive waterjet erodes rather than shears, and the cutting zone is continuously flooded, so no heat-affected zone forms; cut-zone temperatures typically do not exceed 100 °C. It is also largely indifferent to what it meets, cutting hardened steel, thin non-ferrous casing, plastic and fill alike, which matters when internal construction is not reliably documented. The trade-offs are real and worth stating: waterjet cutting is slower than thermal methods, less accurate and more capital-intensive than a band saw, it consumes abrasive continuously, and it generates a slurry that then has to be separated and treated — which is why so much of this plant sits downstream of the cell. Those costs are accepted deliberately, because they buy a process whose safety argument does not depend on estimating how hot a blade became.

Q · 03 Does the water make the explosive fill safe to handle?

No — and this is a point where plausible-sounding reasoning goes wrong. Water in this process is a cutting medium and a coolant. It carries the abrasive, and it keeps the cut zone cool enough that no heat-affected zone forms. It is not a desensitising agent. In energetic materials a desensitiser conventionally means something bound into the composition itself, typically a wax, which raises the energy required to initiate it. Flooding the outside of a casing does not do that. Worse, water can be an active hazard with certain fills: powdered aluminium is a common additive in military compositions, and wet aluminium powder can react exothermically and release hydrogen — a mechanism that has destroyed a production facility. Where such compositions are in scope, the answer is to passivate, typically with a phosphate treatment, or to select a non-reactive motive fluid, and to design the separation and storage of recovered material accordingly. The safety case for the operation therefore does not rest on the fluid at all. It rests on the method: remote and robotic operation so that nobody is in the envelope, a barricade sized to the credible event, one-way material flow, and handling that is gentle and free of traps.

Q · 04 Why is so much of the plant downstream of the cutting cell?

Because cutting and washout do not produce scrap, they produce a mixture, and separating it is most of the work. What leaves the cell is a slurry of separated energetic material, metal from the item, spent abrasive and a great deal of water. None of it may simply be discharged and all of it has to be accounted for, both because the material remains hazardous and because an authorising body will require a closed mass balance rather than an assurance. Downstream there is settling to drop the solids out, filtration for the fines, separation to divide recovered fill from metal and spent abrasive, and effluent treatment so that water leaving the site meets its discharge conditions. Two design points are routinely missed. The separation train must be sized against the cutting rate rather than a nominal pump duty, because if the plant cuts faster than it can settle, slurry backs up — and the place it backs up into is the cell. And the water is normally recirculated, which puts the treatment plant inside the process loop rather than at the end of it, so its performance sets the quality of the water arriving back at the cutting head; contamination that accumulates quietly will eventually degrade the jet itself.

Q · 05 If this route increases handling, why prefer it to destroying items intact?

That trade-off is real and should be acknowledged rather than argued away. Opening an item and washing out its fill involves considerably more handling than placing it intact into a detonation chamber, and comparative assessments expect alternative routes to increase both cost and personnel contact relative to open burning and open detonation. Two things justify the route despite that. The first is recovery: separated energetic material and cleaned metal have value, and recovery is a first-class outcome rather than a by-product — a large majority of demilitarised stock yields a component that is reused, recycled or recovered, with recovered energetics commonly serving as donor charges. Destroying an item intact forecloses all of that. The second is containment: the reason the industry has moved toward enclosed processing at all is that enclosed systems carry a pollution abatement system with monitored effluent, so emissions and community impact are smaller and demonstrable. It is worth being equally clear about what has not happened. Open burning and open detonation have been displaced where alternatives are technically feasible; they have not been abolished, and the capability remains necessary for items that cannot safely be treated any other way. Because the risk moves into handling, the conveying, fixturing and remote-operation engineering is where the effort belongs.

Q · 06 What do you build, what is bought in — and what is claimed?

Divided honestly. What Neometrix provides: the plant layout and its interface to the customer's explosive-safety case; feed and handling design, treated as a hazard in its own right because that is where this route concentrates risk; access-cutting cell integration inside the barricade, with remote operation and the control scheme; washout, separation, recovery and effluent design, sized against the cutting rate with margin, because the failure mode is backing up into the cell; analytical laboratory fit-out and integration, scoped against the stock actually being processed; controls and data recording; and installation, commissioning, documentation, training, spares and AMC — including build to the customer's own specification. What is bought-in certified: high-pressure pumps and intensifiers, cutting heads and abrasive metering, analytical and process instruments, control hardware, pumps and valves — proprietary products of established makers, integrated rather than imitated. What is the customer's: the material itself, the explosive-safety and environmental authority interfaces, the site and its safety distances, the disposal authorisations, and the downstream destruction or resource-recovery stage, which this equipment feeds and does not replace. And the record, stated plainly: equipment of this class has been quoted across cutting, handling and analytical requirements for ammunition demilitarisation plants, and no delivered demilitarisation plant is claimed. The class is engineered to order.

↗

Three different hazards, three different machines.

Hardened steel, toxicity, and stored energy each need their own answer.

↗ Hardened steel

Heavy Duty Automatic Single Row Weapon Disposal System

Whole small arms, where the difficulty is the material — not what is inside it.

↗ Toxicity

Chemical Weapon Destruction Facility

Containment and neutralisation — here the hazard is stored energy instead.

↗ Thermal destruction

Marine & Industrial Incinerator

The downstream family this front end feeds — destruction is a separate stage.

Browse all Neometrix product lines.

Get a quotation

Send the stock profile
and the route it has to feed.

The projects desk replies within two working days with a clause-by-clause compliance matrix and a budgetary quotation. Write to [email protected] or use the form.
