ISO 4401 Hydraulic Valve Testing: Complete Compliance Guide for Aerospace & Defence
In aerospace and defence applications, hydraulic systems are mission-critical. A single valve malfunction can lead to catastrophic system failure, grounding aircraft, compromising safety, or halting defence operations. This is why ISO 4401 compliance testing for hydraulic valves is not just a recommendation—it is a necessity.
ISO 4401 defines standardized mounting interfaces for directional control valves, ensuring interchangeability and performance consistency. However, compliance extends far beyond dimensional compatibility. It requires rigorous validation of pressure integrity, flow characteristics, leakage control, and dynamic response.
This guide explains how ISO 4401 compliance testing works, what parameters matter most, and how advanced systems like the
hydraulic control valve test bench
help aerospace OEMs and defence procurement teams ensure reliability, traceability, and certification readiness.
Why ISO 4401 Compliance Matters in Aerospace & Defence
In aerospace and defence systems, hydraulic valves directly influence mission-critical operations such as flight control, landing gear actuation, and weapon system deployment. ISO 4401 ensures standardized mounting and performance validation, enabling predictable and repeatable operation across platforms.
For procurement teams and OEMs, compliance is not just a technical requirement—it is a risk mitigation strategy. Non-compliant valves can lead to system instability, increased maintenance cycles, and audit failures during defence acceptance testing.
- Ensures interoperability across multi-vendor supply chains
- Supports audit readiness (AS9100, DGQA, MIL standards)
- Reduces lifecycle cost and unexpected failures
- Provides documented validation for certification
Five Critical ISO 4401 Test Parameters
1. Pressure Integrity
Valves must withstand rated and peak pressures without deformation or leakage. Testing includes static pressure validation, burst testing, and pressure cycling.
2. Flow Characteristics
Flow vs pressure drop curves define system efficiency. Deviations indicate internal restrictions or design flaws.
3. Internal & External Leakage
Leakage directly impacts system reliability. High-precision sensors detect micro-leakage across ports and seals.
4. Dynamic Response Time
Fast and accurate switching is critical for aerospace control systems. Delayed response can compromise system safety.
5. Temperature & Fluid Compatibility
Valves must perform consistently across varying thermal and fluid conditions typical in defence environments.

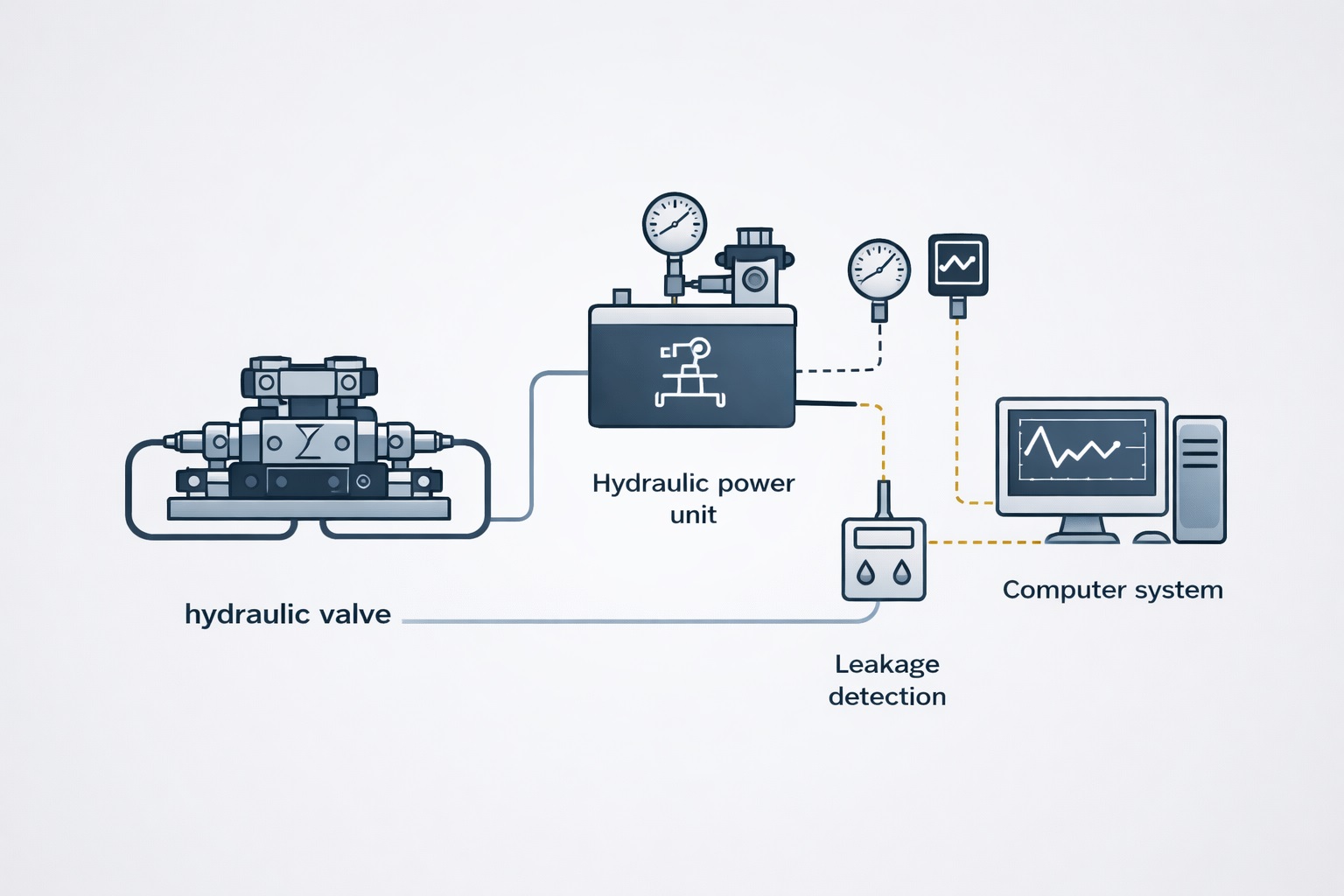

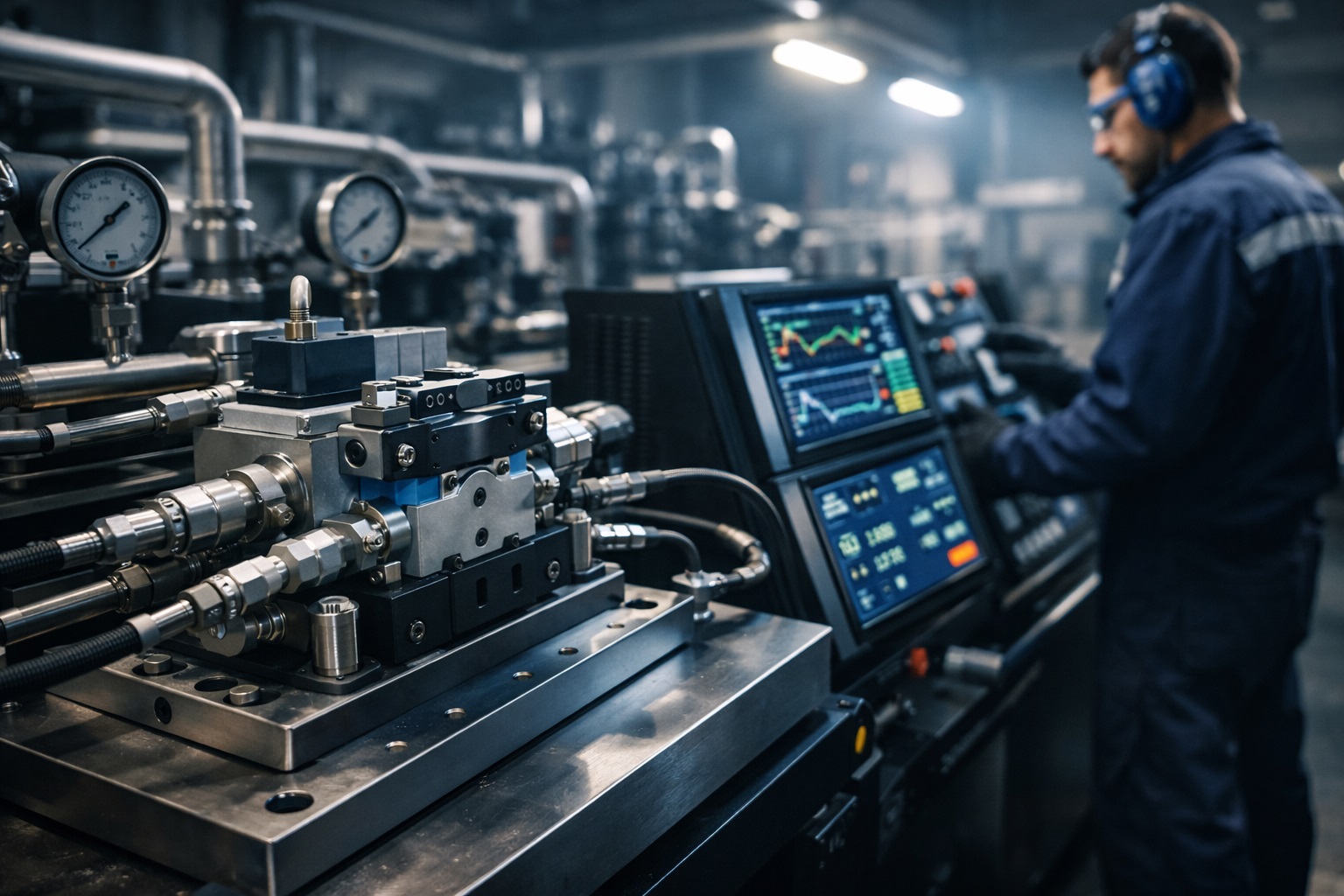

ISO 4401 Hydraulic Valve Testing Workflow
- Valve mounting using ISO 4401 interface
- Hydraulic power unit applies controlled pressure
- Sensors measure flow and pressure
- Leakage detection systems validate sealing
- Data acquisition system records performance
- Automated report generation
Common Hydraulic Valve Failures and Prevention
Seal Wear and Leakage
Repeated pressure cycles degrade seals, leading to efficiency loss and safety risks. Automated testing detects early-stage leakage.
Spool Sticking
Contamination or poor tolerances can restrict spool movement. This is identified through response time analysis.
Internal Leakage Growth
Wear between moving components leads to performance degradation. Precision monitoring ensures early detection.
Pressure Instability
Fluctuating pressure behavior can destabilize entire hydraulic systems. Controlled test environments eliminate inconsistencies.
Advanced systems like the
hydraulic control valve test bench
enable automated diagnostics, ensuring consistent and repeatable validation.

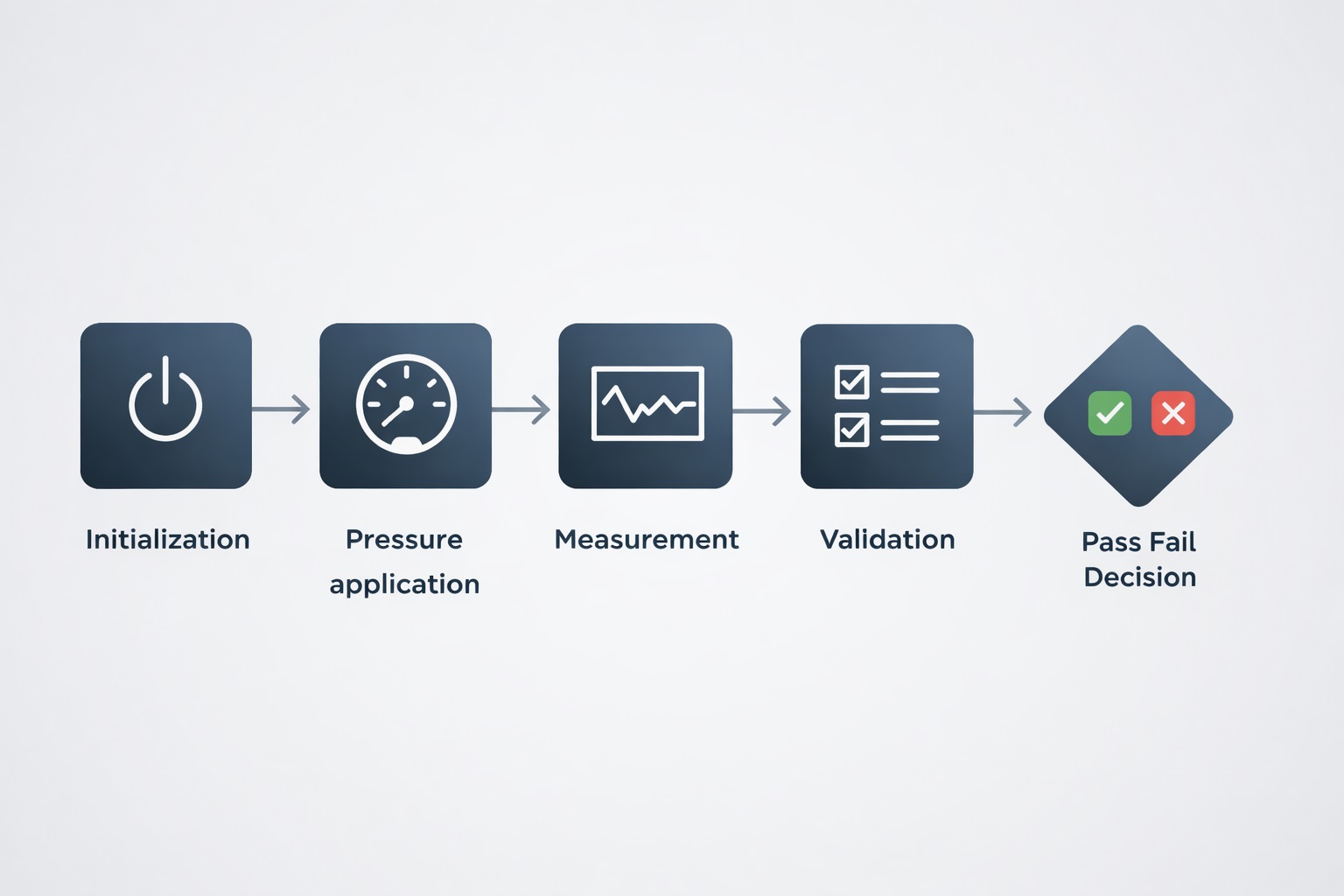

Automated Testing Logic Flow
How Neometrix E-148 Supports ISO 4401 Compliance
The Neometrix E-148 hydraulic control valve test bench is engineered for precision validation of ISO 4401 compliant valves used in aerospace and defence applications.
It integrates high-accuracy sensors, automated test sequencing, and real-time data acquisition to ensure repeatability and compliance with stringent industry standards.
The system generates detailed reports including pressure curves, flow characteristics, and leakage analysis—essential for audit and certification processes.
For complete hydraulic validation, it integrates with:
Test Data Interpretation for Compliance Decisions
Pressure Curve Analysis
Identifies pressure stability, spikes, and structural integrity issues.
Flow Performance Evaluation
Detects inefficiencies, restrictions, and deviations from expected performance.
Leakage Trend Monitoring
Tracks gradual wear and predicts potential failures.
Automated Pass/Fail Criteria
System automatically validates results against predefined ISO thresholds, ensuring objective compliance decisions.
ISO 4401 vs Other Standards
| Parameter | ISO 4401 | SAE | Custom Standards |
|---|---|---|---|
| Mounting Interface | Standardized | Partial | Custom |
| Interchangeability | High | Moderate | Low |
| Global Acceptance | Universal | Regional | Limited |
| Testing Consistency | High | Variable | Low |
Conclusion
ISO 4401 hydraulic valve testing is essential for ensuring reliability, safety, and compliance in aerospace and defence systems.
By using advanced automated solutions like the
hydraulic control valve test bench,
organizations can achieve repeatable, audit-ready validation processes.
