Deep Ocean Pressure Simulator — High-Pressure Chambers for Testing Subsea & Ocean Equipment

01

Overview

Why the deep sea is tested in a chamber, and why the way back matters.

Because pressure is the one load in the ocean that cannot be reproduced any other way, and it acts on everything at once.

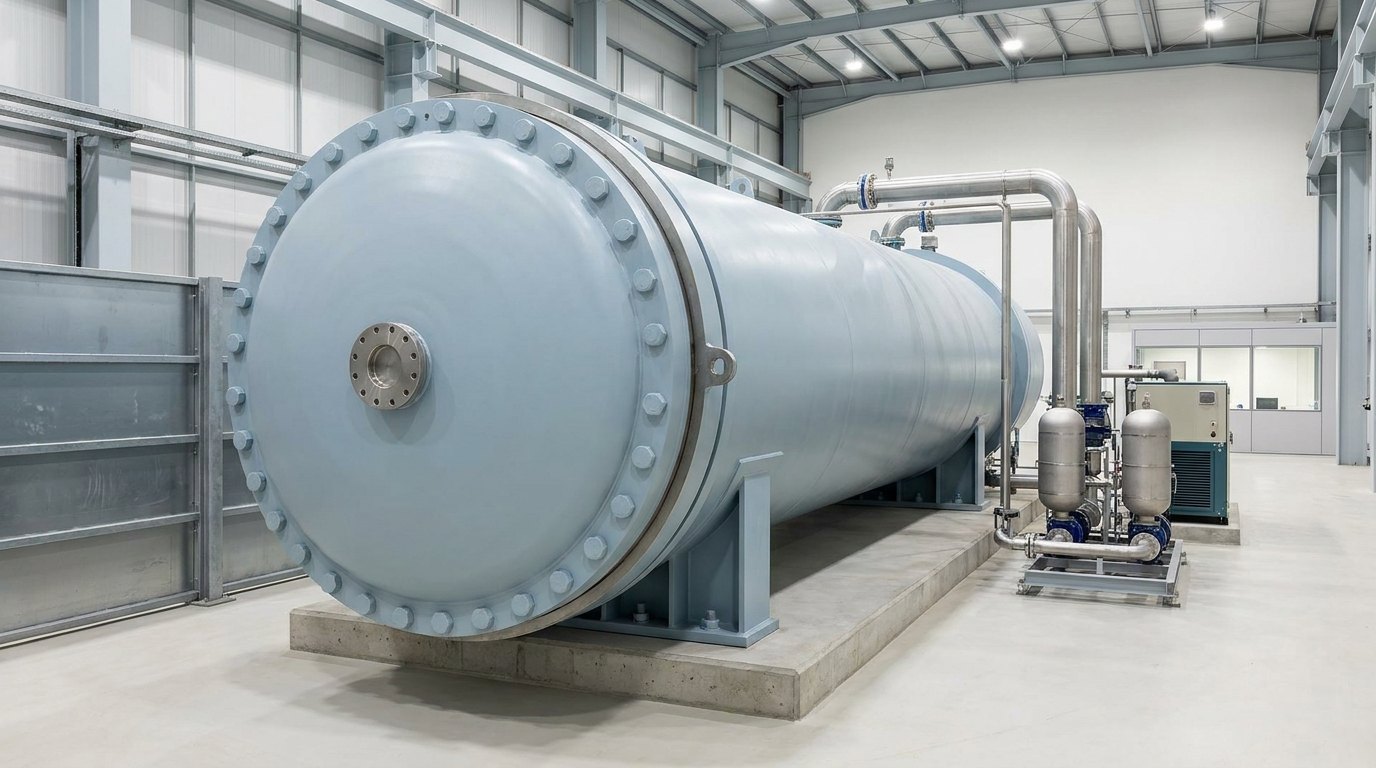

Fig · 02 — The system in one picture: the chamber at the centre, pumping and control around it, and the relief and drain that keep it safe.

The way down is a test. So is the way back.

What the simulator is actually for

It reproduces the pressure of the deep ocean on equipment. That means housings, sensors, cables, connectors, buoyancy material and whole assemblies.

The tests are proof tests, cyclic tests, long soaks, and destructive tests that find where a design gives way.

Why water, and why the air must go

The chamber is pressurised with water, which barely compresses. Air is different. It compresses like a spring and stores energy.

So the chamber is filled and degassed before it is pressurised, until only water is left.

Why the closure decides the design

Pressure acts on the door as well as the walls. The force is pressure times area, so a large door carries a very large load.

The closure and its locking are where a design earns its keep, and where the interlocks matter most.

Why the way back matters

Gas trapped in a void, a seal or a buoyancy material expands as the pressure falls. Release it too fast and the damage is done on the way up.

So the release is controlled as carefully as the descent, and the return is part of the test.

What safety means here

At these pressures, water stores real energy. A small leak is a jet, but a failure is a release of that energy.

So the chamber is contained, interlocked, and run from outside an exclusion zone.

Who does what

The chamber and closure are high-pressure vessel work. They are built to the pressure vessel code by a qualified vessel maker.

Neometrix engineers and integrates the rest: the pumping, the pressure control, the sensing, the safety systems, the handling and the test procedures. It does not claim to design or certify the vessel.

02

The cycle

Load, fill, pressurise, hold, release, then open.

A test runs from a stored profile, not from an operator's judgement, so that one test can be compared with the next.

FIG · 02DEEP OCEAN PRESSURE SIMULATOR · LOAD / FILL & DEGAS / PRESSURISE / HOLD / RELEASE / OPEN — THE PRESSURE PROFILE, AND WHY THE AIR MUST GO

The step people underrate is the release. The profile has a way down and a way back, and both are controlled.

Fig · 03 — Three things a simulator must get right: pressure from every side, a closure that carries the end load, and a chamber whose life is used up by every cycle — a drawing of the idea, with no values.

1 · Load & close

The article goes in on its cradle, with its cables passed through the wall. The closure is shut and locked, and the interlock proves it.

2 · Fill & degas

The chamber is filled with water and the air is vented until only water remains. Nothing is pressurised before this is done.

3 · Pressurise

The pumps raise the pressure along the stored ramp. The control holds the rate, and the water temperature is watched.

4 · Hold

The pressure is held at the target for the soak. Leaks, drift and the article's own readings are recorded against time.

5 · Release

The pressure falls along a controlled ramp. The return is part of the test, and it is recorded like the descent.

6 · Open & inspect

The chamber is depressurised, drained and opened. The article is inspected against the record, and the cycle is counted.

03

Work content

What the simulator contains, element by element.

Read it as a checklist: a simulator missing a row will buy that row later, and at these pressures it costs more.

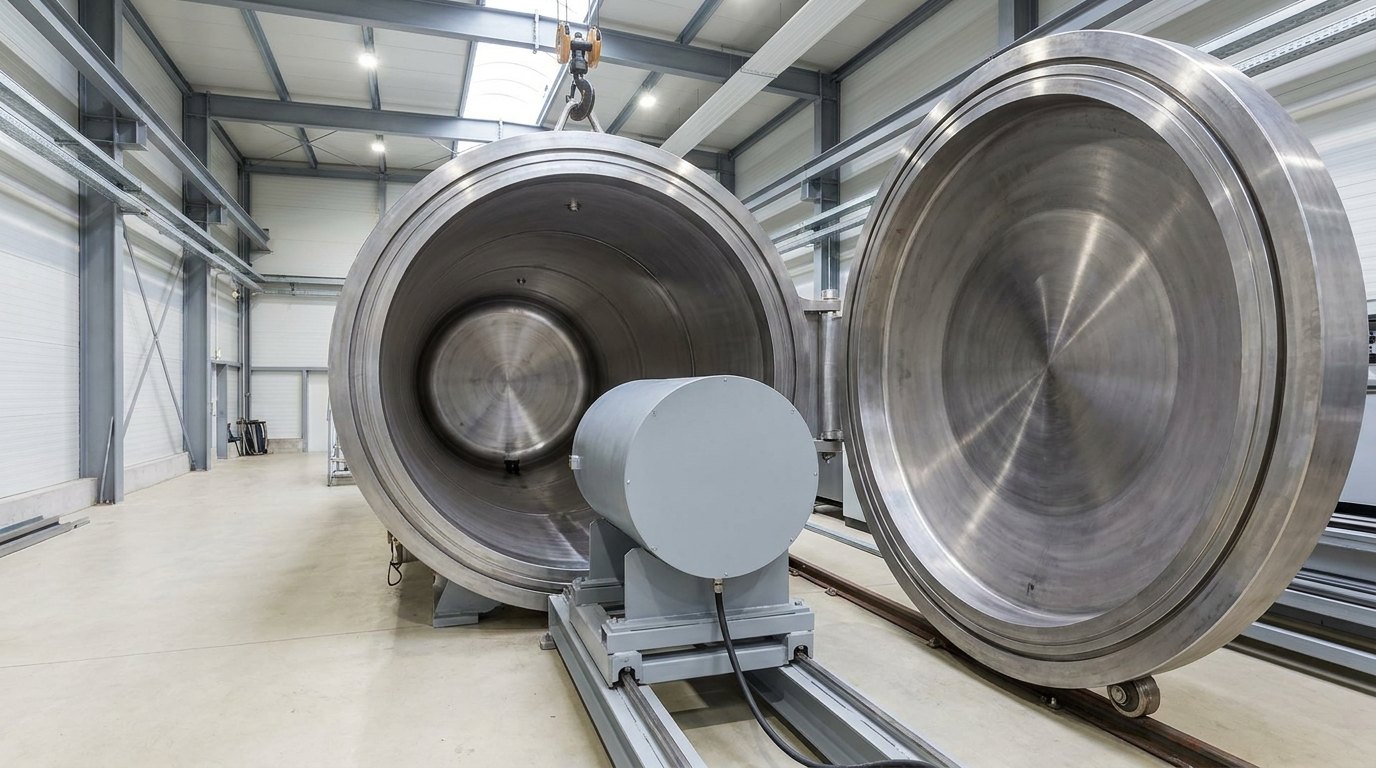

The open end of a large horizontal steel pressure chamber: its massive circular closure has been rolled clear on floor rails, showing a thick machined face, and the polished bore opens toward the camera, empty, with a plain grey cylindrical instrument housing on a rail-mounted loading cradle at its mouth and a crane hook overhead

Fig · 04 — The chamber opened for loading: the closure rolled clear, the bore empty, and a test article on its cradle at the mouth — illustrative render.

Fig · 05 — The facility from above: the chamber on its foundation, the loading area at the closure end, the pump house and chiller, and the control room outside the exclusion zone.

Element	What it does	What matters
Chamber vessel	holds the water and the article at pressure	thick-walled; built to the pressure vessel code by a qualified maker
Closure & locking	seals the end and carries the end load	interlocked, so it cannot open under pressure
Seals	keep the pressure in	chosen for pressure, temperature and cycle life
Cable penetrators	pass power and signals through the wall	rated for the test pressure and tested in place
Fill & degas	fills with water and removes the air	the chamber holds only water before it is pressurised
Pumps & intensifier	raise the pressure	smooth at low rates, with standby capacity
Accumulator	evens out pressure and rate	sized for the volume and the ramp
Pressure control	follows the profile down, up and through cycles	ramp, hold and cycle, in both directions
Pressure sensing	reads the pressure	redundant, calibrated and independent of the control
Temperature control	keeps the water at the set temperature	chiller and jacket; compression warms the water
Relief & drain	limits the pressure and empties the chamber	sized and vented to a safe place
Containment & interlocks	keep people clear of the stored energy	barrier, exclusion zone and remote operation
Handling	loads the article and moves the closure	cradle, rails and crane sized to the article
Data acquisition	records pressure, temperature and the article's own signals	one time base, every channel
Foundation & pit	carries the weight and the end load	civil design matched to the vessel
Testing & handover	proves the system and trains the operators	procedures, records and a cycle log

The rows that decide whether a simulator is safe and useful are never the pumps. They are the closure and the control of the release. A strong vessel with a poor door, or a fast return, is not a test facility.

Full specification — expand

System	Deep ocean pressure simulator: a thick-walled pressure chamber with a large interlocked closure and cable penetrators; a fill and degas system; high-pressure pumps or intensifiers with accumulators; profile pressure control; redundant pressure sensing; temperature control; relief and drain; containment and interlocks; handling; data acquisition; and the foundation
The One Idea	A deep-sea test has two halves, the way down and the way back. The return is part of the test, and it is controlled and recorded like the descent
What It Tests	Housings, sensors, cables, connectors, buoyancy material and whole assemblies, by proof, cyclic, soak and destructive tests. A destructive test finds where a design gives way, and is run inside containment
Why Degas	Water barely compresses. Air compresses like a spring and stores energy, so the chamber is filled and degassed until only water is left, before any pressure is applied
The Closure	The pressure acts on the door as well as the walls, and the force is pressure times area. A large door carries a very large load, so the closure and its locking are designed as the critical part, and interlocked so that it cannot open under pressure
The Return	Gas trapped in a void, a seal or a buoyancy material expands as the pressure falls. The release is controlled to a stored ramp, held by the same control and sensing as the descent, so the damage is not done on the way up
Temperature	The deep ocean is cold, and compressing water warms it slightly. A chiller and jacket hold the water at the set temperature, and the temperature is recorded with the pressure
Cycle Life	Every pressure cycle uses up some of the chamber's fatigue life. The design states a cycle life, the cycle log counts the cycles used, and the vessel is inspected on a schedule
Safety	At these pressures water stores real energy. The chamber is contained and interlocked; pressure is limited by relief devices vented to a safe place; two independent pressure readings are kept; and the operator works from outside an exclusion zone
Standards	The high-pressure vessel rules, such as ASME Section VIII Division 3, are the public reference for vessels at these pressures. The choice of code, the design, the fatigue life and the inspection belong to the vessel designer and the buyer's inspection authority. Neometrix claims no certification on anyone's behalf
Who Does What	The pressure vessel is high-pressure vessel work, built to the pressure vessel code by a qualified vessel maker. Neometrix integrates the chamber, the pumping and pressure control, the sensing, the safety systems, the handling and the procedures, and does not claim to design or certify the vessel
Configurations	Instrument chamber; assembly chamber with a large closure and handling; and a full facility with pump house, chiller and control room, all on one control and safety philosophy
Scope Boundary	This is an unmanned chamber for equipment. Chambers for people are the hyperbaric and saturation diving systems. Component proof-pressure work is the high-pressure proof test bench, and cyclic pressure testing of small units is the PLC controlled autoclave pressure tester
Status	Neometrix engineers deep ocean pressure simulators to order, as the integrator of the chamber, the pumping and pressure control, and the safety systems, with the pressure vessel built by a qualified high-pressure vessel maker, and no delivered deep ocean pressure simulator is claimed.

04

Configurations

One control and safety philosophy, three ways to build it.

The profile control, the sensing and the safety logic are shared. What changes is the size of the chamber and how much sits around it.

Instrument chamber

Small-bore chamber

For sensors, connectors, cables and small housings. It cycles quickly, and suits a laboratory that runs many short tests.

Assembly chamber

Large-bore chamber with handling

For whole assemblies and large housings. It has a heavy closure on rails, a loading cradle and a crane, and it takes longer to cycle.

Full facility

Chamber, pump house and control room

The chamber on its foundation, with a pump house, a chiller, an exclusion zone and a control room, built and commissioned as one facility.

Fig · 06 — Three ways to build it, one philosophy: the same profile control, pressure sensing and safety logic on an instrument chamber, an assembly chamber, or a full facility.

And the part that is not steel at all, yet decides all three: the control software and the test procedures — a stored profile for the way down and the way back, and a record that a reviewer can follow line by line.

05

Where it is used

Wherever equipment must survive the sea before it is sent into it.

The common thread is a deployment that is expensive, slow and hard to repeat, so the failure has to happen in the lab first.

Ocean research and instrument makers

Sensors, samplers and instrument housings tested to the depth they will work at, and calibrated under pressure.

Underwater vehicle builders

Pressure housings, thrusters, buoyancy material and cables tested before they are built into a vehicle.

Subsea and offshore equipment

Connectors, valves, control modules and cable terminations tested by proof, cycling and soak.

Materials and component laboratories

Seals, foams, windows and coatings tested in water at pressure, and taken to failure in containment.

06

FAQ

Common questions.

Longer answers, for readers who want the reasoning.

Q · 01 What is a deep-ocean simulator used to test?

Equipment that will work under the sea, and needs to be proven against the pressure before it goes there. That covers housings for electronics and instruments, sensors, cables and connectors, buoyancy material, seals, windows, and whole assemblies such as a vehicle's pressure section. The pressure in the sea rises by roughly one bar for every ten metres of depth, so equipment that works at a few kilometres is loaded by hundreds of bars from every direction. Nothing else reproduces that load, and a trial at sea is slow, costly and hard to repeat. Four kinds of test are run. A proof test takes the article to a set pressure and checks that it is unharmed. A cyclic test repeats the descent and the return many times, to find what wears. A soak holds the pressure for a long period, to find slow leaks, creep and drift. And a destructive test raises the pressure until the article gives way, to find its real limit, which is run inside containment. A useful simulator does all four from the same stored profiles, and records the article's own signals against the pressure on one time base.

Q · 02 Why is air such a problem in a pressure chamber?

Because water and air behave in opposite ways under pressure. Water barely compresses, so a chamber full of water rises in pressure quickly for a very small change in volume, and the pump only has to add a little more water. Air compresses like a spring. A pocket of air in the chamber squeezes down as the pressure rises and stores energy while it does, and if something then fails, it gives that energy back all at once. A bubble also makes the pressure hard to control, because the pumps have to work against a spring, and it can heat as it is compressed. That is why the chamber is filled and degassed before any pressure is applied: it is filled with water, the high points are vented, and the air is removed until only water is left. The chamber is designed for this. The vents sit at the high points, the fill is slow enough not to trap bubbles, and a check confirms it before the pressurisation step is allowed to start. It is a small step in the procedure, and one of the most important for safety.

Q · 03 Why does the closure matter so much?

Because the pressure inside the chamber acts on the door exactly as it acts on the walls, and the force on a flat area is the pressure times the area. A small pressure on a large area is a large force, and a very high pressure on a door big enough to take a whole assembly is a load that has to be carried by the locking, the vessel and, through them, the foundation. The walls of a cylinder carry their load in a well-understood way. The closure is harder: it has to seal, it has to open and close in service, and it has to hold, cycle after cycle. So it is designed as the critical part of the chamber, and the rest of the design follows from it. The seal is chosen for the pressure and for the number of cycles. The locking is engaged before pressure is allowed, and cannot be released while the chamber is pressurised, because an interlock ties the closure to the pressure reading. And the loading is planned, with the closure on rails and the article on a cradle, so that opening the chamber is a routine, controlled job and not a lifting problem.

Q · 04 Why is coming back up part of the test?

Because some of the damage is done on the way back. On the way down, pressure squeezes an article evenly, and most designs are made to take that. On the way back, anything that took in water or gas under pressure has to let it out again, and it may not manage it in time. Gas trapped in a void, in a seal or in a buoyancy material expands as the pressure falls. If the pressure falls faster than the gas can escape, it pushes seals out of their grooves, blisters coatings and can open cracks in the material around it. Buoyancy material can also change over repeated cycles, so a single trip can look fine where a hundred trips do not. That is why a simulator has to control the release exactly as carefully as the descent: the pressure falls along a stored ramp, held by the same control and read by the same redundant sensors, and the return is recorded against the article's signals like every other part of the test. The rate is part of the procedure, and it is agreed with the buyer's test specification, not chosen by whoever is at the controls.

Q · 05 How is a chamber like this made safe?

By treating the stored energy as the hazard, and not the pressure itself. A jet from a small leak is a nuisance, but the failure of a large vessel at very high pressure releases everything the water and the steel have stored, so the safety design starts there. First, the chamber is designed and built to the pressure vessel code for the pressure and the number of cycles, with a stated fatigue life and an inspection schedule. Second, relief devices limit the pressure and are vented to a safe place, and there are two independent pressure readings, so that a failed sensor cannot hide a rising pressure. Third, interlocks tie the closure, the pumps and the vents together, so that none can be operated out of order. Fourth, containment: a barrier, an exclusion zone and a control room outside it, so that nobody stands near the chamber while it is pressurised. Fifth, the procedures: degassing before pressurising, controlled ramps in both directions, and destructive tests run only in containment. And sixth, the record: a cycle log that counts the life used, so the chamber is retired or inspected before it is worn out and not after.

Q · 06 Has Neometrix built one of these?

We would rather answer this plainly than let a page imply otherwise. Neometrix engineers deep ocean pressure simulators to order, as the integrator of the chamber, the pumping and pressure control, and the safety systems, with the pressure vessel built by a qualified high-pressure vessel maker, and no delivered deep ocean pressure simulator is claimed. What stands behind the offer is adjacent and real. Neometrix engineers high-pressure test systems: our hydrostatic test bench proof-tests cylinders at very high pressure, our high-pressure proof test bench works in the same regime, and our PLC controlled autoclave pressure tester cycles small units under PLC control, with the data acquisition and safety logic that go with them. Those are component-scale systems. A deep-ocean simulator adds a much larger chamber, a heavy closure, a longer profile and the control of the return, and the vessel itself is high-pressure vessel work that we would not claim as ours. So the honest position is this: the class is engineered to order, the pumping, control and safety engineering is in the building, and the first simulator of this exact type will be built around a customer's requirement, with the vessel maker brought in for the part that calls for one. If that matters to how you buy, say so early and we will scope it that way.

Q · 07 Which codes apply, and who approves the design?

For vessels at pressures this high, the public reference is the set of high-pressure vessel rules, of which ASME Section VIII Division 3 is a well-known example. Those rules go beyond the ordinary pressure vessel codes: they deal with the way a thick wall is stressed, with fatigue evaluation for a vessel that will be cycled, with fracture mechanics, and with methods such as pre-stressing the wall that suit very high pressures. Which code applies to a given chamber, how the vessel is designed, what fatigue life it is given and how it is inspected are decisions for the vessel designer and for the buyer's inspection authority, and this page does not make them. Three roles are worth keeping apart. The vessel is designed and built by a qualified high-pressure vessel maker. The pumping, pressure control, sensing, interlocks, handling and procedures are engineered and integrated by Neometrix. And approval of the whole, including any independent inspection, rests with the customer and the authority they name. We claim no certification on anyone's behalf, and a simulator that is built will carry the vessel maker's own certification for the vessel.

Q · 08 What do you need from us to quote?

Six things, and most of them are about your tests. First, the pressure you need to reach, which sets the depth you are simulating, and whether you also need margin above it for proof or destructive tests. Second, the articles: the largest you will test in size and weight, and the range of what you test, which sets the size of the chamber and the handling. Third, the test profiles: the ramp rates in both directions, the soak times and how many cycles, which set the pumps, the control and the life of the vessel. Fourth, the medium and the temperature: fresh water or seawater, and the temperature to hold. Fifth, the instrumentation: how many cable penetrators, what signals, and what data you want recorded. Sixth, the site: the hall, the floor and foundation, the crane, the utilities and the room for an exclusion zone, and the code and inspection authority you work to. From that we come back with a system definition you can check, a plan of the facility, a control and safety specification, and a budgetary price. If you would rather start with a conversation, that works too — most of these projects begin with somebody describing something that failed at sea.

07

Three neighbours in the same high-pressure family.

↗ The same pressure regime

High-Pressure Proof Test Bench

Component-scale proof-pressure testing with PLC control and data acquisition, where this page is the large chamber.

↗ The cyclic side

PLC Controlled Autoclave Pressure Tester

Cyclic pressure testing of small units in a chamber, under a stored profile.

↗ The chambers for people

Hyperbaric & Saturation Diving Systems

Chambers that keep people alive at pressure, where this page is an unmanned chamber for equipment.

Browse all Neometrix product lines.

Get a quotation

Tell us the pressure, the articles,
and the profiles you need to run.

The projects desk replies within two working days with a system definition you can check, a plan of the facility, a control and safety specification, and a budgetary quotation. Write to [email protected] or use the form.

Enquire — deep ocean simulator Capability sheet (PDF) +91 7777 876 876
