Instrument Calibration Bench. Outrank it; sit beside.

Name: Instrument Calibration Bench
Brand: Neometrix
SKU: NMX-ICB-82

An instrument calibration bench checks the instruments a plant relies on: gauges, transmitters, switches, temperature sensors and indicators. It makes a known pressure, temperature or signal, reads the instrument, and records how far it is from the truth, as found and as left.

So the bench has to outrank the instrument, sit its reference beside the sensor, and read only when everything has settled.

Discuss an instrument calibration bench Capability note (PDF)

An instrument calibration bench on a plain white studio background: a long low pale grey steel workbench with a stainless steel worktop and two drawer units below, and on the worktop a stainless pressure manifold with four valves and quick-connect fittings joined by a thin tube to a grey controller box, a stainless dry block with two thin probes standing in its holes, and two plain grey instrument boxes joined by black cables, and no people

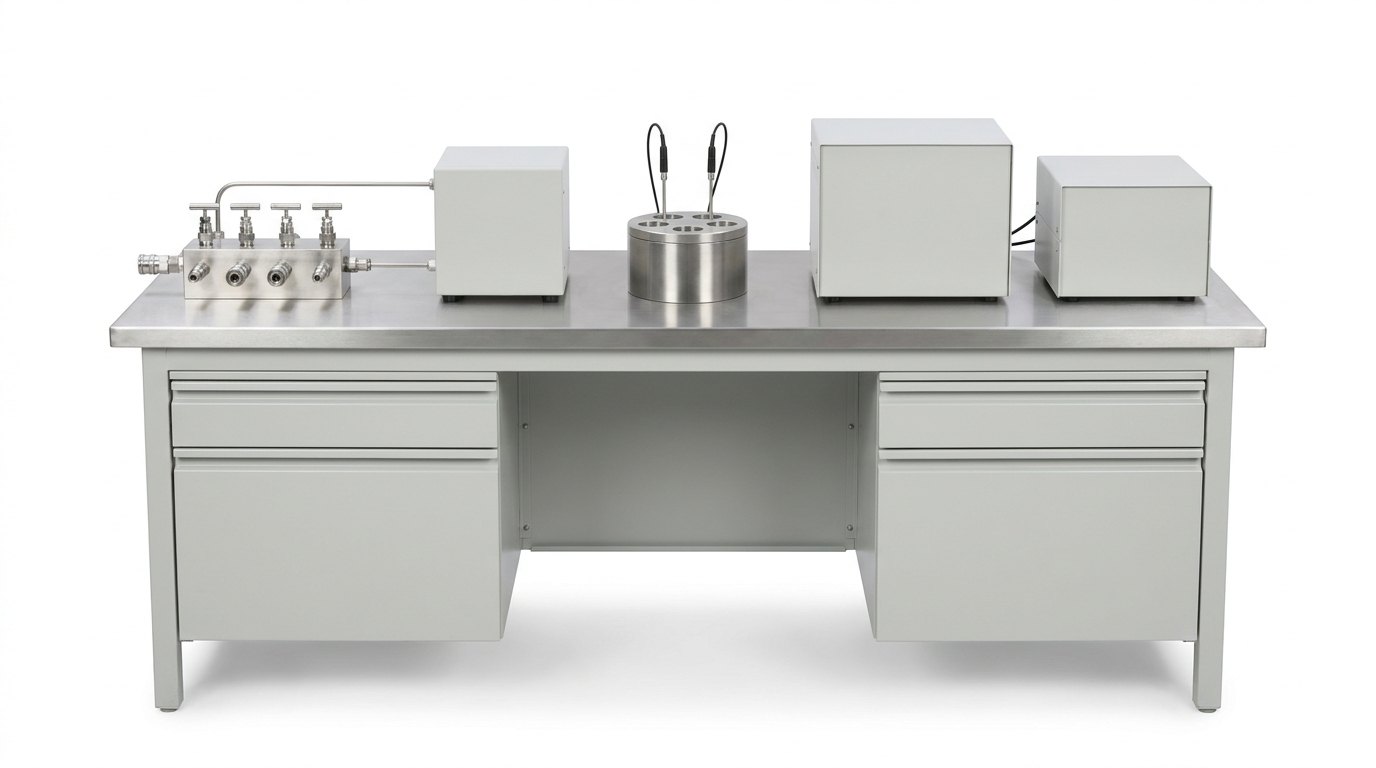

Fig · 01 — An instrument calibration bench: a pressure manifold and controller, a dry block with probes, and two instrument boxes on one steel worktop — illustrative render.

The result

how far from the truthas found and as left

The reference

better than the instrumentseveral times better, with a certificate

The place

beside the sensorsame zone, same depth, same height

The wait

read when settledheat and pressure take time

Status

engineered to orderno delivered bench claimed

ISO 9001ISO 14001ISO/IEC 17025, IEC 60751 and ASTM E220 reference standards

Overview

Why the whole job is the reference.

Because a calibration is a comparison, and a comparison is only as good as the thing you compare against, and where you put it.

A dry-block temperature calibrator on a plain white studio background: a short stainless steel cylinder block with nine round holes in its top face, two thin sensor probes with black cables standing in neighbouring holes and a thicker reference probe beside them, on a plain grey base box with a black power cable, and no people

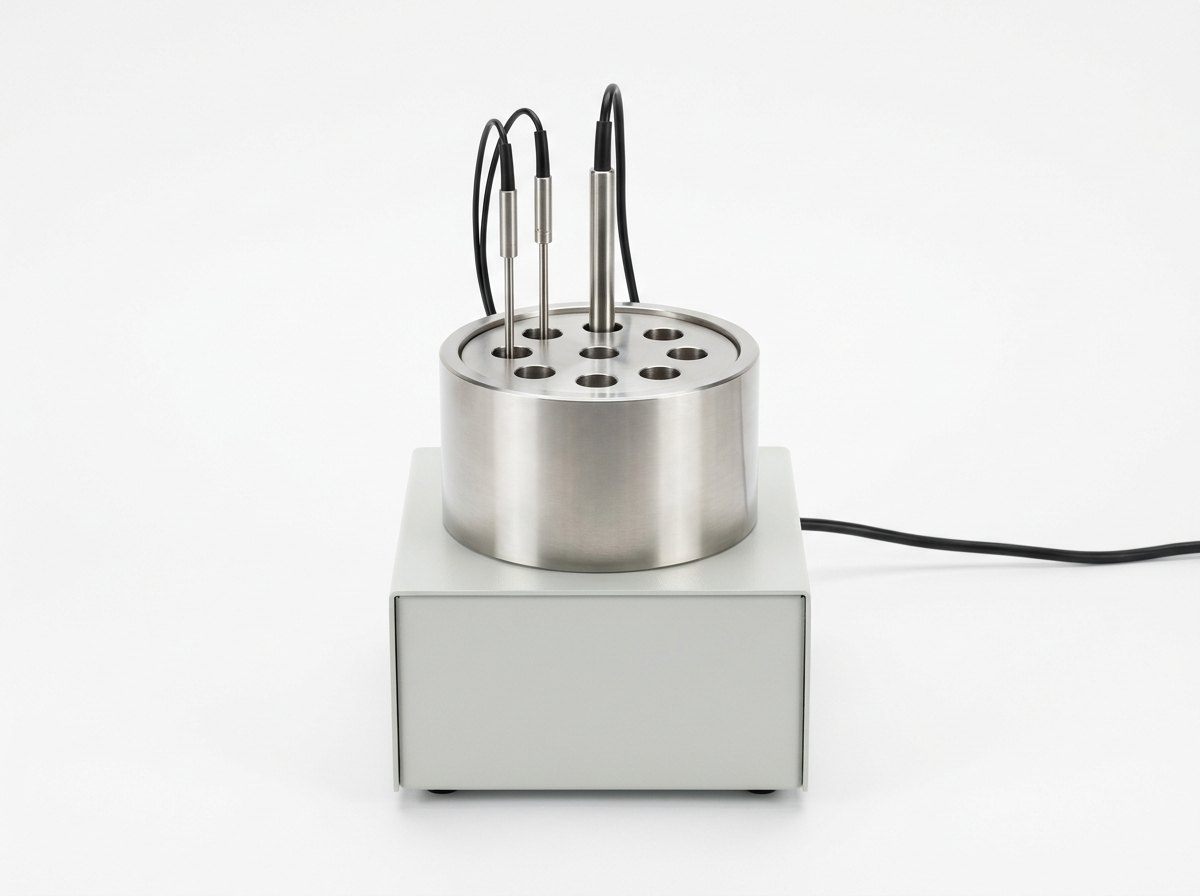

Fig · 02 — A dry block with two thin sensors under test in neighbouring holes and a thicker reference probe beside them, all in the same zone — illustrative render.

Outrank it; sit beside.

What the bench is for

It calibrates and checks the instruments of a plant or a laboratory: pressure gauges and transmitters, pressure switches, temperature sensors and transmitters, and panel indicators and controllers. It suits a loop and signal bench, a temperature station, and a combined multi-function bench. Each instrument is compared with a reference and its reading is recorded.

Why the reference must outrank the instrument

If the reference is no better than the instrument, the comparison cannot tell a good instrument from a bad one, because a difference could be the fault of either. The uncertainty of the reference has to be several times smaller than the tolerance of the instrument it checks, and that ratio is written into the test plan before the first reading.

Why the reference must sit beside the instrument

A reference measures at its own position. A temperature block is not at the same temperature everywhere, and a probe in the wrong place reports a different temperature from the sensor beside it. So the reference thermometer sits in the same zone as the sensor, at the same depth. Pressure gets the same treatment: both ports sit at the same height on the same manifold.

Why the display is not the temperature at the sensor

A block or a bath shows the temperature it is set to. The sensor is at another place, in a different loading, with heat running down its stem. So the bench reads the reference thermometer, not the dial of the block, and it waits until both have stopped moving.

Why the signal is measured at the loop

An electrical signal changes between the source and the instrument: the supply, the wiring and the load all matter. So the bench puts the instrument in a working loop on a stable supply, and measures the signal at the instrument's terminals, not at the source.

Why the reading waits

Heat and pressure take time to settle. The bench reads only when the reference and the instrument have stopped moving, and it records how long that took, so a hurried test shows up in the record.

Why the record is as found and as left

Adjusting an instrument changes it, so the first reading is kept: as found, before any adjustment, and as left, after it. Together they show whether the instrument had drifted, and by how much.

The method

Specify, size, build, calibrate, run, and prove.

Six steps in a fixed order. Showing that the references outrank the instruments and that they sit where the sensors sit are the two a quick order skips.

1 · Specify

The instruments, their tolerances, the quantities and ranges, the method the customer names and the number of instruments to run together are stated by the customer.

2 · Size

The references are chosen to outrank the tightest instrument on the list, and the worktop, the manifold and the block or bath are sized for the instruments and the way they connect.

3 · Build

The frame, the worktop, the manifold and tubing, the wiring and terminals, the references and the software are built as one bench.

4 · Calibrate

The references of the bench are themselves calibrated against a higher standard, and the chain back to that standard is written down.

5 · Run

A reference instrument is run first, to show that the readings agree, that the settle is long enough and that the record is complete.

6 · Prove

A record is kept for every instrument, with its readings, its conditions and its uncertainty, and handed over with the bench.

Which quantity, which reference

Instrument	What the reference is	What to watch
Temperature sensors	a reference thermometer in a dry block or a stirred bath	uniformity and stability of the block, the immersion depth, heat running down the stem, and the settle before the reading
Thermocouples and resistance thermometers, by simulation	a precision source that reproduces the sensor's signal	the reference junction, the lead resistance and the wiring, so that the test checks the transmitter and not the cable
Current and voltage signals	a precision source and measure	a stable loop supply, the load in the loop, and the signal measured at the instrument's terminals
Pressure transmitters and switches	a pressure controller and a reference gauge or transducer	both ports at the same height, leak-free connections, and the settle at every point
Indicators and controllers	a source that drives the input, and a measure on the output	the set-points and the switching points, taken in both directions

The step people underrate is the place. A reference that is accurate but sits away from the sensor, or higher up the manifold, is accurately measuring the wrong thing.

Work content

What the bench contains, element by element.

Read it as a checklist: a bench missing a row will compare an instrument with something, but not with a reference you can defend.

A pressure test manifold on a plain white studio background: a stainless steel block lying on a grey base plate with five ports on top, two plain stainless pressure transmitters with short black cables on two of them and the others capped, two valves with straight lever handles on the front and a quick-connect fitting with a black hose at one end, and no people

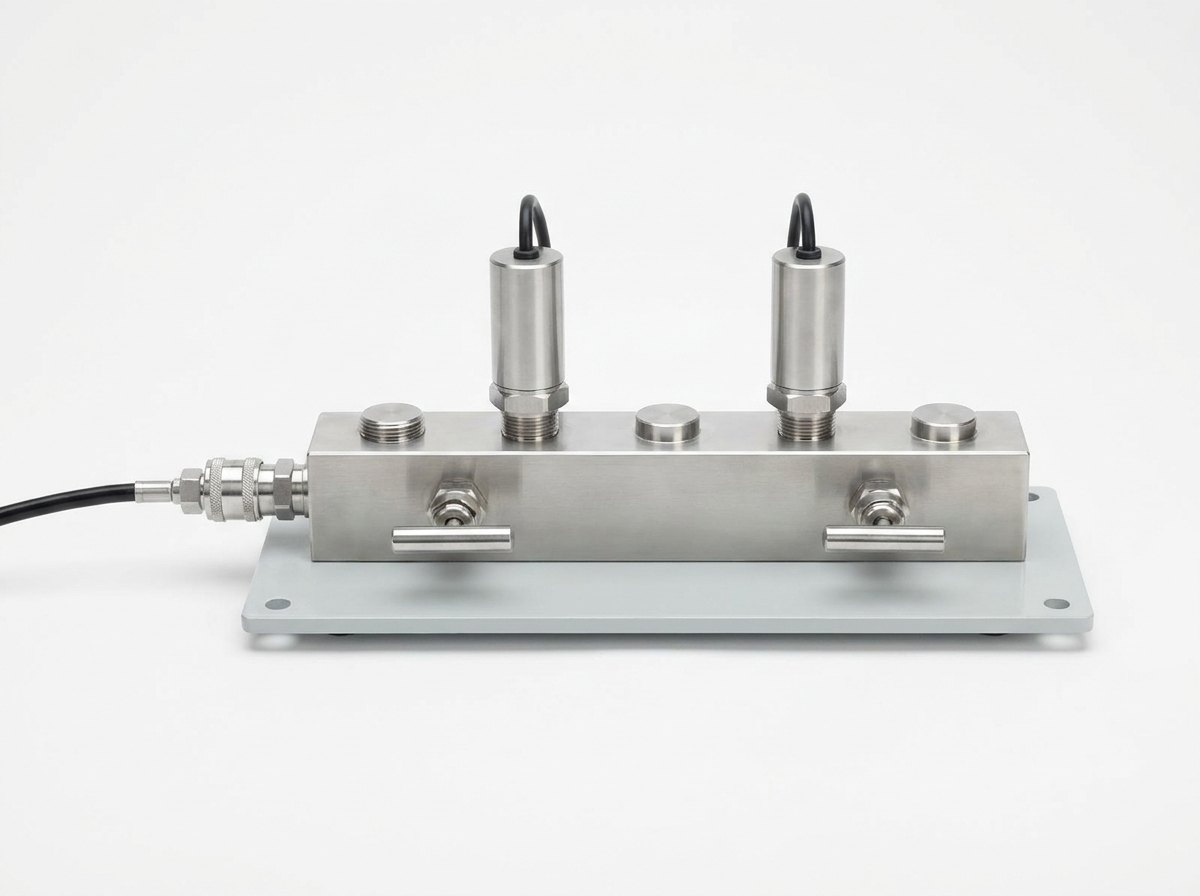

Fig · 03 — A pressure manifold: a stainless block with two transmitters on its ports, two valves and a quick-connect fitting, so that both sit at the same height — illustrative render.

Element	What it does	What matters
Bench frame and worktop	hold the references and the instrument	a rigid, level worktop at working height, with cable and tube routing that keeps the instrument and its reference together
Pressure source and reference	make and measure the pressure	a pressure controller or a hand pump, a reference gauge or transducer, and a manifold that puts both ports at the same height
Temperature source	makes the temperature	a dry block or a stirred bath with interchangeable inserts, loaded with the sensors and settled before any reading
Reference thermometer	measures the temperature	a calibrated reference placed in the same zone as the sensor, at the same depth
Electrical source and measure	make and measure the signal	a precision source and measure for current, voltage and resistance, with simulation of thermocouples and resistance thermometers
Loop supply and terminals	put the instrument in its working loop	a stable supply and terminals that let the signal be measured at the instrument, not at the source
Manifold and test points	connect the instrument	leak-free quick connectors, isolation and vent valves, and test points that do not add an error of their own
Software and records	run the test plan	steps through the test points, waits for the settle, reads the references and the instrument, and writes the as-found and as-left record with its uncertainty
Procedure	fixes the sequence	specify, size, build, calibrate, run and prove, the same for every bench
Testing & documentation	prove the bench first	a reference instrument run, the references shown to outrank the instruments, and a record the customer can inspect

The elements that decide whether a result is true are the references and the manifold and test points that put them beside the instrument, and the one that decides whether it can be trusted later is the record. The first two make the comparison fair, and the third lets someone else check it.

Full specification — expand

System	A rigid bench frame and worktop; a pressure source with a reference and a manifold that puts both ports at the same height; a temperature source, a dry block or a stirred bath, with interchangeable inserts; calibrated reference thermometers placed in the same zone as the sensor; a precision electrical source and measure with thermocouple and resistance thermometer simulation; a stable loop supply and terminals; leak-free quick connectors, isolation and vent valves and test points; software that steps through a test plan and writes an as-found and as-left record; a written test plan; and calibration, testing and documentation before handover
The One Idea	Outrank it; sit beside.
Why The Reference Must Outrank The Instrument	If the reference is no better than the instrument, the comparison cannot tell a good instrument from a bad one, so the uncertainty of the reference has to be several times smaller than the tolerance of the instrument it checks, and that ratio is written into the test plan
Why The Reference Sits Beside The Instrument	A reference measures at its own position and a block is not at the same temperature everywhere, so the reference thermometer sits in the same zone as the sensor, at the same depth, and for pressure both ports sit at the same height on the same manifold
Why The Display Is Not The Temperature	A block or bath shows the temperature it is set to, while the sensor sits at another place, in a different loading and with heat running down its stem, so the bench reads the reference thermometer and not the dial of the block
Why The Signal Is Measured At The Loop	An electrical signal changes between the source and the instrument, so the bench puts the instrument in a working loop on a stable supply and measures the signal at the instrument's terminals, not at the source
Standards	ISO/IEC 17025 is the public standard for the competence of testing and calibration laboratories, IEC 60751 covers industrial platinum resistance thermometers, and ASTM E220 describes calibrating thermocouples by comparison with a reference thermometer. This page prints none of their limits, tolerances or uncertainties, and no edition year: those come from the method the customer names and from the instrument. Approval of an instrument, or of a result, rests with the customer and the authority they name; none is claimed here
Configurations	A loop and signal bench, a temperature station, and a combined multi-function bench
Scope Boundary	This page is the instrument calibration bench. It is not a pressure calibration bench, which compares gauges with a dead-weight standard (see pressure calibration bench), not a flow calibration rig, which checks flow meters against a scale and a clock (see flow calibration rig) and not a torque wrench calibrator, which checks torque wrenches (see torque wrench calibrator). A laboratory's primary standards and a fixed-point cell are different equipment again. No certification or accreditation is claimed here
Status	Neometrix engineers instrument calibration benches to order, and no delivered instrument calibration bench is claimed.

Configurations

One method, three ways to build the bench.

The method, the references, the manifold and terminals, the settle and the record are shared. What changes is which quantities the bench makes and how many instruments it takes at once.

Loop and signal bench

Gauges, transmitters and switches on one bench

A pressure source, a precision electrical source and measure and a stable loop supply, for pressure gauges and transmitters, pressure switches and current-loop instruments.

Temperature station

Sensors, transmitters and controllers compared

A dry block or a stirred bath with a reference thermometer, for resistance thermometers, thermocouples, temperature transmitters and controllers.

Combined multi-function bench

All of it under one record

The loop and signal bench and the temperature station on one worktop, run from one test plan and written to one record.

And the part that is not equipment at all, yet decides all three: the test plan. It fixes the instruments, the test points, the order they run in, the settle at each point, the ratio the references must keep and what is recorded. It is written from the customer's own instruments and method, not from the bench.

Where it is used

Wherever an instrument's word is taken, and someone has to check it.

The common thread is an instrument that a decision rests on, and a comparison that has to show how far it can be trusted.

Plant instrument shops

Where gauges, transmitters and switches are checked before they go back into service.

Calibration laboratories

Where instruments are calibrated against traceable references for other people.

Maintenance and overhaul workshops

Where instruments are checked on the bench before and after repair.

Research and teaching laboratories

Where sensors are compared and students learn what a calibration really is.

Watch

See it in motion.

A short walkthrough video of the instrument calibration bench.

FAQ

Common questions.

Longer answers, for readers who want the reasoning.

Q · 01 What does an instrument calibration bench actually do?

It compares an instrument with a reference. The bench makes a known pressure, temperature or electrical signal, holds the reference and the instrument in the same conditions, waits until both have settled, reads them, and records the difference at every test point, as found and as left. It does not decide whether an instrument passes: that is the job of the method and of the people who name it.

Q · 02 Why must the reference be better than the instrument?

Because a comparison can only show a difference, not whose fault it is. If the reference is about as uncertain as the instrument, a reading that looks like a fault may be the reference, and a reading that looks fine may hide one. The usual practice is to make the uncertainty of the reference several times smaller than the tolerance of the instrument, and an accredited laboratory writes the rule it applies into its procedure. We set the references against the tightest instrument you need to check, and the ratio goes into the test plan.

Q · 03 Why not simply trust the temperature the block shows?

Because the block shows the temperature it was set to, not the temperature at the sensor. The block is not the same temperature at the top and at the bottom, loading it with sensors changes it, and heat runs down the stem of a sensor that is not immersed far enough. A reference thermometer placed in the same zone as the sensor, at the same depth, reads what the sensor is actually in. We read that, and we record how long the block took to settle.

Q · 04 Should the temperature station use a dry block or a stirred bath?

It depends on the sensors. A dry block is quick to use and easy to move, and it suits sensors of a common shape that fit its inserts. A stirred bath puts the liquid round the whole sensor, which suits sensors of unusual shape or length and often gives a more even temperature, but it is slower and needs a fluid. Either way the reference sits in the same zone as the sensor, at the same depth. We set out the trade-offs against your sensors before we propose a source.

Q · 05 Is this the same as the pressure calibration bench, the flow calibration rig or the torque wrench calibrator?

No, and the differences are worth stating precisely. The pressure calibration bench page covers comparing gauges with a dead-weight standard. The flow calibration rig page covers checking flow meters against a scale and a clock. The torque wrench calibrator page covers checking torque wrenches. This page is the instrument calibration bench, for temperature and electrical signal instruments, with pressure as a source for transmitters. It does not replace any of them, and it does not claim what they claim a second time.

Q · 06 Has Neometrix built one of these?

We would rather answer this plainly than let a page imply otherwise. Neometrix engineers instrument calibration benches to order, and no delivered instrument calibration bench is claimed. What stands behind the offer is adjacent: Neometrix engineers a pressure calibration bench (see the pressure calibration bench page), a flow calibration rig (see the flow calibration rig page) and a torque wrench calibrator (see the torque wrench calibrator page). The pressure controllers, dry blocks, baths, reference thermometers, process calibrators and meters are catalogue items, bought in, not invented. What Neometrix engineers is the bench around them: the frame and worktop, the manifold and tubing, the wiring and terminals, the software and the procedure. So the honest position is that the bench is engineered to order, the neighbouring disciplines are in the building, and the first bench of this exact kind will be built around the customer's own instruments rather than taken off a shelf.

Q · 07 Which standard applies, and what can the bench not do?

ISO/IEC 17025 is the public standard for the competence of testing and calibration laboratories. IEC 60751 covers industrial platinum resistance thermometers, and ASTM E220 describes calibrating thermocouples by comparison with a reference thermometer. This page prints none of their limits, tolerances or uncertainties, and no edition year: those come from the method the customer names and from the instrument. The bench compares and keeps a record. It does not make a laboratory competent and it does not certify an instrument: this page claims no certification or accreditation. No temperature, pressure, signal, time, size or quantity figure is printed here, and approval for use rests with the customer and the authority they name; none is claimed here.

Q · 08 What do you need from us to quote?

Six things, and most of them describe your instruments rather than the bench. First, the instruments: the kinds you calibrate, their ranges and their tolerances. Second, the quantities: which of pressure, temperature and electrical signal you need. Third, the method you name, and the ratio you want the references to keep. Fourth, the volume: how many instruments you want to run together. Fifth, the room: whether the bench stands in a controlled laboratory or on a workshop floor. Sixth, the record: what you want kept for every instrument. From that we come back with a bench concept, a written test plan you can check, and a budgetary price.

The neighbouring calibration pages, and how they differ from this one.

Three neighbours: one compares pressure with mass, one weighs and times a flow, one checks torque.

↗ Pressure

Pressure Calibration Bench

Compares every gauge with mass, area and gravity - the standard for pressure, where this page checks temperature and electrical signal instruments.

↗ Flow

Flow Calibration Rig

Checks every flow meter against a scale and a clock - the reference for flow, where this page uses a reference thermometer and a precision source.

↗ Torque

Motorized Torque Wrench Calibrator

Checks torque wrenches against a computerized reference - a tool calibrated for the force it applies, where this page calibrates instruments that read.
