NMX-SVT-30 · ENGINEERED TO ORDER — SAFETY & RELIEF VALVE TEST BENCHES

Never opens. Until it must.

Name: Safety & Relief Valve Test Bench
Brand: Neometrix

A safety valve is the plant’s last argument. It does nothing for years — shut, silent, ignored — and then, in the one second pressure passes its set point, it must open, relieve and reseat, perfectly. The codes refuse to take that second on trust: boiler rules, vessel rules and refinery patterns put every valve on a test calendar — and this bench is where the calendar is kept. A quick-clamp table takes flanged and screwed valves without re-piping; a rate-disciplined ramp finds the true set pressure; electronic pop detection catches the second; and seat tightness is proven the classic way — bubbles counted against the API-pattern table. Every valve leaves with its certificate. Workshop, high-capacity and boiler-house benches, plus portable testers for ships and sites. This bench proves protection devices; our delivered control-valve rigs characterise working valves — two disciplines, never confused. No delivered bench is claimed.

Enquire — valve test benches Capability sheet (PDF)

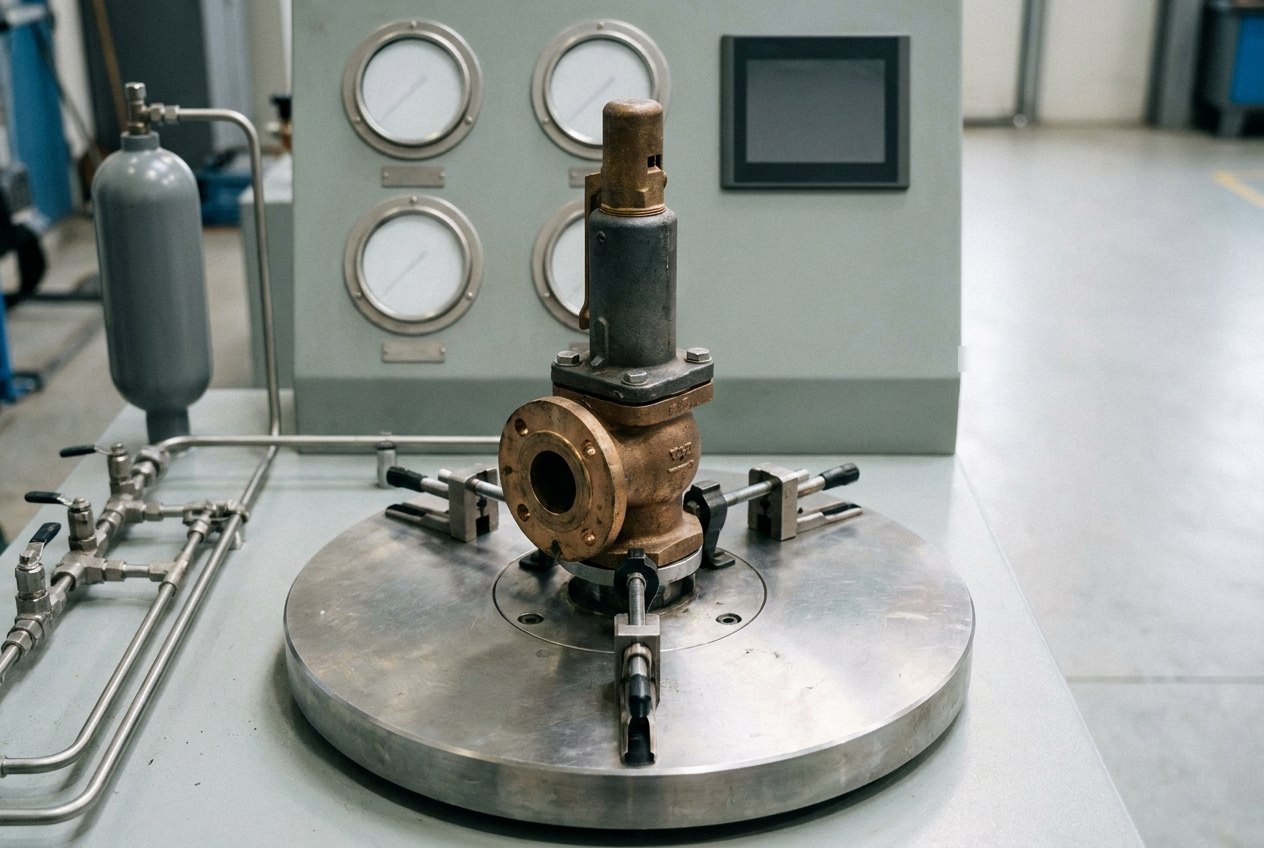

Illustrative image, not a delivered bench — a safety valve test bench in a workshop: a flanged bronze-and-steel safety valve clamped upright on a heavy circular quick-clamp table, a grey instrument panel with blank round gauges and one dark screen behind it, a vertical accumulator bottle, stainless tubing and hand valves, clean workshop floor, no people and no text

Fig · 01 The bench — a valve clamped, a ramp beginning, and the one second about to be rehearsed on record — illustrative, not a delivered bench

Proves

set · reseat · seatthe protection triad

Media

air · N2 · watergas + liquid patterns

Detection

pop, caughttransducers + electronics

Tightness

bubbles countedAPI-pattern column

Built

to orderbench · boiler-house · portable

ISO 9001 / 14001 Engineered to order IBR / API pattern Valve-test house Noida · India

Overview

The valve that must be perfect once.

Every pressure system carries one component whose whole career is a single second. The safety valve holds its seat through years of working pressure — through starts, stops, seasons — contributing nothing anyone notices. Then a control fails, a fire heats a vessel, an outlet blocks, and pressure climbs past everything else the plant can do. In that second the valve must open at its set pressure, pass its rated flow, and reseat when the danger passes — perfectly, mechanically, with no operator and no second chance. A valve that opens late endangers the vessel; one that leaks early destroys its own seat; one that will not reseat turns a relief into a shutdown. Which is why the codes put every safety valve on a calendar of proof — and why the bench exists.

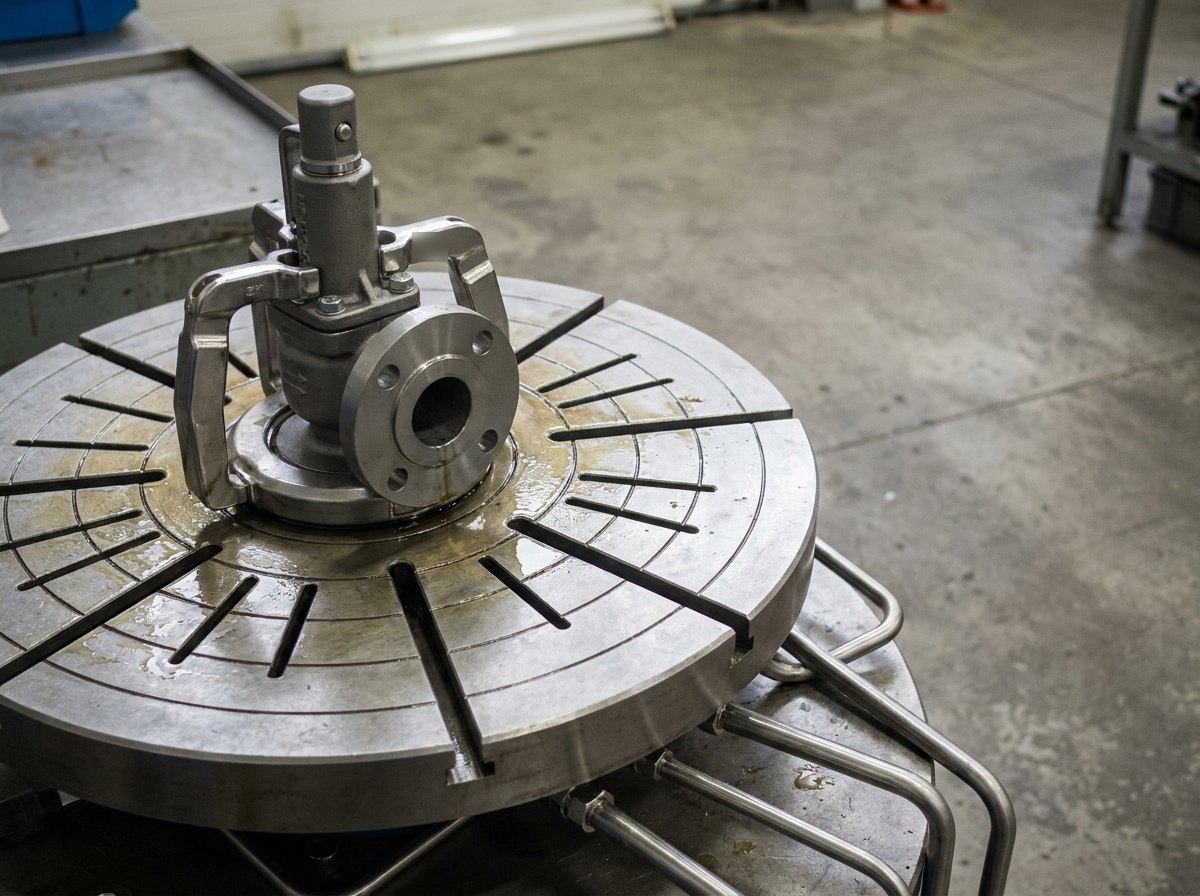

Illustrative image, not a delivered bench — close view of a safety-valve quick-clamp: three hydraulic clamp arms holding a flanged steel safety valve down onto a polished circular test table, a ring of bolt slots in the table, stainless supply tubing entering beneath, fine oil sheen on machined surfaces, no people and no text

Fig · 02 The quick-clamp — any flange in the range, seated and sealed in a minute, no re-piping — illustrative, not a delivered bench

The bench makes the proof routine. A PSV shop tests hundreds of valves a year, so the bench’s first craft is throughput without shortcuts: a quick-clamp table whose hydraulic arms take flanged and screwed valves across the size range — seated, sealed and safe in a minute, with no re-piping per valve. Behind it, the pressure source: dry air or nitrogen for gas-service valves, water for the liquid pattern, and — the detail that separates real benches from plumbing — accumulator volume sized so the pop is genuine: a starved source lets pressure collapse the instant the valve cracks, and the observed set point becomes fiction.

The set point is found, not assumed. Pressure rises on a rate-disciplined slow ramp — ramp too fast and inertia carries the reading past the true set. The pop is caught by precision transducers and audible-plus-electronic discharge detection, the observed set pressure recorded against the nameplate, adjustment made, and the proof repeated until the valve answers correctly. Then reseat is observed as pressure falls — the valve must close as decisively as it opened.

Tightness is proven the way inspectors trust. After reseat, the valve must hold working pressure without weeping — so the bench runs the classic API-pattern seat-tightness test: outlet leakage is led through a tube submerged in water, and bubbles per minute are counted against the standard’s table. It is beautifully honest instrumentation — visible, arguable with nobody. Every result — observed set, reseat, leakage class, medium, date — enters the per-valve certificate from a calibrated chain; and everything happens behind screens and vents engineered for violent discharge, because a valve doing its job on the bench still does it violently.

One clarification this site owes its readers: this bench proves protection devices — set, reseat, tightness. Our delivered control-valve rigs characterise working valves — flow, coefficients, actuation. Two disciplines, cross-linked below, never confused.

One Second

Rehearsed on the bench

The valve’s whole career is one moment under pressure — the bench makes that moment happen on a schedule, on record, before the plant ever needs it.

Rate Is The Discipline

The true set, not the fast one

Slow ramps, real accumulator volume, calibrated detection — the observed set pressure means something because the bench refuses the shortcuts that fake it.

Bubbles Don’t Lie

The API-pattern column

Seat tightness counted as bubbles per minute through a submerged tube — instrumentation so honest an inspector can watch it work.

Architecture

Clamp, ramp, certify.

The schematic follows the valve’s one second — shut for years, pressure rising, opening and relieving, reseating tight — and shows the bench that rehearses it: clamp and source, ramp and detection, the tightness column, and the records and safety around them.

FIG · 03SVT ARCHITECTURE · CLAMP + SOURCE / RAMP + DETECT / TIGHTNESS · RECORDS & SAFETY

Fig · 03 The one second, rehearsed — clamped without re-piping, ramped without shortcuts, certified without argument

Arc · 01

Clamp & Source

Quick-clamp table with hydraulic arms — flanged & screwed valves, no re-piping — fed by dry air / N2 or water with accumulator volume that keeps the pop honest.

Arc · 02

Ramp & Detection

Rate-disciplined pressurisation; precision transducers; audible + electronic pop detection — observed set recorded against the nameplate, reseat observed.

Arc · 03

Tightness Column

The API-pattern bubble test — outlet leakage through a submerged tube, bubbles per minute against the table — visible, honest, inspector-proof.

Arc · 04

Records & Safety

Per-valve certificates from a calibrated chain — behind screens, restraints and vent / silencer paths engineered for violent discharge.

Have a valve-testing, PSV-shop or portable-tester requirement? Send the valve range, the media and the calendar — a clause-by-clause compliance matrix within two working days · [email protected]

Send tender spec

Specifications

Reference bench, built to the valve range.

The parameters below describe a reference system. The clamp envelope, pressure classes, media and records all follow from three givens: the valve population, the codes it certifies to, and the shop’s throughput.

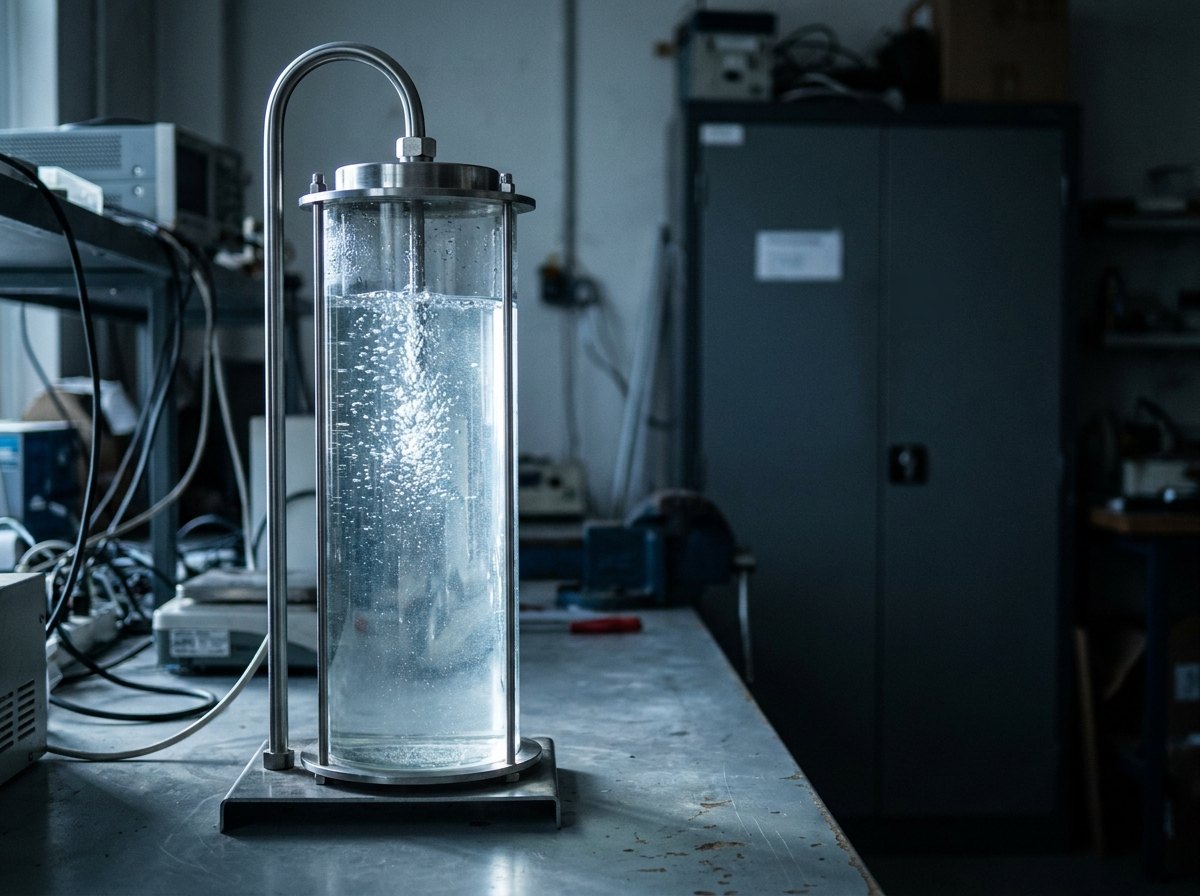

Illustrative image, not a delivered bench — a seat-tightness test column: a tall clear water-filled cylinder on a grey stand with a stainless tube entering and curving down inside, a fine stream of small bubbles rising from the submerged tube opening, soft backlight through the water, laboratory bench setting, no people and no text

Fig · 04 The tightness column — leakage made visible, one bubble at a time, counted against the standard’s table — illustrative, not a delivered bench

Where valve benches go wrong

In the honesty of the second, not the plumbing. A starved source lets pressure collapse as the valve cracks — the recorded set point flatters the ramp, not the valve; a fast ramp overshoots the true set and certifies a fiction; a clamp that seals imperfectly leaks at the joint and blames the seat; gauges out of calibration make every certificate arguable; and a bench without proper screens and vents treats a device built for violent discharge as if it were furniture.

So the source carries accumulator volume sized to the valve range; ramps are rate-controlled and logged; the clamp seals on machined faces with the arms’ force monitored; the instrument chain is calibrated and traceable, with reference gauges kept against it; the tightness column runs the API-pattern method an inspector can watch; and the discharge path is engineered first, not last — screens, restraints, vent and silencer — because the bench’s job is to make one violent second routine, safe and true, hundreds of times a year.

Full specification — expand

System	Safety & relief valve test bench — workshop, high-capacity, boiler-house & portable forms, with seat-tightness systems & records; engineered, built, installed, verified & supported
Function	Proves protection devices — set pressure, relieving behaviour, reseat & seat tightness — on the calendar the pressure codes demand
Clamping	Quick-clamp table, hydraulic arms — flanged & screwed valves across the size range, seated & sealed without re-piping; clamp force monitored
Pressure Sources	Dry air / nitrogen (gas service) & water (liquid pattern) — with accumulator volume sized so the pop is genuine, never starved
Set-Pressure Test	Rate-disciplined slow ramp (logged); precision transducers; audible + electronic pop detection; observed set vs nameplate; adjust & re-prove
Reseat	Observed on falling pressure — the valve must close as decisively as it opened; reseat pressure recorded
Seat Tightness	API-pattern bubble method — outlet leakage through a submerged tube, bubbles / minute counted against the standard’s table
Codes	IBR pattern (boiler calendar) · API-pattern maintenance & seat tightness · vessel rules for gas & cryogenic plant — public patterns, named plainly
Safety	Screens, restraints, vent & silencer paths engineered for violent discharge; interlocked clamp-before-pressure sequencing; stored energy respected
Records	Per-valve certificate — observed set, reseat, leakage class, medium, date — from a calibrated, traceable chain with reference gauges
Forms	Workshop benches · high-capacity flange benches · boiler-house installations · portable / trolley testers for ships & sites
Sourcing	Precision instruments & reference gauges are bought-in certified items; Neometrix engineers the benches, clamps, sources, detection, records & installation
Status	Engineered to order · quoted across safety-valve test-bench & relief-valve tester requirements · grounded in the delivered valve-test, HP-air & instrumentation franchises · no delivered bench is claimed on this page

PDF · 1 page

Safety & Relief Valve Testing — Capability Sheet

Tender Response

Send valve range, media & calendar — compliance matrix in two working days

Variants

One discipline, the bench the shop needs.

Requirements call it a safety valve test bench, a PSV test bench, a relief-valve tester, or a boiler-house rig. The discipline — the one second, rehearsed honestly — is common; the bench follows the valve population and the place.

Var · 01

Workshop Benches

The PSV shop’s daily machine — quick-clamp, air / N2 and water circuits, pop detection and the tightness column, sized for hundreds of valves a year.

Var · 02

High-Capacity Flange Benches

Large flanges, heavy clamping forces, big accumulators — the process-plant end of the range, with hydraulic clamp arms and monitored force.

Var · 03

Portable & Trolley Testers

The proof, carried to the valve — shipboard and site testers for relief valves that cannot come to the shop; the navy’s own tenders ask for exactly this form.

Var · 04

Boiler-House & Calendar Systems

IBR-pattern benches with records built for the inspector — plus calibration programmes, reference gauges and AMC that keep the certificates defensible.

Applications

Where the calendar is kept.

Wherever pressure systems carry protection devices — and the codes demand their proof.

A · 01Refinery & process-plant PSV shops

A · 02Boiler houses & power plants

A · 03Ships, dockyards & marine plant

A · 04Gas & cryogenic installations

A · 05Valve OEMs & repair shops

A · 06Test laboratories & inspectorates

FAQ

Common questions.

Plain-language answers from the engineering team.

Q · 01 Why must safety valves be tested on a calendar at all?

Because a safety valve’s failure is invisible until the one moment nothing else can compensate for it. Every other component in a pressure system announces its troubles — pumps vibrate, controls drift, gauges disagree — but a safety valve that has drifted out of set, gummed its seat or lost its spring temper looks exactly like a healthy one: shut. Meanwhile the plant changes around it — process media attack the seat, deposits build, springs relax, and a valve set perfectly five years ago may now open late, or weep constantly, or chatter destructively when called. The codes answer with a calendar of proof: the boiler rules require periodic testing of every boiler safety valve; the vessel rules for gas and cryogenic plant demand the same of their relief devices; and refinery practice runs entire PSV shops on rolling test programmes, hundreds of valves a year. The calendar’s logic is the valve’s own: since its one second cannot be predicted, it must be rehearsed — regularly, honestly, on record — so that whenever the second finally comes, the valve has already shown, recently and provably, that it will answer.

Q · 02 What makes an observed set pressure honest?

Three disciplines the bench must refuse to shortcut. Volume: when a valve cracks open it begins passing gas immediately, and if the source behind it is a thin line from a small compressor, pressure collapses at the crack — the valve half-opens, flutters, and the recorded “set” describes the starvation, not the spring. The bench therefore carries accumulator volume sized to the valve range, so the pop is a real pop against a real reservoir. Rate: the standards demand a slow, controlled approach to set — ramp fast and the system’s momentum carries the indicated pressure past the true opening point before anyone can read it; the bench ramps at a disciplined, logged rate and creeps the final margin. Detection: the human ear is traditional but argues; the bench pairs it with precision transducers and electronic discharge detection, so the instant of first sustained discharge is caught by instrument, timestamped, and matched to the pressure record. Set observed, the valve is adjusted and re-proven — a certificate records what the valve did, repeatedly, not what it did once on a lucky ramp.

Q · 03 How does the bubble seat-tightness test work — and why keep such an old method?

It works by making leakage visible, one bubble at a time — and it survives because nothing argues with it. After a valve has popped and reseated, the question becomes: does it now hold working pressure without weeping? The API-pattern method answers with almost absurd directness: the valve is held below set pressure, its outlet is sealed except for a tube whose open end sits a specified depth under water, and any leakage past the seat must exit as bubbles — which are counted, per minute, against the standard’s table for the valve’s size and service. The apparatus is glass, water and a tube; the measurement is a number anyone present can verify by watching. That transparency is precisely why the method endures in an age of electronic flowmeters: a leakage reading from a black box can be doubted, mis-ranged or mis-zeroed, but a bubble count is witnessed physics — the inspector, the customer and the technician all see the same bubbles. The bench builds the column properly — conditioned water, correct immersion depth, calm surface, good backlight — and pairs it with the electronic record, so the certificate carries both the number and the method every code recognises.

Q · 04 What does the portable tester do that the bench cannot?

It goes to the valves that cannot come to the shop. A ship’s relief valves — on air receivers, vacuum systems, auxiliary plant — are threaded into systems that would take days to open, aboard a vessel that may be alongside for hours; a remote site’s boiler cannot ship its safety valve away and wait; and some vessels’ devices are simply too awkward to dismount on any sensible schedule. The portable tester carries the bench’s honesty to them: a trolley or case-built unit with its own regulated source or an adapter to site air / nitrogen, precision gauges and transducers from the same calibrated family as the shop bench, adapters for the common valve connections, and the same disciplined ramp-and-detect procedure — producing the same class of record. The navy’s own tenders describe exactly this machine: a vacuum-tank pressure-relief-valve tester, portable, precise, self-contained. It does not replace the shop — overhaul, lapping and full relieving-capacity work stay on the bench — but for the calendar’s periodic proof of installed valves, the portable tester is how the calendar reaches the sea.

Q · 05 How is this different from your control-valve test rigs?

Different question, different machine — and the distinction is worth stating plainly because the words sound alike. A control valve is a working component: it modulates flow all day, every day, commanded by the plant’s control system, and testing it means characterisation — flow coefficients across the stroke, actuation behaviour, hysteresis, seat leakage as one line item among many. That is what our delivered control-valve test rigs do, with flow loops, reference meters and stroke control — they answer “how well does this valve work?”. A safety valve is the opposite kind of component: it must do nothing, perfectly, for years — and then act once, autonomously, at an exact pressure. Testing it is not characterisation but certification of a protection function: does it open at set? does it reseat? is the seat tight? The bench answers with ramps, pop detection and the bubble column — no flow loop, no stroke control, a wholly different instrument. The two families share a house — valve handling, pressure engineering, calibrated instrumentation — which is why they are siblings on this site; but they are cross-linked, not interchangeable, and a tender for one is never answered with the other.

Q · 06 What do you build, and what is bought-in?

We build the bench as a certification instrument, from franchises we have delivered. What Neometrix does: the bench structures and quick-clamp systems — tables, hydraulic clamp arms with monitored force, sealing faces and adapters across the flange and thread range; the pressure systems — air / nitrogen and water circuits, regulation, and the accumulator volumes that keep the pop honest, on our HP-air and pneumatics franchise; the ramp control and detection — rate-disciplined pressurisation, precision transducer chains, audible and electronic pop detection, logging; the seat-tightness columns to the API pattern; the safety engineering — screens, restraints, vent and silencer paths, clamp-before-pressure interlocks; the records system — per-valve certificates from a calibrated, traceable chain; and the portable testers, installation, verification, calibration programmes and AMC. What is bought-in certified: precision gauges and transducers, reference gauges kept against the working chain, and standard regulators and relief hardware with their approvals. Engineered to order; quoted across safety-valve test-bench and relief-valve tester requirements; grounded in the delivered valve-test, HP-air and instrumentation franchises; no delivered bench is claimed on this page.

↗

The pressure-proof line from Neometrix.

The working-valve sibling this page is careful never to be confused with, and the pressure-proof house behind the sources — engineered at our Noida facility.

↗ Control Valves

CV & Control Valve Test Rig

The delivered working-valve rig — characterisation, not certification: the sibling discipline.

↗ HP Pressure

HP Air Bottle Test Facility

The high-pressure proof discipline behind this bench’s sources and volumes.

↗ Proof & Burst

Impulse, Proof & Burst Test Rig

The destructive end of the pressure-proof family — where margins, not set points, are found.

Browse all Neometrix product lines.

Get a quotation

Send the valve range
and the calendar.

The projects desk replies within two working days with a clause-by-clause compliance matrix and a budgetary quotation. Write to [email protected] or use the form.

Enquire — valve test benches Capability sheet (PDF) +91 7777 876 876
