Tactical Water Bowser & Distribution System. The full tank is not the dangerous one. The half-empty one is.

Name: Tactical Water Bowser & Distribution System
SKU: NMX-WBT-25

A tank of water is drawn down through a day's deliveries, and half-empty is where it spends most of its working life. A partly full tank lets its load slosh and surge with every brake and turn.

So the tank is not just a container. It is built with baffles that tame the surge at every fill level, and around it sits a pump and distribution system built for drinking supply, dust suppression, or a first response to fire.

Discuss a water bowser Capability note (PDF)

A tactical water bowser: a smooth cylindrical tank body mounted on a plain cross-country truck chassis, parked in a clean concrete vehicle yard, with a distribution panel of two hose reels, plain taps and a single gauge visible at the rear, and no people

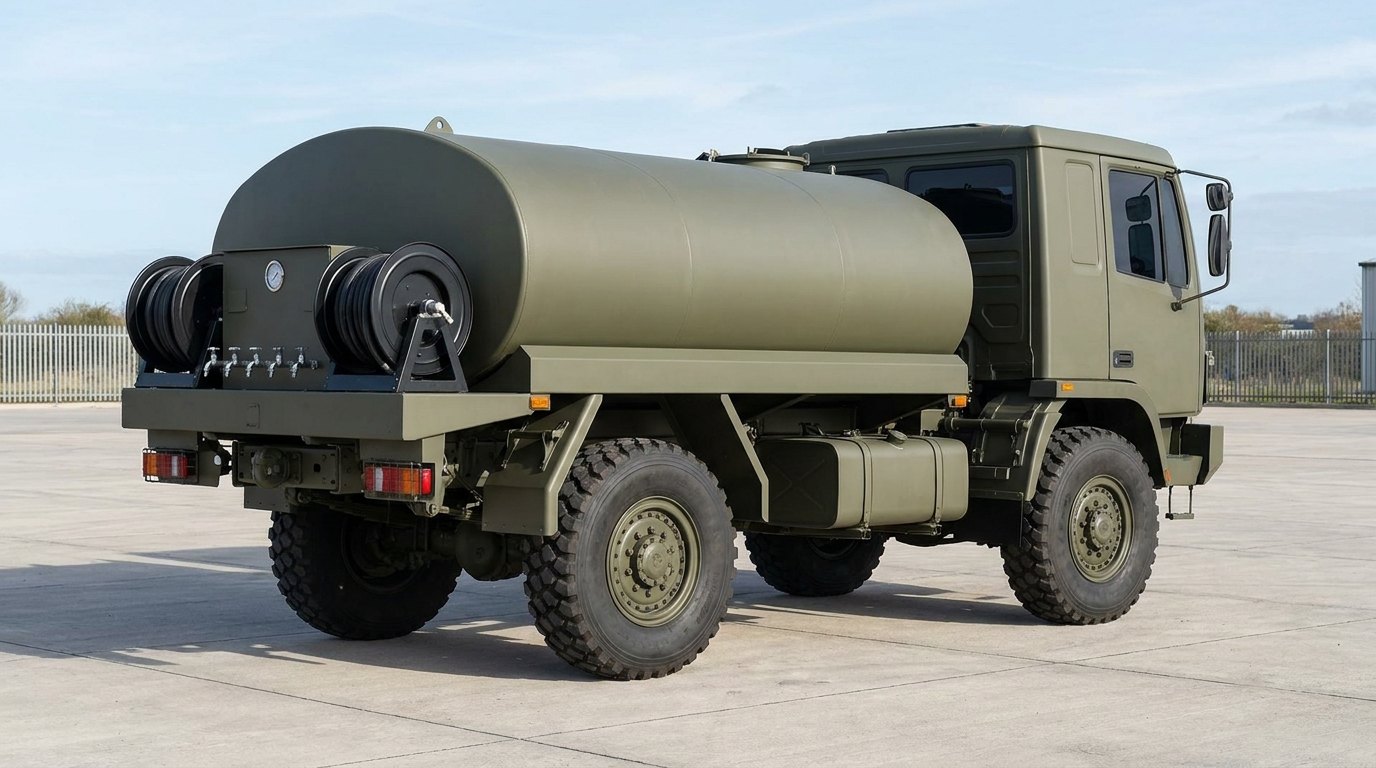

Fig · 01 — A tactical water bowser: a baffled tank body mounted on a cross-country chassis, with hose reels and a rear distribution panel — illustrative render.

The tank

baffled compartmentstamed at every fill level

The duty

drink, dust, fireone tank, several uses

The pump

drafts and deliversone pump, two directions

The chassis

bought inNeometrix builds the water system

Status

engineered to orderno delivered unit claimed

ISO 9001ISO 14001IS 12701 tank materialBaffled tank designPTO-driven pump systems

Overview

Why the dangerous fill level is the normal one, not the rare one.

Because a tank on a moving vehicle is never really full for long, and that is exactly when it needs the most help.

Fig · 02 — The system in one picture: the baffled tank at the centre, the pump between drafting and distribution, and where each duty draws from.

A full tank cannot slosh. Every other fill level can.

What the vehicle is actually for

It carries bulk water where there is no pipe: drinking supply to a field camp, dust suppression on an unpaved road or helipad, or a first response of water where a fire needs one fast.

All three draw on the same tank and the same pump, through different fittings at the back.

Why half-empty is the dangerous case

A full tank has no room for its surface to move. An empty one has nothing to move. Everything in between can slosh and surge with braking, cornering and acceleration.

The vehicle spends most of a working day somewhere in that range, drawn down delivery by delivery — so the dangerous fill level is not an edge case. It is the normal one.

Why baffles, not just a stronger tank

A stronger tank does nothing about the wave inside it. Baffles break the free surface into smaller, separated cells, so no single wave can build up enough momentum to rock the vehicle.

They are shaped and placed to work at a range of fill levels, not only when the tank is brim full.

Why the pump has two jobs

The same self-priming pump drafts water in from a source through a suction strainer, and delivers it back out through hoses, taps or a spray bar.

One machine, run in two directions, is simpler to maintain than two separate ones.

Why duty and hygiene have to be designed together

Drinking water and dust-suppression water are not interchangeable. A tank that has drafted from a pond for dust control is not a drinking source until it has been flushed and cleaned.

So a multi-role vehicle is built with that changeover in mind, not left to whoever last used it.

Who does what

Neometrix engineers and integrates the tank, pump and distribution system, and the mounting that fits it to the chassis. The tactical chassis itself is bought in or specified by the customer.

The cycle

Draft, carry, distribute, flush, and draft again.

A duty runs from a stored procedure, not from habit, which is what keeps drinking water separate from everything else the vehicle also does.

FIG · 02TACTICAL WATER BOWSER · DRAFT / TRANSPORT / DISTRIBUTE / MONITOR / FLUSH / REFILL — THE SURGE, TAMED AT EVERY FILL LEVEL

The step people underrate is the transport itself. The tank is doing work every time the vehicle brakes, turns or pulls away, at every level between full and empty.

Fig · 03 — The same half-full tank, with and without baffles: one wave running the length of the tank, or several smaller ones that cancel each other out — a drawing of the idea, with no values.

1 · Draft

The pump draws water in from a source through a suction strainer, filling the tank at the water point.

2 · Transport

The baffled tank carries its load on the move, tamed at whatever fill level the day has left it at.

3 · Distribute

The same pump delivers the water back out, through hose reels, taps or a spray bar, to match the duty of the day.

4 · Monitor

The level is read as the tank draws down, so the crew knows when it is time to return to a water point.

5 · Flush

Before a change of duty, especially back to drinking supply, the system is flushed and cleaned.

6 · Refill

The vehicle returns to a water point and the cycle runs again, from a stored, repeatable procedure.

Work content

What the system contains, element by element.

Read it as a checklist: a bowser missing a row will buy that row later, usually after it has already rocked or run dirty once.

Close view of the rear distribution panel of a tactical water vehicle, isolated against an empty concrete yard: two hose reels mounted side by side, three plain taps, two valve handwheels and a single unmarked gauge on a plain panel, and no people

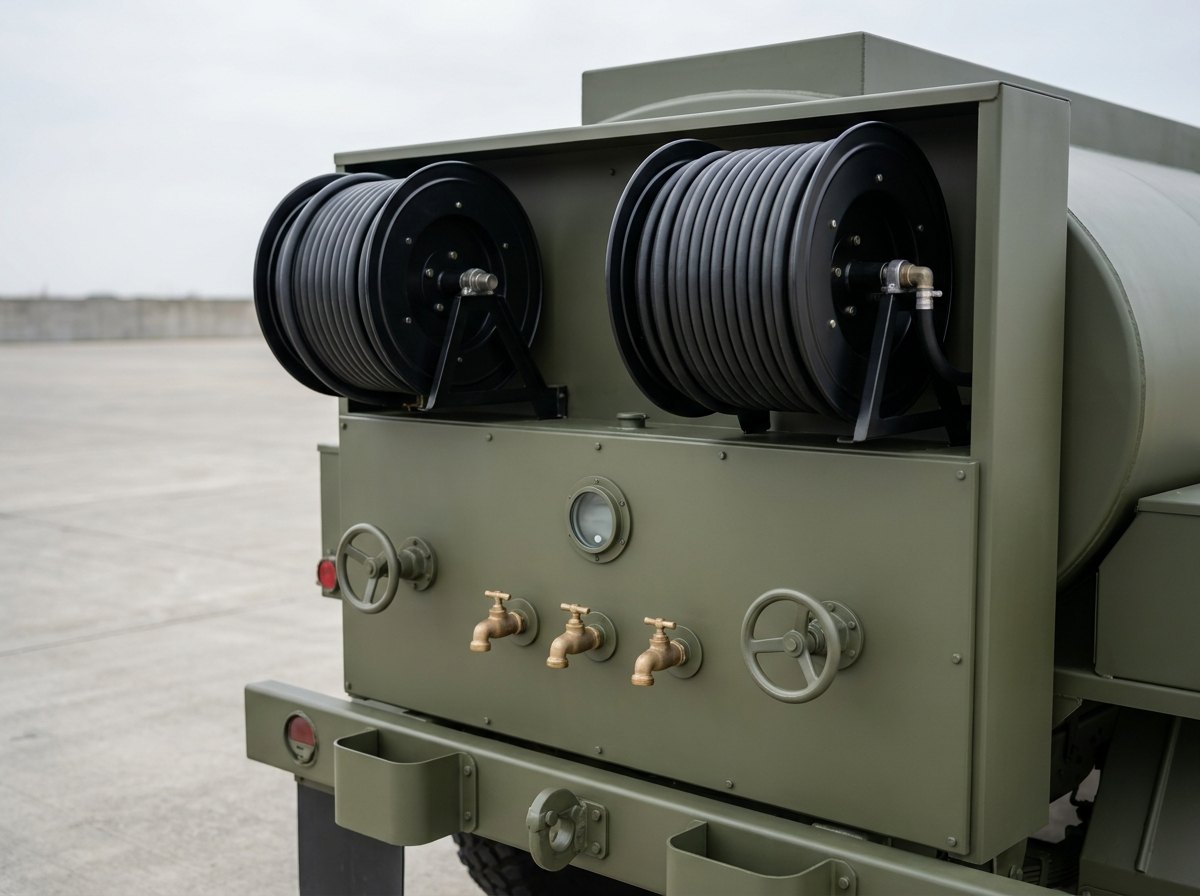

Fig · 04 — The distribution panel at the rear of the vehicle: hose reels, taps and the pump controls, ready to draft or deliver — illustrative render.

Element	What it does	What matters
Tank shell	holds the bulk water	material suited to the duty, drinking or utility
Baffle compartments	break up the free surface	tamed at a range of fill levels, not only full
Manhole & inspection	access for cleaning and inspection	sealed, and easy to reach
Suction strainer	keeps debris out while drafting	protects the pump from the source water
Self-priming pump	drafts in and delivers out	one machine, run in either direction
Drive to the pump	powers the pump from the vehicle or its own engine	matched to the chassis that is chosen
Delivery hose reels	reach beyond the vehicle	protected when stowed, quick to run out
Distribution taps	fill smaller containers directly	placed for safe, easy access
Spray bar (option)	lays water for dust suppression	even coverage across the working width
Valves & controls	route water to the right outlet	simple enough to use under pressure of time
Level gauge	shows how much water is left	readable from the point of control
Mounting & subframe	fits the tank to the chassis	keeps the load low and secure
Corrosion protection	protects the tank and fittings	suited to the water and the climate
Electrical & lighting	powers controls and work lighting	usable at the water point after dark
Flushing provision	cleans the system between duties	protects drinking supply from cross-contamination
Testing & documentation	proves the system before handover	leak, flow and hygiene checks, with records

The row that decides whether the vehicle is safe to drive, not just useful, is never the pump. It is the baffles. A powerful pump on an unbaffled tank still rocks the vehicle every time it brakes half full.

Fig · 05 — Three duties, one tank and one pump: the outlet chosen at the panel decides whether the water goes to a tap, a spray bar, or a firefighting connection.

Full specification — expand

System	Baffled bulk water tank, self-priming pump used for both drafting and distribution, suction strainer, delivery hose reels and taps or a spray bar, valves and level gauge, mounting and subframe to a tactical chassis, corrosion protection, electrical and lighting, a flushing provision, and testing and documentation before handover
The One Idea	The full tank is not the dangerous one. The half-empty one is, and half-empty is where the vehicle spends most of its working life, drawn down delivery by delivery through the day
Why Baffles	A partly full tank lets its load slosh and surge with braking, cornering and acceleration, at a frequency that can match the vehicle's own handling and rock it unstable. Baffles break the free surface into smaller, separated cells so no single wave builds enough momentum, and they are shaped to work across a range of fill levels, not only when full
The Pump's Two Jobs	A single self-priming pump both drafts water in from a source, through a suction strainer that protects it from debris, and delivers water back out through hoses, taps or a spray bar — one machine, run in two directions
Duty & Hygiene	Drinking supply, dust suppression and a first response to fire are not interchangeable duties for the same water. A flushing and cleaning provision protects drinking supply from cross-contamination whenever the vehicle's duty changes
Who Does What	Neometrix engineers and integrates the tank, pump and distribution system, and the mounting that fits it to the chassis. The tactical chassis is bought in or specified by the customer; Neometrix does not claim to manufacture the chassis, engine or drivetrain
Standards	IS 12701, the public Indian standard for food-contact water-storage tank material, is the reference for the tank material where the duty includes drinking water. Acceptance of the finished vehicle rests with the customer and their inspection authority
Configurations	Potable-water bowser, built throughout for drinking-water hygiene; utility and dust-suppression tanker, built around a spray bar and general-purpose outlets; and a multi-role tanker that can switch duty behind a flushing procedure
Scope Boundary	This is the water system fitted to a vehicle, not the vehicle itself. The same "fluid system on a vehicle" discipline, for a different fluid and duty, is the aircraft refueller and fuel bowser. The same "we build the equipment, not the chassis" pattern is the armoured recovery vehicle equipment page
Status	Neometrix engineers tactical water bowser and distribution systems to order, and no delivered water bowser or tanker vehicle is claimed.

Configurations

One tank and pump discipline, three ways to fit it out.

The baffled tank, the pump and the mounting are shared. What changes is which outlets are fitted, and how hygiene is protected.

Potable bowser

Drinking-water only

Built throughout for drinking-water hygiene, with taps and fittings chosen to keep the whole path food-contact safe.

Utility tanker

Dust suppression & general use

Built around a spray bar and general-purpose outlets, for water that is never meant to be drunk.

Multi-role

Switchable duty

Both kinds of outlet on one vehicle, with a flushing procedure between duties so drinking supply is never put at risk.

Fig · 06 — Three ways to fit it out, one tank and pump discipline: potable, utility, or multi-role behind a flushing procedure.

And the part that is not steel or rubber at all, yet decides all three: the flushing procedure and the handover record — a written routine that keeps drinking water drinking water, whatever else the vehicle did that week.

Where it is used

Wherever bulk water has to travel to somewhere without a pipe.

The common thread is a place water does not reach on its own, and a vehicle that has to carry it there safely.

Field camps & forward bases

Drinking-water supply where there is no fixed distribution network, refilled from the nearest water point.

Unpaved roads, airstrips & helipads

Dust suppression laid down by a spray bar, to keep loose surfaces workable and visibility clear.

Fire support & first response

A ready supply of water on site before a dedicated fire appliance arrives, or where one cannot reach.

Disaster relief & civil supply

Bulk drinking water moved to a community or a site cut off from its normal supply.

FAQ

Common questions.

Longer answers, for readers who want the reasoning.

Q · 01 Why is a half-full tank worse than a full one?

Because a full tank has nowhere for its surface to go, and a half-full one has plenty of room and plenty of water to move with it. When a tank is completely full, the liquid is packed against every wall and the top, and there is no free surface left to form a wave. As the level drops, a free surface appears, and that surface can slosh from end to end and side to side as the vehicle brakes, corners or pulls away. The mass of water involved is large — this is not a light slop, it is tonnes of load shifting inside the vehicle — and if the rhythm of that sloshing happens to match the vehicle's own natural roll or pitch motion, the two reinforce each other and the vehicle becomes noticeably harder to control, in the worst case to the point of a rollover. The awkward part is that a working water bowser spends most of its life somewhere in that half-full range: it leaves a water point full, and it is drawn down delivery by delivery until it returns to refill. Treating that middle range as the design case, rather than an occasional inconvenience, is the whole point of building the tank properly rather than just making it strong.

Q · 02 What do baffles actually do, and why not just make the tank stronger?

A stronger tank resists the pressure of a wave hitting its wall. It does nothing to stop the wave forming in the first place, and it is the wave's momentum, transferred into the vehicle's chassis, that causes the handling problem, not the risk of the tank bursting. Baffles solve a different problem: they are internal partitions, usually with openings that still let water move slowly between sections, which break up one large free surface into several smaller ones. A smaller surface can only build a smaller wave, and separate cells sloshing slightly out of step with each other tend to work against one another rather than adding up into one large surge. A well-designed baffle arrangement keeps this effect useful across a range of fill levels, not just when the tank happens to be exactly half full, because the vehicle does not politely wait at one fill level. The trade-off is that baffles add weight, cost and cleaning complexity, particularly where the tank must also stay hygienic for drinking water, which is why the baffle design and the tank's duty are decided together rather than bolted on afterward.

Q · 03 Can the same vehicle be used for drinking water and dust suppression?

It can, but only if the changeover is designed for, not assumed. Dust-suppression water is often drafted from whatever source is nearest — a pond, a river, a static tank of unknown quality — because it does not need to be safe to drink. Drinking water has a much stricter requirement, and a tank, pump or hose that has just carried non-potable water is not automatically safe for it again afterward: residue, biofilm and contamination can persist in ways that are not visible. A vehicle built to do both jobs needs a deliberate flushing and cleaning procedure between duties, and ideally a design that makes cross-contamination hard rather than merely relying on the crew to remember. Some operators prefer to keep the two duties on separate, dedicated vehicles for exactly this reason, and that is a reasonable choice too. What is not reasonable is treating a utility tanker as an occasional drinking-water source without the hygiene step in between; the point of asking early which duties a vehicle will actually be used for is to decide this properly rather than find out the hard way.

Q · 04 How does one pump both fill and empty the tank?

A self-priming centrifugal pump can move water in either direction depending on which side of it is connected to what. To draft, or fill the tank, the pump's suction side is connected through a hose and a strainer to the water source — the strainer keeps out debris that would otherwise damage the pump or clog the tank fittings — and the pump's delivery side feeds into the tank. To distribute, the connections are effectively reversed: the pump draws from the tank and delivers out through hoses, taps or a spray bar. "Self-priming" matters here because the pump has to be able to draw water up from below itself and clear air out of the line on its own, without someone manually filling the pump casing first, which is exactly the situation drafting from a pond or a low tank creates. Using one pump for both jobs, rather than a separate fill pump and delivery pump, means less equipment to maintain, fewer things to go wrong, and one set of valves and controls for the crew to learn rather than two.

Q · 05 What keeps the water safe to drink over the vehicle's life?

A combination of the right materials, the right shape, and a routine that is actually followed. The tank shell and every fitting the water touches — valves, hose linings, taps — is chosen for food-contact safety, not just for strength, because a tank that leaches anything or supports bacterial growth on its inner surface is a health problem long before it is a mechanical one. The tank's internal shape, including the baffles, is designed with cleaning in mind: sharp internal corners and hard-to-reach pockets are exactly where residue and biofilm build up, so a hygienic design avoids them where the baffle function allows. A sealed manhole gives access for inspection and cleaning without contaminating the tank between uses. And because none of that survives contact with dirty water, a potable vehicle needs a clear rule about what it is, and is not, allowed to draft from, backed up by the flushing procedure discussed elsewhere on this page. None of this is exotic engineering; it is the discipline of treating drinking water as a duty with its own requirements, rather than as "water" in general.

Q · 06 Has Neometrix built one of these?

We would rather answer this plainly than let a page imply otherwise. Neometrix engineers tactical water bowser and distribution systems to order, and no delivered water bowser or tanker vehicle is claimed. What stands behind the offer is adjacent and real. Neometrix engineers fluid systems fitted to vehicles — our aircraft refueller and fuel bowser page describes the same discipline for aviation fuel, where cleanliness and metering replace hygiene and drafting as the driving requirements — and we engineer equipment fitted to a customer's chassis rather than the chassis itself, as on our armoured recovery vehicle equipment page. Pumps, hose systems, tanks and vehicle-body integration are disciplines we already run daily. So the honest position is this: the class is engineered to order, the fluid-system and vehicle-integration engineering is in the building, and the first bowser of this exact type will be built around a customer's chassis and duty rather than lifted off a shelf. If that matters to how you buy, say so early and we will scope it that way.

Q · 07 Which standards apply, and who decides how safe is enough?

IS 12701 is the public Indian standard covering food-contact water-storage tank material, and it is the reference this page points to for the tank material where a vehicle's duty includes drinking water. It sets out what makes a tank material acceptable for storing water people will drink; it does not, on its own, decide the fill volume, the baffle arrangement or the fitness of a complete vehicle for a given duty — those depend on the chassis, the mission and the customer's own specification, and are established case by case rather than published on a page like this one. Three roles are worth keeping apart. The tank, pump and distribution system are engineered and built by Neometrix. The chassis is bought in or specified by the customer, and its manufacturer answers for it. And acceptance of the finished vehicle, including any water-quality testing before it is handed over, rests with the customer and whatever inspection authority they name. Neometrix does not claim certification of the chassis, and does not claim that a vehicle is fit to drink from without the customer's own acceptance testing.

Q · 08 What do you need from us to quote?

Six things, and most of them are about how the vehicle will actually be used. First, the chassis: whether you already hold one, or need it specified alongside the water system, and its general class of mobility. Second, the duty or duties: drinking supply, dust suppression, fire response, or more than one on the same vehicle. Third, the hygiene requirement, which follows directly from the duty and decides the tank material, the fittings and whether a flushing procedure is needed. Fourth, the outlets: hose reels, taps, a spray bar, or a firefighting connection, and how many of each. Fifth, the drafting arrangement: what water sources the vehicle will fill from, and how far it may need to draw water up. Sixth, the environment and programme: climate, terrain, and how many vehicles over what timeframe. From that we come back with a system definition you can check, a tank and outlet layout, a hygiene and flushing plan, and a budgetary price. If you would rather start with a conversation, that works too — most of these projects begin with somebody describing a place water needs to reach that it currently doesn't.
