Aircraft Engine Pre-Heating Trolley. The engine is not afraid of the cold. It is afraid of its own oil.

Name: Aircraft Engine Pre-Heating Trolley
SKU: NMX-APT-26

Below a certain temperature, engine oil thickens so much that a cold start can starve bearings of lubrication in the first critical seconds, and load the starter with resistance that has nothing to do with the engine itself.

So before a cold-soaked engine is started, hot air is ducted into the zones that need it, from a heater kept physically separate from the air it delivers - indirect heat, never flame or combustion gas.

Discuss a pre-heating trolley Capability note (PDF)

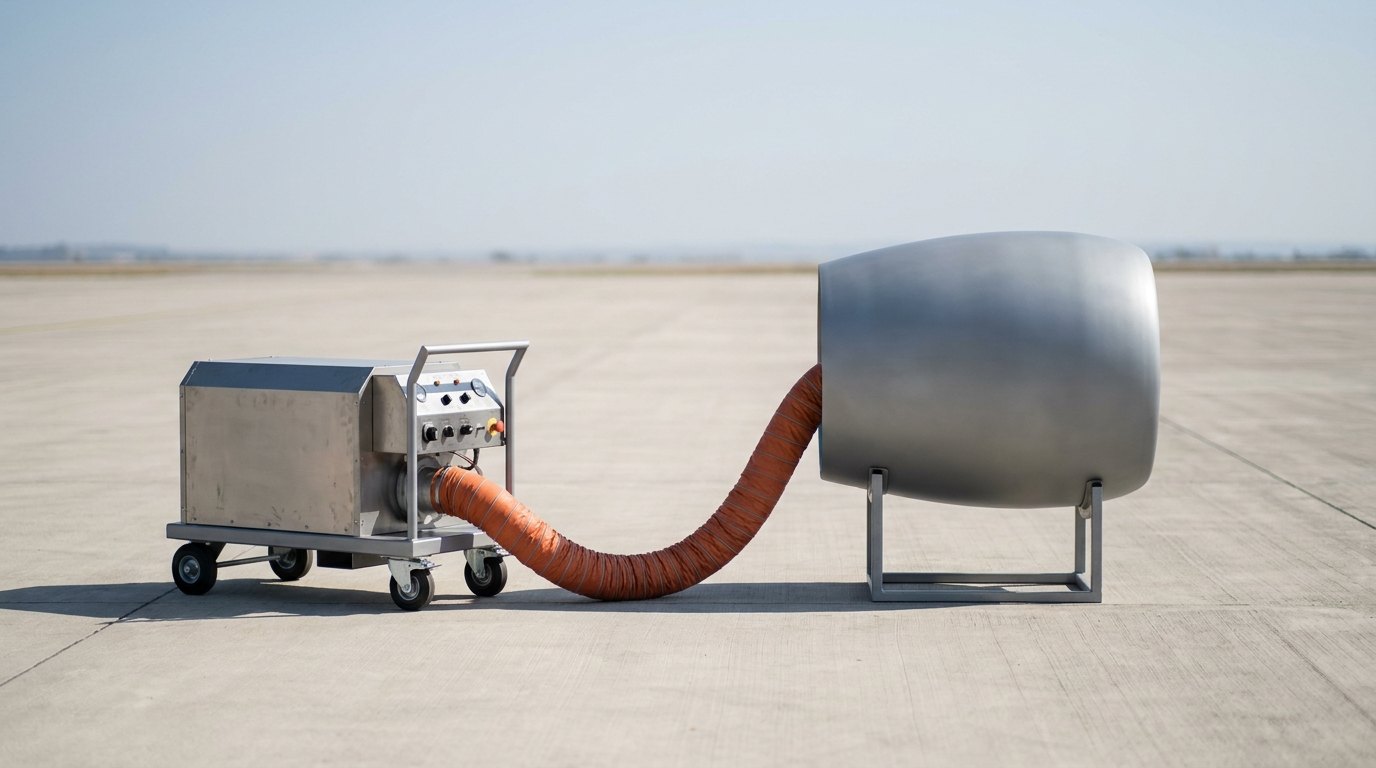

An aircraft engine pre-heating trolley: a compact wheeled cart carrying an enclosed heater unit with a control panel, connected by a flexible insulated duct hose to a generic, unmarked engine cowling section, on a clean concrete apron, and no people

Fig · 01 — An aircraft engine pre-heating trolley, ducted to a generic engine cowling — illustrative render.

The heat

indirect, ductedno flame near the aircraft

The zones

engine, cockpit, avionicsducted where fitted

The control

thermostaticlimited to a safe ceiling

The mobility

towable trolleyreaches dispersed aircraft

Status

engineered to orderno delivered unit claimed

ISO 9001ISO 14001SAE ARP1247 referenceIndirect-fired heatingThermostatic temperature control

Overview

Why a cold-soaked engine's real problem is inside it, not around it.

Because the air outside is not what stalls a cold start. What is inside the sump is.

Fig · 02 — The system in one picture: a heater kept separate from the delivered air, a blower, and ducting reaching whichever zones the configuration calls for.

A cold engine is not damaged by the air around it. It is damaged by being started before the oil is ready.

What the trolley is actually for

It brings an engine bay - and where fitted, a cockpit or an avionics bay - up to a safe starting temperature before the crew ever calls for a start, without needing the engine itself to run to generate that heat.

Why oil, not air temperature, is the real limit

Below a certain temperature, oil thickens enough that it can no longer flow freely through the small clearances of the lubrication system. Forcing a start through that thickened oil can starve bearings in the first critical seconds, and the oil pump itself can absorb a large share of the starter's effort just moving oil that thick, before the engine has properly turned at all.

Why the heat has to stay indirect

The heater's combustion side never touches the air delivered to the aircraft. A heat exchanger keeps flame and combustion gas out of that airstream entirely, so what reaches the engine bay is clean, heated air and nothing else.

Why zones, not one blast

The engine bay is the minimum duty. Where the configuration calls for it, a cockpit or an avionics bay is ducted separately, because different compartments, and the equipment inside them, reach a safe temperature on different schedules.

Why the ceiling matters as much as the floor

A thermostatic control limits how hot the delivered air gets, because seals, composites and avionics can be damaged by too much heat as surely as an engine is damaged by too little.

The cycle

Connect, heat, duct, soak, monitor, and disconnect.

A cold start is only safe once the soak has actually happened, not once the trolley has merely been running for a while.

FIG · 02AIRCRAFT ENGINE PRE-HEATING TROLLEY · CONNECT / HEAT / DUCT / SOAK / MONITOR / DISCONNECT — THE OIL, NOT THE AIR, IS THE LIMIT

The step people underrate is the soak itself. Blowing hot air past a cold engine for a minute warms the surface; it takes real time at temperature to move heat into the oil and the metal around it.

Fig · 03 — The same cold start, three ways: most of the starter's effort spent fighting thick oil, some of it spent, or almost none of it — a drawing of the idea, with no values.

1 · Connect

Duct hoses are fitted to the engine bay, and to the cockpit or avionics bay where the configuration calls for it, before any heat is applied.

2 · Heat

The heater brings its heat exchanger up to temperature, isolated from the air it is about to deliver.

3 · Duct

Clean, heated air is blown through the ducting into each connected zone.

4 · Soak

The zone is held at temperature long enough to warm the oil and the cold-soaked metal through, not just the surface.

5 · Monitor

Delivery air temperature is read against the thermostatic ceiling throughout, not checked once and left.

6 · Disconnect

Ducting is removed once the crew calls the engine ready to start, and the trolley moves on to the next aircraft.

Work content

What the trolley contains, element by element.

Read it as a checklist: a trolley missing a row will buy that row back later, usually the first cold morning it is actually needed.

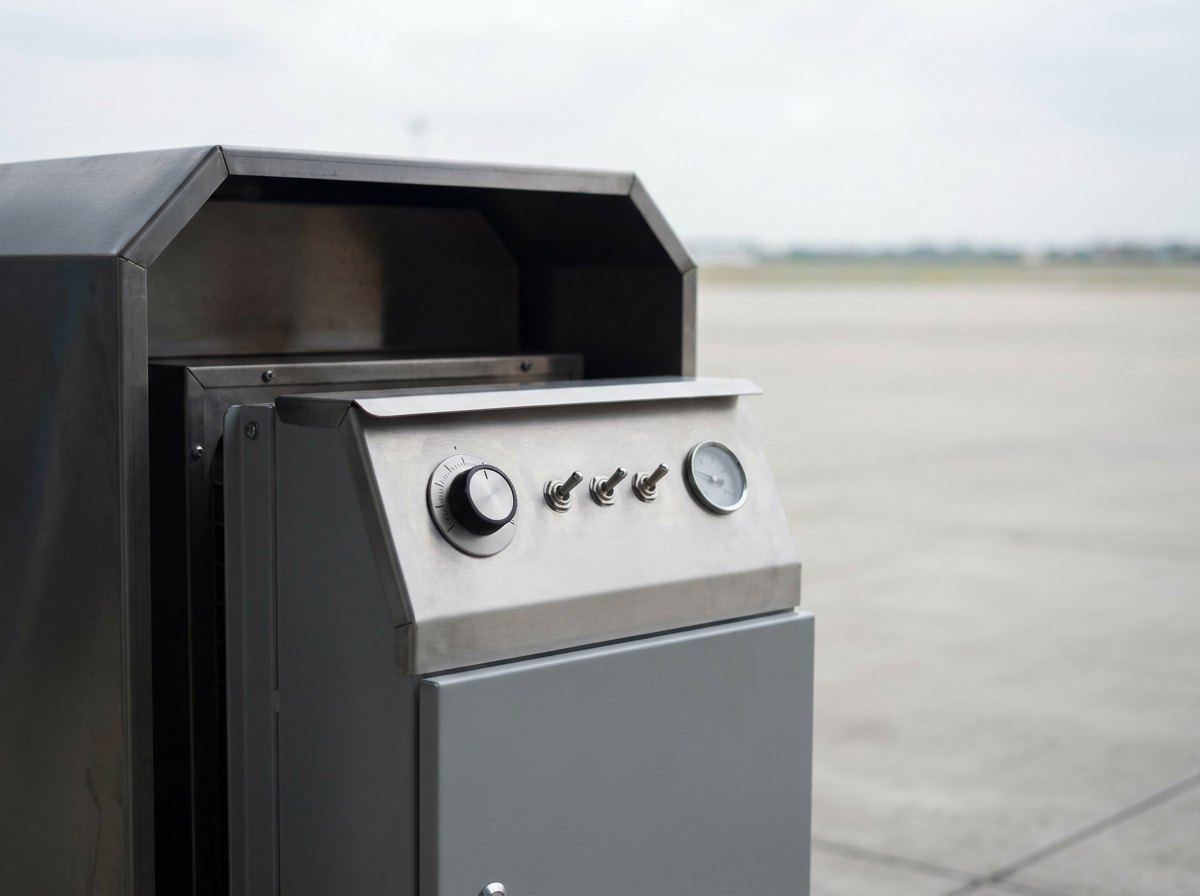

Close view of the control panel of an aircraft engine pre-heating trolley, isolated against an empty apron: one thermostat dial, three plain toggle switches and a single temperature gauge on a plain panel, and no people

Fig · 04 — The control panel: temperature setting, delivery-zone selection and the thermostatic readout, isolated against a clean yard — illustrative render.

Element	What it does	What matters
Heater unit	generates heat	kept physically isolated from the delivered airstream
Heat exchanger	transfers heat without mixing in combustion gas	protects the aircraft from contamination
Blower	moves heated air through the ducting	sized to reach every connected zone without excess duct loss
Thermostatic control	limits delivery air temperature	protects seals, composites and avionics from heat damage
Delivery ducting	routes hot air to each zone	kept clear of ground obstructions and rotating equipment
Zone outlets	direct air into a specific compartment	matched to the access points the airframe provides
Temperature sensors	read air temperature at the delivery point	feed the thermostat and the operator display
Operator control panel	sets target temperature and zone	simple enough to use in cold, gloved conditions
Fuel or power supply	runs the heater itself	sized for realistic ground duty cycles
Towing hitch & running gear	makes the trolley mobile	reaches dispersed aircraft without waiting on a tug
Duct stowage	keeps ducting protected between uses	ready and untangled for the next aircraft
Exhaust routing	carries combustion by-products away	never into the delivery airstream
Electrical safety & bonding	protects the operator and the aircraft	earthed and bonded per ground-handling practice
Enclosure & weather protection	protects the heater and controls	rated for the same cold the aircraft is soaking in
Testing & documentation	proves temperature limits and duct integrity	leak, flow and over-temperature checks, with records

The row that decides whether the aircraft starts safely, not just whether the trolley runs, is never the heater's raw output. It is the thermostatic ceiling. A powerful heater with no temperature limit can damage the very aircraft it is meant to help.

Fig · 05 — One heater, two or three zones: the ducting selected at the trolley decides whether heat goes to the engine bay alone, or further, to the cockpit and an avionics bay.

Full specification — expand

System	A heater kept physically separate from the delivered airstream, a blower, flexible ducting to one or more zones, zone outlets matched to the airframe's access points, a thermostatic control and temperature sensors, a towable chassis, and testing and documentation before handover
The One Idea	An engine is not afraid of cold air. It is afraid of its own oil, which thickens enough in a deep cold soak to starve bearings and load the starter before the engine has even properly turned
Why Indirect	The heater's combustion side never touches the delivered air; a heat exchanger keeps flame and combustion gas out of the airstream that reaches the aircraft, so only clean, heated air is ducted in
Why Zones	The engine bay is the minimum. Where fitted, a cockpit or an avionics bay is ducted separately, because different compartments, and the equipment inside them, reach a safe temperature on different schedules
The Ceiling	A thermostatic control limits delivery air temperature, because seals, composites and avionics can be damaged by too much heat as surely as an engine is damaged by too little
Standards	SAE ARP1247, the public recommended-practice standard for the general design of aircraft ground support equipment, is the reference this class of trolley is built against. Acceptance of the finished trolley rests with the customer and their inspection authority
Configurations	Single-zone (engine only), dual-zone (engine and cockpit), and multi-point (engine, cockpit and avionics bay)
Scope Boundary	This is the pre-heating trolley itself - heater, blower, ducting, thermostatic control. It is not a starter (see jet air starter trolley) and not an electrical supply (see ground power unit); it only heats
Status	Neometrix engineers aircraft engine pre-heating trolleys to order, and no delivered engine pre-heating trolley is claimed.

Configurations

One heater discipline, three ways to fit it out.

The heater, the blower and the thermostatic control are shared. What changes is how many zones are ducted.

Single-zone

Engine only

The minimum configuration: one duct run to the engine bay, for a straightforward cold start.

Dual-zone

Engine & cockpit

Adds a second duct run to the cockpit, for crew comfort and instruments that need their own warm-up.

Multi-point

Engine, cockpit & avionics bay

Adds a third, dedicated duct to an avionics bay, for equipment with its own low- temperature limits.

Fig · 06 — Three ways to fit it out, one heater discipline: single-zone, dual-zone, or multi-point, all built around the same thermostatic ceiling.

And the part that is not sheet metal or ducting at all, yet decides all three: the thermostatic ceiling — the one setting that keeps the trolley from solving a cold engine by creating a hot one.

Where it is used

Wherever an aircraft cold-soaks somewhere without a heated hangar.

The common thread is an engine that has spent the night, or longer, at a temperature it was never meant to be started at.

High-altitude & extreme-cold airfields

Where ambient soak temperatures fall well below an engine's safe starting range, night after night.

Dispersed flight lines & hardened shelters

Where aircraft are parked apart from each other, not gathered inside a single heated hangar.

Quick-turnaround & alert postures

Where a cold-soaked aircraft still has to be ready to start on short notice.

Forward & austere bases

Where a heated hangar is not available at all, and the trolley is the only pre-heat there is.

FAQ

Common questions.

Longer answers, for readers who want the reasoning.

Q · 01 Why does a cold engine need help starting if the air itself isn't extreme?

Because the air temperature outside is not what actually stops a cold engine from starting cleanly - the state of the oil inside it is. Below a certain temperature, engine oil thickens enough that it can no longer flow freely through the small clearances and orifices of the lubrication system. Forcing a start through oil that thick does two damaging things at once: bearings and other moving surfaces can run starved of lubrication for the first critical seconds before oil finally reaches them, and the oil pump itself has to work hard just to move that thickened fluid, absorbing a meaningful share of the effort a starter would otherwise spend turning the engine over. A soak that looks merely "cold" to a person standing next to the aircraft can already be cold enough, inside the oil system, to make a start risky. Pre-heating exists to close that gap before anyone attempts a start, not to make the crew more comfortable.

Q · 02 Does the trolley heat the whole aircraft, or just the engine?

Just the zones the configuration is built for, ducted separately rather than blown in as one general blast. The engine bay is the minimum duty on every configuration, because that is where the oil-thickening problem actually lives. Where the aircraft and the mission call for it, a second duct run reaches the cockpit, mainly for crew comfort and for instruments that read poorly when cold, and a third can reach a dedicated avionics bay, because electronic equipment often carries its own separate low-temperature operating limit that has nothing to do with the engine's oil. Ducting each zone separately, rather than heating the whole airframe generally, also means the thermostatic ceiling can be watched at the point that actually matters for each zone, rather than trusting one reading to stand in for everywhere at once.

Q · 03 Why not just point a space heater or an open flame at the engine?

Because what reaches the aircraft has to be clean, temperature-limited air and nothing else, and an open flame or an unmanaged space heater cannot guarantee either. The trolley's heater keeps its combustion side physically separate from the air it delivers, using a heat exchanger so that flame and combustion by-products never enter the airstream that is ducted to the aircraft - what arrives at the engine bay is heated air, not exhaust. Just as importantly, the delivered air is held under a thermostatic ceiling, because seals, composite panels and avionics can be damaged by too much heat as easily as an engine is damaged by too little of it. An uncontrolled heat source has no equivalent safeguard: it can scorch a seal or overheat a sensor long before anyone notices, which is precisely the outcome a properly engineered trolley is built to prevent.

Q · 04 Is this the same as a ground power unit?

No, and the difference is what each one actually supplies. A ground power unit supplies electrical power to an aircraft on the ground, standing in for the engine-driven generators before the engines are running. This trolley supplies heat, not electricity, and its entire job finishes before anyone even attempts to start the engine. In practice the two are often used at different points of the same cold-morning routine - pre-heating first, to make a start safe, and ground power afterward or alongside, to run systems that need electricity before or during that start - but they are separate pieces of equipment solving separate problems, and neither substitutes for the other.

Q · 05 Is this the same as the jet air starter trolley?

No. A jet air starter trolley supplies compressed air to physically turn the engine over so it can start - it does the cranking. This trolley does not turn anything over and does not start the engine at all; it only brings a cold-soaked engine bay, and where fitted the cockpit or an avionics bay, up to a safe temperature beforehand. The two are complementary steps in the same cold-weather sequence rather than alternatives to each other: an engine that has been properly pre-heated is then handed over to a starting system, whether that is a jet air starter trolley, an internal starter, or another method, to actually begin cranking.

Q · 06 Has Neometrix built one of these?

We would rather answer this plainly than let a page imply otherwise. Neometrix engineers aircraft engine pre-heating trolleys to order, and no delivered engine pre-heating trolley is claimed. What stands behind the offer is adjacent and real: Neometrix already builds and fields a family of mobile ground support trolleys for aircraft, including hydraulic service trolleys and a jet air starter trolley, and a mobile air-conditioning and cooling trolley that solves the opposite-season version of this same problem - moving conditioned air to an aircraft through ducting from a self-contained, towable unit. A pre-heating trolley uses the same trolley-building, ducting and control disciplines, aimed at heat instead of cooling or compressed air. So the honest position is this: the class is engineered to order, the mobile-GSE and ducted-air engineering is already in daily use, and the first trolley of this exact type will be built around a customer's aircraft and duty rather than lifted off a shelf.

Q · 07 How hot does the delivered air get, and what stops it damaging the aircraft?

The delivered air is held under a thermostatic ceiling rather than run as hot as the heater can manage, because more heat is not automatically better once seals, composite panels, paint and avionics are in the airstream too. A temperature sensor at the delivery point feeds the thermostatic control, which is what actually decides how hard the heater and blower work, and the operator sets a target rather than a raw output. The right ceiling for a given zone depends on the airframe and the equipment inside it, which is why this page states no figure - a real number belongs on the customer's own specification, set against what the specific aircraft and its manuals actually allow, not printed generically on a capability page.

Q · 08 What do you need from us to quote?

Five things, and most of them are about the aircraft and where it sits, not the trolley itself. First, the aircraft type and access points: where the engine bay, and where relevant the cockpit and avionics bay, can actually be ducted into. Second, the zones required: engine only, engine and cockpit, or the full multi-point configuration. Third, the temperature ceiling, taken from the airframe's own limits rather than assumed. Fourth, the power or fuel source available where the trolley will operate. Fifth, the environment and programme: the cold conditions it has to work in, and how many trolleys over what timeframe. From that we come back with a system definition you can check, a duct and zone layout, and a budgetary price. If you would rather start with a conversation, that works too.
