    Neometrix / Fire Protection / Gas Fire Suppression System / NMX-GFS-70
    NMX-GFS-70 · ENGINEERED-TO-ORDER CLASS — SPECIFY · SURVEY · SIZE · BUILD · TEST · PROVE

    Gas Fire Suppression System. The room has to hold the gas.

    A gas fire suppression system puts a fire out without water, by filling a whole room with a gas. That works only if the room keeps the gas. A leak that looks small in an empty room can let the gas out before the fire is out.

    So the system is built around three things: a room that is measured, not assumed, a release that closes the openings before the gas arrives, and a relief vent for the pressure the discharge makes.

    A single gas cylinder bank on a plain white studio background: four tall slim plain light grey gas cylinders standing upright side by side in a galvanised steel rack on a flat steel base, each topped with a brass valve and a small solenoid actuator and a braided stainless steel hose leading up to a common stainless steel manifold header with a flange at each end and a small pressure switch, and no people

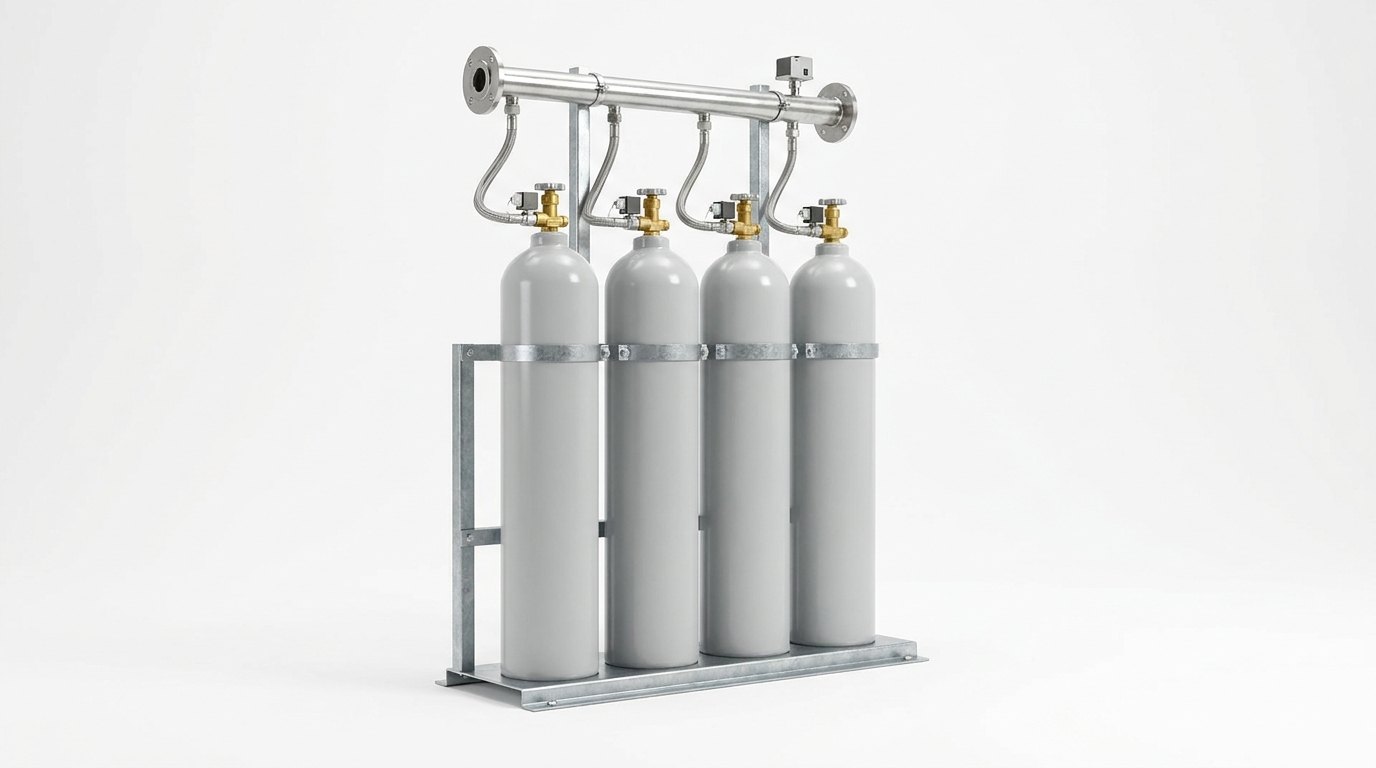

    Fig · 01 — A gas cylinder bank: four cylinders in a rack, each with a valve and actuator, joined by hoses to a common manifold header — illustrative render.
    The room
    measured, not assumedleakage tested with a door fan
    The hold
    designed and testedapart from the discharge
    The openings
    closed before the gasdampers and doors interlocked
    The pressure
    let out safelya relief vent sized for the room
    Status
    engineered to orderno gas system claimed
    ISO 9001ISO 14001NFPA 2001 · ISO 14520 reference standards
    01
    Overview

    Why the whole job is the room.

    Because a gas system is only a bank of cylinders until it meets a room, and the room decides whether the gas stays long enough to do its job.

    A single gas discharge nozzle assembly lying on its side on a plain white studio background: a short length of bright stainless steel pipe with a threaded union at one end, a machined brass discharge nozzle drilled with a ring of small round orifices at the other end, and one stainless steel pipe support clamp, and no people

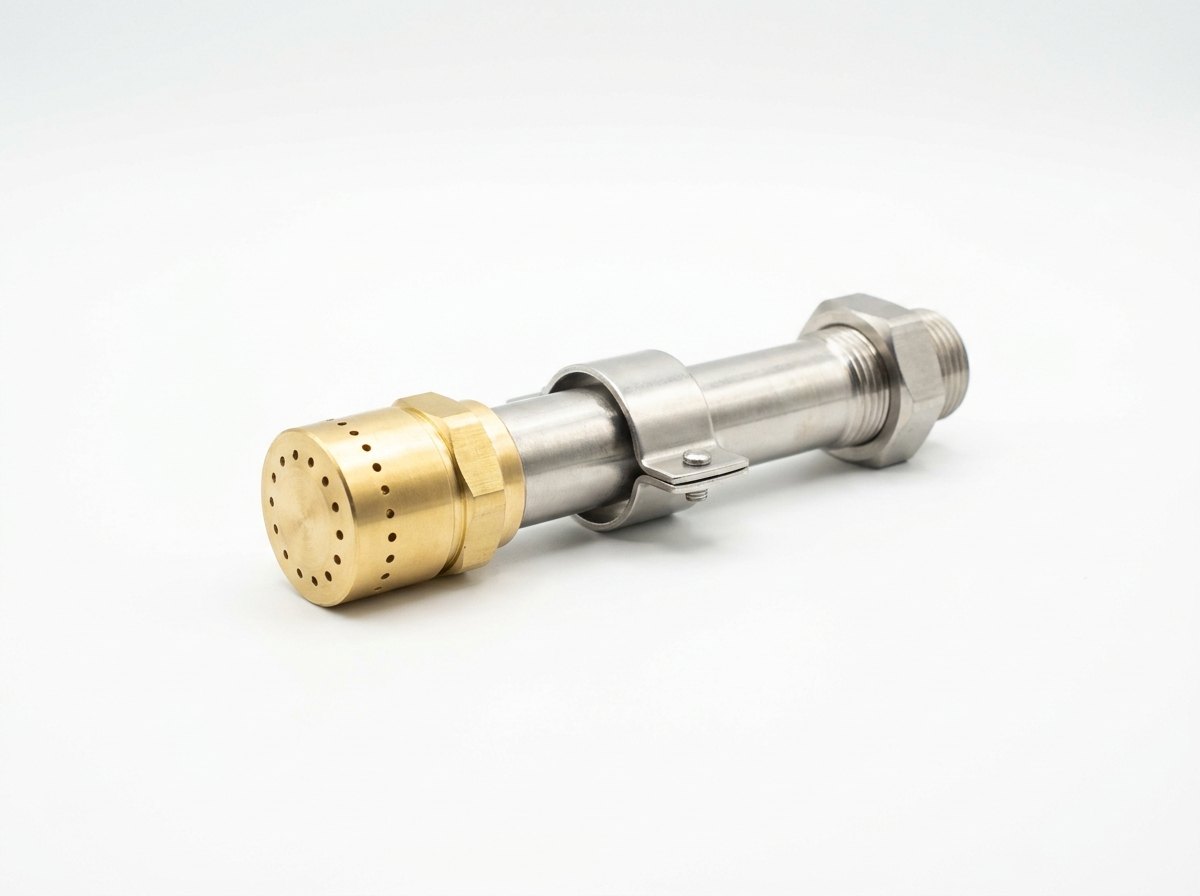

    Fig · 02 — A gas discharge nozzle on a length of stainless pipe, with a support clamp: the ring of small orifices spreads the gas through the room — illustrative render.

    The room has to hold the gas.

    What the system is for

    It protects a room that water would ruin: a control room, a switch room, an archive, an equipment bay. On a signal it releases a gas into the whole room to put the fire out without wetting what is inside. It suits a cylinder bank with pipework and nozzles, a modular system beside a single room, and a local application for a machine or a panel.

    Why the room has to hold the gas

    A gas system works by filling a room to a design concentration and keeping it there long enough for the fire to go out and the contents to cool. If the room leaks, the gas leaves and the concentration falls below what was designed. A system that is perfect on the drawing board fails in a room with open gaps.

    Why hold time is not discharge time

    The discharge is how fast the gas goes in. The hold time is how long it stays. A system can discharge perfectly and still lose the gas, so the two are designed and tested separately.

    Why the room is tested, not trusted

    The leakage of the room is measured with a door fan, a fan that holds a pressure difference across a doorway. The result goes into the formulae of the standard to estimate the hold time and the peak pressure. A room that has never been tested has a hold time that nobody knows.

    Why the room also has to let go

    A discharge raises the pressure in a tight room. A room sealed hard enough to hold the gas can be pushed out of its walls or doors. A pressure relief vent opens at a set pressure and lets the excess out, so the room holds the gas and survives the discharge.

    Why the openings are closed first

    Ventilation dampers and doors are closed, or the fans shut down, as the release is signalled and before the gas arrives. A fan left running or a damper left open is a hole in the room.

    Why the release is careful

    A gas that puts out a fire is no friend to the people in the room. The release is therefore signalled by more than one detector, and it is preceded by a warning and a delay, with a way to hold it off.

    02
    The method

    Specify, survey, size, build, test, and prove.

    Six steps in a fixed order. Surveying the room before sizing the gas, and testing the room again with the system in place, are the two a quick order skips.

    1 · Specify

    The room, the hazard, the equipment inside it and the people who use it are stated by the customer, and the agent is chosen to suit them.

    2 · Survey

    The room is measured: its volume, its openings and its leakage, by a door fan, before a single cylinder is sized.

    3 · Size

    The quantity of agent, the cylinders, the pipework, the nozzles and the relief vent are sized from the survey.

    4 · Build

    The cylinders, manifold, pipework and nozzles are built and supported as one installation, and the interlocks to dampers and doors are wired.

    5 · Test

    The room is tested again for leakage with the system in place, and the release, the delay, the abort and the interlocks are tried.

    6 · Prove

    The record is kept, and handed over with the system.

    Which system for which room

    SystemHow it protectsWhat to watch
    Inert gas system (nitrogen, argon or a blend)a gas stored at high pressure in cylinders is released into the room and lowers the oxygen until the fire cannot burna large volume of gas, so large cylinder banks and a relief vent, and the leakage of the room decides how long the gas is held
    Liquefied clean agent system (a halocarbon agent)a liquefied agent stored in cylinders is discharged quickly through nozzles and vaporises in the roomsmaller cylinders and a quick discharge that makes a pressure peak, so the relief vent matters, and the room has to be cleared of the agent and of the products of the fire afterwards
    Carbon dioxide systemcarbon dioxide stored in cylinders floods the room or a machine and displaces the oxygenthe gas is a hazard to people, so it is used where no one is inside, with the warning and the lock-off treated as part of the design

    The step people underrate is the survey of the room. A system sized from the volume of the room alone is a guess about how long the gas will stay.

    03
    Work content

    What the system contains, element by element.

    Read it as a checklist: a system missing a row will put out a fire on paper and not in the room.

    A single pressure relief vent on a plain white studio background: a square galvanised steel frame with a mounting flange all round, a row of flat grey steel louvre blades hinged along their top edges, and a spring-loaded counterweight arm with a cylindrical weight on one side, and no people

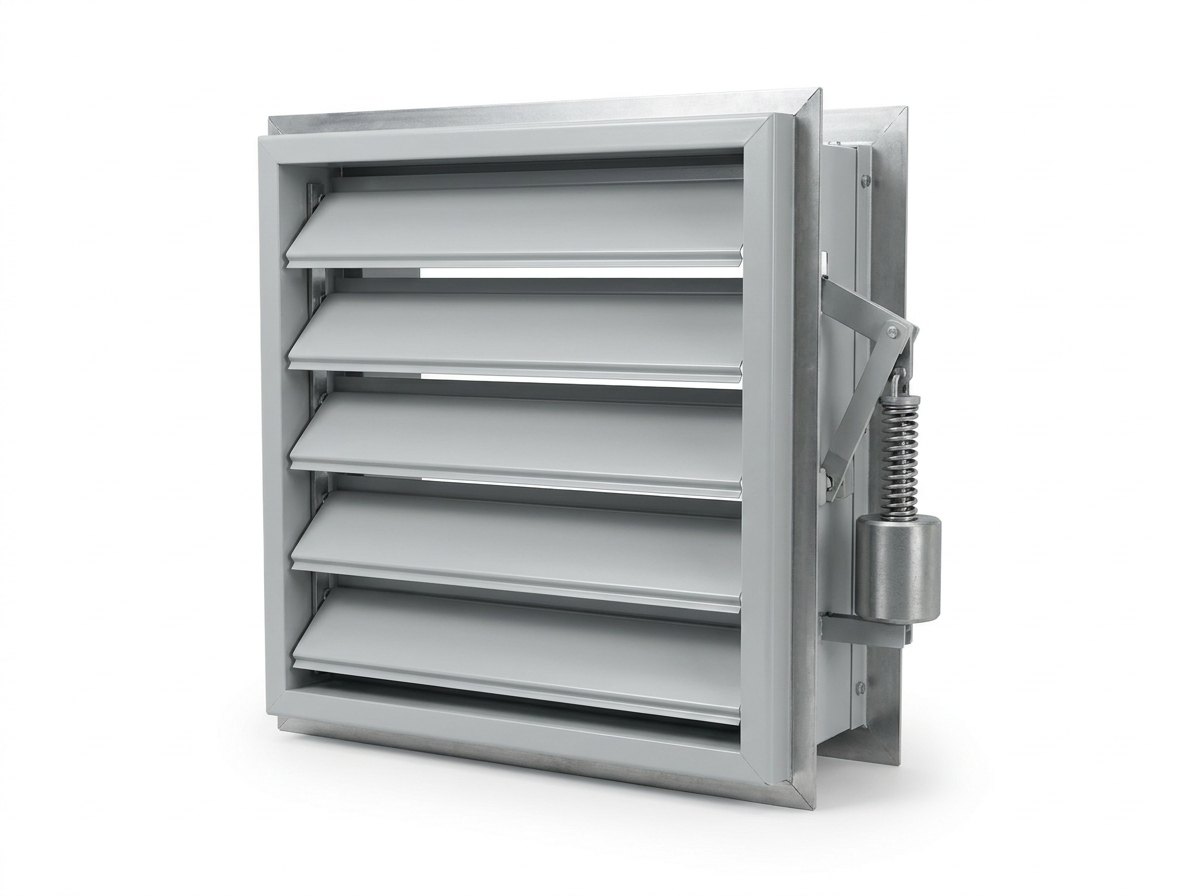

    Fig · 03 — A pressure relief vent: a galvanised frame with louvre blades that lift at a set pressure, and a spring-loaded counterweight arm — illustrative render.
    ElementWhat it doesWhat matters
    Cylinders and rackstore the agentcylinders in a rack that holds them against the reaction of the discharge, with room to take one out for refilling
    Cylinder valves and actuatorsrelease the agenta valve on each cylinder with a solenoid actuator, and a manual release as a second way of firing it
    Manifold and check valvesjoin the cylindersa manifold that collects the cylinders into one pipe, with check valves so that a cylinder can be taken off without losing the rest
    Discharge pipework and nozzlesdeliver the agentpipework sized for the flow and supported against the thrust, and nozzles placed so that the gas mixes through the whole room
    Pressure relief ventlets the excess pressure outa vent in the boundary of the room, sized for the peak pressure of the discharge, which opens at a set pressure and closes again
    Release panel interfacebrings the signals inthe signals from the detectors, the warning and delay, the abort and the manual release, wired to the release solenoids
    Dampers and doorsclose the roomventilation dampers and door closers that shut as the release is signalled, and a record that they did
    Room survey and door fan testmeasure the roomthe volume, the openings and the leakage of the room, measured before the design and again after the build
    Procedurefixes the sequencespecify, survey, size, build, test and prove, the same for every room
    Testing & documentationprove the system firsta check of the release, the delay and the interlocks, a leakage test of the room, and a record the customer can inspect

    The element that decides whether the system works is the leakage test of the room, because a room that has never been tested has a hold time that nobody knows, and the system can look perfect and still lose its gas.

    Full specification — expand
    SystemGas cylinders in a rack that holds them against the discharge reaction; a valve on each cylinder with a solenoid actuator and a manual release; a manifold with check valves; discharge pipework supported against the thrust and nozzles placed to mix the gas through the whole room; a pressure relief vent in the boundary of the room; the interface to the release panel, with warning, delay, abort and manual release; interlocks that close ventilation dampers and doors as the release is signalled; a survey of the room and a door fan test before the design and again after the build; a written test plan; and testing and documentation before handover
    The One IdeaThe room has to hold the gas.
    Why The Room Has To Hold The GasA gas system works by filling a room to a design concentration and keeping it there long enough for the fire to go out and the contents to cool, so if the room leaks the gas leaves and the concentration falls below what was designed, and a system that is perfect on the drawing board fails in a room with open gaps
    Why Hold Time Is Not Discharge TimeThe discharge is how fast the gas goes in and the hold time is how long it stays, so a system can discharge perfectly and still lose the gas, and the two are designed and tested separately
    Why The Room Is TestedThe leakage of the room is measured with a door fan and goes into the standard's formulae to estimate the hold time and the peak pressure, so a room that has never been tested has a hold time that nobody knows
    Why The Room Also Has To Let GoA discharge raises the pressure in a tight room, so a room sealed hard enough to hold the gas can be pushed out of its walls or doors, and a pressure relief vent that opens at a set pressure lets the excess out so that the room holds the gas and survives the discharge
    Why The Openings Are Closed FirstVentilation dampers and doors are closed or shut down as the release is signalled and before the gas arrives, because a fan left running or a damper left open is a hole in the room
    StandardsNFPA 2001 is the public standard for clean agent fire extinguishing systems and ISO 14520 is the international standard for gaseous fire-extinguishing systems, and both use a measured leakage of the room to estimate how long the gas will be held. This page prints none of their design concentrations, hold times, discharge times or pressure limits, and no edition year: those come from the standard the customer names and from the room. Approval of a system for a room rests with the customer and the authority they name; none is claimed here
    ConfigurationsA centralised cylinder bank with selector valves, a single-room modular system and a local application for a machine or a panel
    Scope BoundaryThis page is the gas fire suppression system. It is not a hydrant and pump system, which supplies water (see fire hydrant and pump system), not a foam system (see foam proportioning system and mobile foam trolley) and not a halon facility, which recovers and refills the legacy agent (see halon reclamation and refilling facility). A sprinkler system, a water mist system and a portable extinguisher are different equipment again. No certification is claimed here
    StatusNeometrix engineers gaseous fire suppression systems to order, and no delivered gaseous fire suppression system is claimed.
