Heat Exchanger Test Bench. Trust it when both sides agree.

Name: Heat Exchanger Test Bench
Brand: Neometrix
SKU: NMX-HXB-64

A heat exchanger test is a heat balance. The hot side gives up heat and the cold side takes it up, and the two must agree. When they do not, the test has told you more about itself than about the unit.

So the bench is built around three things: a probe in the stream at every port, a wait for steady state before a single reading, and a balance of the two sides reported with every result.

Discuss a test bench Capability note (PDF)

A single heat exchanger test bench on a plain white studio background: a low welded stainless steel skid frame carrying one brushed stainless steel plate heat exchanger held upright in a clamping frame, with a loop of thick silver insulated pipework on each side, each loop with a circulation pump with a grey motor, an in-line flow meter body and a lever ball valve, and thin metal-sheathed temperature probes with black leads fitted at the ports, and no people

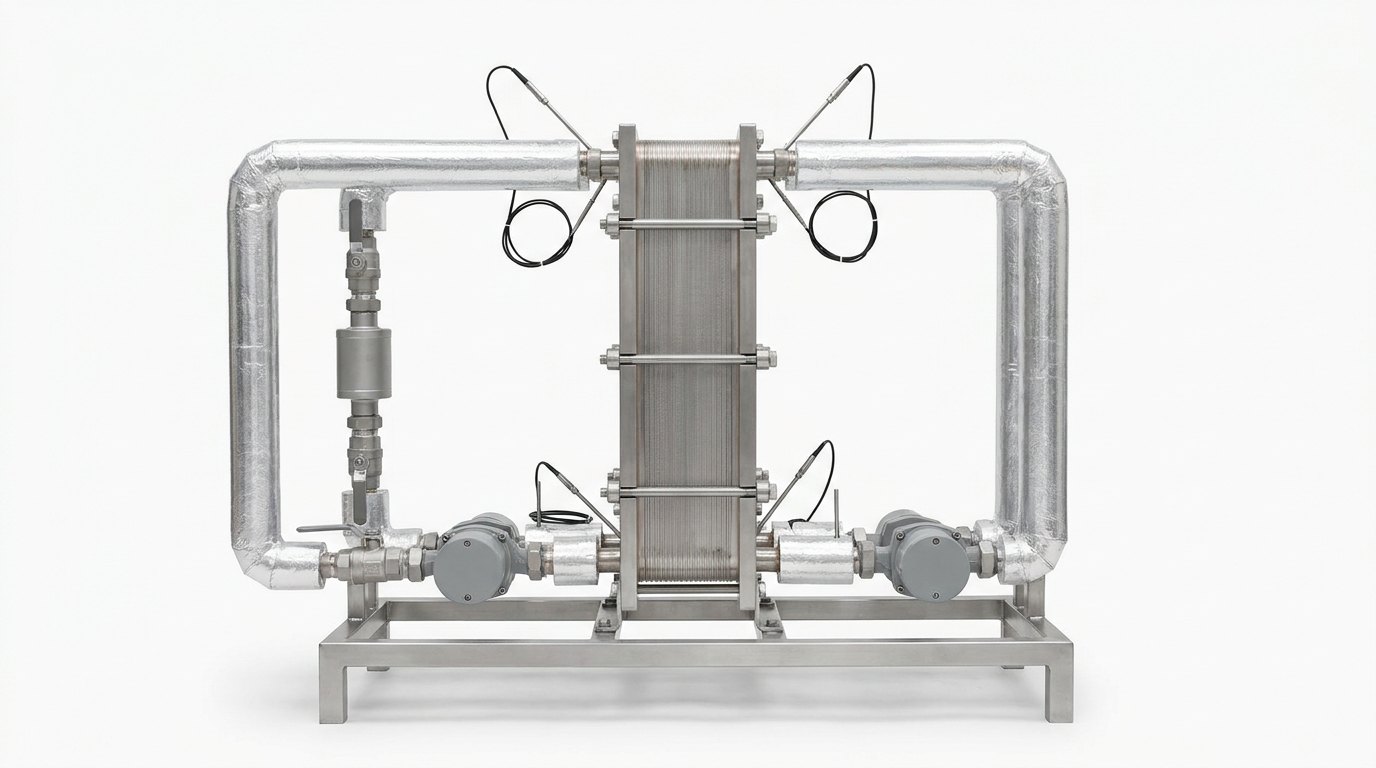

Fig · 01 — A heat exchanger test bench: a plate heat exchanger held on a steel skid between two insulated loops, each with a pump, a flow meter and a valve, and a probe at every port — illustrative render.

The test

hot duty against cold dutythe balance is reported

The wait

steady state firstthen and only then read

The readings

in the stream, at every porttemperatures, flows, drops

The oil

at a stated temperaturea pressure drop is never bare

Status

engineered to orderno test bench claimed

ISO 9001ISO 14001ASME PTC 12.5 reference code

Overview

Why the whole job is the heat balance.

Because the two sides of a unit measure the same heat from two ends, and a bench that does not compare them is trusting its instruments blind.

Fig · 02 — The bench in one picture: both loops are brought to their set points, the bench holds until the unit is at steady state, and then it reads.

Trust it when both sides agree.

What the bench is for

It measures what an oil cooler, a fuel cooler, a radiator, an air-to-air cooler or a plate or shell-and-tube exchanger actually does: how much heat it moves, how much pressure it costs, and whether it leaks. It suits coolers, radiators, plate exchangers and shell-and-tube units that carry one fluid on each side without boiling or condensing.

Why the two sides must agree

Whatever heat the hot side gives up, the cold side takes up, apart from what is lost to the room and the error of the instruments. So the two duties check each other. A result whose two sides do not balance cannot be trusted, however good it looks.

Why the bench waits for steady state

After any change the metal and the pipework take in heat. Until they settle, the hot side reads high and the cold side reads low. A reading taken early is wrong on both sides, so the bench waits, and says when it read.

Why the room matters

Heat lost to the room grows with the temperature of the rig above it, so the cold side gets less than the hot side gave. The loops are insulated, and both sides are read, so that the gap can be seen.

Why oil is not water

Oil gets thin as it warms, so the pressure drop of an oil cooler falls steeply with its temperature. A pressure drop quoted without the oil temperature is not a result. The bench holds the oil at a stated temperature and writes it beside the drop.

Why one point is not the unit

Effectiveness falls as the flow rises. A unit that passes at one flow can fail at another, so the bench tests at the rated flows and on either side of them, and reports the curve, not a single point.

Why a probe in the stream

A sensor on the outside of a pipe reads the pipe, not the fluid. The temperature that matters is that of the fluid at the port, so each of the four ports has a probe in the stream, and the flow is metered in each loop.

The method

Specify, connect, condition, hold, balance, and prove.

Six steps in a fixed order. The two shaded steps are the ones a quick order skips.

FIG · 02HEAT EXCHANGER TEST BENCH · SPECIFY / CONNECT / CONDITION / HOLD / BALANCE / PROVE — TRUST IT WHEN BOTH SIDES AGREE

The step people underrate is the balance. A bench that never compares its two sides cannot say whether its own result is any good.

Fig · 03 — Three ways a heat exchanger test misleads: one side is read alone, oil is read like water, and one point is taken for the unit — a drawing of the idea, with no values.

1 · Specify

The unit, the two fluids and the duty are stated by the customer, and the bench is sized to the flows and the temperatures.

2 · Connect

The unit is mounted without stress, a probe goes into the stream at every port, and a meter into each loop.

3 · Condition

Both loops are brought to their set flow and temperature, with the oil at the temperature that was asked for.

4 · Hold

The bench waits for steady state, by a rule written in the test plan, and only then reads.

5 · Balance

The hot duty is set against the cold duty, and the balance is reported with the result.

6 · Prove

The record is kept, and handed over with the bench.

Work content

What the bench contains, element by element.

Read it as a checklist: a bench missing a row will give a number it cannot defend.

A single finned aluminium oil cooler core on a plain white studio background with two round threaded ports with brass fittings on one side, a short stainless steel pipe stub on each port holding a thin metal-sheathed temperature probe, and a plain black lead curling away from each probe, and no people

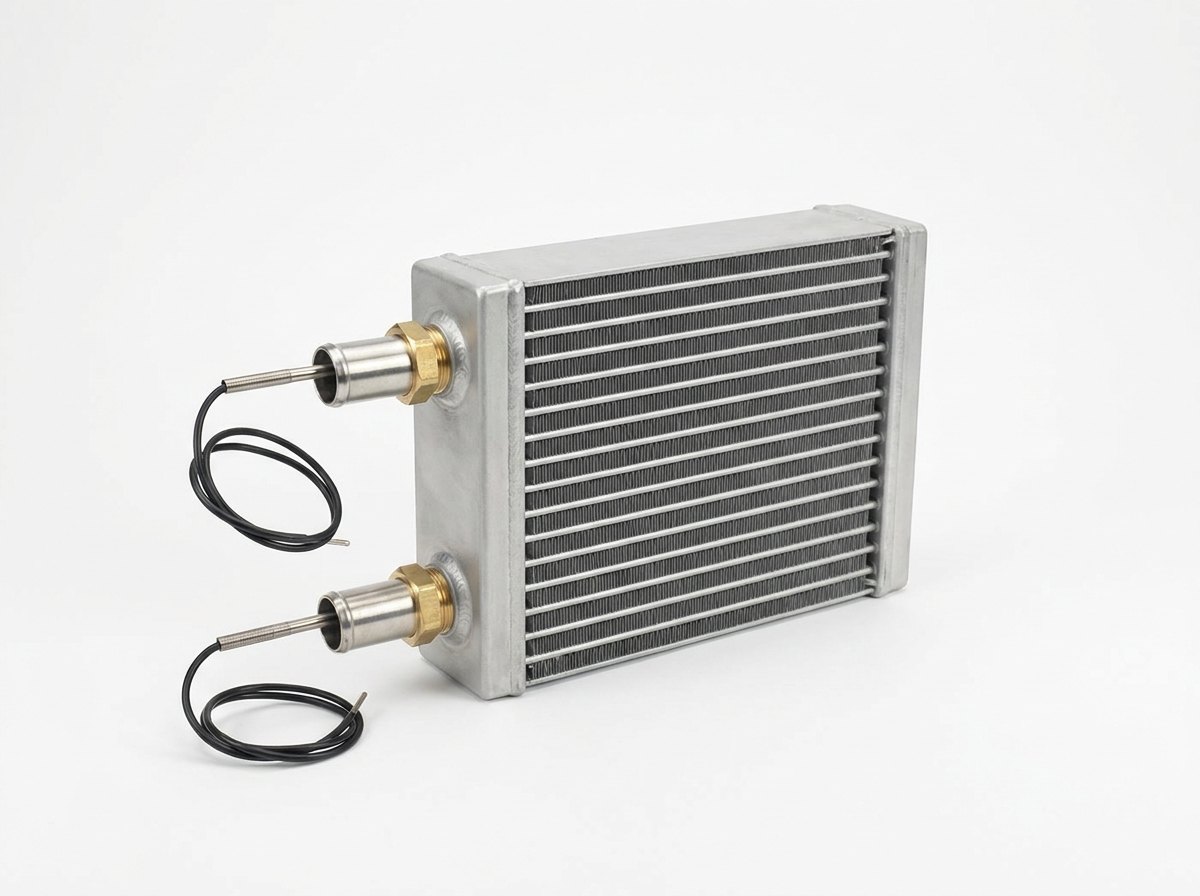

Fig · 04 — An oil cooler core with a probe in the pipe at each port, the way the bench reads it — illustrative render.

Element	What it does	What matters
Hot loop	gives the hot stream	a heater, a circulation pump and a flow meter, holding oil or fuel at a set temperature and flow
Cold loop	gives the cold stream	a chiller or an air duct, a pump or a fan and a flow meter, holding coolant or air at a set temperature and flow
Mounting	holds the unit	a fixture that holds the unit without stress and connects every port, with no flow short-circuiting it
Probes in the stream	read the temperatures	a probe in the fluid at each of the four ports, not clamped to the pipe
Flow meters	read the flows	a meter in each loop, checked against a reference
Pressure drop	reads the cost	differential pressure measured across each side, with the oil temperature written beside it
Insulation	keeps the room out	lagging on the loops, so that the heat lost to the room stays small
Controller	runs the test	holds the flows and temperatures, waits for steady state, and logs everything
Proof and leak station	shows the unit holds	a proof pressure test and a leak check, before or after the heat test
Alarms and safeties	protect the unit and the room	over-temperature and over-pressure cut-outs, and a relief on each loop
Procedure	fixes the sequence	specify, connect, condition, hold, balance and prove, the same for every unit
Testing & documentation	prove the bench first	a check of the probes and meters, a run on a reference unit, and a record the customer can inspect

The element that decides whether the bench tells the truth is the balance of the two sides, because a bench that reports one side alone can be wrong by the whole heat lost to the room and never show it.

Fig · 05 — What the bench measures: four temperatures, two flows and two pressure drops, from which come two heat duties that must balance — a drawing of the idea, not to scale and with no values.

Full specification — expand

System	A hot loop with a heater, a circulation pump and a flow meter for oil or fuel, and a cold loop with a chiller or an air duct, a pump or a fan and a flow meter; a mounting that holds the unit without stress and connects every port; a temperature probe in the stream at each of the four ports; differential pressure measured across each side; insulation on the loops; a controller that holds the flows and temperatures, waits for steady state and logs everything; a proof pressure and leak check; a written test plan; and testing and documentation before handover
The One Idea	Trust it when both sides agree.
Why The Two Sides Must Agree	In a single-phase exchanger the heat the hot side gives up equals the heat the cold side takes up, apart from the heat lost to the room and the error of the instruments, so the two duties are a check on the test itself, and a result whose two sides do not balance cannot be trusted
Why The Bench Waits For Steady State	After a change the metal and the pipework store heat, so the hot side reads high and the cold side low until the unit settles, and a reading taken early is wrong on both sides
Why The Room Matters	Heat lost to the room grows with the temperature of the rig above it, so the cold side receives less than the hot side gave, and the loops are insulated and both sides are read so that the gap can be seen
Why Oil Is Not Water	Oil gets thin as it warms, so the pressure drop of an oil cooler falls steeply with oil temperature, and a drop quoted without its oil temperature is no result
Why One Point Is Not The Unit	Effectiveness falls as the flow rises, so a unit that passes at one flow can fail at another, and the unit is tested at its rated flows and on either side of them
Why A Probe In The Stream	A sensor on the outside of a pipe reads the pipe and not the fluid, so each of the four ports has a probe in the stream and the flows are metered in each loop
Standards	ASME PTC 12.5 is the public code for performance testing of single-phase heat exchangers, covering the overall heat transfer coefficient, the heat transfer rate and the pressure drop, with guidance on instruments and on steady state, and it leaves out condensing and vaporising units. This page prints none of its tolerances, temperatures or flows, and no edition year: those come from the standard the customer names and from the unit. Approval of a unit or a test for use rests with the customer and the authority they name; none is claimed here
Configurations	A liquid-to-liquid bench, an air-side bench and a proof and leak station
Scope Boundary	This page is the heat exchanger test bench. It is not a coolant distribution unit that cools electronics (see liquid cooling system and coolant distribution unit), not a rig that qualifies a set of pumps and a fuel cooler together (see integrated test rig for pumps and fuel coolers) and not a dryer test (see compressed air dryer test bench). A condenser or an evaporator, which changes the phase of a fluid, is a different test again. No certification is claimed here
Status	Neometrix has quoted against successive heat exchanger and oil cooler test requirements, and no delivered heat exchanger test bench is claimed.

Configurations

One method, three ways to build the bench.

The method, the steady-state rule and the balance are shared. What changes is the circuit on each side of the unit.

Liquid-to-liquid bench

Hot loop, unit and cold loop

Oil or fuel against coolant, for oil coolers, fuel coolers and plate or shell-and-tube exchangers.

Air-side bench

Air duct, unit and liquid loop

A metered air stream through the unit with a liquid or a second air stream on the other side, for radiators, intercoolers and air-to-air coolers.

Proof and leak station

Pressure and leak check

A proof pressure test and a leak check with no heat, for units that must be shown to hold before or after service.

Fig · 06 — Three ways to build the bench, one method: a liquid-to-liquid bench, an air-side bench, or a proof and leak station.

And the part that is not equipment at all, yet decides all three: the test plan. It fixes the flows and temperatures, the oil temperatures at which a drop is stated, the rule for steady state and the size of balance that is accepted, and it is written from the unit and the standard, not from the bench.

Where it is used

Wherever heat has to leave a machine, and the number has to be believed.

The common thread is a cooler whose rating is a promise, and a test that has to prove it.

Oil and fuel coolers

Where a cooler is accepted, or checked after service, against its rated heat duty and pressure drop.

Radiators and intercoolers

Where an air-side unit is compared with its design flow and its pressure drop.

Plate and shell-and-tube units

Where a process or utility exchanger is tested for its duty before it is installed.

Overhaul and acceptance

Where units come back after repair and must be shown to be as good as before.

Watch

See it in motion.

A short walkthrough video of the heat exchanger test bench.

FAQ

Common questions.

Longer answers, for readers who want the reasoning.

Q · 01 What does a heat exchanger test bench actually do?

It runs a hot stream through one side of a unit and a cold stream through the other, at set flows and temperatures, and measures what the unit does: the heat it moves, the pressure it costs on each side, and whether it leaks. It reports the result together with the balance of the two sides, so that the reader can see whether the test itself can be trusted. It does not design the unit.

Q · 02 Why must both sides agree?

Because they measure the same heat from two ends. The heat the hot side gives up is the heat the cold side takes up, less what is lost to the room and the error of the instruments. If the two do not match, a reading is wrong, the unit has not settled, or the room is taking too much. A result that cannot balance is a number with no reason to believe it, so the bench reports the balance every time.

Q · 03 Why does the bench wait before it reads?

After any change in flow or temperature, the metal of the unit and the pipework take in or give out heat for a while. Until they settle, the hot side reads high and the cold side low, and neither reading is the unit's steady performance. The test plan therefore sets a rule for steady state, and the bench reads only when the rule is met. The rule is written down, so that the reading can be defended.

Q · 04 Why is the oil temperature written beside the pressure drop?

Because oil gets thin as it warms, and the pressure drop of a cooler follows that thinning, falling steeply as the oil heats. The same cooler gives very different drops with cold oil and with hot oil. A drop with no oil temperature beside it cannot be compared with anything, so the bench holds the oil at a stated temperature and records it.

Q · 05 Is this the same as the coolant distribution unit, the pump and fuel cooler rig or the dryer test bench?

No, and the differences are worth stating precisely. The liquid cooling system and coolant distribution unit page covers a closed-loop system that cools electronics. The integrated test rig for pumps and fuel coolers page covers a rig that qualifies a set of pumps and a fuel cooler together. The compressed air dryer test bench page covers a bench that judges a dryer by its dew point. This page is the heat exchanger test bench, for any single-phase unit. It does not replace any of them, and it does not claim what they claim a second time.

Q · 06 Has Neometrix built one of these?

We would rather answer this plainly than let a page imply otherwise. Neometrix has quoted against successive heat exchanger and oil cooler test requirements, and no delivered heat exchanger test bench is claimed. What stands behind the offer is adjacent: Neometrix engineers a rig for pumps and fuel coolers (see the integrated test rig for pumps and fuel coolers page), a liquid cooling system (see the liquid cooling system and coolant distribution unit page) and a dryer test bench (see the compressed air dryer test bench page). The heaters, chillers, pumps, fans, flow meters, probes and transmitters are catalogue items, bought in, not invented. What Neometrix engineers is the bench around them: the loops and the mounting, the controls and the steady-state rule, the balance and the record, the procedure and the test plan. So the honest position is that the bench is engineered to order, the neighbouring disciplines are in the building, and the first bench of this exact kind will be built around the customer's own unit and fluids rather than taken off a shelf.

Q · 07 Which standard applies, and what can the bench not do?

ASME PTC 12.5 is the public code for performance testing of single-phase heat exchangers. It covers the overall heat transfer coefficient, the heat transfer rate and the pressure drop, with guidance on instruments and on steady state, and it leaves out units that condense or vaporise, as this page does. This page prints none of its tolerances, temperatures or flows, and no edition year: those come from the standard the customer names and from the unit. The bench measures and keeps a record. It does not certify a unit: this page claims no certification or accreditation. No temperature, flow, duty or pressure figure is printed here, and approval for use rests with the customer and the authority they name; none is claimed here.

Q · 08 What do you need from us to quote?

Six things, and most of them describe your unit rather than the bench. First, the unit: its kind, size and ports, and the way it is mounted. Second, the fluids: what is on each side, and the temperatures and flows wanted. Third, the readings: what is to be measured, and to what accuracy. Fourth, the oil temperatures at which the pressure drop is to be stated. Fifth, the steady-state rule: how the bench decides that it may read. Sixth, the record: what you want kept with each test. From that we come back with a bench concept, a written test plan you can check, and a budgetary price.
