NMX-HBP-81 · ENGINEERED-TO-ORDER CLASS — SPECIFY · SIZE · BUILD · CALIBRATE · RUN · PROVE

Hydraulic Baling Press. Tie it before you let go.

Name: Hydraulic Baling Press
Brand: Neometrix
SKU: NMX-HBP-81

A hydraulic baling press squeezes loose plastic, paper, textile, light scrap or machining chips into a dense block, ties it, and pushes it out as a bale. A bale is only worth moving if it keeps its shape.

So the press has to press against a closed chamber, hold the bale while it is tied, and eject it clean, on every cycle.

Discuss a hydraulic baling press Capability note (PDF)

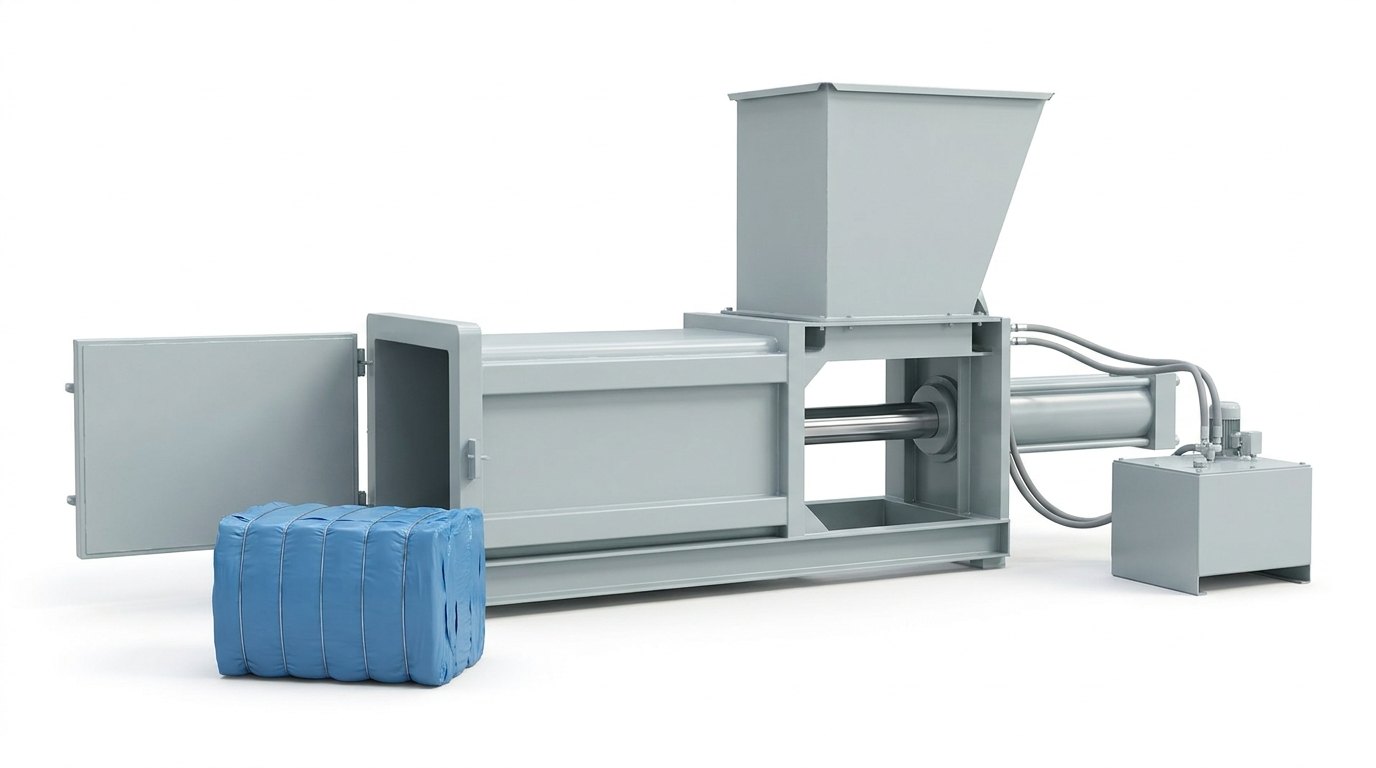

A horizontal hydraulic baling press on a plain white studio background: a long pale grey steel pressing chamber on a base frame with its door open at the left end, a tall steel feed hopper on top near the right end, a hydraulic cylinder with a polished rod at the right end, a grey power unit beside it joined by two hoses, and a finished blue bale tied with wires standing in front, and no people

Fig · 01 — A horizontal hydraulic baling press: a long chamber with a feed hopper, a ram cylinder at one end, a door at the other, a power unit beside it and a tied bale in front — illustrative render.

The result

a bale that holds its shapedense, square and tied

The press

a ram and a closed chamberforce carried without bowing

The tie

applied while the bale is heldwire or strap, before release

The cycle

fed, pressed, tied, ejectedby hand or automatically

Status

engineered to orderno delivered press claimed

ISO 9001ISO 14001EN 16252 reference standard for horizontal baling presses

Overview

Why the whole job is the tie.

Because a pressed bale wants to spring back, and the only thing that holds it is the tie, applied while the ram is still pressing.

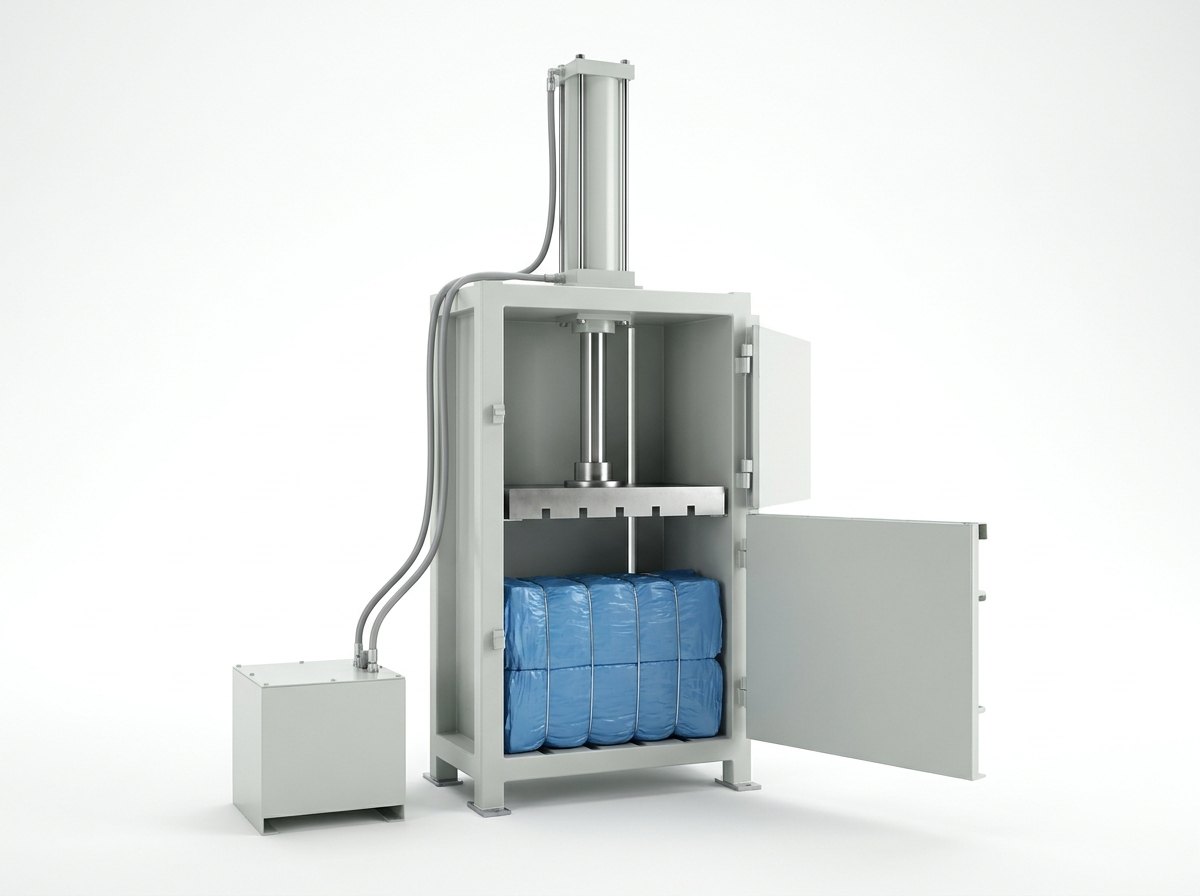

A vertical hydraulic baling press on a plain white studio background: a tall pale grey steel frame with a hydraulic cylinder and a press plate at the top, the chamber door open on two blue bales tied with wires, and a grey power unit beside it joined by two hoses, and no people

Fig · 02 — A vertical hydraulic baling press: a cylinder and a press plate at the top, a chamber with its door open on tied bales, and a power unit beside it — illustrative render.

Tie it before you let go.

What the press is for

It presses loose material into bales: plastic film and bottles, paper and card, textiles, light scrap and machining chips. It suits a vertical baling press, a horizontal baling press with a feed conveyor, and a shredder-fed baling line. Each bale is pressed, held, tied and ejected in one cycle.

Why a bale springs back

Loose material is mostly air. Pressed, it stores energy in its own springiness, and when the ram lets go it tries to expand. A bale released before it is tied loses much of the volume it was pressed to. So the press holds the bale under pressure while it is tied, and only then lets go.

Why the chamber is closed

A ram needs something to press against. A closed chamber lets the material build up pressure, and an open one lets it escape. The chamber, the ram face and the door have to carry the full force without bowing, or the bale comes out dished.

Why the ties are applied with the bale held

Wire or strap is passed round the bale while it is still under compression, then drawn tight and fastened. A tie fitted after release is fitted to a bale that has already grown. The ties are sized for the force of the spring-back, and a bale that bursts its ties is the commonest failure of the class.

Why the bale is ejected clean

A finished bale has to leave the chamber without dragging, jamming or tearing its ties. A second ram, a lifting door or a tilting chamber lets it out, and it is guided clear before the next load goes in.

Why the feed matters

A baling press is only as fast as it is fed, and a full chamber makes a dense bale. A hopper, a conveyor or a shredder ahead of the press keeps the chamber full. A twin-chamber press loads one chamber while the other presses.

Why the guarding is part of the machine

Rams and doors are the hazard. Guards, interlocks, a locked door while the ram moves and a safe way to clear a jam are part of the design, not an accessory. For horizontal baling presses a public European standard, EN 16252, sets the safety requirements.

The method

Specify, size, build, calibrate, run, and prove.

Six steps in a fixed order. Showing that the bale holds and that the ties hold are the two a quick order skips.

1 · Specify

The material, the bale wanted, the throughput and the way the press is fed are stated by the customer.

2 · Size

The ram force and the chamber are sized for the material and the bale, and the hydraulic power for the cycle.

3 · Build

The frame, the chamber, the ram, the tying, the ejection, the power pack and the controls are built as one machine.

4 · Calibrate

The pressure settings, the ram stops and the bale length setting are calibrated, so that every bale is made to the same setting.

5 · Run

A trial run with the customer's own material comes first, to show that the bale holds, that the ties hold and that the bale leaves the chamber clean.

6 · Prove

A record of the settings, the cycle and the guard checks is kept and handed over with the press.

Which press for which material

Material	What it needs	What to watch
Plastic film and bottles	a closed chamber, a firm hold and ties strong enough for a springy material	bales that burst their ties, or that grow after they leave the press
Paper and card	a long chamber and a feed conveyor for a steady stream	bales that come out dished or uneven
Textiles and light scrap	a hopper that fills the chamber evenly	uneven density from one end of the bale to the other
Machining chips	heavy, sharp material, so a stiff chamber, wear liners and ties that will not cut	oil and coolant carried out in the bale, so a drain belongs in the design
Mixed or bulky waste	a shredder ahead of the press, so the material is made even before it is pressed	long or hard items that jam the ram

The step people underrate is the hold. A press that reaches full force and then lets go while the tie is still being passed is making loose bales with extra steps.

Work content

What the press contains, element by element.

Read it as a checklist: a press missing a row will squeeze material into a block, but not into a bale you can move.

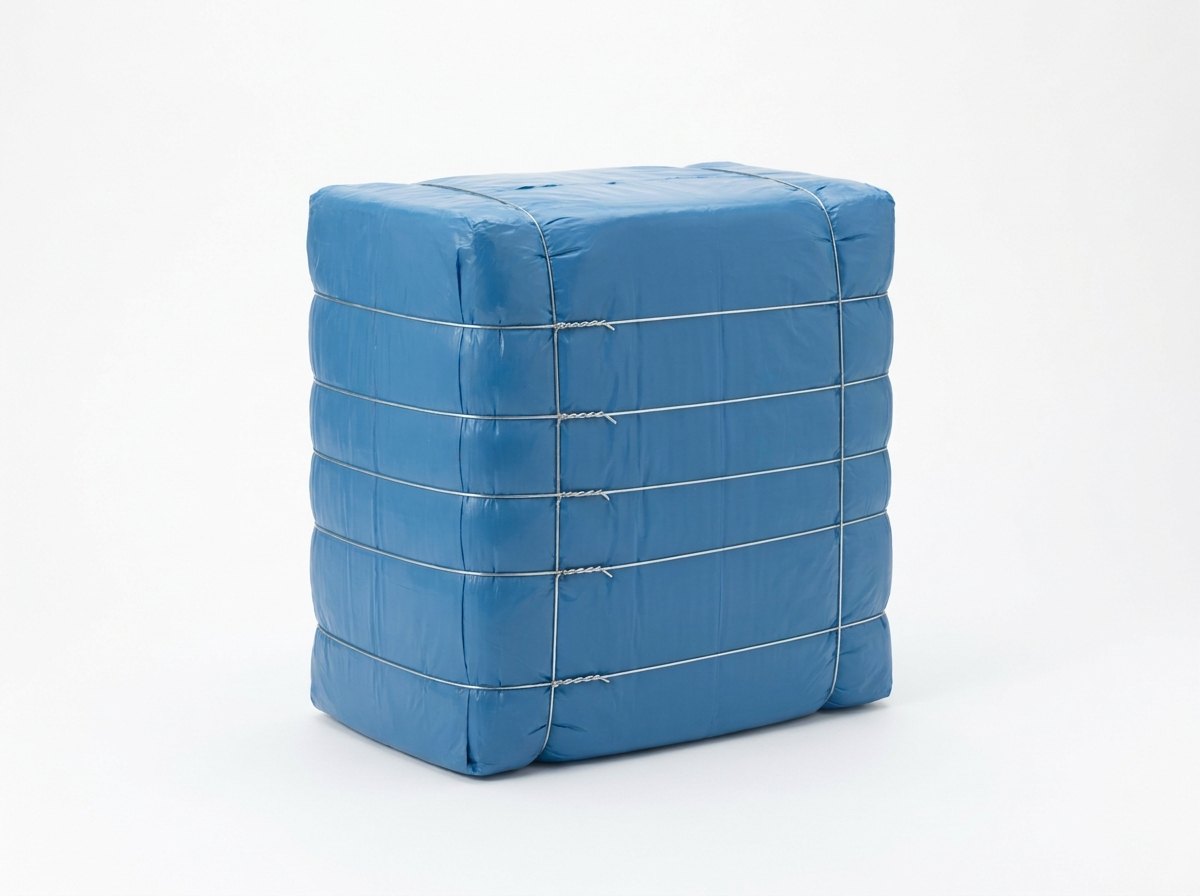

A finished bale on a plain white studio background: a dense square-edged block of plain blue pressed film held by five steel wires with twisted joints, and no people

Fig · 03 — A finished bale: pressed plain film, square-edged and firm, held by wire ties — illustrative render.

Element	What it does	What matters
Frame and chamber	carry the pressing force	a frame and chamber stiff enough to stay straight under the full force, with wear liners on the surfaces the material rubs against
Ram and cylinders	press the bale	one or more hydraulic cylinders driving a ram face of the right size, with a smooth approach and a firm hold at the end of the stroke
Power pack and valves	drive the cycle	pumps, valves and a cooler matched to the cycle, with pressure relief and a hold that does not creep
Feed hopper and conveyor	fill the chamber	a hopper or conveyor that keeps the chamber full, with a sensor that shows when it is
Tying system	ties the bale	wire or strap passed round the bale while it is held, drawn tight and fastened, by hand or automatically
Ejection	removes the bale	a second ram, a lifting door or a tilting chamber that lets the bale out without tearing the ties
Controller and sensors	run the cycle	a controller that sequences feed, press, hold, tie and eject, counts the bales and keeps the settings, with sensors on the ram, the door and the hopper
Safety guards	protect people	guards and interlocks on every door and opening, a locked door while the ram moves, an emergency stop and a safe way to clear a jam
Procedure	fixes the sequence	specify, size, build, calibrate, run and prove, the same for every press
Testing & documentation	prove the press first	a trial run with the customer's own material, the bale shown to hold, the ties shown to hold, and a record the customer can inspect

The elements that decide whether the bale holds are the tying system and the hold at the end of the stroke, and the one that decides whether the press keeps working is the feed. The first two make the bale, and the third keeps the chamber full.

Full specification — expand

System	A stiff frame and a closed pressing chamber with wear liners; a ram driven by one or more hydraulic cylinders with a smooth approach and a firm hold at the end of the stroke; a hydraulic power pack with valves, relief and a cooler; a feed hopper or conveyor with a sensor that shows when the chamber is full; a tying system that passes wire or strap round the bale while it is held; an ejection by a second ram, a lifting door or a tilting chamber; a controller with sensors on the ram, the door and the hopper; guards and interlocks with an emergency stop; a written test plan; and calibration, testing and documentation before handover
The One Idea	Tie it before you let go.
Why A Bale Springs Back	Loose material is mostly air and stores energy in its own springiness when it is pressed, so when the ram lets go it tries to expand, and a bale released before it is tied loses much of the volume it was pressed to
Why The Chamber Is Closed	A ram needs something to press against, so the chamber, the ram face and the door carry the full force without bowing, or the bale comes out dished
Why The Ties Are Applied With The Bale Held	Wire or strap is passed round the bale while it is still under compression, then drawn tight and fastened, and the ties are sized for the force of the spring-back
Why The Bale Is Ejected Clean	A finished bale has to leave the chamber without dragging, jamming or tearing the ties, so a second ram, a lifting door or a tilting chamber lets it out and clear before the next load goes in
Why The Feed Matters	A baling press is only as fast as it is fed and a full chamber makes a dense bale, so a hopper, a conveyor or a shredder keeps the chamber full, and a twin-chamber press loads one chamber while the other presses
Standards	EN 16252 is the public European standard for the safety of horizontal baling presses that compact waste materials or recyclable fractions. This page prints none of its requirements, and no edition year: those come from the method the customer names and from the machine. Approval of a press rests with the customer and the authority they name; none is claimed here
Configurations	A vertical baling press, a horizontal baling press with a feed conveyor, and a shredder-fed baling line
Scope Boundary	This page is the hydraulic baling press. It is not a hydraulic press machine, which is a frame-type forming press (see hydraulic press machine), not a mobile chain conveyor, which loads and unloads stores (see mobile battery-operated chain conveyor) and not an incinerator, which destroys waste by burning (see marine and industrial incinerator). A shredder alone and a briquetting press are different equipment again. No certification is claimed here
Status	Neometrix engineers hydraulic baling presses to order, and no delivered hydraulic baling press is claimed.

Configurations

One method, three ways to build the press.

The method, the ram, the closed chamber, the hold, the tie and the record are shared. What changes is how the material is fed and how many bales an hour the site needs.

Vertical baling press

One chamber, pressed from above

A vertical chamber loaded from the front or the top, pressed by a downward ram, tied and ejected, for plastics, paper and light scrap where the stream is modest.

Horizontal baling press

A feed conveyor and a long chamber

A horizontal ram in a long chamber, fed by a hopper or a conveyor, with automatic tying and ejection, for a steady stream of material.

Shredder-fed baling line

Shred first, then bale

A shredder ahead of a press, so that mixed or bulky material is made even before it is pressed into a bale.

A twin-chamber press, which loads one chamber while the other presses, is a variant of either press. And the part that is not equipment at all, yet decides all three: the test plan. It fixes the materials, the bale, the settings, the order of the trial run and what is recorded. It is written from the customer's own material, not from the press.

Where it is used

Wherever loose material has to be moved, and a bale is cheaper than a heap.

The common thread is a material that is mostly air, and a cost that falls when it leaves the site as a block.

Factories and workshops

Where offcuts, packaging and machining chips pile up and have to be taken away.

Recycling and waste handling

Where plastics, paper and textiles are baled for transport and sale.

Packaging and logistics

Where card and film are baled at the dock instead of being left to build up.

Institutions and campuses

Where mixed waste is pressed and tied before it leaves the site.

Watch

See it in motion.

A short walkthrough video of the hydraulic baling press.

FAQ

Common questions.

Longer answers, for readers who want the reasoning.

Q · 01 What does a hydraulic baling press actually do?

It turns loose material into a bale. Material is fed into a closed chamber, a hydraulic ram presses it against the chamber, the press holds the bale under pressure while wire or strap is passed round it and fastened, and then the bale is ejected. A hopper or conveyor feeds it, and a controller runs the cycle. It does not sort the material or decide what may be baled: that is the job of the site and of the rules it works under.

Q · 02 Why do some bales burst their ties?

Because pressed material springs back. Loose material is mostly air, and under the ram it stores energy in its own springiness. If the press lets go before the tie is fastened, or if the tie is too light for the force of the spring-back, the bale grows and the ties take the load. Plastic film and soft textiles are the springiest, and they find the weakest tie. The cure is a firm hold while the tie is made, ties sized for the material, and a trial run that proves both before the press is handed over.

Q · 03 How is the bale held while it is tied?

By keeping the ram under pressure until the tie is done. The hydraulic circuit holds the ram at the end of the stroke, with valves that do not let it creep back, while wire or strap is passed round the bale and drawn tight. In a horizontal press the ties are often made automatically as the bale is formed, and in a vertical press they are often made by hand through slots in the chamber. Only when the tie is fastened does the ram retract and the bale leave the chamber.

Q · 04 Should we choose a vertical press, a horizontal press or a twin-chamber press?

It depends on the stream. A vertical press is simpler, takes less floor, and suits a modest stream that is loaded by hand. A horizontal press with a feed conveyor suits a steady stream and can tie and eject automatically. A twin-chamber press loads one chamber while the other presses, so the feed never waits, and each chamber can take a different material. A shredder ahead of any of them makes mixed or bulky waste even before it is pressed. We set out the trade-offs against your material before we propose a press.

Q · 05 Is this the same as the hydraulic press machine, the chain conveyor or the incinerator?

No, and the differences are worth stating precisely. The hydraulic press machine page covers frame-type presses for forming. The mobile battery-operated chain conveyor page covers a conveyor for loading and unloading stores. The marine and industrial incinerator page covers destroying waste by burning. This page is the hydraulic baling press. A shredder alone and a briquetting press are different equipment again. It does not replace any of them, and it does not claim what they claim a second time.

Q · 06 Has Neometrix built one of these?

We would rather answer this plainly than let a page imply otherwise. Neometrix engineers hydraulic baling presses to order, and no delivered hydraulic baling press is claimed. What stands behind the offer is adjacent: Neometrix engineers hydraulic press machines (see the hydraulic press machine page), mobile chain conveyors (see the mobile battery-operated chain conveyor page) and incinerators for waste (see the marine and industrial incinerator page). The pumps, valves, cylinders, motors, controllers, wire and straps are catalogue items, bought in, not invented. What Neometrix engineers is the press around them: the frame and chamber, the ram, the hold, the tying and ejection arrangement, the feed, the guards, the procedure and the test plan. So the honest position is that the press is engineered to order, the neighbouring disciplines are in the building, and the first press of this exact kind will be built around the customer's own material rather than taken off a shelf.

Q · 07 Which standard applies, and what can the press not do?

EN 16252 is the public European standard for the safety of horizontal baling presses that compact waste materials or recyclable fractions, fed by a hopper or a conveyor, with the bales tied by hand or automatically. This page prints none of its requirements, and no edition year: those come from the method the customer names and from the machine. The press makes bales and keeps a record. It does not sort, it does not make a hazardous material safe to bale, and it does not certify itself: this page claims no certification or accreditation. No force, size, weight, time or quantity figure is printed here, and approval for use rests with the customer and the authority they name; none is claimed here.

Q · 08 What do you need from us to quote?

Six things, and most of them describe your material rather than the press. First, the material: what you bale, and whether it is wet, oily or sharp. Second, the bale you want: its size and weight, and how it will be handled after the press. Third, the stream: how much material arrives and how it is delivered. Fourth, the feed: by hand, by hopper or by conveyor, and whether a shredder is needed. Fifth, the site: the floor, the height, the power and the way the bales leave. Sixth, the record: what you want counted and kept. From that we come back with a press concept, a written test plan you can check, and a budgetary price.
