NMX-HPM-51 · ENGINEERED-TO-ORDER CLASS — SPECIFY · FRAME · GUIDE · CYCLE · GUARD · PROVE

Hydraulic Press Machine. Tonnage is the easy part.

Name: Hydraulic Press Machine
SKU: NMX-HPM-51

A hydraulic press is bought for its tonnage, because that is the number on the order. It is judged by its cycle.

So the system is a frame stiff enough to stay square, guides that keep the platens parallel when the work sits off centre, and a cycle that approaches fast, presses slowly, holds, and lets go in stages.

Discuss a hydraulic press Capability note (PDF)

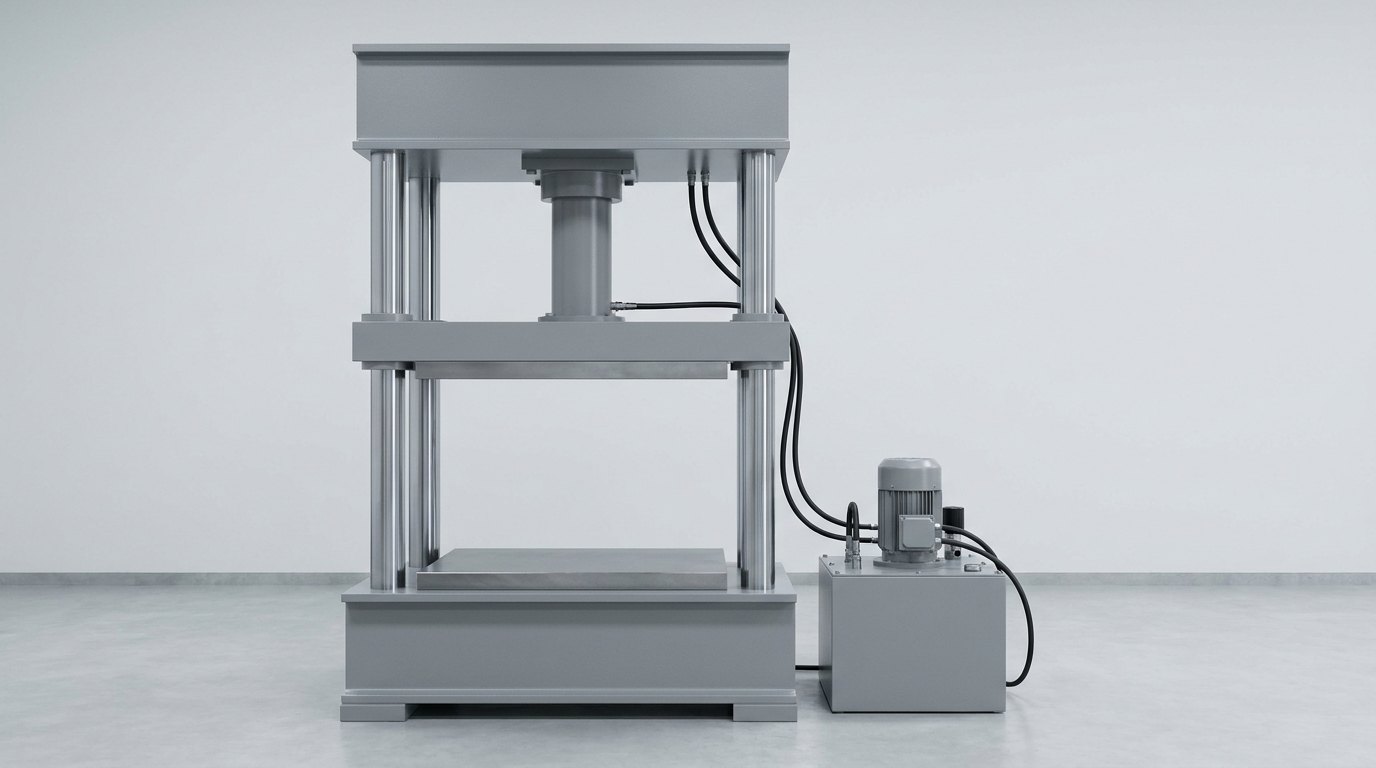

A single four-column hydraulic press on a workshop floor: a heavy grey base bed, four bright polished columns, a grey top crown carrying one vertical cylinder, a moving platen above a flat lower platen with nothing between them, and a plain grey power unit with an electric motor and two black hoses beside it, and no people

Fig · 01 — A four-column hydraulic press with its power unit beside it, and nothing between the platens — illustrative render.

The frame

C, H or four-columnchosen for stiffness

The guides

platens held parallelunder off-centre work

The cycle

press, hold, releaseset and recorded

The guarding

guards and two-handlight-curtain stops

Status

engineered to orderno press yet delivered

ISO 9001ISO 14001ISO 16092-3 hydraulic press safety referenceISO 4413 hydraulic safety reference

Overview

Why a press is judged by its cycle, not its tonnage.

Because any press of the right size can push hard once. Good parts depend on how it approaches, how square it stays, and how it lets go.

Fig · 02 — The system in one picture: a frame that carries the force, a ram that applies it, and a cycle that sets how.

Tonnage is the easy part. The cycle is the press.

What the system is for

It presses, forms, moulds, straightens and assembles parts between two platens, with a ram driven by a hydraulic cylinder against a frame that carries the reaction. Full force is available at any point of the stroke, which suits work that needs a held or controlled force.

Why the frame is chosen for stiffness

Every load stretches the frame. A C-frame, open at the front for easy loading, opens at its mouth under load. An H-frame is stiffer, and a four-column frame shares the load between corner columns. The frame is chosen from how stiff the work needs it to be, not only from how big.

Why guides matter

When the work sits off centre, the moving platen is pushed out of parallel and the part can come out wedge-shaped. Good ram guides, and where needed a levelling control, hold the platens parallel. Guides decide the quality of the part as much as the frame does.

Why the cycle has five phases

The ram approaches fast, because nothing resists it, then slows for the pressing, where the work is done. It holds the force for as long as the work needs, releases the pressure in stages, and returns fast. Each phase is set for the job, and the settings are kept.

Why the release is staged

A loaded press stores energy in the frame and in the compressed oil. Dumped at once, that energy gives a shock, a bang and wear on the valves. A decompression step lets it go slowly before the ram moves back.

Why guarding is part of the design

A press closes on whatever is between the platens. Fixed guards, two-hand controls and light-curtain stops, with a safety circuit that acts independently of the controller, are designed in with the machine and not added afterwards.

The method

Specify, frame, guide, cycle, guard, and prove.

Six steps in a fixed order. The two shaded steps are the ones a quick order skips.

FIG · 02HYDRAULIC PRESS MACHINE · SPECIFY / FRAME / GUIDE / CYCLE / GUARD / PROVE — TONNAGE IS THE EASY PART

The step people underrate is the end of the stroke. A press that presses well and releases badly wears out its valves and its frame.

Fig · 03 — Three ways a press lets you down: an open mouth, a tilted platen and a hard release — a drawing of the idea, with no values.

1 · Specify

The work sets the force, the daylight between the platens and the stroke. The customer states them, and the system does not guess them.

2 · Frame

A C, H or four-column frame is chosen for the stiffness the work needs, and for the access it needs to load and to change tooling.

3 · Guide

The ram guides, and a levelling control where needed, are set to hold the platens parallel under off-centre work.

4 · Cycle

Approach, press, hold, release and return are set for the job, with the release staged, and kept as the cycle record.

5 · Guard

Fixed guards, two-hand controls and light-curtain stops are fitted to suit how the press is loaded.

6 · Prove

The press is load-tested, the platens are checked for parallel, and the cycle is recorded before handover.

Work content

What the press contains, element by element.

Read it as a checklist: a press missing a row will buy that row back later, usually as a part that will not come out square.

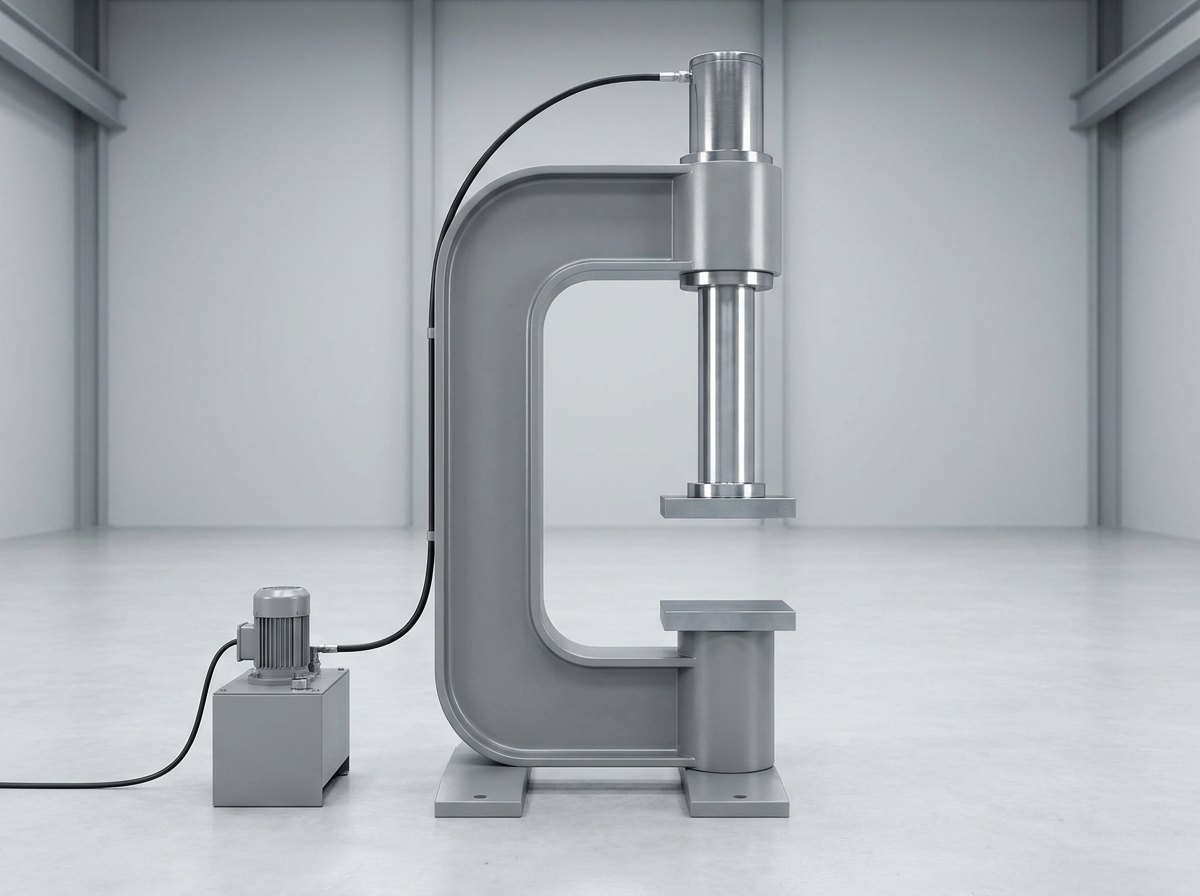

A single C-frame hydraulic press: a heavy grey C-shaped frame open at the front, a vertical cylinder at the top with a bright ram and a flat upper tool plate, a flat lower bolster on the lower arm with nothing between them, and a small grey power unit with an electric motor and a black hose beside it, and no people

Fig · 04 — A C-frame press, open at the front for loading, with its cylinder, ram and flat tool plates and a small power unit beside it — illustrative render.

Element	What it does	What matters
Frame	carries the reaction of the force	C, H or four-column, chosen for the stiffness the work needs and for access to load and change tooling
Cylinder & ram	push the work	sized for the force the customer states, with seals and a ram finish suited to the oil and the duty
Guides	keep the ram square	long guide surfaces, or guided columns, that hold the platens parallel when the work is off centre
Platens & tool fixings	carry the tooling	flat, stiff platens, with fixings that suit the dies and make a tooling change safe
Power pack	supplies the oil	pump and motor sized for the speed wanted, with a relief valve that sets the force limit
Valves	direct, hold and release the oil	pilot-operated valves for the large flows, and a decompression step before the ram reverses
Control	runs the cycle	programmed approach, press, hold, release and return, by force or by position as the work needs
Sensors	read force, position and gap	pressure at the cylinder, ram position, and where needed the platen gap at each corner
Guarding	keeps people out of the closing gap	fixed guards, two-hand controls and light-curtain stops, with a safety circuit independent of the controller
Procedure	fixes the sequence	specify, frame, guide, cycle, guard and prove, the same for every press
Testing & documentation	prove the press first	a load test, a parallel check and a cycle record the customer can inspect

The element that decides whether the part comes out square is rarely the cylinder. It is the guides and the frame, because a press that tilts under off-centre work makes every part wrong in the same way.

Fig · 05 — One duty, three frame types: C-frame, H-frame or four-column, chosen to suit how off-centre and how heavy the work is.

Full specification — expand

System	A C-frame, H-frame or four-column frame; a hydraulic cylinder and ram; ram guides, with a levelling control where needed; flat platens and tool fixings; a hydraulic power pack with a relief valve; pilot-operated valves with a decompression step; a programmed control of approach, press, hold, release and return, by force or by position; sensors for force, position and platen gap; fixed guards, two-hand controls and light-curtain stops with a safety circuit independent of the controller; a written cycle plan; and testing and documentation before handover
The One Idea	A hydraulic press is bought for its tonnage and judged by its cycle.
Why The Frame Is Chosen For Stiffness	Every load stretches the frame, a C-frame opens at its mouth under load, an H-frame is stiffer and a four-column frame shares the load between corner columns, so the frame is chosen from how stiff the work needs it to be and not only from how big
Why Guides Matter	When the work sits off centre the moving platen is pushed out of parallel and the part can come out wedge-shaped, so ram guides, and where needed a levelling control, hold the platens parallel
Why The Cycle Has Five Phases	The ram approaches fast because nothing resists it, slows for the pressing where the work is done, holds the force for as long as the work needs, releases the pressure in stages, and returns fast, with each phase set for the job and kept
Why The Release Is Staged	A loaded press stores energy in the frame and in the compressed oil, and dumped at once that energy gives a shock, a bang and wear on the valves, so a decompression step lets it go in stages before the ram moves back
Why Guarding Is Part Of The Design	A press closes on whatever is between the platens, so fixed guards, two-hand controls and light-curtain stops, with a safety circuit that acts independently of the controller, are designed in with the machine and not added afterwards
Standards	ISO 16092-3 is the public safety standard for hydraulic presses, and ISO 4413 is the public reference for the safety of hydraulic fluid power systems. Neither sets the force, the stroke or the speed a particular press needs: those come from the customer's work, and this page prints none of it. Approval of a press for use rests with the customer and the authority they name; none is claimed here
Configurations	A workshop press with a frame, a ram and a power pack, a programmed press with force and position control and a recorded cycle, and a moulding press with heated platens and a timed cure
Scope Boundary	This is the general frame-type press for forming, moulding, straightening and assembly. It is not a plant for one job, such as an extrusion plant (see extrusion press), a hot-forging press for one shape (see vertical nosing press) or a machine that pulls metal (see stretching and stretch-forming machine), and not a press brake: no certification is claimed here
Status	Neometrix has quoted against successive hydraulic press requirements, and no delivered frame-type hydraulic press is claimed.

Configurations

One method, three ways to supply the press.

The method, the record and the guarding rule are shared. What changes is how much of the press is supplied.

Workshop press

Frame, ram and power pack

A C-frame or H-frame press with a power pack and simple manual or push-button control, made to the customer's force and daylight.

Programmed press

Frame, ram and PLC control

A press with a programmed cycle, force and position control and a recorded cycle, with the release staged.

Moulding press

Frame, platens and temperature control

A press with heated platens and a timed cure, with the platen temperature and the pressing force held and recorded.

Fig · 06 — Three ways to supply the press, one method: a workshop press, a programmed press, or a moulding press.

And the part that is not equipment at all, yet decides all three: the cycle plan. It fixes the speeds, the hold and the way the pressure is released, and it is written from the work, not from the press.

Where it is used

Wherever a part has to be pressed, formed or moulded, and come out the same.

The common thread is work that depends on a controlled force, held or released with care.

Workshops and tool rooms

Where parts are bent, straightened and assembled, bearings and bushes are pressed in and out, and samples are prepared.

Moulding and composites

Where rubber and plastic are moulded between heated platens and held under force for the cure.

Metal forming

Where plate and sheet are drawn, formed and flanged in dies, one stroke after another.

Maintenance and overhaul

Where heavy assemblies are pressed apart and together again, and the force must be controlled.

FAQ

Common questions.

Longer answers, for readers who want the reasoning.

Q · 01 How does a hydraulic press work?

A pump pushes oil into a cylinder, where the pressure acts over the area of the piston. The force is the pressure multiplied by the area, so a modest pressure gives a large force. The piston drives the ram down against the work, and the frame carries the reaction. Because the oil can be held at any pressure, full force is available at any point of the stroke, and the speed, the hold time and the force can all be set freely. That freedom is why a hydraulic press is chosen for work that needs a held force.

Q · 02 What is the press cycle, and why does the release matter?

The ram approaches fast, because there is no load, then slows to the pressing speed, holds the force for as long as the work needs, releases the pressure, and returns fast. The release matters because a loaded press stores energy in the frame and in the compressed oil. If that energy is dumped at once the result is a shock, a bang and wear on the valves, so a decompression step lets the pressure fall in stages before the ram moves back. How long the release takes depends on the load, and it is settled by trial on the real press, not copied from a table.

Q · 03 How do I choose between a C-frame, an H-frame and a four-column press?

By how stiff the work needs the frame to be, and how much access it needs. A C-frame is open at the front and easy to load, but it opens at its mouth under load. An H-frame has two side walls and is stiffer. A four-column frame shares the load between corner columns, and suits wide platens and off-centre work. The frame name alone does not settle the matter, because the guides matter as much, so the platen parallel under off-centre load is checked and not assumed.

Q · 04 Is this the same as the extrusion press, nosing press or stretch-forming pages?

No, and the differences are worth stating precisely. The extrusion press page is a whole plant that makes long sections of metal. The vertical nosing press page is a hot-forging press for one forged shape, with induction heating. The stretching and stretch-forming machine page pulls metal rather than pressing it. This page is the general frame-type press for forming, moulding, straightening and assembly. It does not replace any of them, and it does not claim what they claim a second time.

Q · 05 What can the press not do?

It presses along one axis between two platens, and it does not replace the die: the tooling decides the shape of the part, and a good press cannot save a poor die. It is not a press brake and it is not a forging plant, and no certification of either is claimed: this page claims none. It cannot keep off-centre work square without stiff guides, which is why the parallel is checked. No force, stroke or speed figure is printed here, and approval of the press for use rests with the customer and the authority they name; none is claimed here.

Q · 06 Has Neometrix built one of these?

We would rather answer this plainly than let a page imply otherwise. Neometrix has quoted against successive hydraulic press requirements, and no delivered frame-type hydraulic press is claimed. What stands behind the offer is adjacent: Neometrix engineers presses for specific jobs (see the extrusion press and vertical nosing press pages) and the hydraulic power packs that drive them (see the hydraulic power pack and actuator system page). The pumps, valves, cylinder seals and sensors are catalogue items, bought in, not invented. What Neometrix engineers is the press around them: the frame, the ram and guides, the power pack and valves, the cycle control, the guarding, the procedure and the records. So the honest position is that the press is engineered to order, the neighbouring disciplines are in the building, and the first press of this exact kind will be built around the customer's own work rather than taken off a shelf.

Q · 07 Which standards apply, and who sets the force?

ISO 16092-3 is the public safety standard for hydraulic presses, and ISO 4413 is the public reference for the safety of hydraulic fluid power systems. Neither sets the force, the stroke or the speed a particular press needs: those come from the customer's work, and this page prints none of it. Acceptance of the finished press, including its proving runs before handover, rests with the customer and whatever authority they name.

Q · 08 What do you need from us to quote?

Six things, and most of them describe your work rather than the press. First, the work: what is pressed, the part and the tooling, and how many are made in a day. Second, the force and travel: the force, the daylight and the stroke, stated by the customer. Third, the cycle: the speeds, the hold time and how the release must behave. Fourth, the access: how the press is loaded and how tooling is changed. Fifth, the control and guarding: manual, programmed or moulding, and the site's rules. Sixth, the record: the cycle and the parallel readings you want kept. From that we come back with a press concept, a written cycle plan you can check, and a budgetary price.
