NMX-PIN-55 · ENGINEERED-TO-ORDER CLASS — SPECIFY · SEAT · ZERO · CHECK · READ · PROVE

Precision Inclinometer. Prove the zero, hold it still.

Name: Precision Inclinometer
SKU: NMX-PIN-55

An inclinometer does not measure an angle. It measures where gravity points, and turns that into an angle.

So the instrument is built around three things: a zero proved by turning it over, a reading taken only when it is held still, and a range where the angle can be read as finely as it is claimed.

Discuss an inclinometer Capability note (PDF)

A single precision digital inclinometer on a polished black granite surface plate: a compact rectangular block of dark anodised aluminium with a flat ground underside, a smooth blank top face, two small mounting holes in a side flange and one short black cable leaving the end, and no people

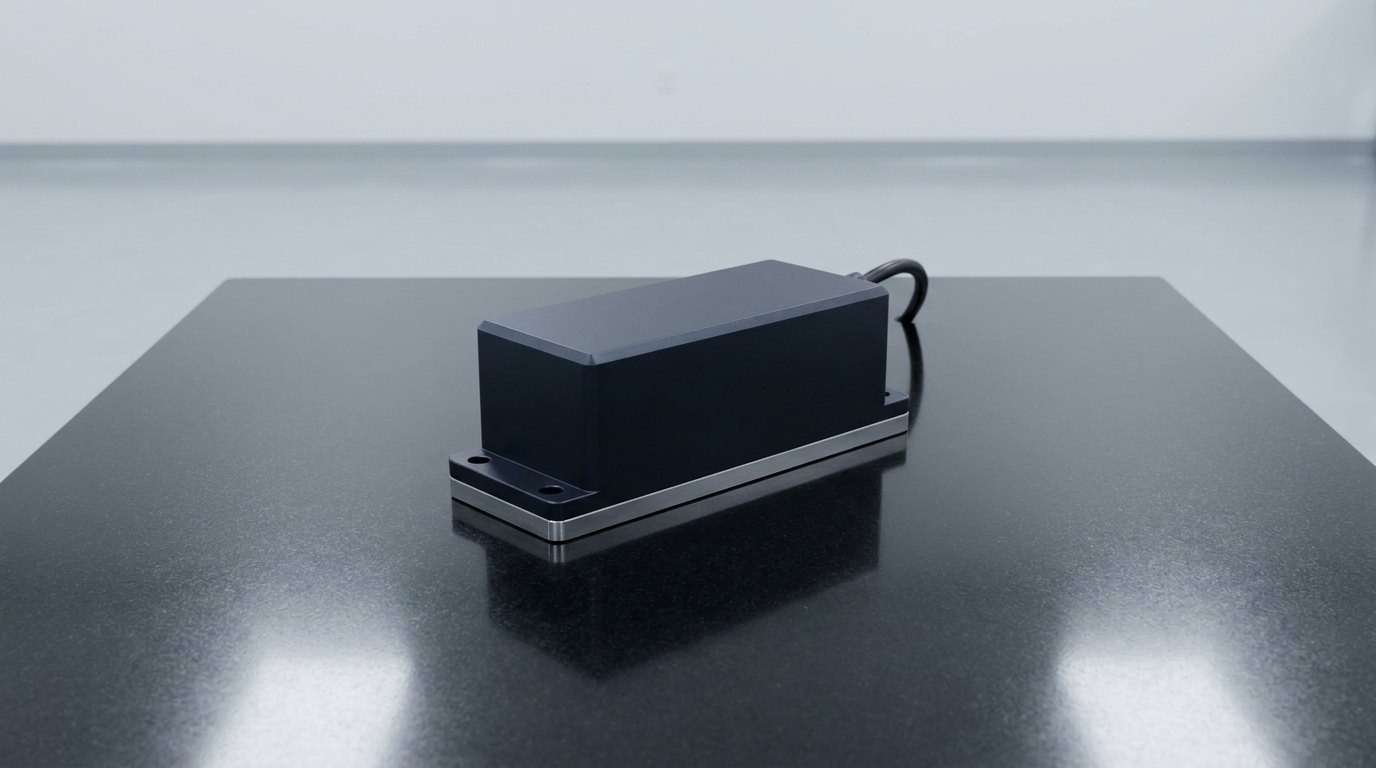

Fig · 01 — A precision digital inclinometer on a granite surface plate, its flat seat and short cable in view — illustrative render.

The seat

flat, clean, locatingthe datum it reads from

The zero

turned over, read twicethe average is the zero

The check

against a known angleat several points

The reading

held still, averagedthen recorded

Status

engineered to orderno instrument yet delivered

ISO 9001ISO 14001ISO/IEC 17025 calibration laboratory reference

Overview

Why an inclinometer is judged by its zero and its stillness.

Because the number on the display is only as good as the surface it sat on and the hand that held it. The angle itself is arithmetic.

Fig · 02 — The instrument in one picture: a flat seat, a zero found by turning it over, and a reading taken when it is still.

It reads gravity: prove it, hold it still.

What the instrument is for

It measures the tilt of a surface, a structure or a machine against gravity. A digital inclinometer senses gravity electronically and shows the angle. A mechanical clinometer lets a pendulum or a bubble find the vertical and reads it against a scale. Both are only as true as the way they were seated, zeroed and read.

Why the zero is proved by turning it over

Put the instrument on a surface and read it. Turn it end for end on the same surface and read again. The two readings average to the instrument's own zero error, and half the difference between them is the tilt of the surface. So the zero is found without needing a perfect surface.

Why it must be held still

Gravity is not the only acceleration. Motion, vibration and turning add themselves to it, and the sensor cannot tell them apart from tilt. The reading is taken when the work is still, and averaged, so that a passing knock does not become an angle.

Why the range matters

An electronic tilt sensor's output follows the sine of the tilt, so its sensitivity follows the cosine and runs out toward vertical. The same noise or offset is a small error near level and a large one near vertical. A single axis suits a limited range around level, and a wider range needs more than one axis.

Why temperature and age matter

Temperature shifts the zero and the scale of an electronic sensor. Calibration reduces the offset, the scale, the nonlinearity and the cross-axis errors, but it cannot remove drift over time. So the zero is proved again on a schedule.

Why a known angle is needed

A sine bar on a flat surface plate, with a stack of gauge blocks under one roller, makes a known angle from simple geometry. Reading the instrument on it at several points shows whether its scale is true across the range, and not only at level.

The method

Specify, seat, zero, check, read, and prove.

Six steps in a fixed order. The two shaded steps are the ones a quick order skips.

FIG · 02PRECISION INCLINOMETER · SPECIFY / SEAT / ZERO / CHECK / READ / PROVE — PROVE THE ZERO, HOLD IT STILL

The step people underrate is the zero. An instrument that reads a clean number from a seat nobody checked has shown only what the seat was.

Fig · 03 — Three ways an inclinometer lets you down: a zero never proved, a hand that is not still, and the wrong part of the range — a drawing of the idea, with no values.

1 · Specify

The range, the resolution and the way the instrument will be seated are stated by the customer, and the instrument is chosen to suit them.

2 · Seat

A flat, clean seat and a locating datum put the instrument on the work the same way every time, and a seat plate is made where the work needs one.

3 · Zero

The instrument is read, turned over and read again. The average is the zero, and half the difference is the tilt of the seat.

4 · Check

The instrument is read against a known angle at several points, from level toward the end of its range, to show that the scale is true.

5 · Read

Readings are taken with the work held still, averaged, and recorded with the zero that applied.

6 · Prove

A traceable record goes with the instrument, with the date by which the zero is to be proved again.

Work content

What the instrument set contains, element by element.

Read it as a checklist: a set missing a row will read a clean number and be wrong.

A single precision sine bar on a polished black granite surface plate: a long ground steel bar with a roller at each end, one roller on the plate and the other raised on a small stack of plain steel gauge blocks so the bar slopes gently, with a small dark inclinometer block resting on top of the bar, and no people

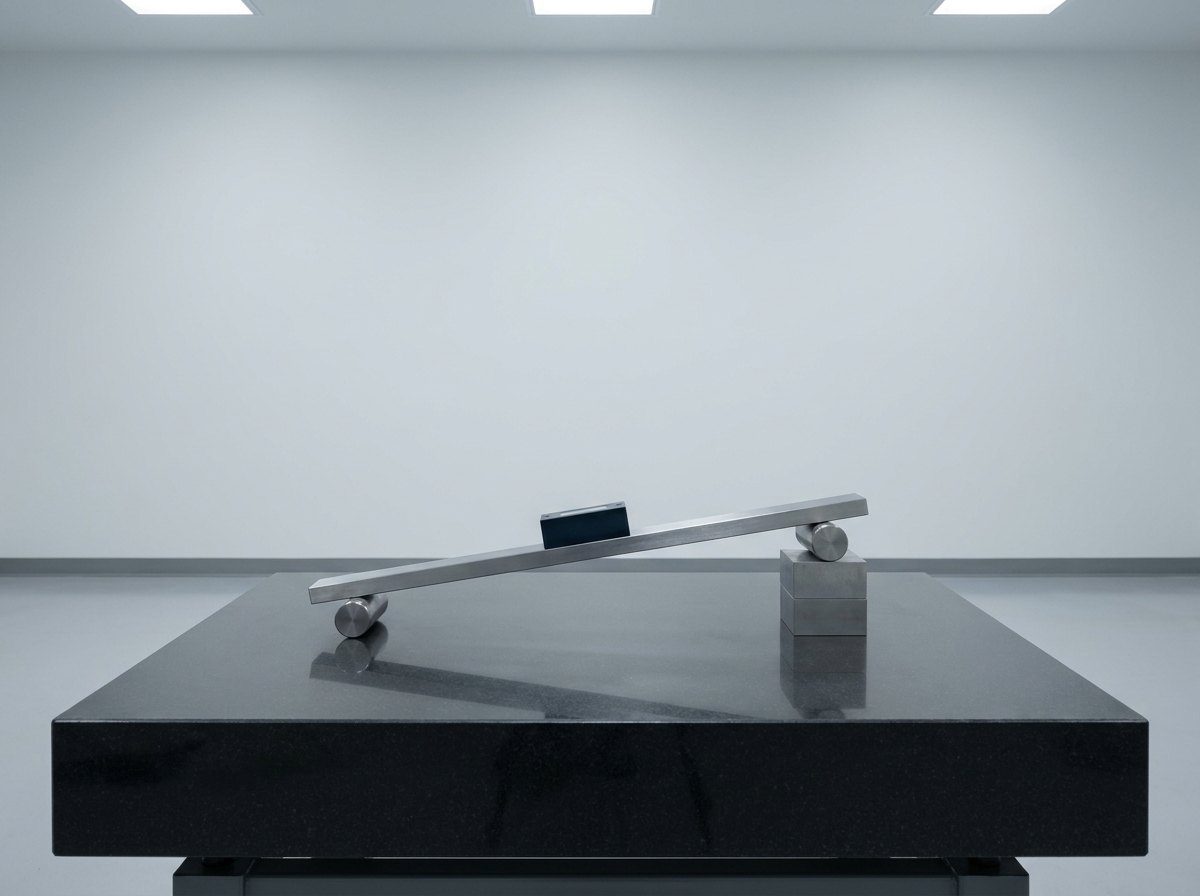

Fig · 04 — The check: a sine bar with one roller raised on gauge blocks makes a known angle, and the instrument rests on it — illustrative render.

Element	What it does	What matters
Digital inclinometer	senses tilt electronically	a sensor chosen for the range and resolution the work needs, with the range stated at the angle where it is least fine
Mechanical clinometer	shows tilt by pendulum or bubble	a simple instrument with a scale, for work that must not depend on power
Seat plate	puts it on the work	a flat, ground seat with locating features, made to suit the surface it is used on
Datum	fixes where it reads from	a stated seating face and axis, so the angle means the same thing every time
Angle reference	makes a known angle	a sine bar and gauge blocks on a flat surface plate, used to check the scale at several points
Turn-over fixture	lets the zero be proved	a simple way to turn the instrument end for end on the same seat without disturbing it
Cable & output	carries the reading	a screened cable and a stated output, kept short and clear of moving parts
Still-reading rule	keeps a knock from becoming an angle	averaging and a settling time, so a passing disturbance is not read as tilt
Fitted case	keeps it true	a case that protects the seat face and keeps the instrument clean and dry
Record	keeps the proof	the zero, the check points, the date and the reference used, kept with the instrument
Procedure	fixes the sequence	specify, seat, zero, check, read and prove, the same for every instrument
Testing & documentation	prove the set first	a zero proof, a scale check and a record the customer can inspect

The element that decides whether the reading is true is the seat, because an instrument that sits differently each time reads a different angle each time.

Fig · 05 — One method, three instruments: a digital inclinometer, a mechanical clinometer and an angle reference, each proved the same way.

Full specification — expand

System	A digital inclinometer or a mechanical clinometer chosen for the range and resolution the work needs; a flat, ground seat plate with locating features and a stated datum; a turn-over fixture that lets the instrument be turned end for end on the same seat; an angle reference of a sine bar and gauge blocks on a flat surface plate; averaging and a settling rule for a still reading; a screened cable and a stated output; a fitted case; a record of the zero, the check points, the date and the reference used; a written proof plan; and testing and documentation before handover
The One Idea	An inclinometer is judged by its zero and by its stillness.
Why The Zero Is Proved By Turning It Over	Read on a surface, turned end for end on the same surface and read again, the two readings average to the instrument's own zero error and half the difference between them is the tilt of the surface, so the zero is found without a perfect surface
Why It Must Be Held Still	Gravity is not the only acceleration, motion and vibration add themselves to it and the sensor cannot tell them apart from tilt, so the reading is taken when the work is still and averaged
Why The Range Matters	An electronic tilt sensor's output follows the sine of the tilt, so its sensitivity follows the cosine and runs out toward vertical, which makes the same noise or offset a small error near level and a large one near vertical
Why Temperature And Age Matter	Temperature shifts the zero and the scale of an electronic sensor, and calibration reduces offset, scale, nonlinearity and cross-axis errors but cannot remove drift over time, so the zero is proved again on a schedule
Why A Known Angle Is Needed	A sine bar on a flat surface plate, with gauge blocks under one roller, makes a known angle from simple geometry, and reading the instrument on it at several points shows whether its scale is true across the range and not only at level
Standards	ISO/IEC 17025 is the public reference for the competence of testing and calibration laboratories, and the traceability of a reading rests with the reference the customer's own laboratory uses. No angle, accuracy or resolution figure is printed here: those come from the instrument chosen and the customer's need. Approval of an instrument for use rests with the customer and the authority they name; none is claimed here
Configurations	A single instrument with a seat plate and a record, an instrument set with a fitted case and one check for the set, and a calibration set with a sine bar, gauge blocks and a written procedure
Scope Boundary	This page is the inclinometer: its seat, its zero, its check and its record. It is not the weighing system that levels with inclinometers it buys in (see weighing and centre-of-gravity systems), not the boresight equipment of which an inclinometer is one component (see mounts and boresight equipment) and not a platform that makes a tilt (see dynamic motion and tilt test platform). It reads static tilt and it is not a gyroscope: no certification is claimed here
Status	Neometrix has quoted against successive inclinometer requirements, and no delivered inclinometer is claimed.

Configurations

One method, three ways to supply the instrument.

The method, the record and the stillness rule are shared. What changes is how much of the proof is supplied with the instrument.

Single instrument

Instrument, seat plate and record

One digital or mechanical inclinometer with a seat plate made to the work and a record of its zero and its check.

Instrument set

Instruments, case and check

Several instruments in a fitted case, each proved the same way, with one check record for the whole set.

Calibration set

Instrument, angle blocks and procedure

The instrument with a sine bar, gauge blocks and a written procedure, so the customer can prove it as often as needed.

Fig · 06 — Three ways to supply the instrument, one method: a single instrument, an instrument set, or a calibration set.

And the part that is not equipment at all, yet decides all three: the proof plan. It fixes the seat, the check points, the stillness rule and the date of the next proof, and it is written from the work, not from the instrument.

Where it is used

Wherever a tilt has to be read, and trusted the second time.

The common thread is a reading that someone will act on, and a second reading that has to agree with the first.

Alignment and levelling

Where a machine, a mounting or a structure must be set to a stated angle and checked again after work.

Testing and trials

Where the tilt of a rig or a test article is part of the result and has to be read honestly.

Maintenance lines

Where an instrument is carried to the work and must read the same way each time it is used.

Calibration rooms

Where a scale is checked against a known angle before the instrument is trusted, and again on a schedule.

Watch

See it in motion.

A short walkthrough video of the precision inclinometer.

FAQ

Common questions.

Longer answers, for readers who want the reasoning.

Q · 01 What does an inclinometer actually measure?

It measures the direction of gravity relative to the instrument, and turns that into an angle. A digital instrument senses gravity electronically, and its output follows the sine of the tilt. A mechanical clinometer lets a pendulum or a bubble find the vertical and reads it against a scale. Neither measures an angle directly, which is why the seat, the zero and the stillness decide the answer.

Q · 02 How does turning it over prove the zero?

Read the instrument on a surface, turn it end for end on the same surface, and read again. The first reading is the tilt of the surface plus the instrument's zero error. The second is the zero error minus the tilt. The average of the two is the zero error, and half the difference is the tilt of the surface. So the zero is found without needing a perfect surface, and the surface is measured at the same time.

Q · 03 Why must the instrument be held still?

Because it reads gravity, and gravity is not the only acceleration. Motion, vibration and turning add themselves to the reading, and a sensor cannot tell them apart from tilt. A gyroscope can help while the work moves, but it drifts, so a still reading remains the plain way to a true angle. The reading is therefore taken when the work is still, and averaged over a settling time, so that a passing knock does not become an angle.

Q · 04 Is this the same as the weighing, boresight or tilt platform pages?

No, and the differences are worth stating precisely. The weighing and centre-of-gravity systems page levels with inclinometers that it buys in. The mounts and boresight equipment page has an inclinometer as one component of a kit. The dynamic motion and tilt test platform page makes a tilt, where an inclinometer reads one. This page is the instrument itself: its seat, its zero, its check and its record. It does not replace any of them, and it does not claim what they claim a second time.

Q · 05 What can the instrument not do?

It reads static tilt about the axes it senses, and it says nothing about a twist about the vertical, which needs another reference. It is not for moving work: in motion it reads gravity plus the motion. It does not certify itself or anything else: this page claims no certification or accreditation. No angle, accuracy or resolution figure is printed here, and approval of an instrument for use rests with the customer and the authority they name; none is claimed here.

Q · 06 Has Neometrix built one of these?

We would rather answer this plainly than let a page imply otherwise. Neometrix has quoted against successive inclinometer requirements, and no delivered inclinometer is claimed. What stands behind the offer is adjacent: Neometrix engineers weighing systems that level with inclinometers (see the weighing and centre-of-gravity systems page), boresight equipment (see the mounts and boresight equipment page), test platforms that tilt a load (see the dynamic motion and tilt test platform page) and the calibration of pressure instruments (see the pressure calibration bench page). The inclinometers, clinometers, sine bars and gauge blocks are catalogue items, bought in, not invented. What Neometrix engineers is the proof around them: the seat plate and datum, the turn-over fixture, the check, the procedure and the record. So the honest position is that the instrument set is engineered to order, the neighbouring disciplines are in the building, and the first set of this exact kind will be built around the customer's own work rather than taken off a shelf.

Q · 07 Which standards apply, and who sets the accuracy?

ISO/IEC 17025 is the public reference for the competence of testing and calibration laboratories. The traceability of a reading rests with the reference the customer's own laboratory uses, and the accuracy and resolution needed come from the customer's work and from the instrument chosen, not from this page. Acceptance of the finished instrument set, including its zero proof and scale check before handover, rests with the customer and whatever authority they name.

Q · 08 What do you need from us to quote?

Six things, and most of them describe your work rather than the instrument. First, the work: what is measured, and how the instrument will sit on it. Second, the range and resolution, stated by the customer. Third, the seat: the surface, the datum and any seat plate. Fourth, the conditions: whether the work is still, and the temperature and vibration it sees. Fifth, the checks: the known angles to be read, and the reference you use. Sixth, the record: what you want kept with the instrument. From that we come back with an instrument concept, a written proof plan you can check, and a budgetary price.
