Reverse Engineering & Indigenisation of Mechanical Spares. A worn part is evidence of the design, not the design.

Name: Reverse Engineering & Indigenisation of Mechanical Spares
Brand: Neometrix
SKU: NMX-REI-33

When the drawing is gone and the original maker no longer supplies, the only record of the part is the part itself, and it is worn.

Copy it as it stands and you copy its wear. The work is to recover what it was: from its unworn surfaces, its mating parts, its material and what it was for.

Discuss a spare Capability note (PDF)

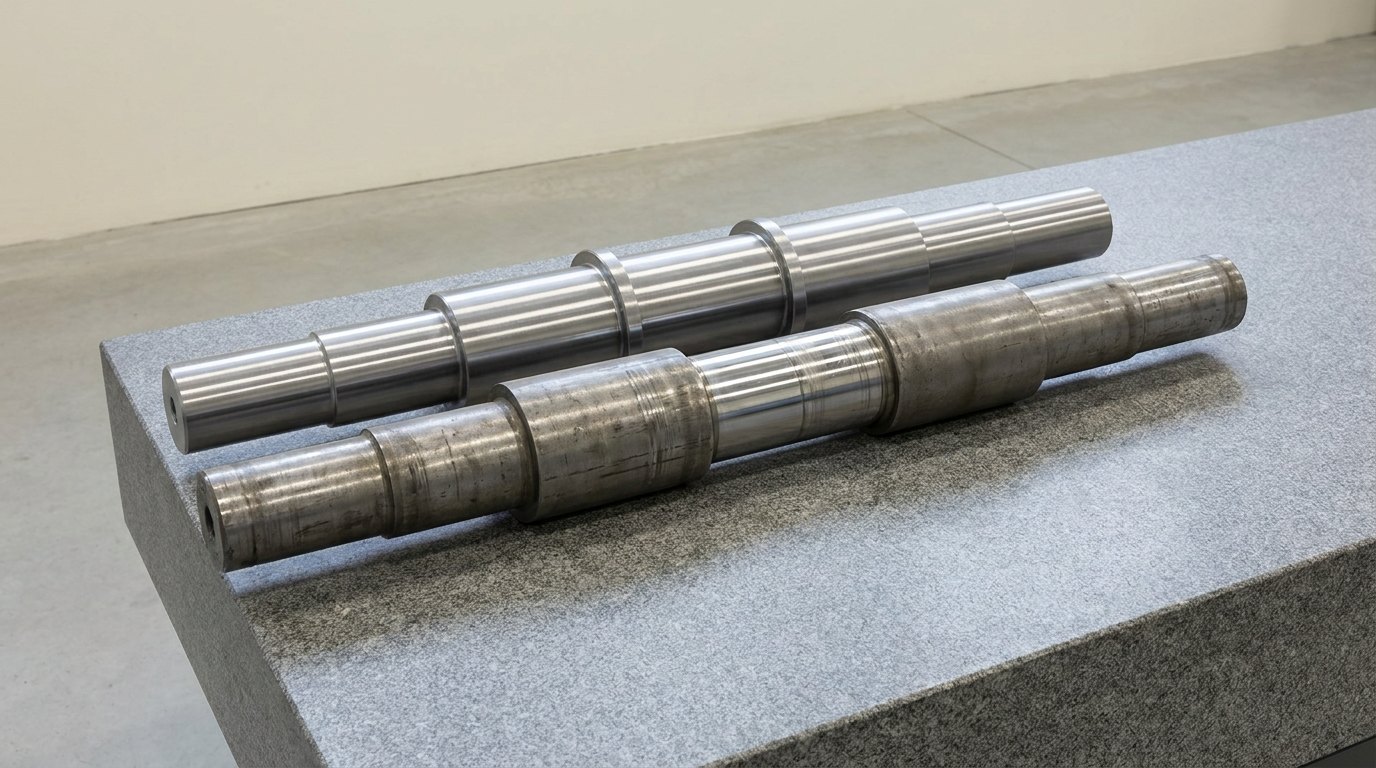

A worn steel shaft with a thinner, scored middle journal in front of a newly machined identical shaft, side by side on a granite inspection surface plate, and no people

Fig · 01 — A worn sample and a newly made copy side by side on an inspection table — illustrative render.

The evidence

the sample and its matesmeasured, not assumed

The recovery

nominal and tolerancefrom unworn surfaces and several samples

The material

identified, not guessedcomposition, hardness, heat treatment

The proof

made, tested, fittedfunction first, then the fitment trial

Status

engineered to orderno unit yet delivered

ISO 9001ISO 14001ISO 286-1 limits and fits referenceISO 1101 geometrical tolerancing reference

Overview

Why the sample is the start of the work and not the end of it.

Because a worn part shows where the design went, and the job is to find out where the design came from.

Fig · 02 — The method in one picture: the sample and its mates are measured, the drawing is recovered, and the part is made and proved, with material analysis behind the measurement and the customer's approval route behind the proof.

A perfect copy of a worn part is a perfect copy of a part that had already failed.

What the work is actually for

It returns a mechanical spare to production when there is no drawing and the original source has stopped supplying. The part is measured, its material identified, its drawing reconstructed, and a new part made, proved and fitted, so that the user has a second source.

Why copying the worn part is the wrong start

Wear removes material from the very surfaces that did the work. A copy of a worn journal is an undersized part with no allowance left. So measurement is taken from unworn surfaces, avoiding the worn ones, and from several samples, not from one.

Why the mating parts are part of the drawing

A part is defined by what it fits. The mating part is measured too, and the fit the two make fixes the tolerance and the datums. Without the mate, a dimension is only a number.

Why the surface finish tells you the process

Roughness and texture show how a surface was made, whether ground, turned, cast or forged. That identifies the original process, and each process has typical tolerances that a reconstructed drawing can use.

Why the material must be identified, not guessed

Composition is found by spectrometry, and hardness and microstructure show how the metal was heat treated. A copy in the wrong material is a shape with unknown properties, and it may fail in a way the original never did.

Why the proof is by function

A part can match every dimension and still fail. So it is tested on what it has to do, on a rig where one is possible, and then fitted in the parent assembly, on the customer's own approval route.

The method

Receive, measure, identify, reconstruct, make, and fit.

Six steps, and the two that turn a worn sample into a design are the measuring on unworn surfaces and the reconstructing of the nominal.

FIG · 02REVERSE ENGINEERING & INDIGENISATION OF MECHANICAL SPARES · RECEIVE / MEASURE / IDENTIFY / RECONSTRUCT / MAKE & TEST / FIT & APPROVE — RECOVER THE DESIGN, DO NOT COPY THE WEAR

The step people underrate is the reconstruction. The measurements are data; the nominal, the tolerance and the fit are engineering judgement, and they have to be justified.

Fig · 03 — The same shaft in three states: the worn sample, with material lost from the surface that worked; the recovered nominal, drawn from the unworn ends; and the new part made to that nominal within a tolerance band — a drawing of the idea, with no values.

1 · Receive

The samples, the mating parts and any records are logged, and the function and the operating conditions of the part are written down.

2 · Measure

Each part is measured by coordinate measurement and scanning, on its unworn datums, across several samples, and the mating parts are measured as well.

3 · Identify

The material is identified by spectrometry, its hardness is measured, and its structure shows the heat treatment and any surface treatment.

4 · Reconstruct

A drawing is built with nominal size, tolerance, fit, material and process, and the reasoning behind each is recorded.

5 · Make & test

A prototype is made and inspected against the drawing, and tested on its function before it goes anywhere near an assembly.

6 · Fit & approve

The part is fitted in the parent assembly in a fitment trial, and accepted on the customer's own quality assurance route.

Work content

What the work contains, element by element.

Read it as a checklist: an indigenisation that skips a row usually finds out at the fitment trial, when it is most expensive to find out.

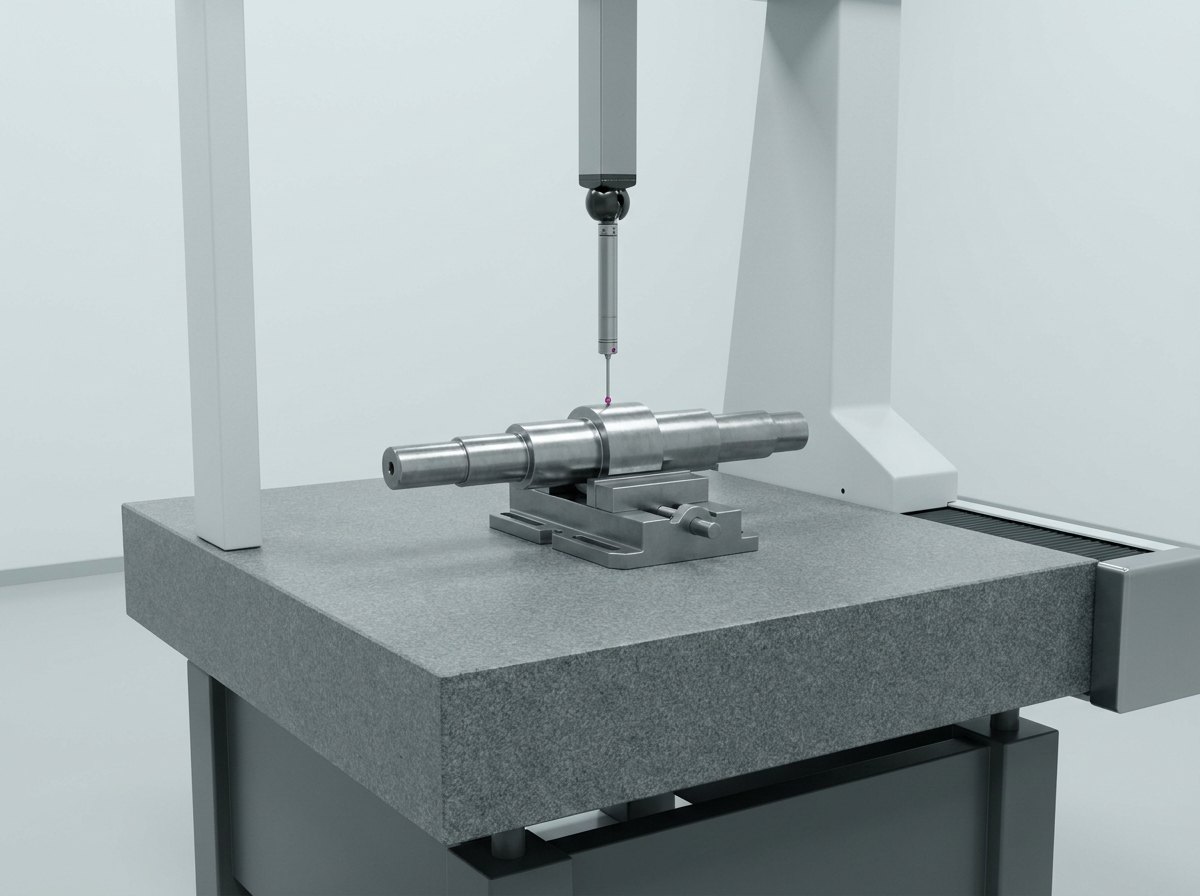

A coordinate measuring machine with its slim probe arm and ruby stylus touching the middle surface of a stepped steel shaft held in a plain fixture on a granite table, and no people

Fig · 04 — A machined shaft being measured on a coordinate measuring machine, the probe touching one of its surfaces — illustrative render.

Element	What it does	What matters
Sample & record intake	logs the samples, mates and records	every sample traceable, and the function written down
Dimensional measurement	measures the part by coordinate measurement and scanning	taken on unworn datums, not on worn surfaces
Mating-part measurement	measures what the part fits	the fit fixes the tolerance
Multiple-sample analysis	compares samples of the same part	separates wear and variation from the design
Material identification	finds the composition by spectrometry	identified, not guessed
Hardness & microstructure	shows heat treatment and depth of hardening	the properties as well as the shape
Surface & coating identification	identifies plating, coating or hardening of surfaces	copied in the same order as the original
Drawing reconstruction	builds the drawing with nominal, tolerance and fit	every choice justified in a record
Process planning	chooses the route to make the part	a process able to hold the recovered tolerance
Prototype manufacture	makes the first parts	with material and heat treatment as identified
First-article inspection	checks the prototype against the drawing	a full report, not a spot check
Function testing	proves the part does its job	on a rig where one is possible
Fitment trial	fits the part in the parent assembly	on the customer's own approval route
Records & traceability	keep the evidence with the part	material, process and inspection recorded
Second-source documentation	hands the drawing and records to the customer	so the source is no longer single

The row that decides whether the spare can be trusted is never a machine. It is the reconstruction record: the written reasoning that connects each measurement to each nominal and tolerance, so that another engineer could check it.

Fig · 05 — One spare, three disciplines: measurement, materials, and manufacturing and test.

Full specification — expand

Method	Sample and mating-part intake with records; dimensional measurement by coordinate measurement and scanning on unworn datums across several samples; material identification by spectrometry, hardness and microstructure; drawing reconstruction with nominal size, tolerance, fit, material and process; prototype manufacture, first-article inspection and function testing; a fitment trial in the parent assembly; and records and second-source documentation
The One Idea	A worn part is evidence of the design, not the design, so the work is to recover what the part was rather than to copy what it has become
Why Not a Copy	Wear removes material from the surfaces that worked, so a copy of the worn part is undersized with no allowance, and measurement is therefore taken from unworn surfaces and from several samples
Why the Mating Parts	A part is defined by what it fits, so the mating parts are measured too, and the fit they make fixes the tolerance and the datums
Why the Material	The material is identified by composition, hardness and microstructure, including its heat treatment, because a copy in the wrong material is a shape with unknown properties
Why the Proof	A part can match every dimension and still fail, so it is tested on its function and proved in a fitment trial on the customer's own approval route
Standards	ISO 286-1 for limits and fits, ISO 1101 for geometrical tolerancing, and ISO 9001 are the public references this class is worked against, alongside the customer's own quality assurance route. Acceptance of a finished spare rests with the customer and their inspection authority
Configurations	A single spare, an assembly of parts, and a programme of spares under one method
Scope Boundary	This is the general method for recovering a mechanical spare when no drawing exists. It is not indigenisation to the customer's own drawing set (see actuating cylinder indigenisation), not an approval route for aircraft components (see aircraft component overhaul test benches) and not a service for electronic or software items
Status	Neometrix engineers reverse engineering and indigenisation of mechanical spares to order, and no delivered indigenised spare is claimed.

Configurations

One method, three scopes of work.

The unworn datums, the mating parts, the identified material and the recorded reasoning are shared. What changes is how many parts are inside the scope.

Single spare

One part, recovered and proved

A single mechanical part taken from sample to drawing, prototype, function test and fitment trial.

Assembly

Many parts, one working whole

An assembly recovered part by part, with the fits between the parts as important as the parts themselves, and proved as a whole.

Spares programme

A batch of spares, one method

Many spares for the same equipment worked through together, under one method and one recording standard.

Fig · 06 — Three scopes, one method: a single spare, an assembly, or a spares programme.

And the part that is not a measurement at all, yet decides all three: the approval route — agreed with the customer at the start, so that the evidence produced is the evidence their own quality assurance will accept.

Where it is used

Wherever the part is still needed and the drawing is not.

The common thread is equipment that outlives its supply chain, and a workshop that still has to keep it running.

Spares whose maker has stopped

Where the original source has ended supply and the part can no longer be bought at any price.

Assemblies with no drawing set

Where the drawings were lost, never transferred, or are held by a source that will not release them.

Second-sourcing a single-source part

Where one supplier is a risk in itself, and a second, independent source is worth having.

Batches of spares for one equipment

Where many parts need the same method and the same record, and doing them together is cheaper than one by one.

FAQ

Common questions.

Longer answers, for readers who want the reasoning.

Q · 01 Why not simply scan the worn part and copy the scan?

Because a scan records the part as it is, and the part as it is has already been changed by use. Wear removes material from exactly the surfaces that did the work, so a copy of the scan is a part that is undersized where it matters and has no allowance left to wear. It also copies damage, distortion and any earlier repair. Published work on reverse engineering of worn parts advises avoiding measurement on worn and damaged areas, and working from the surfaces that have not been touched. A scan is therefore the beginning of the evidence, not the drawing. The work that follows is to decide, feature by feature, what the part was meant to be, and to write that decision down. A scan copied without that step can look right and still bind, leak or fail early.

Q · 02 How can a tolerance be recovered when there is no drawing?

From three sources that have to agree with each other. First, the surface finish and texture show how a feature was made, and each manufacturing process has typical tolerances that give a starting band. Second, the mating part fixes the fit: the two parts must assemble without stress and work as the assembly did, which constrains the tolerance on each and, together with the choice of datums, the position tolerances too. Third, several samples show the natural variation of the original process, which separates what the design allowed from what wear did. The result is a reconstructed tolerance that is a justified engineering judgement, not a measurement, and the reconstruction record says so. Fits and limits are expressed in the ISO system, which is why ISO 286-1 and ISO 1101 are named on this page as public references.

Q · 03 How is the material identified?

By measurement rather than by resemblance. The composition is found by spectrometry, using optical emission spectrometry for alloy steels and similar metals, because it reads the light elements that decide the grade. Hardness is measured on the surface and through the section, and a metallographic section shows the microstructure, and so whether the part was hardened, tempered, case hardened, or left as cast or forged, and how deep any hardening goes. Platings and coatings are identified in the same way. The result is a material and process specification that another workshop could follow. This page names no grade, because the right one depends on the part and its history. A copy in the wrong material is a shape with unknown properties, and it may fail in a way the original never did.

Q · 04 How is an indigenised spare proved and approved?

In stages, and on the customer's own route. The prototype is inspected against the reconstructed drawing in a first-article inspection that covers every feature, not a sample of them. It is then tested on what it has to do, on a rig where one can be built, because a part can match every dimension and still fail in service. It is then fitted in the parent assembly in a fitment trial, and accepted on the quality assurance route of the customer and whatever inspection authority they name. This page states no approval, registration or certification as held, because none is claimed here. The customer's own procedure decides what evidence is needed, how many prototypes are made and what trial follows, and the method is arranged to produce that evidence.

Q · 05 Is this the same as the actuating cylinder, slewing ring or overhaul bench pages?

No, and the differences are worth stating precisely. The actuating cylinder indigenisation page describes work that starts from the customer's drawing set and technical conditions, for one assembly. The precision bearings and slewing rings page describes a bearing product, with a sample route for that one class of part. The aircraft component overhaul test benches page describes test benches, and the route by which replacement aircraft parts are proved by test. This page describes the general method that sits underneath all three: how a mechanical spare is recovered when no drawing exists, whatever the part is. It does not replace any of them, and it does not claim what they claim a second time.

Q · 06 Has Neometrix built one of these?

We would rather answer this plainly than let a page imply otherwise. Neometrix engineers reverse engineering and indigenisation of mechanical spares to order, and no delivered indigenised spare is claimed. What stands behind the offer is adjacent: Neometrix engineers the indigenisation of an assembly to a customer's drawing set (see the actuating cylinder indigenisation page), has a sample route for slewing rings (see the precision bearings and slewing rings page), and builds the test equipment that proves parts (see the aircraft component overhaul test benches page), together with the machining, inspection and testing disciplines that a recovered part passes through. So the honest position is this: the method is engineered to order, the neighbouring disciplines are in the building, and the first spare of this exact kind will be recovered around a customer's own sample, function and approval route rather than lifted off a shelf.

Q · 07 Which standards apply, and who decides whether the work may be done?

ISO 286-1 is the public reference for limits and fits, and ISO 1101 is the public reference for geometrical tolerancing. Neither one, on its own, sets what a particular spare must achieve: that comes from the equipment it belongs to and from the customer's own quality assurance route. Permission is a separate question. The work is done for the customer's own equipment and under the customer's authority, and any questions of design ownership, licence or transfer-of-technology conditions belong to the customer, who confirms them before work starts. Acceptance of a finished spare, including the first-article report and the fitment trial, rests with the customer and whatever inspection authority they name.

Q · 08 What do you need from us to quote?

Six things, and most of them describe the part rather than the work. First, the samples: as many as can be spared, worn or not, with the mating parts they fit. Second, the records: any old drawings, part numbers, technical conditions or test data, however incomplete. Third, the function: what the part has to do, under what loads and in what environment. Fourth, the quantity and schedule: one spare, an assembly or a programme, and when they are needed. Fifth, the approval route: who will accept the spare, and on what evidence. Sixth, the permissions: the customer's confirmation that the work may be done on the equipment concerned. From that we come back with a method statement you can check, a plan of work, and a budgetary price.

The other places this subject appears, and how they differ from this one.

Three neighbours that each touch reverse engineering inside a product.

↗ To the customer's drawing

Actuating Cylinder Indigenisation

Indigenisation of an electro-hydraulic assembly that starts from the customer's own drawing set and technical conditions.

↗ One class of part

Precision Bearings & Slewing Rings

A bearing product, with a reverse-engineering route from a sample used where no drawing exists.

↗ Proof by test

Aircraft Component Overhaul Test Benches

Test benches for aircraft components, and the route by which replacement parts are proved by test.
