    Neometrix / Electrical Test Equipment / Switch Endurance Test Machine / NMX-SWE-77
    NMX-SWE-77 · ENGINEERED-TO-ORDER CLASS — SPECIFY · RIG · LOAD · RUN · WATCH · PROVE

    Switch Endurance Test Machine. The load sets the wear.

    A switch endurance test machine operates a wall switch again and again, with a real lamp load on it, and counts how many operations the switch survives. The count is the easy part. What decides how long the contacts last is the load.

    A heating element, a filament lamp, a fluorescent fitting and an LED lamp are four different tests of the same contacts. So the machine has to switch the real load at the real rate, notice the first operation that fails, and keep a record of every station.

    A switch endurance test machine on a plain white studio background: an open frame of grey painted steel with a grey mounting plate carrying a row of three plain white wall switches, a bright steel crossbar above it carrying three bright pneumatic cylinders whose rounded black fingers press the three rockers, and on a lower shelf a row of clear filament bulbs, a white fluorescent tube, a plain grey box and a row of opal white lamps in porcelain lampholders joined by black cables, and no people

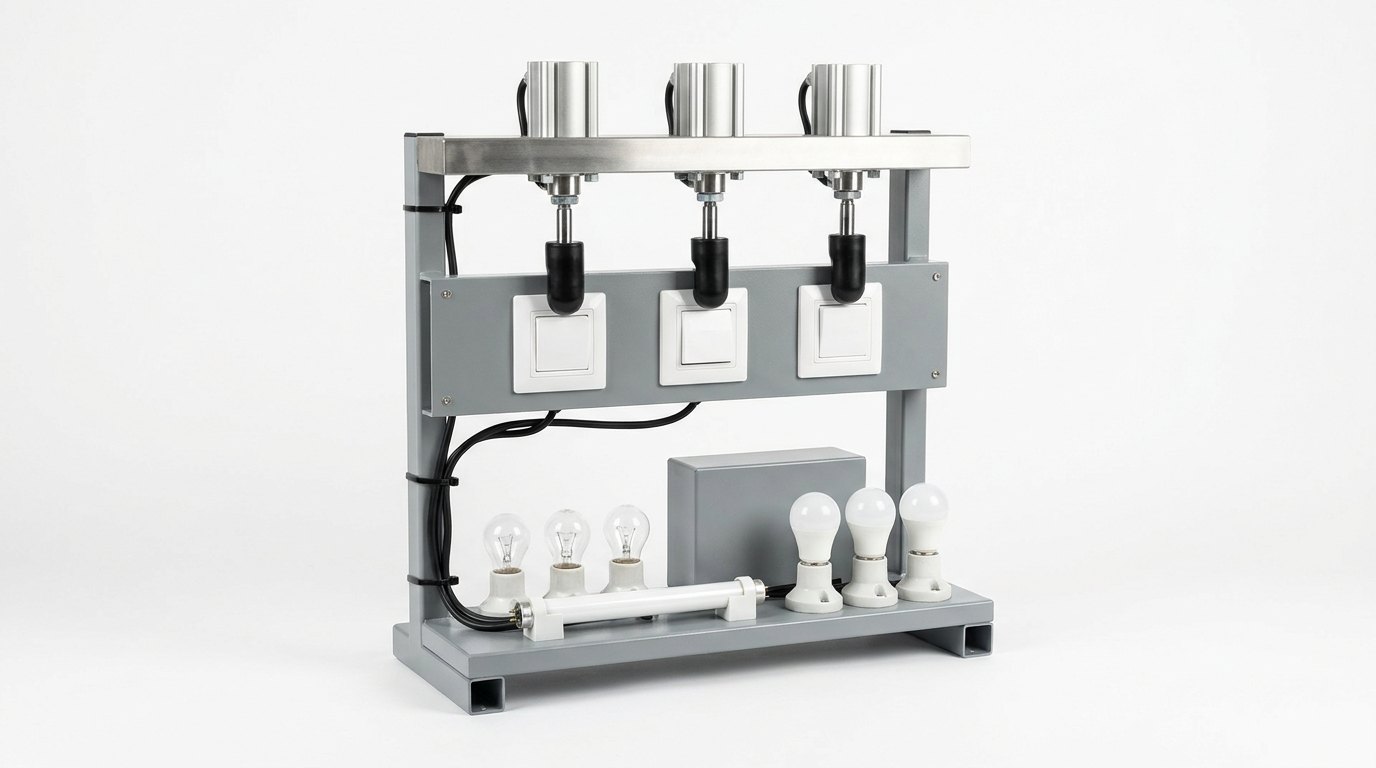

    Fig · 01 — A switch endurance test machine: a row of wall switches on a mounting plate, each pressed by a pneumatic cylinder, and filament lamps, a fluorescent tube and LED lamps on the shelf below — illustrative render.
    The test
    operate under loadagain and again, at a set rate
    The wear
    set by the loadnot by the count alone
    The loads
    filament, ballast, driverreal lamps, not stand-ins
    The watch
    every operationmake, break and weld
    Status
    engineered to orderno switch endurance machine claimed
    ISO 9001ISO 14001IEC 60669-1 and IS 3854 reference standards
    01
    Overview

    Why the whole job is the load.

    Because the mechanism of a switch is tested by pressing it, but its contacts are tested by what they carry.

    A single test station on a plain white studio background: a grey painted steel mounting plate standing upright on a base, carrying one plain white wall switch in a square white plate, with a short bright pneumatic cylinder on a bracket above it and a rounded black finger pressing the upper half of the rocker, two black cables and two black air tubes leading away, and no people

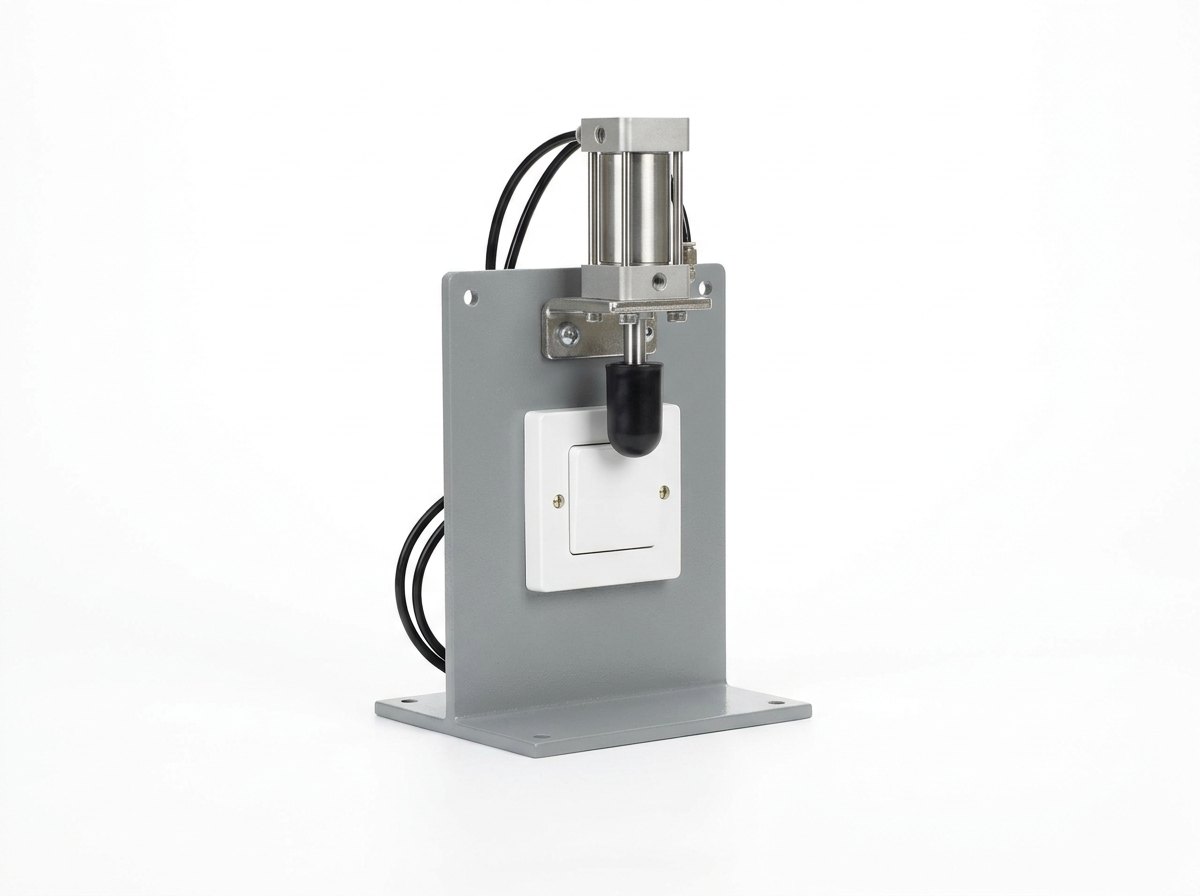

    Fig · 02 — One test station: a wall switch in its plate on a mounting plate, and a short pneumatic cylinder with a rounded finger pressing the rocker — illustrative render.

    The load sets the wear.

    What the machine is for

    It operates a switch many times, at a set rate, with a lamp load connected, and it watches every operation. It suits a multi-station machine with a load rack for each lamp type, a single-station bench for one load, and a load rack and controller for stations a laboratory already owns. The switch under test is a wall switch of the kind fitted in a house or an office.

    Why the load sets the wear

    When a switch closes, the current does not start at its running value. A cold filament lamp draws many times its running current until the filament warms. An electronic ballast or an LED driver draws a short spike as the capacitors inside it charge. The contacts feel that spike every time they close.

    Why a spike matters

    The contacts of a switch bounce as they meet. Each bounce can draw a small arc, and an arc takes material from the contacts and can weld them shut. A larger spike makes a stronger arc. The spike also grows when several drivers share one switch.

    Why an inductive load is a different test

    A magnetic ballast stores energy in its coil. When the contacts open, that energy tries to keep the current flowing, and the arc across the opening gap lasts longer. So the make is hard on a filament lamp and a driver, and the break is hard on a magnetic ballast.

    Why a heating element is not a stand-in

    A heating element draws its running current from the first moment, with no spike. A switch that survives a heating element has not shown that it survives a lamp. The load must be the one the switch will meet.

    What the machine holds steady

    The method the customer names fixes the supply voltage, the current, the power factor, the rate of operation and the share of each cycle that the switch is closed. A machine that drifts on any of them changes the test. So each is held, and the record shows that it was.

    Why failures are counted, not only operations

    A switch can fail by sticking closed, by failing to close or by failing to open. The machine checks every operation. It stops the station at the first failure and writes down the count at which it happened.

    02
    The method

    Specify, rig, load, run, watch, and prove.

    Six steps in a fixed order. Measuring the spike before the run, and checking every operation instead of reading the count at the end, are the two a quick order skips.

    1 · Specify

    The switches, the loads, the supply, the rate and the number of operations are stated by the customer or by the method they name.

    2 · Rig

    The mounting, the finger and the stroke are set so that the switch is operated the way a hand would, through its full travel and no further.

    3 · Load

    The load racks are built from the real lamps, ballasts and drivers, and the current at the moment of closing is recorded to show the spike the contacts will see.

    4 · Run

    The stations run at the set rate and the set share of each cycle, with the supply held and the count kept for each station.

    5 · Watch

    Every operation is checked for make and break. A failure stops that station, and the count at which it happened is written down.

    6 · Prove

    A record is kept for every station, with its settings, its readings and the checks, and handed over with the machine.

    Which load for which wear

    LoadWhat happens at the contactsWhat it does to them
    A filament lampthe cold filament draws many times its running current until it warmsthe make is hard: a heavy spike at every closing, and the first bounce arcs
    A fluorescent lamp on a magnetic ballastthe coil stores energy and keeps the current flowing as the contacts open, and the current lags the voltagethe break is hard: a longer arc as the gap opens
    A fluorescent lamp on an electronic ballast, or an LED lamp on its drivercapacitors inside charge in a very short spike when the supply is connectedthe make is hard again, and the spike adds up when several drivers share one switch
    A heating element, as a referenceit draws its running current from the first moment, with no spikethe gentlest of the four, a useful reference but not a substitute for a lamp

    The step people underrate is the load itself. A machine with a steady count and the wrong load can run for any number of operations and show nothing about the switch.

    03
    Work content

    What the machine contains, element by element.

    Read it as a checklist: a machine missing a row will count operations on paper and not wear the contacts the way the lamp does.

    A lamp load rack on a plain white studio background: an open grey painted steel rack with three shelves, the top shelf carrying a row of five clear filament bulbs in white porcelain lampholders, the middle shelf two white fluorescent tubes above two plain grey boxes, and the bottom shelf a row of four opal white lamps in porcelain lampholders, with black cables tied along the rack, and no people

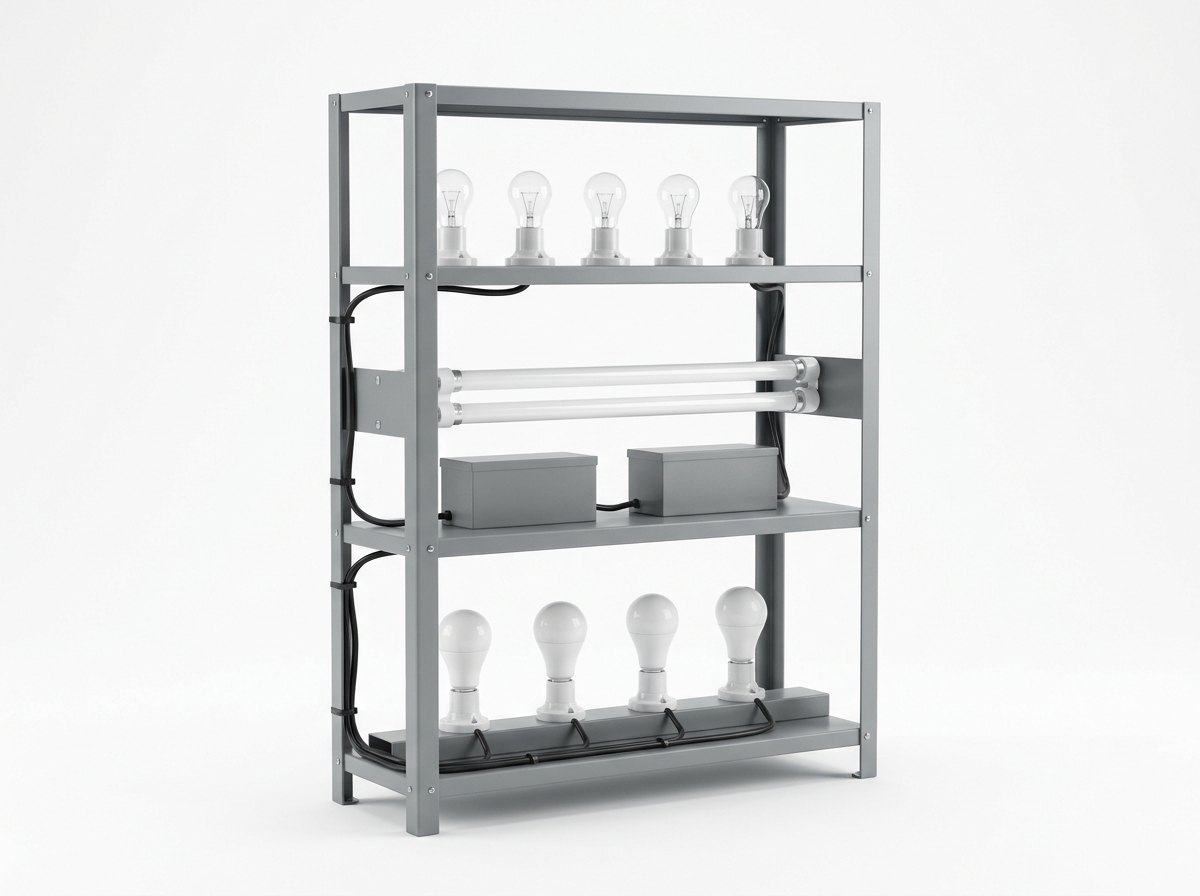

    Fig · 03 — A lamp load rack: a shelf of filament bulbs, a shelf of fluorescent tubes with their ballast boxes, and a shelf of LED lamps — illustrative render.
    ElementWhat it doesWhat matters
    Test stationholds the switch as it is fittedthe switch is mounted in its plate and box the way it is installed, so that the test sees the same fit, the same screws and the same position
    Finger and cylinderoperates the switcha rounded finger that presses the rocker through its full travel at the set rate, with a force and a stroke that test the switch and not the machine
    Load rackscarry the loadbuilt from real filament lamps, ballasts, fluorescent tubes and LED drivers with lamps, in the arrangement the method names, and easy to swap as they age
    Supplyfeeds the loada stable AC supply at the set voltage, with the power factor of the circuit set where the method asks for it
    Current monitorwatches every operationa fast current recorder on each station that sees the spike at closing, tells make from break and tells a stuck contact from a failure to close
    Counter and controllerruns the testholds the rate and the share of each cycle, counts for each station, stops a station at its first failure and keeps the record
    Terminal temperatureshows a switch heatinga sensor at the terminals read through the run, because a worn contact has a higher resistance and runs hotter before it fails
    Lamp watchkeeps the load honestlamps age and fail, and a failed lamp changes the load, so the monitor flags a change in the current and the rack is renewed
    Safety guards and interlocksprotect peoplethe stations carry mains voltage, so they sit behind guards with interlocks, earthing, earth-leakage protection and an emergency stop
    Procedurefixes the sequencespecify, rig, load, run, watch and prove, the same for every machine
    Testing & documentationprove the machine firstrun with a reference switch, the spike measured, the counters and the fault stops tried, and a record the customer can inspect

    The elements that decide whether the test is the right test are the load racks and the current monitor, and the one that decides whether it is repeatable is the controller. The first two set what the contacts feel, and the third sets how often they feel it.

    Full specification — expand
    SystemTest stations that hold a wall switch as it is fitted and operate it with a pneumatic cylinder and a rounded finger through its full travel at a set rate; load racks of real filament lamps, magnetic and electronic ballasts with fluorescent tubes, and LED drivers with lamps, with a resistive bank as a reference; a stable AC supply with the power factor set where the method asks; a fast current monitor on every station; a counter and controller that hold the rate and the share of each cycle, count for each station and stop a station at its first failure; guards, interlocks and earth-leakage protection; a written test plan; and calibration, testing and documentation before handover
    The One IdeaThe load sets the wear.
    Why The Load Sets The WearThe mechanism of a switch is tested by pressing it, but its contacts are tested by what they carry, and a heating element, a filament lamp, a fluorescent fitting and an LED lamp are four different tests of the same contacts
    Why A Spike MattersA cold filament draws many times its running current until it warms, and an electronic ballast or an LED driver draws a short spike as the capacitors inside it charge, so the contacts feel a spike every time they close; the contacts bounce as they meet, each bounce can draw an arc, and an arc erodes the contacts or welds them shut
    Why An Inductive Load Is A Different TestA magnetic ballast stores energy in its coil and keeps the current flowing as the contacts open, so the arc across the opening gap lasts longer; the make is hard on a filament lamp and a driver, and the break is hard on a magnetic ballast
    Why A Resistive Load Is Not A Stand-InA heating element draws its running current from the first moment, with no spike, so a switch that survives a heating element has not shown that it survives a lamp
    What Is Held SteadyThe method the customer names fixes the supply voltage, the current, the power factor, the rate of operation and the share of each cycle that the switch is closed, and the machine holds each of them and records that it did
    Why Failures Are CountedA switch can fail by sticking closed, by failing to close or by failing to open, so the machine checks every operation, stops the station at the first failure and writes down the count at which it happened
    StandardsIEC 60669-1 is the public standard for manually operated general-purpose switches for household and similar fixed electrical installations, and IS 3854 is the Indian standard for switches for domestic and similar purposes. This page prints none of their loads, operation counts, rates or limits, and no edition year: those come from the method the customer names and from the switch. Approval of a switch, or of a test result, rests with the customer and the authority they name; none is claimed here
    ConfigurationsA multi-station machine with a load rack for each lamp type, a single-station bench for one load, and a load rack and controller for the stations a laboratory already owns
    Scope BoundaryThis page is the switch endurance test machine. It is not a circuit-breaker and relay test bench, which proves that protection trips (see circuit-breaker and relay test bench), not an accelerated life test bench, which cycles a relief valve (see accelerated life test bench) and not a high-voltage test bench, which proves insulation (see high-voltage test bench). A lamp life test and a lighting laboratory are different equipment again. No certification is claimed here
    StatusNeometrix engineers switch endurance test machines to order, and no delivered switch endurance test machine is claimed.
    04
    Configurations

    One method, three ways to build the machine.

    The method, the real loads, the watch on every operation and the record are shared. What changes is how many stations there are and what drives them.

    Multi-station machine

    Stations, each with its own load rack

    Several stations side by side, one for each lamp type, so that a filament load, a ballast load and a driver load run together under one controller.

    Single-station bench

    One load, one switch type

    One station and one load rack, for development work, for a study of a failure, or for a laboratory that tests one type of switch.

    Load rack and controller

    For stations already owned

    Load racks, a supply, a current monitor and a controller for the operating mechanisms a laboratory already owns.

    And the part that is not equipment at all, yet decides all three: the test plan. It fixes the loads, the rate, the share of each cycle, how many switches are run and what is recorded. It is written from the question asked of the switch, not from the machine.

    05
    Where it is used

    Wherever a switch is sold with a rating, and the rating has to be earned.

    The common thread is a small device that is operated every day, and a load that is not the same from one home to the next.

    Switch and wiring accessory makers

    Where new designs are proved, and where production is checked against the load the switch will carry.

    Independent test houses

    Where a switch is run to a named method and the record has to stand up to inspection.

    Lighting product makers

    Where an LED lamp or a driver is tried on a real switch to see what its spike does to the contacts.

    Makers of fittings and appliances

    Where a switch built into a product is run with that product's own load.

    06
    Watch

    See it in motion.

    A short walkthrough video of the switch endurance test machine.

    07
    FAQ

    Common questions.

    Longer answers, for readers who want the reasoning.

    Q · 01 What does a switch endurance test machine actually do?
    It operates a wall switch repeatedly, with a lamp load connected, and watches what the switch does. A pneumatic cylinder with a rounded finger presses the rocker through its full travel at a set rate. A current monitor sees every closing and every opening. A controller counts the operations, holds the rate and stops the station when an operation fails. It does not decide whether a switch passes: that is the job of the method and of the people who name it.
    Q · 02 Why does the load matter more than the count?
    Because the same number of operations can be gentle or severe depending on what the contacts carry. The mechanism of a switch wears from being pressed, and that does not change with the lamp. The contacts wear from the current at the moment they close and open, and that changes a great deal. A filament lamp, a fluorescent fitting on a magnetic ballast and an LED lamp on its driver each load the contacts in a different way. A test with the wrong load can reach a large count and show little about the switch.
    Q · 03 Why are LED lamps and electronic ballasts hard on a switch?
    Because an electronic ballast or an LED driver has capacitors at its input, and they charge in a very short time when the supply is connected. That draws a spike, which can be a multiple of the lamp's running current, for as long as it takes the capacitors to fill. The contacts of a switch bounce as they meet, and each bounce can draw an arc while that spike flows. An arc erodes the contacts, and in the worst case it welds them shut. The spike also grows when several drivers share one switch, which is common in a room with many lamps, so the test has to use the number of drivers the switch will meet.
    Q · 04 What does the machine hold steady, and how do you know it did?
    The method the customer names fixes the supply voltage, the current, the power factor, the rate of operation and the share of each cycle that the switch is closed. The machine holds each of them with a stable supply, a load rack built for the purpose and a controller that keeps the rate and the share. It then records them, together with the spike at closing, so that the record shows the test that was run and not only the count. If a lamp fails and the load changes, the current monitor shows the change and the rack is renewed before the run goes on.
    Q · 05 Is this the same as the circuit-breaker and relay test bench, the accelerated life test bench or the high-voltage test bench?
    No, and the differences are worth stating precisely. The circuit-breaker and relay test bench page covers equipment that proves that protection trips when it should. The accelerated life test bench page covers the repeated cycling of a relief valve. The high-voltage test bench page covers the proof of insulation. This page is the switch endurance test machine. A lamp life test and a lighting laboratory are different equipment again. It does not replace any of them, and it does not claim what they claim a second time.
    Q · 06 Has Neometrix built one of these?
    We would rather answer this plainly than let a page imply otherwise. Neometrix engineers switch endurance test machines to order, and no delivered switch endurance test machine is claimed. What stands behind the offer is adjacent: Neometrix engineers a circuit-breaker and relay test bench (see the circuit-breaker and relay test bench page), an accelerated life test bench (see the accelerated life test bench page) and a high-voltage test bench (see the high-voltage test bench page). The cylinders, lamps, ballasts, drivers, power supplies, current sensors and controllers are catalogue items, bought in, not invented. What Neometrix engineers is the machine around them: the stations, the load racks, the monitoring, the control, the guards, the procedure and the test plan. So the honest position is that the machine is engineered to order, the neighbouring disciplines are in the building, and the first machine of this exact kind will be built around the customer's own switches and loads rather than taken off a shelf.
    Q · 07 Which standard applies, and what can the machine not do?
    IEC 60669-1 is the public standard for manually operated general-purpose switches for household and similar fixed electrical installations, and IS 3854 is the Indian standard for switches for domestic and similar purposes. The first covers filament lamps, fluorescent lamps and, in its later editions, LED lamps among its loads. This page prints none of their loads, operation counts, rates or limits, and no edition year: those come from the method the customer names and from the switch. The machine operates a switch and keeps a record. It does not certify a switch: this page claims no certification or accreditation. No current, voltage, rate, count or quantity figure is printed here, and approval for use rests with the customer and the authority they name; none is claimed here.
    Q · 08 What do you need from us to quote?
    Six things, and most of them describe your tests rather than the machine. First, the switches: their type, their ratings and how they are mounted. Second, the loads: filament, magnetic ballast, electronic ballast, LED, or a mix, and how many lamps each switch will meet. Third, the supply: the voltage and the power factor the method asks for. Fourth, the rate: how fast the switches are to be operated and for what share of each cycle they stay closed. Fifth, the stations: how many switches you want to run at once. Sixth, the record: what you want kept for each station. From that we come back with a machine concept, a written test plan you can check, and a budgetary price.
    08
    Related

    The neighbouring electrical and test pages, and how they differ from this one.

    Three neighbours: one tests protection, one cycles a valve, one tests insulation.

    Browse all Neometrix product lines.

    Get a quotation

    Tell us the switches, the loads,
    and how long they must last.

    The projects desk replies within two working days with a machine concept, a written test plan you can check, and a budgetary quotation. Write to [email protected] or use the form.

    Enquire — switch endurance machine Capability sheet (PDF) +91 7777 876 876
    ISO 9001 / 14001 ENGINEERED-TO-ORDER CLASS — SWITCH ENDURANCE TEST MACHINE SPECIFY · RIG · LOAD · RUN · WATCH · PROVE — THE LOAD SETS THE WEAR ENGINEERED IN NOIDA · INDIA
