Wind Tunnel Pressure Regulation System. One pressure, all run.

Name: Wind Tunnel Pressure Regulation System
SKU: NMX-WTP-46

A blowdown wind tunnel stores air in a tank and lets it out through the test section. The tank empties as it runs, but the model needs the same pressure from the first second to the last.

So the system does two jobs. It regulates a falling supply down to one steady pressure in the settling chamber, and it ramps that pressure up at the start of a run without overshoot.

Discuss a pressure regulation system Capability note (PDF)

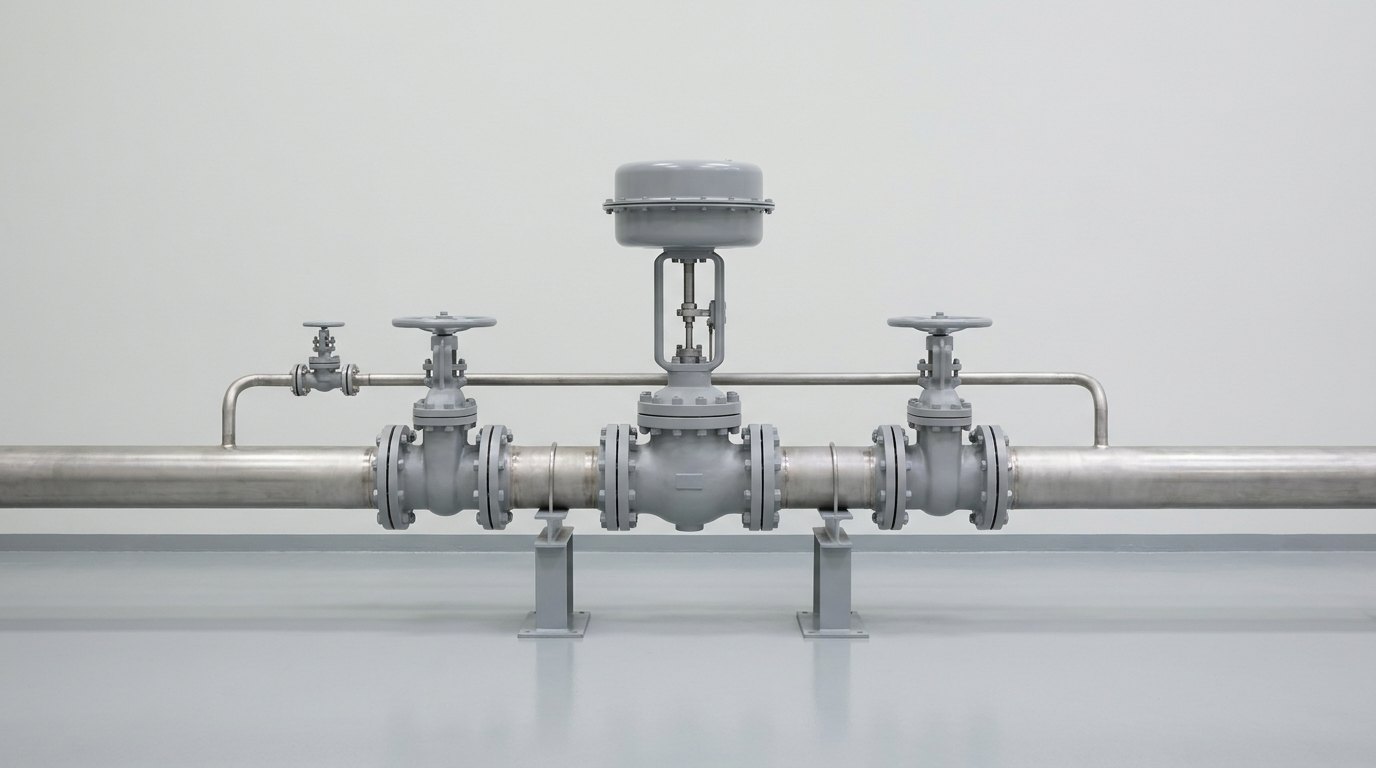

A regulating valve station standing on a test hall floor: a large flanged control valve with a plain round grey actuator drum on a slim yoke, installed in a straight run of large stainless pipe with a plain isolation valve and handwheel on each side and a smaller bypass pipe looping around all three, and no people

Fig · 01 — A regulating valve station: a control valve with its actuator, an isolation valve on each side, and a bypass loop — illustrative render.

The supply

a tank that fallsdrawn down on every run

The set-point

one pressure, heldin the settling chamber

The method

ramp, hold, closethen record the run

The record

set-point and pressureone record per run

Status

engineered to orderno system yet delivered

ISO 9001ISO 14001IEC 60534 control valve referenceASME Section VIII vessel reference

Overview

Why a wind tunnel needs a regulator, not just a valve.

Because a valve that is opened and left alone passes less and less as the tank falls. The model would see a different pressure every second.

Fig · 02 — The system in one picture: air stored in a tank, a valve train that holds the set-point, and a steady pressure delivered to the settling chamber.

The tank falls. The pressure the model sees must not.

What the system is for

It holds the pressure that feeds a wind tunnel's test section at a commanded value while the supply tank is drawn down. Every part of a run is then tested at the same condition.

Why the supply falls

A blowdown tunnel stores compressed air and runs until the tank is spent. The pressure in the tank falls all through the run, so the pressure past a fixed valve would fall with it.

Why one pressure matters

The condition in the test section follows the pressure in the settling chamber. If that pressure drifts, the condition drifts with it, and the data from one run no longer describe one condition.

Why the start is hard

At the start the tunnel has to be established. The valve opens and the flow begins, and the pressure must reach its value without overshoot, because a spike loads the model and the tunnel structure.

Why the valve is not the whole answer

The valve is the muscle and the control loop is the judgement. It reads the chamber pressure, compares it with the set-point and moves the valve to match. A good valve with a badly tuned loop still gives a pressure that wanders.

Why the flow is calmed after the valve

A regulating valve leaves the air noisy and uneven. A diffuser, screens and a settling chamber after it calm the flow before it reaches the nozzle, so the model sees smooth air.

The method

Set up, charge, ramp, hold, close, and record.

Six steps in a fixed order. The two shaded steps are the ones a bench test never meets.

FIG · 02WIND TUNNEL PRESSURE REGULATION SYSTEM · SET UP / CHARGE / RAMP / HOLD / CLOSE / RECORD — ONE PRESSURE FOR THE WHOLE RUN

The step people underrate is the ramp. A pressure that arrives with an overshoot has already loaded the model before the run has properly begun.

Fig · 03 — Three ways a run goes wrong: overshoot, droop and hunting — a drawing of the idea, with no values.

1 · Set up

The set-point and the ramp are agreed, the loop is tuned on the real valve, and the trip limits are set.

2 · Charge

The tank is filled with clean, dry air and held at pressure, with the valve closed and the line isolated.

3 · Ramp

The valve opens on a planned profile, fast enough to start the tunnel and slow enough to avoid an overshoot.

4 · Hold

The valve opens wider as the tank falls, and the loop keeps the chamber at the set-point.

5 · Close

The valve closes smoothly at the end of the run, and the supply is vented through silencers.

6 · Record

Set-point, chamber pressure and valve position are kept on one clock, one record for each run.

Work content

What the system contains, element by element.

Read it as a checklist: a system missing a row will buy that row back later, usually as a run nobody quite trusts.

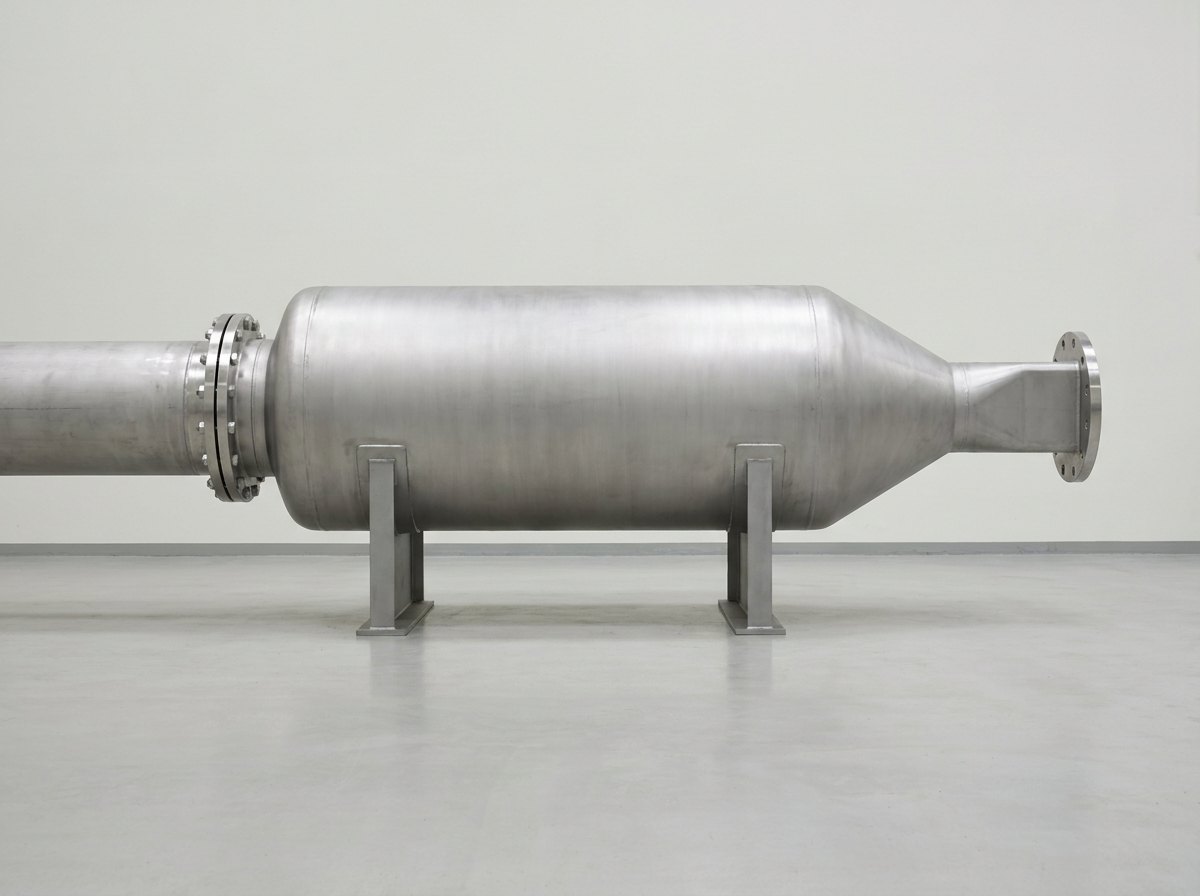

A single settling chamber assembly: a large horizontal brushed stainless vessel on two grey saddle supports, a large pipe entering one end through a flange and a smooth cone narrowing at the other end into a short rectangular nozzle block with a bolted flange face, and no people

Fig · 04 — A settling chamber with a contraction to the nozzle block, where the air is calmed before it reaches the model — illustrative render.

Element	What it does	What matters
Regulating valve train	holds the set-point	sized so the valve still has margin when the tank is nearly spent
Actuator & positioner	move the valve on command	fast enough for the start, steady enough to hold
Isolation & bypass	isolate the valve and let it be serviced	a closed valve that is truly closed, and a bypass that can be proved
Pressure sensing	reads the chamber and the supply	traceable transducers, read at the chamber where the condition is defined
Controller	runs the ramp and the hold	closed loop, tuned on the real valve, with a stored profile for each run
Relief & vent	protect the supply and the chamber	relief valves and silencers sized for the worst case, with a safe shutdown on any trip
Chamber interface	is where the pressure is sensed	tappings and sensing lines fitted to the tunnel designer's chamber
Air quality	keeps the air clean and dry	filters and a dryer in the supply, because the expansion cools the air and moisture would condense
Data acquisition	logs set-point, pressure and valve position	one clock for every channel, one record per run
Procedure	fixes the sequence	set up, charge, ramp, hold, close and record, the same for every run
Testing & documentation	prove the system before the tunnel runs	valve strokes and loop trials on the real valve, and a record the customer can inspect

The element that decides whether a regulation system works is not the valve. It is the margin. A valve sized to hold the set-point only while the tank is full has no authority left at the end of the run, and the run ends early.

Fig · 05 — One system, three run types: a constant-pressure run, a pressure-sweep run and a step-and-hold run, with only the set-point program changing.

Full specification — expand

System	A regulating valve train with its actuator, isolation and bypass; pressure sensing at the settling chamber and the supply; a closed-loop controller that runs the ramp and the hold from a stored profile; relief valves and vent silencers; filters and a dryer in the supply; sensing lines and an interface to the settling chamber; a data record on one clock; a written procedure; and testing and documentation before handover
The One Idea	A blowdown tunnel runs on a falling supply, so something has to hold the pressure the model sees
Why The Supply Falls	A blowdown tunnel stores compressed air and runs until the tank is spent, so the pressure in the tank falls all through the run and the pressure past a fixed valve would fall with it
Why One Pressure Matters	The condition in the test section follows the pressure in the settling chamber, so if that pressure drifts the condition drifts with it and the data from one run no longer describe one condition
Why The Start Is Hard	The valve opens and the flow begins, and the pressure must reach its value without overshoot, because a spike loads the model and the tunnel structure
Why The Valve Is Not The Whole Answer	The valve is the muscle and the control loop is the judgement, so a good valve with a badly tuned loop still gives a pressure that wanders or hunts
Why The Margin Decides The Run	The regulating valve opens wider as the tank falls, and the run ends when it is fully open and the tank can no longer feed the set-point, so the margin in the valve sizing decides how much of the stored air is usable
Standards	IEC 60534 is the public reference for industrial-process control valves, and ASME BPVC Section VIII is the public reference for pressure vessels. Neither sets the pressure, the flow or the run length of a particular tunnel: those belong to the tunnel's designer, and this page prints none of it. Approval of the finished system rests with the customer and the authority they name; none is claimed here
Configurations	A regulator retrofit added to an existing tunnel supply, a regulation station that is a new valve train on the supply line, and supply and regulation that put the dryer, the storage link and the regulator on one control
Scope Boundary	This is the system that regulates the supply to a wind tunnel and records each run. It is not a bench that tests a regulator (see CNG high-pressure regulator test bench), not a valve test rig (see control valve test rig), not a panel that reduces air to fixed outlets (see pressure reducing panel), not a water tunnel (see large cavitation tunnel facility), and not the tunnel itself: the nozzle, the test section, the diffuser and the balance belong to the tunnel's designer and are not claimed here
Status	Neometrix engineers wind tunnel pressure regulation systems to order, and no delivered wind tunnel pressure regulation system is claimed.

Configurations

One method, three ways to supply the system.

The method, the record and the ramp rule are shared. What changes is how much of the supply line is new.

Regulator retrofit

Added to a supply that exists

A valve train, controller and pressure sensing fitted to an existing tunnel supply, so the old regulation is replaced.

Regulation station

A new station on the line

A new valve train with isolation and bypass on the supply line, with its own controller and sensing.

Supply and regulation

The whole air system

Dryer, storage link and regulator on one control, so the air arrives clean, dry and steady.

Fig · 06 — Three ways to supply the system, one method: a regulator retrofit, a regulation station, or supply and regulation together.

And the part that is not equipment at all, yet decides all three: the ramp profile. It fixes how fast the valve opens at the start and how it follows the tank down, and it is tuned on the real valve.

Where it is used

Wherever a test needs the same pressure all run.

The common thread is a measurement that is only worth having if the condition did not move while it was taken.

Aerodynamic research tunnels

Where a blowdown tunnel needs one pressure all run, so that one run is one condition.

Test houses and laboratories

Where tunnel data are relied on and must repeat from one run to the next.

Teaching and development tunnels

Where a small blowdown tunnel needs a regulator that students and engineers can trust.

Other blowdown test cells

Where a cell runs from stored air and needs a pressure that holds, as a nozzle or component test does.

FAQ

Common questions.

Longer answers, for readers who want the reasoning.

Q · 01 Why can't a tunnel just open a valve and let the air go?

Because the pressure in the tank falls as the air leaves it. A valve opened to a fixed position passes less and less as the tank empties, so the pressure in the settling chamber would fall all through the run. The model would be tested at a different condition every second, and the data from one run would describe no single condition. A regulating valve with a control loop opens wider as the tank falls, and holds one pressure instead.

Q · 02 Why is the pressure held in the settling chamber and not at the valve?

Because the settling chamber is where the condition the model sees is defined. The air leaves the valve noisy and uneven, and it is calmed by the flow conditioning that follows, so a reading at the valve outlet is not the pressure the model meets. The system senses at the chamber and treats the valve only as the means of holding it there. The distance between the valve and the sensor adds a delay, and the loop is tuned with that delay in mind.

Q · 03 What ends a run?

The tank. As it falls, the valve opens wider to keep the set-point. When the valve is fully open and the tank can no longer feed the set-point, the regulator has no authority left and the pressure starts to fall, and the run is over. The margin built into the valve sizing decides how much of the stored air is usable, which is why the sizing is done for the end of the run and not for the start. This page prints no run length, because it depends on the tank, the set-point and the tunnel.

Q · 04 Is this the same as the regulator bench, the valve test rig, the reducing panel or the water tunnel pages?

No, and the differences are worth stating precisely. The CNG high-pressure regulator test bench page tests regulators, and the control valve test rig page tests valves, so both put a component on a bench. The pressure reducing panel page is a group reducing station that steps naval air down to fixed outlets with a passive dome-loaded valve. The large cavitation tunnel facility page is a water tunnel for propellers, not an air tunnel. This page is the regulation system in a wind tunnel's own supply: an actively controlled valve train that ramps, holds and records. It does not replace any of them, and it does not claim what they claim a second time.

Q · 05 What can the system not do?

It regulates the supply; it does not make a tunnel. The nozzle, the test section, the diffuser and the balance are the tunnel designer's work, and none is claimed here. It cannot make a tank last longer than its stored air, and it cannot hold a set-point once the valve is fully open. How steady the pressure is depends on the valve, the loop tuning and the air quality. No pressure, flow or run length is printed here, and no laboratory accreditation is claimed: this page claims none.

Q · 06 Has Neometrix built one of these?

We would rather answer this plainly than let a page imply otherwise. Neometrix engineers wind tunnel pressure regulation systems to order, and no delivered wind tunnel pressure regulation system is claimed. What stands behind the offer is adjacent: Neometrix engineers high-pressure air systems and test rigs, with a page for naval pressure reducing panels (see the pressure reducing panel page) and one for control valve test rigs (see the control valve test rig page). The regulating valve, the actuator, the pressure transducers and the dryer are catalogue items, bought in, not invented. What Neometrix engineers is the system around them: the valve train and bypass, the isolation, the sensing lines, the controller and its ramp profile, the relief and vent, the data record, the procedure and the testing. So the honest position is that the system is engineered to order, the neighbouring disciplines are in the building, and the first system of this exact kind will be built around the customer's own tunnel rather than lifted off a shelf.

Q · 07 Which standards apply, and who sets the pressure and the run length?

IEC 60534 is the public reference for industrial-process control valves, and ASME BPVC Section VIII is the public reference for pressure vessels. Neither sets the pressure, the flow or the run length of a particular tunnel: those belong to the tunnel's designer and the decisions that rest on the tests, and this page prints none of it. Acceptance of the finished system, including its proving runs before handover, rests with the customer and whatever authority they name.

Q · 08 What do you need from us to quote?

Six things, and most of them describe your tunnel rather than the system. First, the tunnel: its type and how it runs. Second, the supply: the tank, its pressure range, and how the air is dried. Third, the set-points: one pressure or several, and whether they change during a run. Fourth, the run: how long it must last and how often it is repeated. Fifth, the existing equipment: the valves, sensors and controls that stay. Sixth, the site: access, power, venting and who will run it. From that we come back with a layout, a written method you can check, and a budgetary price.
