NMX-CSH-28 · ENGINEERED-TO-ORDER CLASS — FLAT-PACK MODULAR · FOUNDATION-FREE · RAPID DEPLOYMENT

Disaster Relief Community Shelter. The best shelter is not the strongest one. It is the one that gets there.

Name: Disaster Relief Community Shelter
SKU: NMX-CSH-28

A structure that needs a crane, a poured foundation or an intact access road to erect is still not helping anyone while the road stays out - and after a disaster, the road is usually what went first.

So it is judged first on how it travels: flat-packed for the fewest loads per truck, and simple enough for a small crew to erect without heavy equipment, on whatever ground is available.

Discuss a community shelter Capability note (PDF)

A small cluster of three flat-pack modular disaster relief shelters with plain pitched roofs and light-coloured wall panels, standing directly on open grass with no visible foundation, and no people

Fig · 01 — A cluster of flat-pack disaster relief community shelters, sited on open ground — illustrative render.

The panels

flat-pack modularstacked for the truck, not the site

The footing

foundation-freesits on unprepared ground

The crew

small, no heavy plantno crane, no crew of specialists

The duty

redeployablestruck down, moved, used again

Status

engineered to orderno unit yet delivered

ISO 9001ISO 14001NDMA temporary-shelter guidelines referenceSphere humanitarian shelter standards referenceFlat-pack modular construction

Overview

Why deployability outranks strength in the first response window.

Because a superior shelter that arrives late has already lost to an adequate one that is already up.

Fig · 02 — The system in one picture: flat-packed panels loaded, transported, and erected into a weatherproof shelter on unprepared ground.

A shelter is not judged by what it can withstand. It is judged by whether it is already standing.

What the shelter is actually for

It houses a civilian population displaced by a natural disaster, in the days and weeks before permanent housing or repair is possible - a different job, and a different customer, from housing military personnel or hardening a technical post.

Why flat-pack, not pre-assembled

Stacked, flat-packed panels fit far more shelters onto the same truck than pre-assembled units do, which decides how many people a single convoy can actually reach on the roads a disaster has left behind.

Why foundation-free matters more than it sounds

Waiting for a poured foundation defeats the purpose of a rapid-response shelter. The footing system is designed to sit on unprepared ground - rubble, mud, uneven terrain - and still perform.

Why the crew size is a design decision

A shelter that needs a crane or a specialist crew is not rapid, whatever its data sheet says. Assembly is designed for a small crew and hand tools, because that is what a disaster zone actually has on hand.

Why redeployment is part of the design, not an afterthought

The shelter is struck down and moved to the next site once an emergency passes, rather than written off - so reuse is designed in from the first panel, not improvised later.

The cycle

Load, transport, site, assemble, service, and occupy.

Six steps, and the two that decide whether the shelter helps anyone are the ones with the least glamour: assembly and service.

FIG · 02DISASTER RELIEF COMMUNITY SHELTER · LOAD / TRANSPORT / SITE / ASSEMBLE / SERVICE / OCCUPY — THE ROAD DECIDES THE DESIGN

The step people underrate is the loading itself. How a shelter packs onto a truck decides how many people the first convoy can actually reach.

Fig · 03 — The same shelter, three states: flat-packed, mid-assembly, and occupied — a drawing of the idea, with no values.

1 · Load

Flat-packed panels and components are stacked for the truck, not for convenience at the factory.

2 · Transport

Moved into the affected area by whatever transport the damaged infrastructure still allows.

3 · Site

A footprint is marked on whatever ground is available - no grading, no poured foundation required.

4 · Assemble

A small crew erects the panels into a weatherproof structure, without heavy equipment.

5 · Service

Power, water and sanitation connections are made at the shelter's own interface points.

6 · Occupy

The shelter is ready for use - and later struck down and moved on, when the emergency passes.

Work content

What the shelter contains, element by element.

Read it as a checklist: a shelter missing a row will buy that row back later, usually the first wet night after it is occupied.

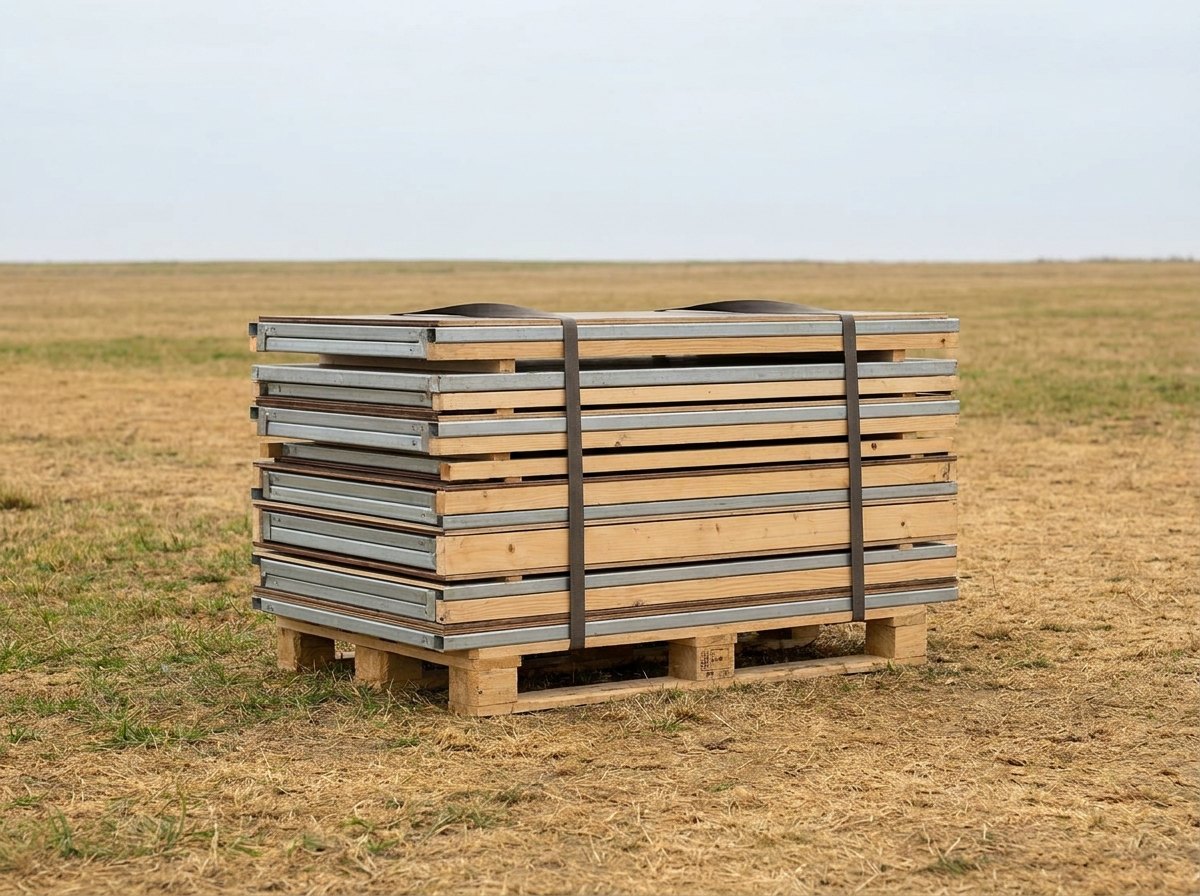

A flat-packed shelter kit staged on open ground: a neat stack of thin wall and roof panels bound with transport straps on a wooden pallet, and no people

Fig · 04 — A flat-packed shelter kit, staged and ready to load — illustrative render.

Element	What it does	What matters
Wall panels	form the shelter envelope	flat-packed for stacking density on the truck
Roof panels	shed weather	keeps rain and sun load off the occupants
Floor system	separates occupants from the ground	foundation-free, sits on unprepared ground
Footing & anchoring	stabilises the structure	works on rubble, mud or uneven terrain
Weatherproof envelope	seals joints against rain and wind	the difference between shelter and a windbreak
Ventilation	manages heat and humidity inside	matched to the climate it is deployed into
Door & window openings	access and light	simple enough to fit without special tools
Utility interface points	connect to power, water and sanitation	matched to whatever the response brings with it
Fastening system	joins panels without welding or wet trades	assembled and struck down by a small crew
Stacking & packaging	protects panels in transit	decides how many units fit on one truck
Corrosion & UV protection	survives extended outdoor exposure	the shelter may stand for months, not days
Signage-free design	no fixed branding or markings	works for any responding authority
Assembly documentation	guides the erecting crew	usable by a crew with no prior training on it
Testing & documentation	proves weatherproofing and structural performance	before handover, with records

The row that decides whether the shelter reaches anyone at all, not just whether it performs once erected, is never the panel itself. It is the stacking and packaging. A superior panel that only fits four to a truck reaches a quarter as many families as one that fits sixteen.

Fig · 05 — One shelter, three utility interfaces: the fittings that let it use whatever power, water and sanitation the response brings.

Full specification — expand

System	Flat-pack modular wall, roof and floor panels, a foundation-free footing system, a weatherproof envelope, ventilation, utility interface points for power, water and sanitation, and testing and documentation before handover
The One Idea	The best shelter is not the strongest one. It is the one that gets there, because the access road is usually what the disaster took out first
Why Flat-Pack	Stacked, flat-packed panels fit far more shelters onto the same truck than pre-assembled units, which decides how many people a single convoy can actually reach
Why Foundation-Free	Waiting for a poured foundation defeats the purpose of a rapid-response shelter; the footing system is designed to sit on unprepared ground and still perform
Duty & Reuse	The shelter is struck down and redeployed to the next site once an emergency passes, rather than written off after one use
Standards	NDMA India's National Guidelines on Temporary Shelters for Disaster Management, and the Sphere Handbook's minimum standards for humanitarian shelter, are the public references this class is designed against. Acceptance of the finished shelter rests with the customer and their inspection authority
Configurations	Basic shelter module (single unit, fastest deployment), extended family module (larger footprint or linked units), and a community cluster (multiple modules with shared utility interfaces)
Scope Boundary	This is a shelter for a civilian population displaced by a disaster - flat-pack, foundation-free, rapidly deployable. It is not military personnel accommodation (see living accommodation shelter), not a hardened technical or command shelter (see field technical shelter), and not a permanent buried structure (see precast underground bunker)
Status	Neometrix engineers disaster relief community shelters to order, and no delivered community shelter is claimed.

Configurations

One flat-pack discipline, three ways to scale it.

The panels, the footing and the assembly method are shared. What changes is how many modules link together.

Basic module

Single unit

The fastest configuration to deploy: one module, erected by the smallest crew, for the first wave of response.

Extended family module

Linked units

A larger footprint or two linked modules, for a household rather than an individual.

Community cluster

Shared utilities

Multiple modules grouped around shared power, water and sanitation interfaces, for a larger displaced group.

Fig · 06 — Three ways to scale it, one flat-pack discipline: basic module, extended family module, or a community cluster.

And the part that is not a panel or a footing at all, yet decides all three: the utility interface — the fittings that let a shelter plug into whatever power, water and sanitation the response can actually bring.

Where it is used

Wherever a disaster leaves people without a roof, fast.

The common thread is a population that needs cover before permanent housing or repair is possible.

Earthquake response

Where existing structures are unsafe to re-enter and the ground itself may be unpredictable.

Flood relief

Where displaced families need cover above the water line, often on whatever dry ground remains.

Cyclone & storm response

Where housing stock has been damaged faster than it can be repaired.

Displaced-population camps

Where a community needs shelter for weeks or months while longer-term options are arranged.

FAQ

Common questions.

Longer answers, for readers who want the reasoning.

Q · 01 Why does deployability matter more than structural strength here?

Because a shelter's structural quality only matters once it is actually standing, and in a disaster response the thing most likely to be broken is exactly what a stronger shelter needs to get there: the road. Bridges wash out in floods, roads crack in earthquakes, and debris blocks routes after a cyclone, all at precisely the moment a displaced population needs cover fastest. A shelter that depends on a crane, a poured concrete foundation, or a full-size truck to deliver a pre-assembled unit is betting on infrastructure that a disaster has just demonstrated it cannot rely on. A shelter that flat-packs efficiently, needs no foundation, and goes up with a small crew and hand tools can move on whatever transport survives and be standing before the more capable but less deployable option has even left the depot. Being second-best on paper and first on the ground is, in this class of product, not a compromise - it is the actual design goal.

Q · 02 What actually determines how fast a shelter can be put up?

Three things, and none of them is how strong the finished structure is. First is how the panels pack for transport - a design that flat-packs efficiently gets more shelters onto the same truck, which multiplies how many can be sited on day one rather than day five. Second is whether it needs a prepared foundation; a footing system designed for rubble, mud or uneven ground can be sited immediately, while anything requiring a poured slab has to wait for that slab to cure. Third is how many specialists the assembly requires - a design built around a small crew and hand tools can go up wherever people are available, while one that needs a crane or trained riggers is limited to sites those resources can actually reach. A shelter can be excellent on all three counts and still take longer to occupy than a mediocre one that only needs a flat spot of ground and four people willing to follow a picture-based instruction sheet.

Q · 03 How is this different from a tent?

A tent is faster to deploy than almost anything else and remains the right answer in the first hours of a response, but it trades away durability and comfort to get that speed - fabric walls do little against sustained rain, wind loading, or the temperature swings a family may face over weeks rather than days. A flat-pack panel shelter sits a step further along that trade-off: still fast enough to deploy within a single response window, but built from rigid, weatherproof panels that hold a stable internal environment, resist wind and rain properly, and can stand for months rather than days without degrading. The honest way to describe the relationship is sequence rather than competition: a tent buys the first hours, and a shelter of this class is what a displaced family actually lives in once that first response settles into a weeks-long recovery.

Q · 04 How is this different from Neometrix's other shelter pages?

By audience and purpose, not by vocabulary - all of Neometrix's shelter pages share words like "modular" and "rapid," but they are built for different people doing different jobs. The living accommodation shelter page houses military personnel in barracks-style accommodation - a housing problem for a standing force, not an emergency response. The field technical shelter page describes a hardened, transportable shelter built around technical equipment or a command function, where protecting what is inside matters as much as housing people. The precast underground bunker page is a permanent, buried, blast-protected structure meant to stand for years, not be struck down and moved. This page is different from all three: it is for a civilian population displaced by a natural disaster, judged first on how quickly it can be delivered and erected on unprepared ground, and designed from the outset to be taken down and redeployed once the emergency passes. Same underlying fabrication competence, genuinely different products.

Q · 05 What happens to the shelter once the emergency passes?

It comes down and goes to the next site, which is a design decision made from the first panel rather than something improvised after the fact. Because the fastening system joins panels without welding or other wet trades, a shelter that was assembled by a small crew can be disassembled by a similarly small crew, packed back down to something close to its original flat-pack footprint, and moved on to wherever the next need is. This matters for two reasons beyond the obvious cost saving: it means a disaster response agency's shelter stock is a reusable asset rather than a one-time expense, and it means a shelter that has done its job in one location does not simply sit there as an unused structure afterward. Designing for disassembly is, in effect, designing for the fact that most disaster response shelters serve several incidents over their working life, not one.

Q · 06 Has Neometrix built one of these?

We would rather answer this plainly than let a page imply otherwise. Neometrix engineers disaster relief community shelters to order, and no delivered community shelter is claimed. What stands behind the offer is adjacent and real: Neometrix already engineers modular and light-gauge-steel-frame shelter structures for military accommodation and hardened technical use - see the living accommodation shelter and field technical shelter pages - and that same panel-fabrication and rapid-assembly discipline is the foundation this class is built on. So the honest position is this: the disaster-relief shelter class is engineered to order, the modular-structure engineering behind it is already in daily use for other customers, and the first shelter of this exact type will be built around a customer's deployment scenario and duty rather than lifted off a shelf.

Q · 07 Which standards apply, and who decides what "adequate shelter" means?

NDMA India's National Guidelines on Temporary Shelters for Disaster Management is the public national reference for how temporary shelter should be planned and delivered in an Indian disaster response. Internationally, the Sphere Handbook sets out minimum humanitarian standards for shelter, among other core needs, including guidance on covered space appropriate to climate and context. Neither document, on its own, fixes the exact dimensions, occupancy or performance figures of a specific shelter design - those are established case by case, against the customer's own deployment scenario, climate and population, and are not printed generically on a capability page like this one. Acceptance of the finished shelter rests with the customer and whatever inspection or certifying authority they name.

Q · 08 What do you need from us to quote?

Five things, and most of them describe the deployment scenario rather than the shelter itself. First, the climate and terrain the shelter needs to perform in, which drives the envelope and ventilation design. Second, the configuration: basic module, extended family module, or a community cluster with shared utilities. Third, the transport constraint - what size and type of vehicle will actually be available to move it into the affected area. Fourth, the utility provision the response will bring, so the interface points match what is actually available on site. Fifth, the programme: how many units, and over what timeframe, including whether they need to be designed for repeated redeployment across future incidents. From that we come back with a system definition you can check, a panel and assembly layout, and a budgetary price.

The other shelters and protective structures, and who each one is actually for.

Three neighbours in the same modular-structure family, built for different people.

↗ Housing, for a standing force

Living Accommodation Shelter

LGSF and prefab barracks for military personnel - a housing problem, not an emergency response.

↗ Hardened, for equipment and command

Field Technical Shelter

A transportable hardened shelter built around technical equipment or a command function.

↗ Permanent, buried, blast-protected

Precast Underground Bunker

A permanent protective structure meant to stand for years, not be struck down and moved.
