Precast Underground Bunker & Multi-Purpose Protection System — Buried Precast Arch Protective Structures

01

Overview

Why a bunker is more than concrete, and why it is built with the soil.

Because a buried arch is loaded by the earth above it, and held in shape by the earth beside it.

Fig · 02 — A section through a buried bunker: the arch, the waterproofing, the backfill in layers, the drains, and the air pipes that pass through the cover.

A precast arch is finished when the last layer of soil is compacted.

What the system is actually for

A precast underground bunker is a protected space built from factory-made arch segments, joined on site and covered with earth. It is used where people, equipment or operations must carry on under protection.

The system is the structure and everything that keeps it working: the openings, the air, the power and the drainage.

Why an arch

An arch turns the weight above it into compression along its curve, and concrete carries compression well. The earth cover is a load that the shape was made to carry.

Segments are cast in a precast plant, where curing and dimensions are controlled, and not in a wet trench. That makes each unit repeatable.

Why the soil matters

The soil beside the arch pushes back and keeps its curve. Placed well, it shares the load. Placed badly, it lets the sides move.

So the backfill is planned, placed in thin layers on both sides in step, and checked layer by layer.

Why the openings matter

A door, an air intake or a cable entry is a hole in the protection. Each one has its own protection and its own test.

Who does what

The precast arch design and its blast validation are specialist work. Neometrix brings them in from specialist partners and integrates the rest.

That means the openings, air, power, communications, site method, testing and handover. Neometrix does not claim to own the arch design or to have validated it itself.

02

The cycle

Excavate, lift, seal, backfill, then open, fit out and test.

A build runs from a written method, so that each unit is built the way the last one was.

FIG · 02PRECAST UNDERGROUND BUNKER · EXCAVATE / LIFT & JOIN / SEAL / BACKFILL / OPENINGS / FIT-OUT & TEST — BALANCED BACKFILL, AND THE OPENINGS

The step people underrate is the backfill. It decides whether the arch works the way it was designed.

Fig · 03 — The soil is part of the structure: the arch alone, the arch held by compacted soil, and the arch in loose soil — a drawing of the idea, with no values.

1 · Excavate & base

The bed is cut level and kept dry. The base slab and the drains go in first, and are surveyed before any segment is lifted.

2 · Lift & join

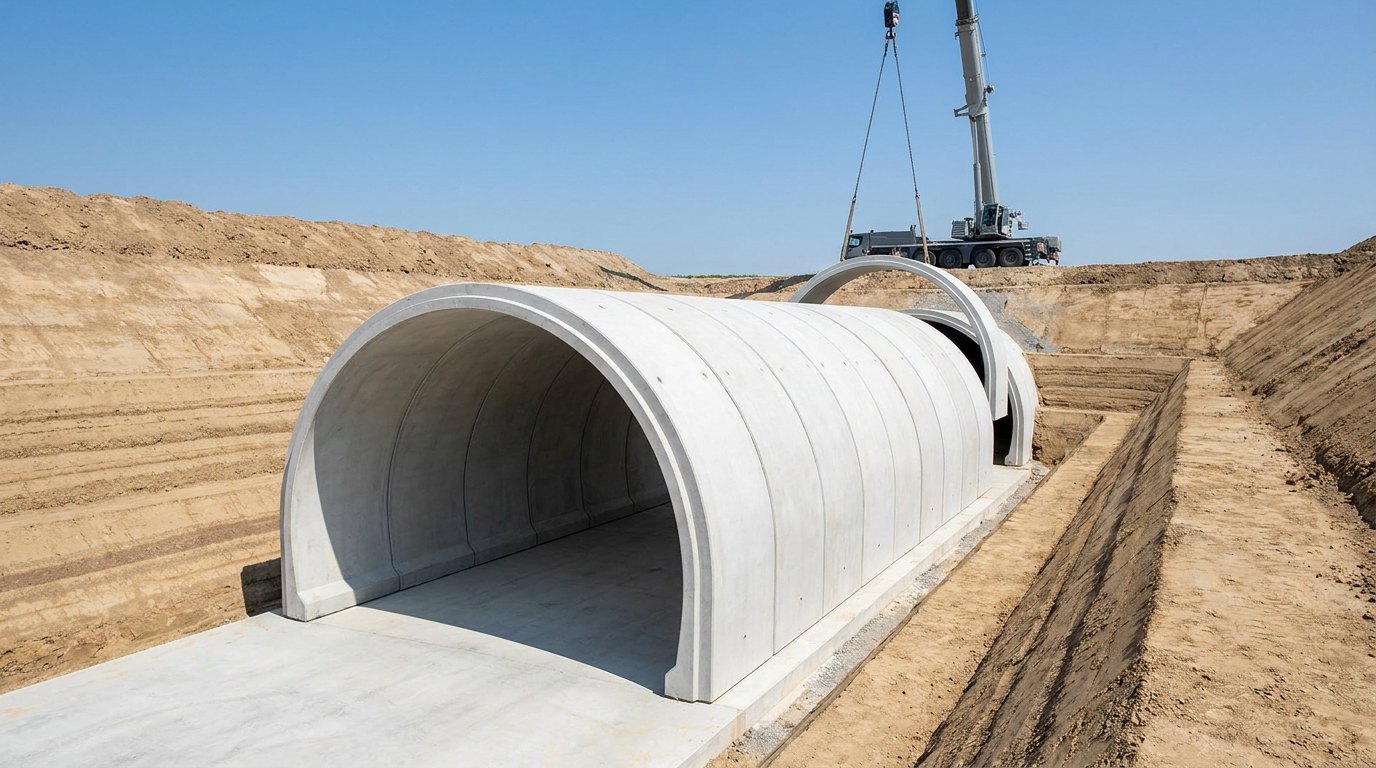

Each segment is lifted, set, aligned and joined to the last. The joint seals are fitted as the vault grows.

3 · Seal

A continuous waterproofing layer goes over the arch and its joints, and is inspected before it is covered.

4 · Backfill

Soil goes in on both sides in thin layers, compacted in step, so that neither side is ever ahead of the other.

5 · Openings

Doors, air valves, cable entries and the escape hatch are fitted and tested, each against its own requirement.

6 · Fit out & test

Power, air, lighting and communications go in. Then leak, seal and function tests prove the whole installation.

03

Work content

What the system contains, element by element.

Read it as a checklist: a bunker missing a row will buy that row later, and underground it costs more.

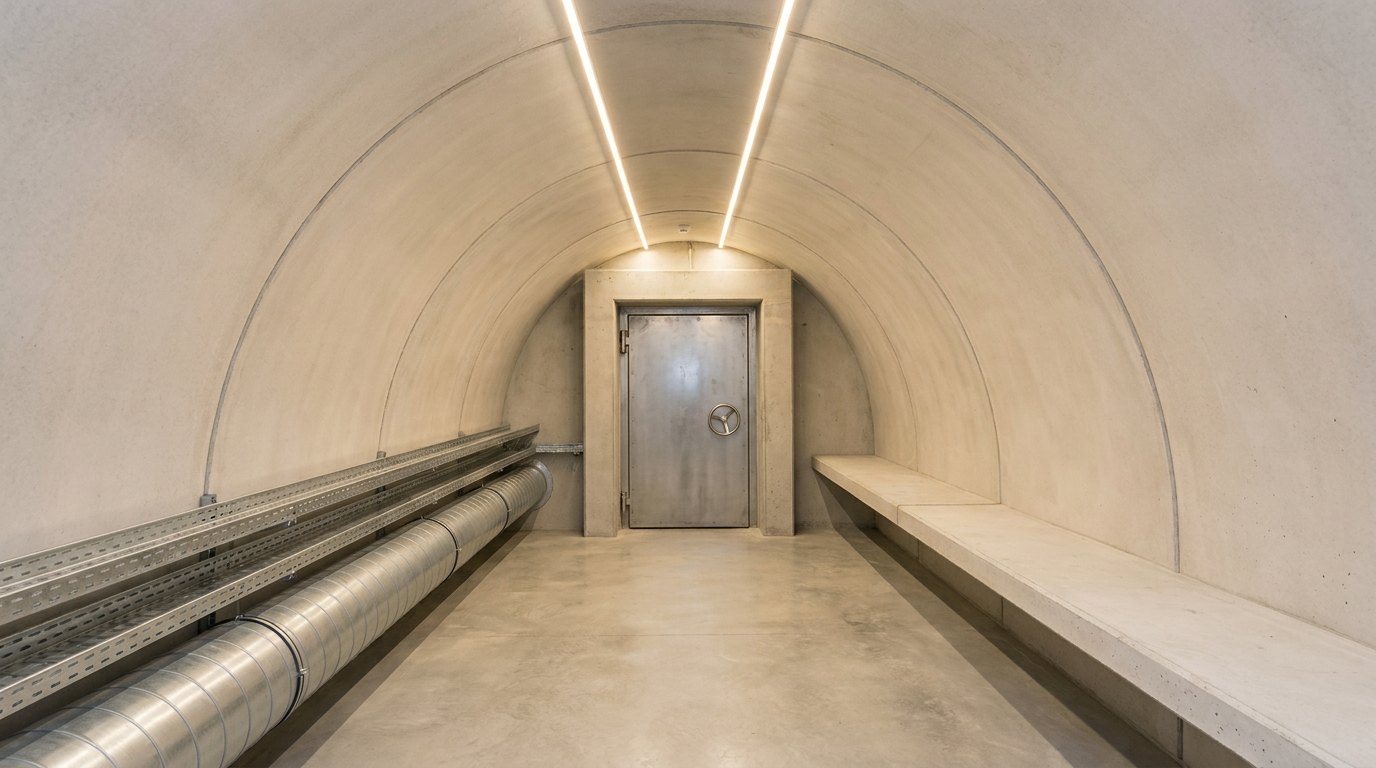

The inside of a completed precast arch structure looking along its length: a smooth pale concrete vault lit by two rows of strip lights, a galvanised cable tray and a round ventilation duct along one wall, an empty bench on the other, and a plain closed steel door in a concrete frame at the far end

Fig · 04 — The finished vault, empty: a smooth arch, the cable tray and duct along the wall, and the door at the far end — illustrative render.

Fig · 05 — A multi-bay bunker from above: the entrance and airlock, two bays joined by a passage, the plant room, the escape shaft, and the air pipes.

Element	What it does	What matters
Excavation & base	gives the arch a level, dry bed	drained, compacted and surveyed before any lift
Precast arch segments	form the vault that carries the earth cover	cast in a plant; design from a specialist partner
Joints & seals	join the segments into one vault	keyed, sealed and checked at every joint
Waterproofing	keeps seepage out of the vault	one continuous layer over the arch and its joints
Drainage	takes water away from the structure	below and beside the arch, with a sump and backup pump
Backfill & earth cover	holds the arch in shape and shares the load	thin layers, both sides in step, checked
Entrance & blast door	the way in, and the first protection	door and airlock from a specialist maker
Air intake & exhaust	fresh air in, used air out	protected valves and controlled pressure
Filtration	cleans the air that comes in	CBRN-grade where the use calls for it
Escape route	gives a second way out	a protected hatch and shaft
Power	keeps every system running	mains, standby and battery, through sealed entries
Lighting & communications	light, voice and data	cabled through sealed entries
Climate control	keeps the air dry and breathable	ventilation and dehumidification for a sealed space
Fire safety	detects and controls a fire	chosen for an enclosed, sealed space
Monitoring	watches the structure and the air	moisture, temperature, settlement and door status
Testing & handover	proves the completed installation	leak, seal and function tests, with records

The rows that decide whether a bunker works are never the concrete. They are the openings and the backfill. A strong vault with a poor door, or a good door in loose soil, is not a protected space.

Full specification — expand

System	Precast underground protective structure: a buried precast arch on a drained base; sealed joints; waterproofing; backfill placed in layers on both sides; protected openings for entry, air, cables and escape; ventilation and filtration; power, lighting and communications; climate and fire control; monitoring; testing and handover
The One Idea	The bunker is not the concrete. It is the concrete and the soil around it. The arch carries the load, and the soil beside it keeps the arch in shape and shares the load
Why An Arch	An arch turns the weight above it into compression along its curve, which concrete carries well. Precast segments are made in a plant, where curing and dimensions are controlled, so each unit is repeatable
The Soil	Backfill is placed in thin layers on both sides in step, compacted and checked, so that neither side is ever ahead of the other. Poorly placed soil lets the sides move and the design no longer applies
The Openings	Every door, air intake, exhaust, cable entry and escape hatch is a hole in the protection. Each has its own protection and its own test, and none is left to the general design
Water	Water is a constant problem for anything buried. A continuous waterproofing layer, sealed joints, drains below and beside the arch, a sump with a backup pump, and dehumidification keep the space dry
The Systems	Ventilation with filtration and controlled pressure; mains, standby and battery power; lighting and communications through sealed entries; climate and fire control chosen for a sealed space; monitoring of moisture, temperature, settlement and doors
Who Does What	Neometrix integrates the whole system. The precast arch design and its blast validation are specialist work, brought in from specialist partners, and doors and hatches come from specialist makers. Neometrix does not claim to own the arch design or to have validated it itself
Standards	IS 4991, the Indian criteria for blast-resistant design of structures, is the public reference. The protection level is set by the customer and the design standard and is not published on this page. Protective structures are normally reviewed by an independent design authority before build, and the programme allows for it
Configurations	Single-bay bunker; multi-bay complex with a plant room and a second exit; and a modular multi-purpose protection system, all built from one precast arch system and one fit-out specification
Scope Boundary	This is the buried, precast, site-built structure and the systems inside it. The deployable, above-ground shelter is the field technical shelter. Armour panels are the modular ballistic protection system. Air filtration and decontamination are the CBRN collective protection system
Status	Neometrix engineers precast underground bunkers and multi-purpose protection systems to order, as the integrator of the whole system, with the precast arch design and its blast validation brought in from specialist partners, and no delivered precast underground bunker is claimed.

04

Configurations

One precast arch system, three ways to use it.

The arch, the openings and the systems catalogue are shared. What changes is how many bays there are, and what is fitted in them.

Single bay

Single-bay bunker

One arch line with an entrance, an airlock and a protected room. The simplest unit, and the one that can be repeated across many sites.

Multi-bay

Multi-bay complex

Several bays joined by passages, with a plant room for air and power, and a second exit. For operations that need more room and more redundancy.

Modular system

Multi-purpose protection system

Repeatable bays built from the same arch, with the fit-out changed for each use. One structure, many purposes, and one method to build them.

Fig · 06 — Three configurations, one system: the same arch, openings and systems catalogue, built as a single bay, as a complex, or as repeatable modules.

And the part that is not concrete at all, yet decides all three: the build method and the fit-out specification — a written sequence for the backfill and the openings, and a systems list matched to what each bay is for.

05

Where it is used

Wherever operations must continue under protection, and out of sight.

The common thread is a space that has to work, stay dry, and stay protected for years, with the earth as part of the design.

Command and control

Protected working space for people and systems that must keep running when the surface cannot.

Communications

Protected space for the equipment and the people who keep a network up, with power and climate control built in.

Critical infrastructure

Protected plant rooms and control rooms for power, water and other services that a region relies on.

Civil protection

Shelters for people, built to repeat across many sites from one precast system.

06

FAQ

Common questions.

Longer answers, for readers who want the reasoning.

Q · 01 Why a precast arch, and not concrete cast in place?

Because the two suit different jobs. Concrete cast in place suits a one-off structure of unusual shape, and it is made where it stands: in a trench, in the weather, with the curing and finish at the mercy of the site. A precast arch is made in a plant, where the mould, the mix and the curing are controlled, and the segments arrive as finished parts. That gives three things a programme with many units cares about. The quality is more repeatable, because the same plant makes the same part. The site work is shorter, because the trench holds finished segments to lift and join instead of formwork to build and strike. And the shape does useful work: an arch turns the weight of the earth above it into compression along its curve, which concrete carries well. The price of precast is in the joints. A vault made of segments has a joint at every segment, and each joint must be keyed, sealed and checked, because a joint is where water gets in and where a load path can be interrupted. That is why the joint seals are fitted as the vault grows, and why the waterproofing runs continuously over them. For a single unusual structure, cast in place may still be the better choice, and we would say so.

Q · 02 How can the soil be part of the structure?

Because a buried arch does not carry its load alone. The weight above it pushes down on the crown, and along the curve that push turns into an outward thrust at the sides. The soil beside the arch pushes back. Well compacted, it holds the sides in place and lets the arch keep its designed curve, and the soil itself forms an arch of its own that takes a large share of the load. Loosely placed, it gives, the sides move, and the crown flattens, and the arch is then loaded in a way the design never allowed for. This is why the backfill is treated as a construction step with its own method and not as tidying up. Two rules do most of the work. The soil goes in on both sides in step, so that one side is never far ahead of the other, because a heap on one side pushes the arch sideways before the other side is there to resist. And it goes in in thin layers, each compacted before the next, because compaction only reaches so deep. The material, the layer thickness and the checks are set for each site, and they are part of the design record, not the contractor's habit.

Q · 03 How is a buried structure kept dry?

In layers, because no single measure is enough. Water is a constant problem for anything buried, and a bunker is meant to be used for years, so it is designed to stay dry from the outside in. First, the waterproofing: one continuous layer over the arch and across its joints, inspected before it is covered, because after backfill it cannot be reached. Second, the joint seals, fitted as the segments are joined. Third, drainage below and beside the structure, which takes water away before it can sit against the vault, with a sump and a backup pump for the water that does arrive. Fourth, the air inside. A cool concrete space in warm, humid air will sweat, and condensation is a problem even when there is no leak, so the ventilation and dehumidification are sized for the space and the climate. Fifth, monitoring: moisture and temperature are watched, so a problem shows itself before it is a failure. The water table and the soil at the site are the starting point for every one of these, which is why we ask for them first.

Q · 04 Where does the protection actually fail?

At the openings, far more often than in the concrete. A precast arch is a continuous, strong vault, and it is the holes in it that let the protection down: the entrance, the air intake and exhaust, the cable and pipe entries, and the escape hatch. Each one interrupts the structure and has to be protected on its own. The entrance carries a heavy door, and usually an airlock so that the door is never the only barrier. The air intake and exhaust carry protected valves, and the incoming air is filtered where the use calls for it. Cable and pipe entries are sealed, and the power and communications that pass through them are protected. The escape route is a hatch and a shaft with the same care. Each opening is specified against its own requirement, fitted as its own step, and tested on its own, and none of them is left to the general design of the vault. That is the reason this page says a strong vault with a poor door is not a protected space. The door and hatch makers are specialists, and we integrate their work into the structure and the systems around it.

Q · 05 How do people breathe and work in a sealed space?

Through systems that are as much of the job as the concrete. A sealed underground space needs fresh air, and the air has to come in through a protected intake with filtration where the use calls for it, at a controlled pressure so that leakage goes outwards rather than in. It needs a way to remove used air and heat, and to keep humidity down, or the space becomes uncomfortable and then damp. It needs power that survives the loss of the mains: standby generation and batteries, with protected entries for the cables. It needs lighting, communications, and fire detection and control chosen for an enclosed space, where smoke is as much a hazard as flame. And it needs to be watched, with the air, the temperature, the moisture and the doors monitored. These are the systems Neometrix engineers in its other work, from collective protection and shelters to power and control, and it is why we present the bunker as one system and not as a structure with equipment added afterwards.

Q · 06 Has Neometrix built one of these?

We would rather answer this plainly than let a page imply otherwise. Neometrix engineers precast underground bunkers and multi-purpose protection systems to order, as the integrator of the whole system, with the precast arch design and its blast validation brought in from specialist partners, and no delivered precast underground bunker is claimed. What stands behind the offer is adjacent and real. Neometrix engineers transportable protected shelters and command posts — see the field technical shelter — and CBRN collective protection, which is the air, filtration and pressure discipline a sealed space needs, along with the power, control and communications that go with them. The arch design and its blast validation are a different specialism, and we do not claim it as ours. So the honest position is this: the class is engineered to order, the systems engineering is in the building, and the first bunker of this exact type will be built around a customer's site and requirement, with the specialist design and validation partners brought in for the parts that call for them. If that matters to how you buy, say so early and we will scope it that way.

Q · 07 Which standard does the design follow, and who approves it?

The public reference in India is IS 4991, the criteria for blast-resistant design of structures. It sets out how such design is approached. It does not decide, for a given project, how much protection is needed, and neither does this page. That is the protection level, and it is set by the customer and the design standard for the use in question. It is never published on a page like this one, and we will not quote a figure for it. Three roles are worth keeping apart. The design of the precast arch is done by a specialist design partner. Its validation against the required protection level is specialist work too, and it is normally reviewed by an independent design authority before build, so a programme allows time for that review. And the integration, meaning the openings, systems, site method, testing and handover, is ours. We claim no certification on anyone's behalf, and approval of the design rests with the customer and the authority they name.

Q · 08 What do you need from us to quote?

Six things, and most of them are about your site and your use. First, the site: the soil, the water table, the access for a crane and for delivery, and the space around the excavation. Second, the use: what the space is for in general terms, how many people, and for how long, which sets the room, the air and the power. Third, the protection level from your own specification, and the design standard you work to. Fourth, the openings and systems: how many entrances and exits, what air filtration you need, and what power, communications and monitoring go in. Fifth, the numbers and the programme: how many units, on how many sites, by when. Sixth, the setting: a single bay, a multi-bay complex, or a modular system. From that we come back with a system definition you can check, a plan of the structure and its openings, a build method, and a budgetary price. If you would rather start with a conversation, that works too — most of these projects begin with somebody describing a site.

07

Three neighbours in the same protective-structures family.

↗ The transportable side

Field Technical Shelter

The deployable, above-ground shelter and command post, where this page is the buried, site-built one.

↗ The air inside

CBRN Decontamination & Collective Protection

The filtration and pressure discipline that keeps the air in a sealed protected space breathable.

↗ The armour side

Modular Ballistic Protection System

Armour panels and protected shelters, for protection that is fitted above ground rather than buried.
