Hydraulic Dynamometer Engine Test Cell. The engine's power has to go somewhere. Here, it goes into the water.

Name: Hydraulic Dynamometer Engine Test Cell
SKU: NMX-HDY-31

A hydraulic dynamometer does not store or return the power it absorbs. It turns every unit of it into heat in a stream of water, and that water has to arrive, circulate and leave for as long as the test runs.

So the cell is designed around the water: how much, how cold, how precisely it is controlled, and where it goes. The brake itself is compact. The water system around it is not.

Discuss a test cell Capability note (PDF)

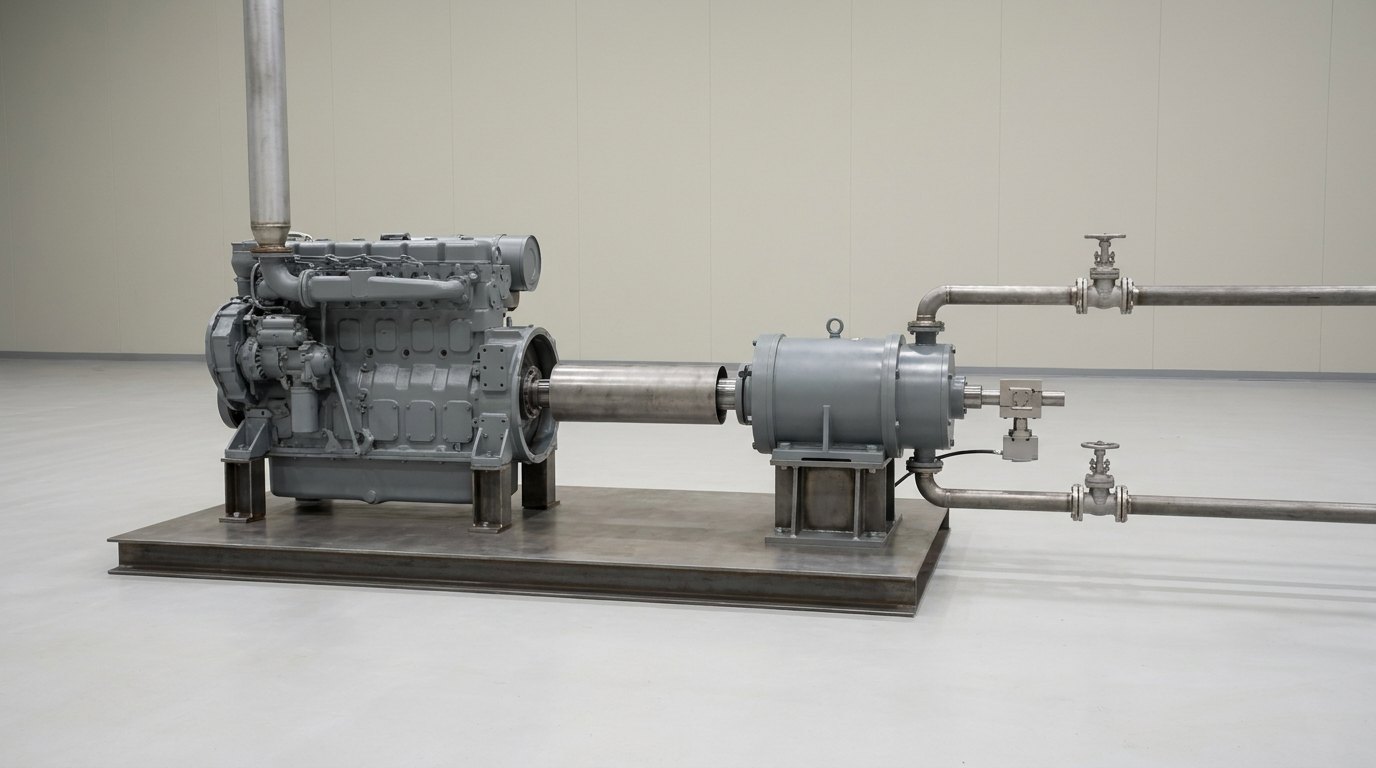

A hydraulic dynamometer engine test set-up on one steel base plate: a large plain industrial engine coupled through a guarded shaft to a hydraulic dynamometer with its torque arm and load cell, and steel water pipework with valves, and no people

Fig · 01 — A hydraulic dynamometer engine test set-up: a large engine coupled through a guarded shaft to a hydraulic dynamometer, with its torque arm, load cell and water pipework — illustrative render.

The absorber

water braketurns power into heat in water

The load

set by the waterservo-controlled, held steady

The measurement

torque at the casingload cell, dead-weight calibrated

The safety basis

water firstflow proven before the engine loads

Status

engineered to orderno unit yet delivered

ISO 9001ISO 14001ISO 3046-1 engine performance referenceIEC 60204-1 machinery electrical reference

Overview

Why the water system matters more than the brake it feeds.

Because the brake only converts power into heat. Everything that happens to that heat afterwards is the cell's job.

Fig · 02 — The cell in one picture: the engine drives the brake, the brake turns the power into heat in water, and the water system carries the heat away, with the torque arm and load cell reading the reaction and the control system setting the water.

A water brake does not measure power. It disposes of it, and then the water has to dispose of the heat.

What the cell is actually for

It loads an engine under test at a chosen speed and torque, measures the torque and the speed, and reports the power. It is built for large engines that must be run hard, for a long time, without the load equipment becoming the weak point.

Why a water brake, and where it is the wrong choice

A water brake is robust, compact for the power it takes and tolerant of shock, and it needs no electrical supply to make the load. But it can only absorb, and it gives little braking at very low speed. It suits high-power steady and slowly changing load, not motoring the engine or fast transient cycles.

Why the load is set by the water

Inside the brake, a rotor turned by the engine churns water against a casing. The more water there is in the brake, the heavier the load. The cell sets that amount through an electrically controlled water valve, so the load can be held smoothly and repeated exactly.

Why the cooling water is the second machine

Every unit of absorbed power leaves as heat in the water. For the same power, less water means hotter water, and a brake starved of water overheats and its load turns unstable. So the supply, the outlet and the heat rejection are sized for the full power of the engine, not for the brake.

Why torque is read at the casing

The casing is free to swing a small distance, and the reaction it feels is read on a torque arm by a load cell. Torque is then measured where it is produced, and proved by hanging known weights on a calibration arm.

Why the foundation and coupling matter

A large engine shakes, and shaking spoils a measurement and wears a shaft. The engine and brake stand on an isolated foundation, joined by an aligned coupling inside a guard that keeps everyone clear of the turning shaft.

The cycle

Prepare, start, load, hold, unload, and stop.

Six steps, and the two that belong to the water are the first and the last: on before the engine starts, and off only after the engine has stopped.

FIG · 02HYDRAULIC DYNAMOMETER ENGINE TEST CELL · PREPARE / START / LOAD / HOLD / UNLOAD / STOP — WATER FIRST, WATER LAST

The step people skip is the run-on. Stopping the engine does not stop the heat in the brake, so the water keeps flowing until it has carried that heat away.

Fig · 03 — The same brake at three water levels: little water and a light load, more water and a held load, and a full casing and a heavy load — a drawing of the idea, with no values.

1 · Prepare

The cell is checked, the guards are closed and the water system is brought up before the engine starts.

2 · Start

The engine is started and warmed with the brake only lightly loaded.

3 · Load

The water in the brake is raised to bring the engine to the test point.

4 · Hold

Speed and torque are held while the readings settle and are logged.

5 · Unload

The water is reduced and the engine is run down at light load, not stopped hot.

6 · Stop

The engine is stopped, and the water is run on to carry off residual heat before the system is secured.

Work content

What the cell contains, element by element.

Read it as a checklist: a cell missing a row will buy that row back later, usually the first time a long run has to be stopped and nobody can say why.

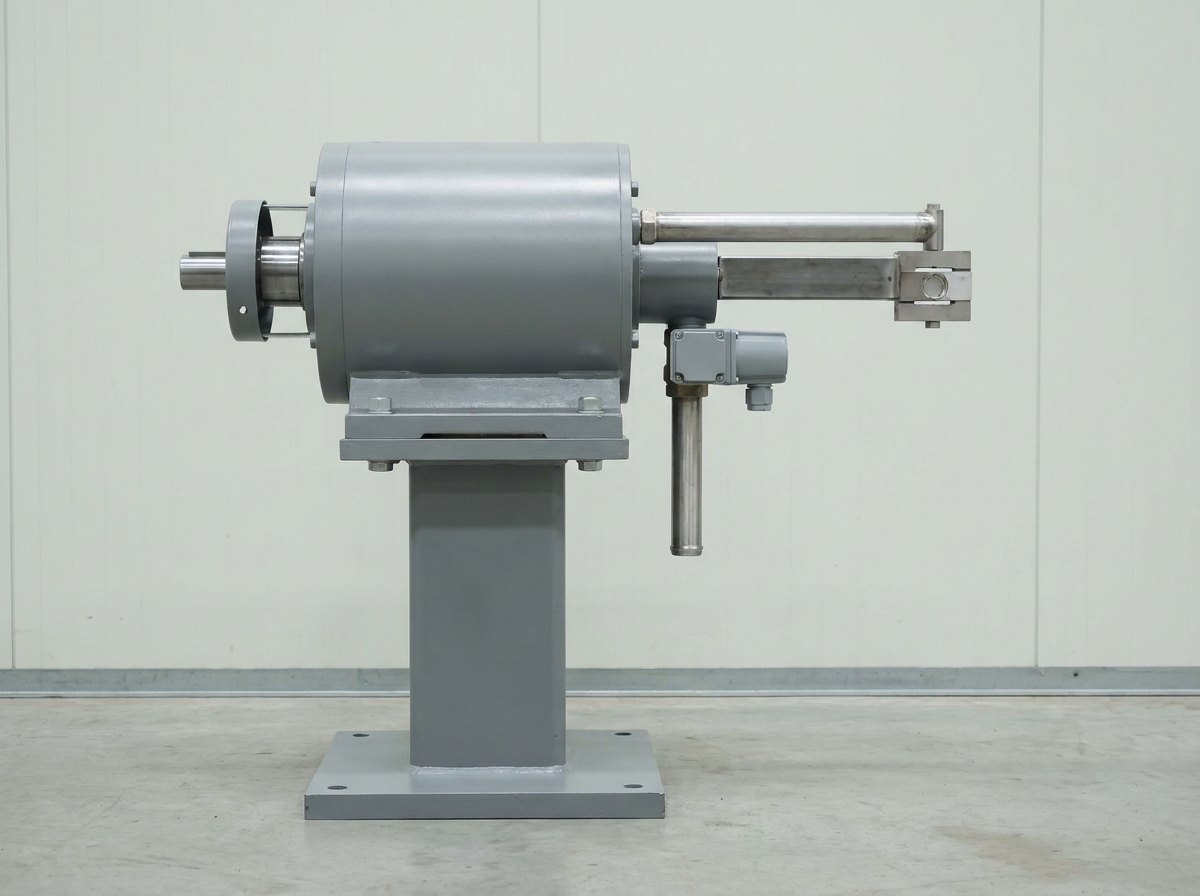

A hydraulic dynamometer, a water-brake casing on a steel pedestal with a torque arm and load cell, a water outlet pipe and a shaft end inside its guard, and no people

Fig · 04 — The hydraulic dynamometer itself: a water-brake casing on its pedestal, with the torque arm and load cell, the water outlet and the shaft end inside its guard — illustrative render.

Element	What it does	What matters
Hydraulic absorber (water brake)	turns engine power into heat in water	a robust unit chosen with the customer for the engine's power and speed range
Base plate & trunnion mounting	carries the brake with the casing free to swing	stiff, aligned and isolated from the floor
Torque arm & load cell	read the reaction at the casing	torque measured where it is produced
Calibration arm & dead weights	prove the torque measurement	repeatable, checked before the test
Speed sensing	measures the shaft speed	a clean signal across the speed range
Coupling & shaft guard	join the engine to the brake	aligned, balanced and fully guarded
Water inlet control valve	sets the water in the brake, and so the load	electric servo control, smooth and repeatable
Water supply	feeds the brake	pressure and flow suited to full power
Water outlet & heat rejection	carries the heat away	an open drain, or a closed circuit with heat rejection
Water treatment & filtration	protects the brake	keeps scale, corrosion and debris out
Engine services	feed, cool and vent the engine under test	sized for the engine, not the brake
Foundation & vibration isolation	carry the engine and the brake	an isolated block, so alignment holds
Control system & HMI	set speed and load, and trip on a fault	water flow proven before the engine is allowed to load
Data acquisition & instrumentation	log torque, speed, temperatures, flows and pressures	a time-aligned record for every run
Testing & documentation	prove the cell before handover	run-in and calibration checks, with records

The row that decides whether the cell is safe is never a machine. It is the control system. A brake run dry for even a short time is a brake damaged, so the engine must not be loaded until water flow is proven, and any water fault must unload it.

Fig · 05 — One cell, three support systems: the water system, the engine services, and the control and measurement.

Full specification — expand

System	A hydraulic (water-brake) absorber on a trunnion base plate; a torque arm and load cell with a calibration arm for dead-weight calibration; speed sensing; a guarded coupling and shaft; an electric servo water-inlet valve; a water supply, outlet and drain or closed-circuit heat rejection with water treatment and filtration; engine services for fuel, cooling, exhaust and ventilation; an isolated foundation; a PLC control system with data acquisition and instrumentation; and testing and documentation before handover
The One Idea	The engine's power has to go somewhere, and in a water brake it goes into the water, so the water is the machine and the cell is designed around it
Why a Water Brake	A water brake is robust, compact for its power and tolerant of shock, but it can only absorb and gives little braking at very low speed, so it suits high-power steady and slowly changing load rather than motoring or fast transient cycles
Why the Water	Every unit of absorbed power leaves as heat in the circulating water, so for the same power less water means hotter water, and a brake starved of water overheats and its load becomes unstable
Why the Casing	The casing is free to swing and its reaction is read on a torque arm by a load cell, so torque is measured where it is produced and proved by dead-weight calibration
Why Interlocked	The engine cannot be loaded until water flow is proven, and any water fault unloads the engine, so the brake is never run dry
Standards	ISO 3046-1 for engine performance and test methods, IEC 60204-1 for the electrical equipment of machines, and ISO 9001 are the public references this class is designed against. Acceptance of the finished cell rests with the customer and their inspection authority
Configurations	A dynamometer skid, an engine test cell, and a turnkey test facility with a shared water plant
Scope Boundary	This is a water-brake cell for high-power, steady or slowly changing load. It is not an eddy-current dynamometer rig (see dynamometer engine test rig), not a transient bench that can also drive the engine (see transient engine test bench) and not a vehicle-on-rolls machine (see chassis dynamometer)
Status	Neometrix engineers hydraulic dynamometer engine test cells to order, and no delivered hydraulic dynamometer test cell is claimed.

Configurations

One water discipline, three ways to build it.

The water first, the torque at the casing and the interlock are shared. What changes is how much of the cell is inside the scope.

Dynamometer skid

The brake and its measurement

The water brake on its base plate with the torque arm, load cell, water valve and speed sensing, for fitting into a cell that already exists.

Engine test cell

Brake, water and controls together

The brake with its water system, engine services, foundation, control system and data acquisition, engineered as one cell.

Turnkey test facility

Several cells, one water plant

A shared water and heat-rejection plant, the civil and foundation interfaces, and a common control room serving more than one cell.

Fig · 06 — Three ways to build it, one water discipline: a dynamometer skid, an engine test cell, or a turnkey test facility.

And the part that is not a machine at all, yet decides all three: the water interlock — the rule that the engine is never loaded until the water is proven, and is unloaded the moment the water falters.

Where it is used

Wherever an engine has to be loaded hard and held there.

The common thread is a large engine that has to prove its power and its endurance under a steady, punishing load.

Endurance & run-in

Where an engine is run for long periods at a held load, and the load equipment must outlast the test.

Performance & acceptance testing

Where the power and torque of an engine are measured across its speed range against the maker's declaration.

Overhaul & rebuild testing

Where an overhauled engine is run in and loaded before it is returned to service.

High-power engines

Where the power is more than a compact dry absorber can economically take, and a robust water brake is the practical choice.

FAQ

Common questions.

Longer answers, for readers who want the reasoning.

Q · 01 When is a water brake the right absorber, and when is it the wrong one?

A water brake is the right choice when the priority is high power, robustness and a long, steady run. It is compact for the power it takes, it tolerates shock and abuse, and it needs no electrical supply to make the load. It is the wrong choice when the engine has to be driven as well as braked, or when the load has to change in a fraction of a second. A water brake can only absorb: it turns the engine's power into heat and has no way to put power back, and it gives little braking at very low speed. A cycle that includes overrun, motoring or fast load steps needs a machine that can drive as well as absorb, which is a different class of equipment. An eddy-current unit is usually preferred where fast, fine load control at moderate power is the priority. Stating this plainly is part of the offer: the right absorber is chosen from the engine and the test programme, not from the catalogue.

Q · 02 Why is the cooling water such a large part of the design?

Because a water brake does not consume the engine's power, it converts it into heat, and the water carries that heat away. Every unit of power the engine delivers must leave the cell as heat in the water. For a given power, the temperature rise of the water depends on how much of it flows: less water means hotter water. A brake starved of water overheats, and its load becomes unstable, so the supply, the outlet and the heat rejection are sized for the full power of the engine, not for the small casing of the brake. The choice is between an open circuit, where the water is supplied and drained away, and a closed circuit, where the same water is cooled and returned. Water quality matters in both, because scale, corrosion and debris shorten the life of the brake and foul the passages that control it. So the cell treats and filters the water, proves the flow before the engine loads, and unloads the engine if the water falters.

Q · 03 How is the load set and held?

By controlling how much water sits in the brake. Inside the casing, a rotor turned by the engine throws water outward against the casing, and the water is returned to the rotor again; the resistance this creates is the load. Raise the amount of water and the load rises; lower it and the load falls. The cell sets the amount through an electrically controlled water valve, and the control system closes a loop around it: it compares the measured torque or speed with the setpoint and moves the valve to hold it, while also managing the engine's own speed or throttle. This gives smooth, repeatable control of a steady load. The response of a water brake is measured in seconds rather than fractions of a second, because the water has to move, which is why it is described here for steady and slowly changing load and not for fast transient cycles.

Q · 04 How is the torque measured, and how is it proved?

At the casing. The casing of the brake is mounted so that it is free to swing a small distance, and the torque from the engine tries to turn it. A torque arm holds it back against a load cell, and the force on the load cell, multiplied by the length of the arm, is the torque. Because it is read at the casing, the result is not disturbed by friction in the shaft, the coupling or the bearings of the engine side. To prove the measurement, the cell carries a calibration arm on which known weights are hung, so that a known torque is applied and the reading is compared with it. That dead-weight method is checked before a test programme and at intervals afterwards, and the record is kept with the results. Speed is measured separately by a sensor on the shaft, and power is calculated from torque and speed by the data acquisition system.

Q · 05 Is this the same as the dynamometer engine test rig, the transient bench or the chassis dynamometer?

No, and the differences are worth stating precisely. The dynamometer engine test rig page describes an eddy-current dynamometer bench, which makes its load electromagnetically rather than with water. The transient engine test bench page describes a machine that can also drive the engine, for cycles with overrun and fast load changes, and it says in terms that a water brake can only absorb. The chassis dynamometer page describes a vehicle on rolls, not an engine on a shaft. This page describes a different thing: a water-brake test cell for high power and robust steady or slowly changing load, together with the water system, foundation and controls that make it work. It does not replace any of the three, and it does not claim what they do a second time.

Q · 06 Has Neometrix built one of these?

We would rather answer this plainly than let a page imply otherwise. Neometrix engineers hydraulic dynamometer engine test cells to order, and no delivered hydraulic dynamometer test cell is claimed. What stands behind the offer is adjacent: Neometrix engineers an eddy-current engine dynamometer test rig (see the dynamometer engine test rig page), the data acquisition for engine test cells (see the engine test cell data acquisition system page), and the servo-hydraulic, water and control engineering that a water-brake cell is made of. The water brake itself is a well-established specialist design, so it is chosen with the customer; the cell around it is what Neometrix engineers. The honest position is that the cell is engineered to order, the neighbouring disciplines are in the building, and the first cell of this exact type will be built around a customer's engine and test programme.

Q · 07 Which standards apply, and who decides how the engine is tested?

ISO 3046-1 is the public reference for the declaration of engine power and for the test methods that support it, and IEC 60204-1 is the public reference for the electrical equipment of machines. Neither one, on its own, sets the test programme for a particular engine: that comes from the engine maker's own procedure and from the customer's test specification, and it is not printed generically on a page like this one. Acceptance of the finished cell, including the calibration and run-in checks before handover, rests with the customer and whatever inspection authority they name.

Q · 08 What do you need from us to quote?

Six things, and most of them describe the engine and the test rather than the cell. First, the engine: its type and its power and speed range. Second, the test programme: endurance, performance, run-in or acceptance, and how often it is run. Third, the water: the source, its quality, and whether the customer wants an open drain or a closed circuit. Fourth, the engine services: fuel, cooling, exhaust and ventilation, and what already exists. Fifth, the configuration: a dynamometer skid, an engine test cell or a test facility. Sixth, the site: the space, the foundation and civil interfaces, and the utilities. From that we come back with a system definition you can check, a cell layout drawing, and a budgetary price.
