CNG Test Equipment & Storage Systems

Neometrix builds the test equipment that CNG vehicles and stations depend on: vehicle circuit leak testers up to 350 bar, regulator test benches that cycle regulators up to 50,000 times, hydrostatic and volumetric expansion testing for CNG cylinders, and engineered CNG storage cascades. Pick the job below, or start with the CNG circuit leak tester.

Request a quote See the range

Fig · 01 CNG storage cascade — 250 bar, stationary three-bank or mobile

Standards referenced:

ISO 15500-9 IS 5844 ISO 6406 IS 8451

Products

9models

Leak Tester

350bar max

Regulator Bench

50,000cycles

Cascade

250bar(g)

Leak Detection

15cm³/hr

The range

CNG equipment by job.

Every item below has its own page with full specifications and photographs. Choose by what you need to test, store or measure.

Vehicle circuit leak testing

CNG Circuit Leak Tester

PLC-controlled three-stage pressurisation with programmable hold times to find vehicle CNG circuit leaks.

200 bar · nitrogen pressure decay

Vehicle circuit leak testing

CNG Circuit Leak Testing Machine for Volvo Buses

Air-driven booster needing no electricity, compatible with N2, O2, He and H2.

Haskel booster · to 345 bar

Vehicle circuit leak testing

CNG Vigilant

Automated leak tester using pressure decay and differential pressure, with optional helium mass spectrometry.

Up to 350 bar

Regulator testing

CNG High Pressure Regulator Test Bench

Mobile PLC bench that cycles regulators, with leak detection down to 15 cm³/hr.

310 bar · 50,000 cycles · ISO 15500-9

Regulator testing

CNG Regulator Test Bench

Haskel booster and PLC cycling up to 50,000 cycles, with ISO / FMVSS-compliant pass/fail reporting.

330 bar · ±0.25% FS

Storage & measurement

CNG Storage & Mobile Cascades

Type I steel or Type IV composite, stationary three-bank or mobile. Engineered to order.

250 bar(g) · 3,000–9,360 water litres

Storage & measurement

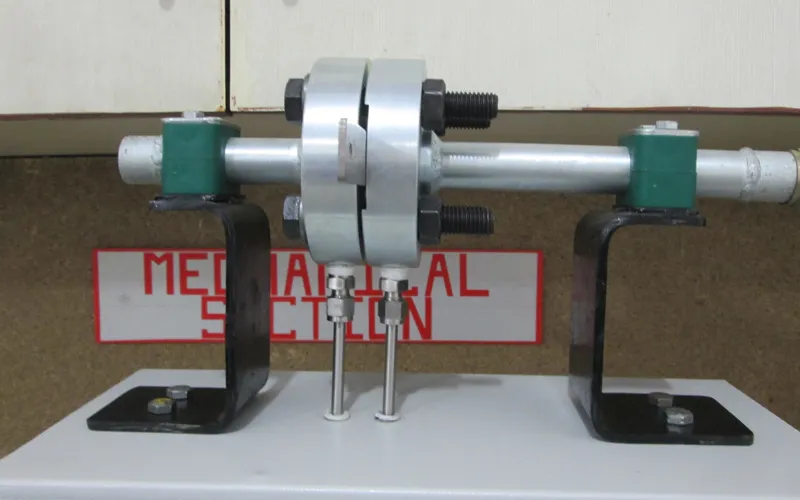

Greenfuel-CNG Gas Flow Meter

Differential-pressure flow measurement system for nitrogen and CNG gas service.

Orifice plate · 1–3 bar · SS 316

Cylinder testing

Hydrostatic Test Bench

Proof-pressure and leak testing of compressed gas cylinders, including CNG.

1.5× working pressure · IS 5844

Cylinder testing

Automatic Volumetric Expansion Test System

Automated hydrostatic cylinder testing that measures elastic and permanent expansion.

ISO 6406 · IS 8451

What is tested

What each CNG test proves.

CNG is stored at very high pressure, so each test targets a specific failure.

Vehicle circuit leaks	The fuel circuit is pressurised with nitrogen and watched for pressure decay. See the CNG circuit leak tester, the CNG Vigilant and the Volvo bus machine.
Regulator life and accuracy	Regulators are cycled thousands of times and checked for leaks and accuracy. See the high pressure regulator bench and the regulator test bench.
Cylinder strength	Cylinders are proof tested at 1.5 times working pressure, and their expansion is measured. See the hydrostatic test bench and the volumetric expansion system.
Storage	Gas is held in banks of cylinders ready to fill vehicles. See the CNG storage and mobile cascades.
Flow measurement	Gas flow is measured by orifice-plate differential pressure. See the Greenfuel-CNG gas flow meter.

Choosing

Choosing CNG equipment.

Five questions settle most selections.

Start with what you test and the pressure — the machine follows.

What are you testing? A vehicle circuit, a regulator or a cylinder decides the machine.
What pressure? Leak testers reach 350 bar, regulator benches 330 bar and cascades hold 250 bar(g).
Which standard? Tell us whether you work to ISO 15500-9, IS 5844, ISO 6406 or IS 8451.
How many a day? Workshop throughput sets the automation level.
Fixed or mobile? Benches and cascades come stationary or mobile.

For related reading, see our pressure testing machines and hydrogen test equipment.

FAQ

Frequently asked questions.

Plain-language answers, drawn from the individual product pages.

Q · 01 What is a CNG circuit leak tester?

It pressurises a vehicle CNG fuel circuit with nitrogen and watches for pressure decay to find leaks. The Neometrix testers work from 200 bar up to 350 bar, and the Vigilant adds differential pressure sensing and optional helium mass spectrometry.

Q · 02 How many cycles can your regulator test benches run?

Both CNG regulator benches cycle regulators up to 50,000 cycles. The high pressure bench reaches 310 bar to ISO 15500-9, and the regulator bench reaches 330 bar with ±0.25% full-scale accuracy.

Q · 03 Can you test CNG cylinders?

Yes. The hydrostatic test bench proof-tests cylinders at 1.5 times working pressure to IS 5844, and the automatic volumetric expansion test system measures elastic and permanent expansion to ISO 6406 and IS 8451.

Q · 04 Do you make CNG storage cascades?

Yes. The cascades are engineered to order at 250 bar(g) and 3,000 to 9,360 water litres, in Type I steel or Type IV composite, stationary three-bank or mobile.

Q · 05 Can the leak tester run without electricity?

The Volvo bus leak testing machine uses an air-driven Haskel booster to 345 bar and needs no electricity. It is compatible with nitrogen, oxygen, helium and hydrogen.

Q · 06 Can the equipment be built to order?

Yes. Most of this equipment is engineered to order. Send the vehicle, regulator or cylinder, the pressure and the standard you work to, and we will propose a configuration.

Q · 07 How do I leak test a CNG car, and what is a CNG leak detector for a car?

A vehicle CNG circuit is pressurised and watched for pressure decay. The CNG circuit leak tester does this with nitrogen in three pressurisation stages to 200 bar, and the CNG Vigilant is an automated vehicle circuit leak tester up to 350 bar.

Q · 08 What does permanent expansion mean in ISO 6406 cylinder testing?

In ISO 6406 hydrostatic testing a cylinder is pressurised to 1.5 times working pressure and its expansion is measured. A cylinder whose permanent expansion is 10% or less of total expansion passes; above that it is scrapped. The automatic volumetric expansion test system measures this automatically, and the hydrostatic test bench serves as a hydrostatic test rig for a single cylinder.

Q · 09 How is CNG gas flow measured?

The Greenfuel-CNG gas flow meter is a CNG measurement unit that uses orifice-plate differential-pressure flow measurement for nitrogen and CNG gas service at 1 to 3 bar, with SS 316 wetted parts.
