BURST · LEAK · CYCLING · UP TO 5,000 BAR

Hydrogen Test Equipment & Systems

Neometrix builds hydrogen test equipment for qualifying components and tanks: burst, leak, pressure-cycling and pre-cooled exposure machines built to ISO 12619, UN ECE R134 and AIS 157. We also engineer the wider hydrogen chain, from electrolyser test stations and green hydrogen plants to boosting and refuelling stations. Pick the job below, or see our general pressure testing machines for burst and leak testing with other media.

Request a quote See the range

Neometrix hydrogen component test system with three stainless steel test chambers and gas cylinder rack

Fig · 01 Hydrogen component test system — turnkey facility with nine test chambers

Standards referenced:

ISO 12619 UN ECE R134 AIS 157 ISO 22734 ISO 19880

Systems

16models

Burst Chamber

5,000bar

H2 Burst Machine

3,500bar

H2 Leak Machine

1,050bar

Pre-Cool

-40°C

The range

Hydrogen test equipment by use.

Every machine below has its own page with full specifications, photographs and downloads. Choose by the job you need to do.

Production & power

Green Hydrogen Generation Plant

Electrolyser integration with full balance of plant: rectifier, water treatment, purification, drying, compression, storage and safety. Turnkey EPC.

MW-scale · 99.999% · ISO 22734

Production & power

Electrolyser Test Station

Measures H2/O2 flow and crossover, per-cell voltage, I-V polarisation, EIS, efficiency and durability.

PEM · AEM · alkaline stacks

Production & power

Hydrogen Power-to-Power (P2P) System

PEM electrolyser, 5 kg metal hydride storage and a fuel cell deliver 230 VAC with PLC / HMI and SCADA.

1 Nm³/h PEM · 5 kW fuel cell

Production & power

Fuel-Cell Hybrid Power System

Near-silent, exhaust-free hybrid power for forward and high-altitude posts, running on supplied hydrogen.

Fuel cell + battery · 230 VAC

Refuelling & compression

Hydrogen Refuelling Station

Storage, T20 pre-cooling and dispensing to ISO 19880 and SAE J2601. Engineered to order.

~150 kg/day · 500 bar · H35

Refuelling & compression

Hydrogen Gas Boosting Station

Glycol hydraulic-drive compression with hydrogen-safe brass and NBR construction.

30–150 bar · 4 Sm³/hr

Component & tank testing

Hydrogen Component Test System

Turnkey facility to ISO 12619, UN ECE R134 and AIS 157, with −40 °C pre-cool and nine chambers.

11 test methods · 3,500 bar burst

Component & tank testing

Hydrogen Fuel-System Component Test System

Type-qualifies vehicle fuel-system components: burst, leak, impulse and permeability.

To 2× working pressure

Component & tank testing

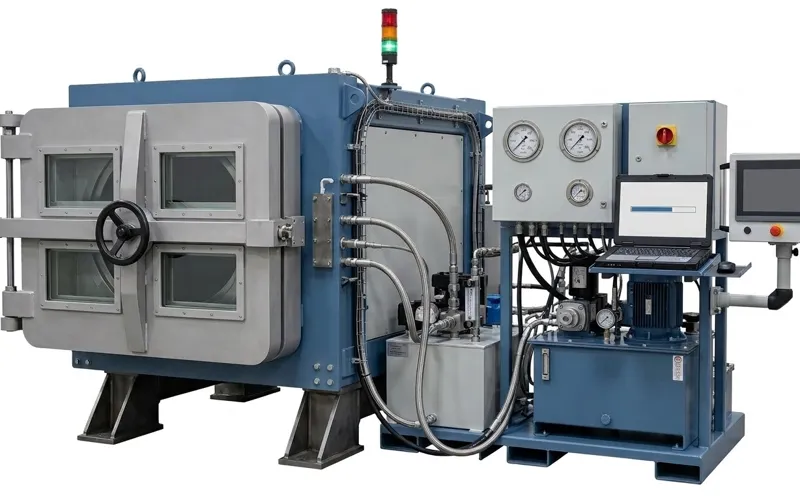

H2 Burst Test Machine

PLC-based hydrostatic strength and burst tester for hydrogen components, in an enclosed burst chamber.

3,500 bar · ISO 12619

Component & tank testing

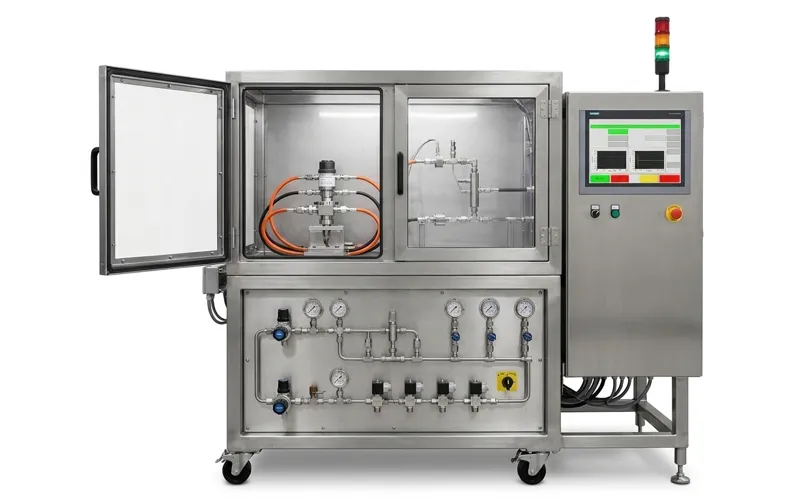

H2 Leak Testing Machine (H2-LTM-1050)

Automated, safety-interlocked leak testing of hydrogen components to ISO 12619 and UN ECE R134.

0.5–1,050 bar · dry H2

Component & tank testing

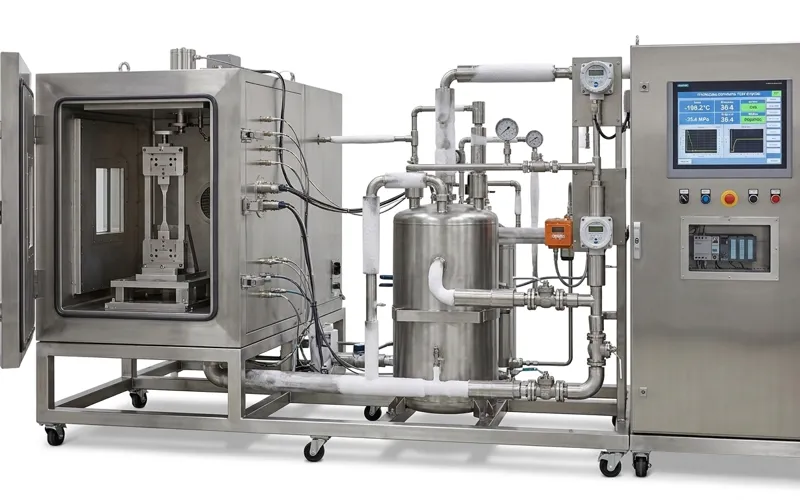

Pre-Cooled Hydrogen Exposure Test Machine

Exposes check valves, manual valves and automatic valves to pre-cooled hydrogen.

Down to −40 °C · H2-PCET-1000

Component & tank testing

Burst Chamber for Hydrogen Cylinders

Dual-wall explosion-resistant chamber with a Haskel pump and PLC-automated burst sequencing.

5,000 bar · up to 3.0 m × 900 mm

Component & tank testing

Dynamic High-Pressure Hydrogen Leak Test Rig

Leak testing of cylinders and composite vessels, with gas recovery and mass-spectrometer detection.

Up to 1,000 bar

Component & tank testing

Hydrogen Pressure-Cycling Test Facility

Runs a tank through its full fill-and-vent service life before its first real fill.

GTR-13 / ISO 19881 pattern

Materials & engines

Hydrogen Embrittlement Test System

Tests high-strength materials for hydrogen embrittlement on a bench, before it happens in service.

Engineered to order

Materials & engines

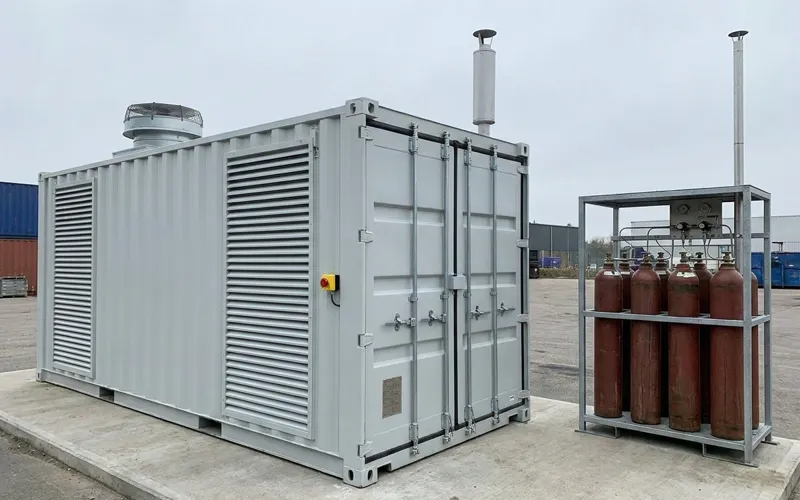

Hydrogen Piston Engine Test Bench

Containerised bench taking a diesel engine from baseline to hydrogen dual-fuel. Supplied to a German research institute.

300 bar H2 · ATEX Zone 1

What is tested

What each hydrogen test proves.

Hydrogen is a small, fast-moving molecule, so each test targets a different failure.

Burst test	Raises pressure until a hydrogen component or tank fails, to prove its burst margin inside an enclosed chamber. See the H2 burst test machine (to 3,500 bar) and the burst chamber for hydrogen cylinders (to 5,000 bar).
Leak test	Checks that a component keeps hydrogen in, with dry hydrogen or forming gas and mass-spectrometer detection. See the H2 leak testing machine and the dynamic high-pressure leak test rig.
Pressure cycling	Fills and vents a tank thousands of times to find fatigue failures. See the hydrogen pressure-cycling test facility.
Pre-cooled exposure	Exposes valves to hydrogen pre-cooled to −40 °C, as it arrives from a dispenser. See the pre-cooled hydrogen exposure test machine.
Full qualification	Type-qualifies vehicle fuel-system components across several test methods in one facility. See the hydrogen component test system and the fuel-system component test system.
Materials & engines	Embrittlement tests show how hydrogen weakens high-strength materials, and the engine bench tests hydrogen combustion. See the embrittlement test system and the hydrogen piston engine test bench.
Production, power & refuelling	Equipment for making, compressing and dispensing hydrogen, and for testing electrolysers. See the green hydrogen plant, the electrolyser test station, the boosting station and the refuelling station.

Choosing

Choosing hydrogen test equipment.

Five questions settle most selections.

Start with the component, the pressure and the standard — the machine follows.

What are you qualifying? A valve, a fuel-system component, a cylinder or a full tank decides the machine.
Which test? Burst, leak, pressure cycling or pre-cooled exposure each use a different machine.
What pressure? Give the working pressure and the test multiple. Machines range from 1,000 bar leak testing to 5,000 bar burst.
Which standard? Tell us whether you work to ISO 12619, UN ECE R134, AIS 157 or GTR-13 so the machine can be configured to match.
Test or produce? Some customers need a test machine; others need a plant, boosting or refuelling station. This page covers both.

For background reading, see our guides to hydraulic test benches and aerospace test benches.

FAQ

Frequently asked questions.

Plain-language answers, drawn from the individual product pages.

Q · 01 What is hydrogen test equipment?

Hydrogen test equipment applies pressure, temperature and cycling to hydrogen components and tanks and checks that they hold, seal and survive. It covers burst, leak, pressure-cycling and pre-cooled exposure testing, plus stations for testing electrolysers and materials.

Q · 02 Which standards do your hydrogen test machines follow?

The component test machines are built to ISO 12619, UN ECE R134 and AIS 157. The pressure-cycling facility follows the GTR-13 and ISO 19881 pattern, the green hydrogen plant references ISO 22734, and the refuelling station references ISO 19880 and SAE J2601.

Q · 03 What pressures can the hydrogen burst and leak machines reach?

The H2 burst test machine reaches 3,500 bar, and the burst chamber for hydrogen cylinders is rated to 5,000 bar for cylinders up to 3.0 m by 900 mm. The H2 leak testing machine covers 0.5 to 1,050 bar, and the dynamic leak rig reaches 1,000 bar.

Q · 04 Can you test hydrogen tanks and cylinders?

Yes. The burst chamber, the dynamic high-pressure leak rig and the pressure-cycling facility are all built for hydrogen cylinders and tanks, and the volumetric expansion test system covers hydrostatic testing of gas cylinders. Tell us the tank size, working pressure and the standard you qualify to.

Q · 05 Do you supply equipment for producing and refuelling hydrogen?

Yes. Neometrix engineers green hydrogen generation plants, electrolyser test stations, hydrogen boosting stations and refuelling stations, with fuel-cell power systems for sites that need clean, quiet power.

Q · 06 Can the equipment be built to order?

Yes. Most hydrogen systems on this page are engineered to order. Send the component or tank, working pressure, test medium and standard, and we will propose a configuration. A hydrogen engine test bench has been supplied to a German research institute.

Get a quote

Tell us what you need
to qualify or produce.

Send the component or tank, working pressure, test medium and standard. We will recommend a machine and walk through the configuration before you commit.
