Environmental Test Chambers & Simulators

Neometrix engineers environmental test chambers and simulators for qualifying equipment against heat, cold, humidity, dust, salt, vacuum, electromagnetic interference, fire, impact and abuse. Pick the environment you need to simulate below, or start with the climatic and environmental test chambers, which cover −70 to +150 °C and 10 to 98 %RH.

Request a quote See the range

Neometrix walk-in climatic and environmental test chamber

Fig · 01 Walk-in climatic and environmental test chamber — −70 to +150 °C, 10 to 98 %RH

Standards referenced:

MIL-STD-461 CISPR IS 17051:2018 ISO 12619

Products

16models

Climatic Range

-70/150°C

Thermal Vacuum

10⁻⁶mbar

EMC Shielding

≥100dB

Hangar Fire Chamber

40×15×10m

The range

Environmental test equipment by condition.

Every item below has its own page with full specifications and photographs. Choose by the environment you need to simulate.

Climatic & corrosion

Climatic & Environmental Test Chambers

Reach-in to walk-in and drive-in chambers with uniformity of ±2 °C at nine points.

−70 to +150 °C · 10–98 %RH

Climatic & corrosion

Dust & Sand Test Chamber

Steady dust cloud with partial vacuum on the casing, and blown dust and sand tests. Engineered to order.

Enclosure dust · blown sand

Climatic & corrosion

Salt Spray & Corrosion Test Chamber

For defence, automotive and marine parts. Engineered to order.

Salt fog · cyclic · walk-in

Climatic & corrosion

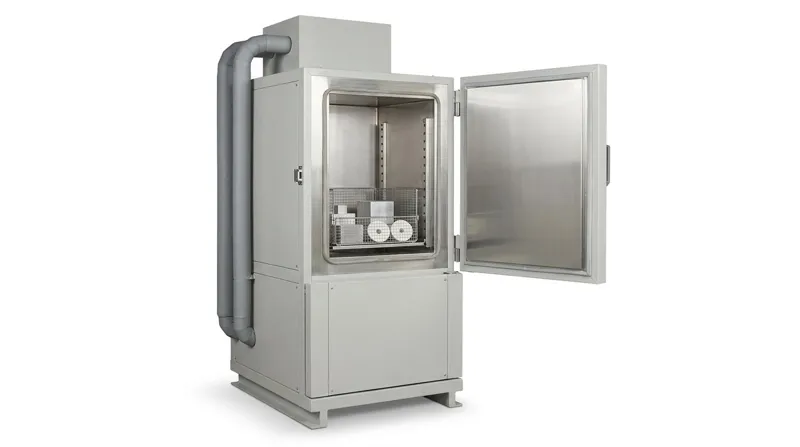

Thermal Shock Test Chamber

Carries a basket of parts between a hot zone and a cold zone. Engineered to order.

Two-zone · three-zone

Climatic & corrosion

Thermal Vacuum Chamber (TVAC)

LN2 / GN2 radiative shrouds for satellite and payload testing.

~10⁻⁶ mbar · −180 to +150 °C

Electromagnetic & fire

EMI / EMC Test Laboratory

Semi-anechoic chambers with NSA ±4 dB and automotive and EV EMC test suites.

≥100 dB · MIL-STD-461 · CISPR

Electromagnetic & fire

Fire Resistance Test Rig

Rates building and industrial elements for fire resistance.

Furnace · restraint · loading

Electromagnetic & fire

Hangar Fire Test Facility

Fire simulation chamber for validating hangar fire-fighting systems, with metered LDO / LPG ignition.

40 × 15 × 10 m chamber

Impact, pressure & abuse

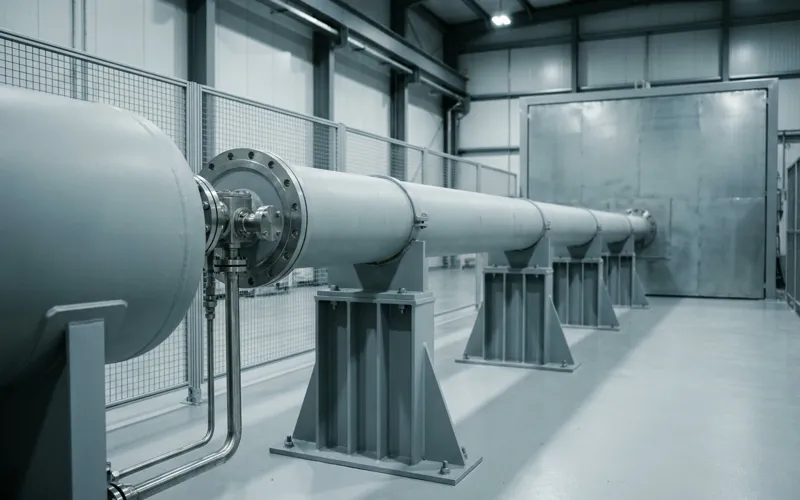

Bird-Strike Test Facility

Proves windshields, canopies, intake structures and wings against bird impact. Engineered to order.

Pneumatic launcher

Impact, pressure & abuse

Head Impact Test Rig

Electro-hydraulic seat-headrest impact test system measuring force, deflection and energy.

Up to 250 km/h

Impact, pressure & abuse

Ballistic Evaluation Testing Laboratory

Velocity measurement from 50 to 1,800 m/s with V50 and drop tests.

IS 17051:2018 · NIJ 0106.06

Impact, pressure & abuse

Deep Ocean Pressure Simulator

Brings the deep sea into the lab, then brings it back out slowly.

Engineered to order

Impact, pressure & abuse

Battery Abuse Test Chamber

Built for the failure it provokes, containing cell and pack abuse tests safely.

With gas scrubber

Process & life testing

Aerospace & Industrial Autoclave

Heated pressure vessels that cure composites under controlled conditions. Engineered to order.

Heat · pressure · vacuum

Process & life testing

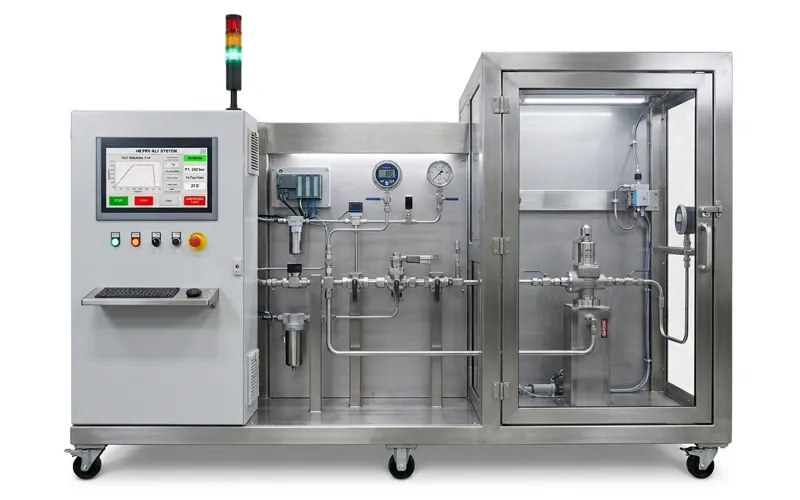

Accelerated Life Test Bench (PRV)

Automated accelerated life and endurance bench for hydrogen pressure relief valves.

ISO 12619 Part 10 · UN ECE R134

Process & life testing

Hydrogen Pressure-Cycling Test Facility

Runs a tank through its full fill-and-vent service life before its first real fill.

GTR-13 / ISO 19881 pattern

What is simulated

What each chamber simulates.

A product meets many environments in service, and each needs its own chamber.

Heat, cold and humidity	Equipment is cycled through temperature and humidity extremes. See the climatic chambers and the thermal shock chamber.
Dust, sand and salt	Enclosures are tested against blown dust, sand and salt fog. See the dust and sand chamber and the salt spray chamber.
Space vacuum	Payloads are tested in high vacuum with a cold shroud. See the thermal vacuum chamber.
Electromagnetic interference	Emissions and immunity are measured in a shielded semi-anechoic room. See the EMI / EMC test laboratory.
Fire	Building elements and hangar fire-fighting systems are tested against real fire. See the fire resistance rig and the hangar fire facility.
Impact, pressure and abuse	Parts are hit, squeezed or pushed to failure under control. See the bird-strike facility, the deep ocean pressure simulator and the battery abuse chamber.

Choosing

Choosing an environmental test chamber.

Five questions settle most selections.

Start with the environment and the standard — the chamber follows.

Which environment? Heat, humidity, dust, salt, vacuum, EMI, fire or impact decides the chamber.
What size? Chambers range from reach-in to walk-in and drive-in.
What range? Give the temperature, humidity, pressure or field-strength range you need.
Which standard? Tell us whether you work to MIL-STD-461, CISPR, IS 17051 or another specification.
What is tested? Part weight, power dissipation and fixtures set the chamber design.

For related reading, see our pressure testing machines and EV and battery test equipment.

FAQ

Frequently asked questions.

Plain-language answers, drawn from the individual product pages.

Q · 01 What is an environmental test chamber?

It is an enclosure that reproduces conditions such as temperature, humidity, dust, salt fog, vacuum or fire so a product can be qualified before it enters service. Neometrix engineers chambers for each of these conditions.

Q · 02 What range do your climatic chambers cover?

The climatic and environmental chambers cover −70 to +150 °C and 10 to 98 %RH, with uniformity of ±2 °C at nine points, from reach-in to walk-in and drive-in sizes.

Q · 03 Do you make thermal vacuum chambers?

Yes. The thermal vacuum chambers reach about 10⁻⁶ mbar with LN2 / GN2 radiative shrouds from −180 to +150 °C, for satellite and payload testing.

Q · 04 Can you build an EMI / EMC laboratory?

Yes. The EMI / EMC laboratories use semi-anechoic chambers with shielding of at least 100 dB and NSA ±4 dB, with MIL-STD-461 and CISPR test suites and automotive and EV EMC capability.

Q · 05 What fire and impact test equipment do you make?

Neometrix builds a fire resistance test rig, a 40 × 15 × 10 m hangar fire test facility, a bird-strike test facility with a pneumatic launcher and a head impact test rig with impact velocity up to 250 km/h.

Q · 06 Can the equipment be built to order?

Yes. Most of this equipment is engineered to order. Send the environment, range, size and the standard you work to, and we will propose a configuration.
