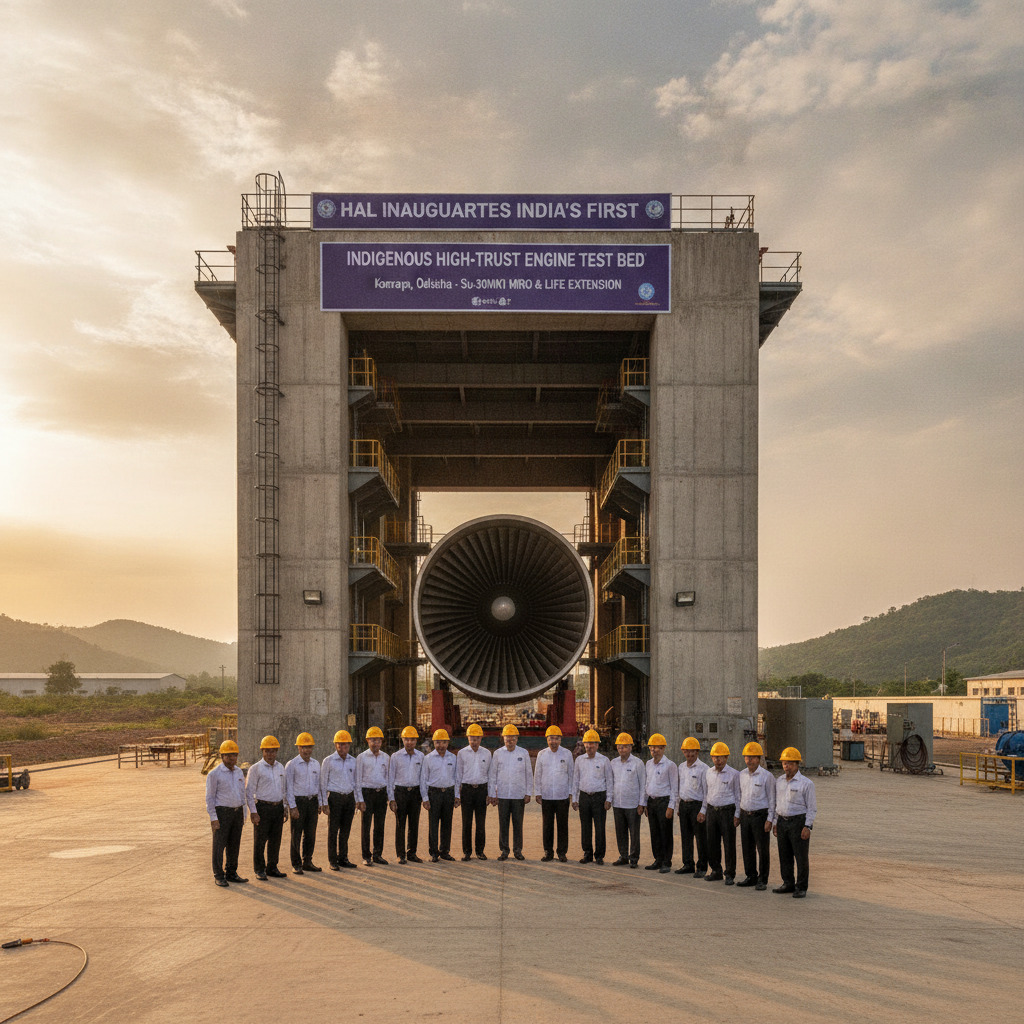

HAL Inaugurates India’s First Indigenous High-Thrust Engine Test Bed in Odisha

In a major milestone for India's military aviation ecosystem, Hindustan Aeronautics Limited (HAL) commissioned the nation's first fully indigenous high-thrust engine test bed at its Koraput Division in Odisha in August 2026. The state-of-the-art facility provides full-scale ground test capabilities for heavy military turbofan engines, specifically the Saturn AL-31FP engine that powers the Indian Air Force's (IAF) frontline fleet of more than 260 Sukhoi Su-30MKI multirole fighters. Alongside the test facility commissioning, HAL achieved another critical technical milestone by formally extending the Total Technical Life (TTL) of the AL-31FP turbofan from 2,000 to 2,500 flying hours, handing over the first upgraded engine to the IAF.

The operationalization of this high-thrust test bed addresses a long-standing vulnerability in India's defence MRO (Maintenance, Repair, and Overhaul) framework. Previously, validating major overhauls, life-extension modifications, and critical subsystem repairs on high-thrust military engines required overseas certification support or reliance on foreign OEM facilities. By establishing sovereign testing infrastructure at Koraput, HAL has secured the capability to independently evaluate, certify, and sustain the propulsion systems of India's primary air-dominance fighter fleet without external dependencies.

Technical Architecture of High-Thrust Aero-Engine Test Facilities

Testing a modern, high-thrust military turbofan engine under ground conditions requires a highly specialized engineering enclosure capable of handling extreme mechanical, thermal, and fluid-dynamic stresses. The AL-31FP engine, equipped with an afterburner and an axisymmetric thrust-vectoring nozzle, produces a maximum thrust of over 122 kilonewtons (kN) in afterburner mode. Replicating and measuring these forces safely inside a ground-based test cell involves several integrated technical subsystems:

• Multi-Axis Thrust Measurement Framework: The engine is mounted on a suspended flexure-plate thrust stand coupled with high-precision piezoelectric and strain-gauge load cells. This configuration measures axial thrust with extreme repeatability while isolating lateral and vertical force vectors produced during thrust-vectoring nozzle deflection.
• High-Volume Aerodynamic Air Handling: To prevent aerodynamic re-ingestion and ensure unchoked flow into the engine inlet, the test cell incorporates massive acoustic intake silencers, turning vanes, and an ejection diffuser duct system capable of passing hundreds of kilograms of air per second.
• Subsystem Telemetry and Data Acquisition: The test bed features multi-channel data acquisition (DAQ) architectures that process thousands of parameters in real time. Key parameters include Compressor Discharge Pressure (CDP), Turbine Outlet Temperature (TOT), shaft rotational speeds (N1 and N2 spools), fuel mass flow rate, and multi-point casing vibration spectrums.
• High-Pressure Fuel and Hydraulics Integration: The facility houses dedicated fuel conditioning modules that deliver aviation turbine fuel at regulated pressures, temperatures, and flow rates, alongside hydraulic power units that interface with the engine's thrust-vectoring actuators and variable intake geometry controls.

Life Extension Engineering and Maintenance, Repair, and Overhaul (MRO) Dynamics

The Saturn AL-31FP is a complex, twin-spool axial-flow turbofan engine featuring a 4-stage low-pressure compressor (fan), a 9-stage high-pressure compressor, an annular combustion chamber, single-stage high- and low-pressure turbines, an afterburner, and a hydraulically driven vectoring nozzle. Operating under severe thermal and mechanical loading, individual engine components undergo creep, low-cycle fatigue, and erosion over operational flying hours.

Extending the Total Technical Life of the engine from 2,000 to 2,500 flying hours represents a 25 percent increase in operational availability for each power plant. Achieving this life extension required exhaustive material fatigue analysis, non-destructive testing (NDT) of critical rotating components, structural modifications to turbine blades and disk assemblies, and recalibration of engine control units. However, verifying these modifications before reinstalling engines onto operational airframes requires rigorous ground testing protocols.

Rigorous Qualification and Acceptance Testing Protocols

Before an overhauled or life-extended engine is cleared for flight, it must complete a standardized series of ground runs on the high-thrust test bed:

• Cold Crank and Dry Run Validations: Verifying pneumatic starter performance, oil lubrication pressure buildup, and mechanical free-rotation without fuel ignition.
• Idle and Intermediate Power Runs: Assessing fuel metering accuracy, bleed valve operation, governor response, and transient acceleration dynamics from idle to maximum dry thrust.
• Full Afterburner Ignition and Stability Tests: Evaluating flameholder stability, afterburner fuel ring pressurization, exhaust nozzle area expansion, and peak thrust output.
• Thrust Vectoring Actuator Response: Operating the axisymmetric nozzle through its pitch vectoring range under full power to measure hydraulic pressure drops and mechanical hysteresis.
• Thermal Equilibrium and Vibration Sweeps: Running the engine at sustained high power settings to verify thermal stabilization across bearings, seals, and casings while monitoring vibration spectral peaks.

Strategic Implications for Indigenous Aerospace Test Infrastructure

The commissioning of the Koraput high-thrust test bed carries profound strategic implications for India's self-reliance in military aviation, directly supporting the government's Aatmanirbhar Bharat initiative. Extending the lifecycle of more than 260 Su-30MKI fighters—powered by over 500 active AL-31FP engines—significantly lowers lifecycle operating costs and reduces turn-around times for depot-level overhauls.

Furthermore, the technical expertise and ground infrastructure established through this project serve as a baseline for upcoming indigenous aero-engine programs. India's Gas Turbine Research Establishment (GTRE) is currently advancing plans for the National Aero Engine Test Complex (NAETC), aimed at testing next-generation 110-130 kN class engines for future combat platforms like the Advanced Medium Combat Aircraft (AMCA) and Twin Engine Deck Based Fighter (TEDBF). Domestic experience gained in designing high-pressure hydraulic test rigs, automated data acquisition platforms, fuel control test benches, and acoustic test enclosures provides the foundation necessary to execute these national megaprojects.

Future Outlook and Expanding India's Test Rig Capability

As India continues to expand its domestic aerospace manufacturing footprint, the demand for sophisticated test benches and ground support systems will grow exponentially across both military and commercial sectors. The integration of automated test equipment (ATE), real-time Hardware-in-the-Loop (HIL) simulators, and advanced hydraulic test rigs will be essential to validate complex engine accessories, including main fuel pumps, electro-hydraulic servo valves, fuel metering units, and pneumatic starters.
