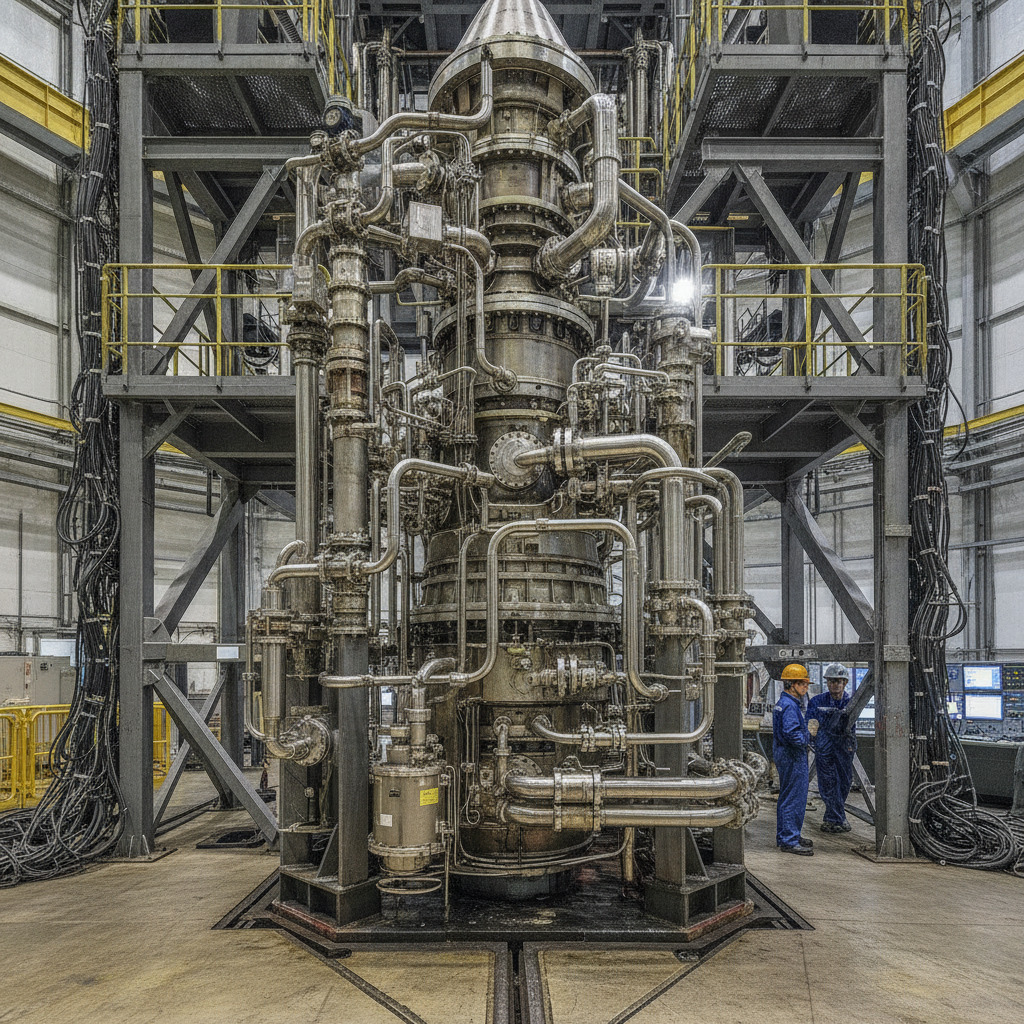

ISRO achieves full-thrust hot test of semi-cryogenic engine power head

On September 5, 2026, the Indian Space Research Organisation achieved a major propulsion milestone at the ISRO Propulsion Complex in Mahendragiri, Tamil Nadu, by completing a full-capacity hot test of its Semi-Cryogenic Engine Power Head Test Article. The test marked the first time the powerhead assembly was fired at its full rated level of 200 tonnes of thrust, which corresponds to 100 percent of its design capacity. Operating for a total duration of 35 seconds, the test article maintained stable combustion conditions, including a five-second hold at peak output. This event represents the ninth hot test in an extensive experimental evaluation program designed to prove the core turbomachinery and propellant control circuits prior to full engine integration with the main thrust chamber.

The successful firing at Mahendragiri validates the mechanical, thermal, and fluid-dynamic performance of the powerhead under peak operational loads. Beyond achieving maximum thrust, propulsion engineers successfully demonstrated the critical transition of propellant delivery from a low-pressure start tank mechanism to a medium-pressure run tank system during active firing. This switchover procedure is essential for sustaining long-duration engine firings in future qualification trials. The achievement brings India closer to operationalizing its high-thrust semi-cryogenic propulsion system, which is intended to power the next generation of heavy-lift space transportation architectures.

Milestone Firing at Mahendragiri Validates Full-Capacity Engine Turbomachinery

The full-thrust test conducted on September 5, 2026, represents a crucial technical hurdle overcome in the development of the 2,000-kilonewton class SE2000 semi-cryogenic engine. Unlike standard rocket engine qualification firings that evaluate complete engine assemblies including the main combustion chamber and expanding nozzle, Power Head Test Article testing isolates the complex fluid machinery located upstream of the main chamber. The PHTA configuration encompasses nearly all critical engine subsystems, including the pre-burner assembly, high-pressure turbo-pumps, main propellant control valves, electro-hydraulic actuators, ignition circuits, and interconnecting high-pressure piping manifolds.

By isolating the powerhead machinery from the thermal and acoustic environments generated within the primary thrust chamber, engineers can evaluate turbomachinery dynamics, fluid cavitation, pre-burner stability, and valve response times under controlled conditions. During the 35-second test window, telemetry captured across hundreds of sensor channels indicated that all mechanical, pneumatic, and hydraulic parameters aligned with predictive analytical models. The five-second steady-state hold at 200 tonnes of thrust confirmed that the pre-burner and turbopump assembly can sustain maximum gas generator output without experiencing catastrophic thermal degradation, structural resonance, or flow instability.

Technical Architecture of the Semi-Cryogenic Power Head and Feed Mechanism

The SE2000 semi-cryogenic engine relies on a staged combustion cycle using non-toxic, eco-friendly propellants: liquid oxygen as the oxidizer and highly refined rocket-grade kerosene, designated as Isrosene, as the fuel. Staged combustion architectures are renowned for high specific impulse and thermodynamic efficiency, but they demand extreme fluid pressure levels and precise mass-flow management. In this configuration, a fraction of the propellant flow is combusted in a fuel-rich or oxidizer-rich pre-burner to generate high-pressure gas that drives the main turbopumps before being routed into the main combustion chamber.

To achieve a 200-tonne thrust output, the turbomachinery must process propellants at extraordinary delivery pressures. In prior sub-scale and intermediate tests, main turbopump discharge pressures reached between 400 bar and 500 bar. Managing fluid flow at such elevated pressures requires ultra-precise pressure regulation valves, robust dynamic seals, and specialized metallurgy capable of resisting hydrogen embrittlement, cryogenic thermal shock, and high-velocity erosion. The September 5 test specifically targeted the validation of the propellant feed system transition. Firing began with propellants fed from a specialized low-pressure start tank designed to initialize turbopump rotation and pre-burner ignition safely. Once nominal operating speeds and pressures were established, the system smoothly transferred propellant feed lines to a medium-pressure run tank without inducing pressure spikes, hydraulic hammer, or flow starvation. Validating this transient fluid maneuver is vital for enabling future long-duration firings exceeding several hundred seconds.

Incremental Testing History and Transition from Hydrazine to Semicryogenic Propulsion

The achievement on September 5, 2026, follows a deliberate, step-by-step testing roadmap implemented by ISRO propulsion engineers. Across eight preceding hot-firing trials, the PHTA was subjected to progressive power escalation to evaluate system behavior across various throttle regimes. Initial firings validated basic ignition and low-power operation at 47 percent thrust, equivalent to 94 tonnes. Subsequent testing expanded the operational envelope to 60 percent thrust (120 tonnes), followed by an 88 percent thrust test (175 tonnes) conducted on June 24, 2026. The June trial verified stable turbopump operation and dynamic response at high mass-flow rates, providing the operational confidence required to push the machinery to its 100 percent design limit of 200 tonnes.

This systematic testing regime is essential as ISRO transitions its heavy launch infrastructure away from hypergolic liquid propellants. Currently, the core stage of India's heavy-lift vehicle, the Launch Vehicle Mark 3 (LVM3), utilizes the L110 stage powered by twin Vikas engines. The Vikas engine relies on unsymmetrical dimethylhydrazine (UDMH) as fuel and nitrogen tetroxide (N2O4) as oxidizer. While hypergolic propellants offer high storage reliability and hypergolic self-ignition, they suffer from lower specific impulse and present significant handling hazards due to high toxicity. Substituting hypergolic stages with semi-cryogenic stages operating on liquid oxygen and Isrosene provides higher energy density, improved safety during ground operations, reduced environmental impact, and lower overall propellant procurement costs.

Strategic Upgrade for LVM3 Heavy-Lift Performance and Future Space Missions

The primary operational objective of developing the SE2000 engine is to power the upcoming SC120 semi-cryogenic propulsion stage, which will carry approximately 120 tonnes of propellant. The SC120 is designed to directly replace the L110 core liquid stage on the LVM3 launch vehicle. By integrating the SC120 stage into the LVM3 baseline alongside an uprated cryogenic upper stage designated as C32, ISRO will dramatically elevate the vehicle's payload delivery capability. Currently, the baseline LVM3 can deliver approximately 4 tonnes to Geostationary Transfer Orbit (GTO) and around 10 tonnes to Low Earth Orbit (LEO). The semi-cryogenic stage upgrade is projected to expand GTO capability closer to 6 tonnes, enabling India to launch heavier communication satellites, deep-space probes, and complex orbital infrastructure domestically without relying on foreign launch service providers.

Furthermore, enhanced payload capacity is a vital requirement for India's ambitious human spaceflight initiative, the Gaganyaan program, as well as planned robotic lunar exploration missions and the eventual assembly of the Bharatiya Antariksh Station. Semi-cryogenic propulsion provides the thrust-to-weight ratio and throttle control required for complex orbital insertion maneuvers and heavier operational margins. Demonstrating full-power capability on the PHTA establishes a firm foundation for integrating the complete SE2000 engine, including its regenerative cooling thrust chamber, which will undergo full-engine hot tests at Mahendragiri in subsequent development phases.

Engineering Implications for High-Pressure Fluid and Cryogenic Test Infrastructure

The development and validation of high-thrust semi-cryogenic engines highlight the critical role played by specialized ground support equipment and advanced test benches in aerospace engineering. Simulating real flight conditions during static ground firings requires ground infrastructure capable of handling extreme pressure differentials, cryogenic fluid transfer at sub-zero temperatures, ultra-high-pressure gas purging, dynamic fluid metering, and automated emergency shutoff protocols. Test facilities like those at Mahendragiri rely on sophisticated hydraulic actuator systems, high-pressure gas distribution manifolds, and automated test automation networks to ensure flawless execution and safety during high-energy firings.

As Indian aerospace programs advance toward higher thrust regimes and cleaner propellant technologies, the demand for indigenous design and manufacturing of ultra-high-pressure valve skids, cryogenic fluid systems, hydraulic test benches, and automated ground support infrastructure continues to expand rapidly. Engineering organizations specializing in customized high-pressure fluid control, cryogenic handling equipment, and heavy-duty test rigs provide the essential technological backbone that enables cutting-edge aerospace advancements to transition seamlessly from theoretical design to flight-proven reality.
