ISRO Successfully Hot-Tests CE20 Cryogenic Engine at 22-Tonne Thrust for LVM3-M7

On September 9, 2026, the Indian Space Research Organisation (ISRO) achieved a significant technological milestone in its heavy-lift launch capabilities by completing a flight acceptance hot test of the indigenously developed CE20 cryogenic upper-stage engine. Conducted at the Main Engine & Stage Test (MET) facility within the ISRO Propulsion Complex (IPRC) in Mahendragiri, Tamil Nadu, the static firing validated the operational performance of the engine designated for the seventh operational flight of the Launch Vehicle Mark-3, known as LVM3-M7. Scheduled for launch in the fourth quarter of 2026, the upcoming mission represents a key step in India's space program, supporting both heavy satellite launch services and crewed spaceflight preparations.

During the hot test, the CE20 engine was operated at an uprated thrust level of 22 tonnes (220 kilonewtons), demonstrating stable combustion performance and structural integrity under elevated thrust parameters. Alongside main engine verification, the test successfully validated the Liquid Oxygen Tank Pressurization Module (LTPM), a critical fluid control subsystem designed for the uprated C32 cryogenic upper stage. The successful ground test clears the propulsion system for post-firing refurbishment and final assembly into the C32 flight stage, significantly increasing the overall payload capacity of the LVM3 launch vehicle.

Technical Mechanics of Sea-Level Cryogenic Testing

Acceptance testing of cryogenic upper-stage engines featuring high-expansion nozzles presents substantial aerodynamic engineering challenges when performed at sea level. The CE20 cryogenic engine is equipped with a large convergent-divergent nozzle designed with an expansion area ratio of approximately 100 to 1. This high expansion ratio is engineered to maximize propulsive efficiency in near-vacuum space environments, where ambient atmospheric pressure drops to approximately 50 millibars. When such an engine is fired under ambient sea-level atmospheric pressure (approximately 1,013 millibars), high external backpressure creates an extreme over-expansion condition within the nozzle bell.

This pressure differential forces the supersonic exhaust gas stream to separate prematurely from the interior nozzle wall. Flow separation creates highly turbulent boundary layers, unsteady shock waves, violent low-frequency vibrations, and asymmetric lateral side-loads. These dynamic forces can induce severe mechanical stress or structural collapse in thin-walled nozzle extensions. Traditionally, evaluating upper-stage engines required High Altitude Test (HAT) facilities, which utilize expansive vacuum chambers, steam ejector diffusers, and complex isolation locks to simulate low-pressure space environments during static firings.

To streamline acceptance procedures and avoid the lengthy setup times and operational costs associated with vacuum-chamber firings, ISRO engineered a specialized Nozzle Protection System (NPS). The NPS utilizes tailored aerodynamic flow conditioning to stabilize boundary layer attachment at the nozzle exit cone during sea-level firings. By controlling shock-wave positioning and mitigating atmospheric pressure feedback, the system prevents flow separation and suppresses dangerous side-loads. The September 9 firing confirmed that the NPS effectively reproduces vacuum-like flow dynamics under sea-level conditions, ensuring safe, rapid, and repeatable acceptance testing of flight-ready cryogenic engines.

Cryogenic Stage Upgrades and Pressurization Engineering

Upgrading the CE20 cryogenic engine to higher thrust output is central to ISRO's strategy for augmenting the LVM3 launch vehicle's payload capacity. Earlier operational flights of the CE20 engine operated at nominal thrust levels of 19 to 19.5 tonnes. By qualifying the engine to operate continuously at 22 tonnes of thrust within the C32 stage configuration, ISRO can substantially boost payload margins to Geostationary Transfer Orbit (GTO) and Low Earth Orbit (LEO), enabling the launch of heavier communication satellites and deep-space payloads.

Key Performance Enhancements in the C32 Cryogenic Configuration

• Uprated Thrust Output: Operating the CE20 engine continuously at 22 tonnes (220 kilonewtons) of thrust to increase LVM3 payload margins.
• Tank Pressurization Validation: Demonstrating the LOX Tank Pressurization Module under flight-representative operating conditions.
• Human-Rating Compatibility: Meeting strict reliability and structural safety standards required for the Gaganyaan human spaceflight mission profile.

Operating a gas-generator cycle cryogenic engine at 22 tonnes of thrust requires precise management of sub-zero liquid propellants, specifically liquid oxygen (LOX) stored at minus 183 degrees Celsius and liquid hydrogen (LH2) stored at minus 253 degrees Celsius. High-speed turbopumps must deliver massive propellant flow rates at elevated discharge pressures without experiencing cavitation or thermal distortion. The test validated the performance of the LOX Tank Pressurization Module, which injects regulated pressurized gas into the propellant tanks during flight to maintain constant ullage pressure, ensuring steady propellant delivery to the turbopumps.

The C32 stage pressurization architecture is engineered to satisfy strict human-rating standards required for India's Gaganyaan human spaceflight mission. Maintaining stable propellant tank pressures under high mass flow rates suppresses flow oscillations in feed lines, prevents pump starvation, and ensures smooth combustion across the operational flight envelope. Telemetry gathered during the LTPM demonstration confirmed that pressurized gas delivery, manifold valving, and control sensors operated strictly within design tolerances.

Ground Support Infrastructure and Test Rig Architecture

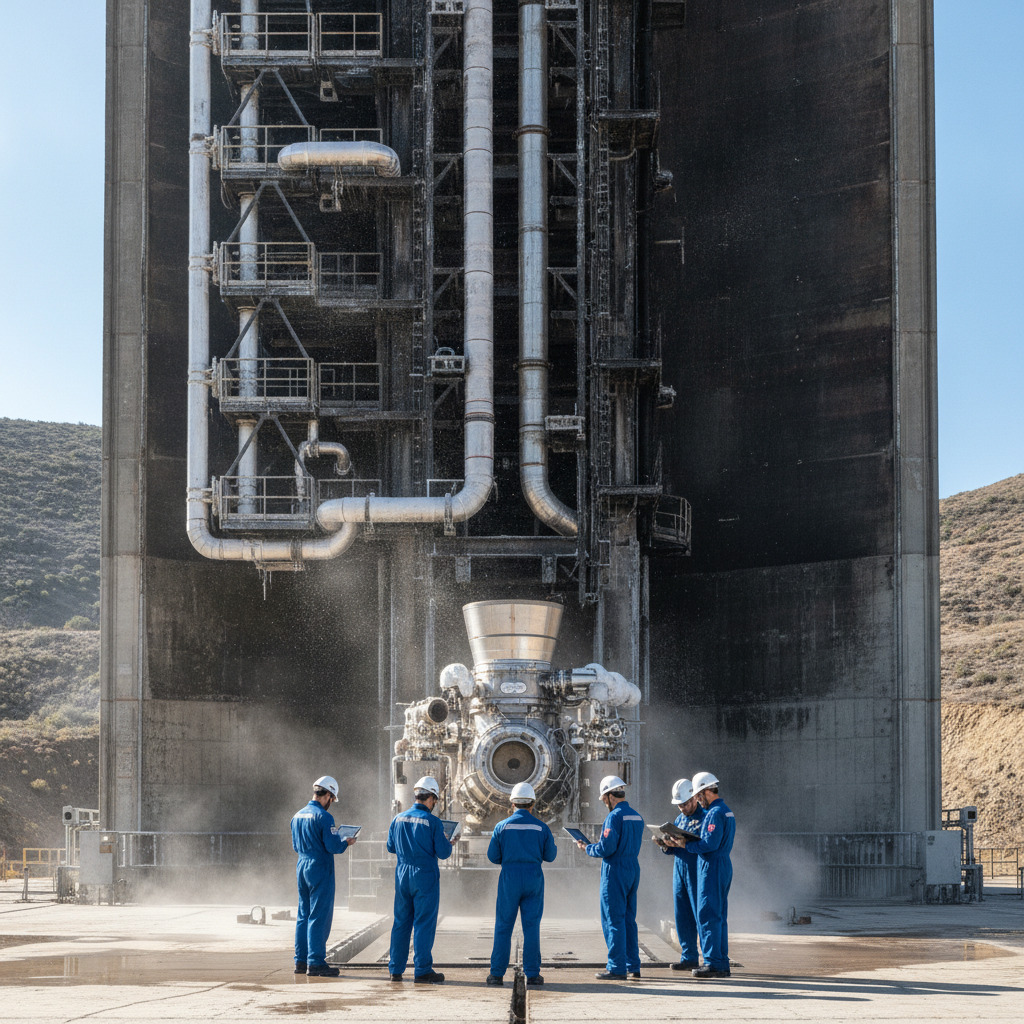

Static ground testing of high-thrust cryogenic engines depends on complex test stand infrastructure capable of absorbing multi-ton dynamic thrust forces and handling hazardous liquid propellants. The Main Engine & Stage Test facility at Mahendragiri is built with heavy structural reaction anchors, vacuum-insulated propellant lines, high-pressure gas purge systems, and automated high-speed data acquisition channels that monitor hundreds of pressure, temperature, strain, and vibration channels simultaneously.

Before engine ignition, automated systems execute pre-chill sequences using liquid nitrogen and cold gaseous helium to cool feed manifolds and turbopump casings down to operational cryogenic temperatures. Pre-chilling prevents thermal shock and explosive vapor formation when LOX and LH2 enter engine feed lines. Ground control systems also govern pre-ignition tank pressurization and manage multi-element igniter systems to ensure smooth combustion initiation without destructive pressure spikes.

Following engine shutdown, automated test bench systems initiate high-pressure inert gas purges through all propellant passages, injectors, and turbopump cavities. Purging removes residual fuel and oxidizer, preventing moisture condensation, ice accumulation, or chemical corrosion inside precision engine components. The successful execution of these operations highlights the vital importance of high-integrity fluid valves, pressure regulators, cryogenic snubbers, and structural test frames during static rocket firings.

Strategic Impact and the Role of Advanced Test Facilities

The flight acceptance hot test of the CE20 cryogenic engine at 22 tonnes of thrust marks an essential milestone in strengthening India's space transportation infrastructure. By validating both the uprated thrust capabilities and the C32 stage pressurization systems for LVM3-M7, ISRO enhances its launch schedule reliability for late 2026. Following post-firing inspection and refurbishment, the engine will be integrated into the C32 upper stage at Mahendragiri prior to shipment to the Satish Dhawan Space Centre in Sriharikota for launch integration.

As India expands its aerospace footprint with heavier launch vehicles, human spaceflight programs, and advanced propulsion technologies, the need for robust ground test infrastructure and cryogenic engineering solutions continues to grow. Designing and building such specialized systems requires deep expertise in high-pressure gas distribution, ultra-low-temperature fluid handling, automated valve manifolds, and high-precision test benches. Neometrix Defence Limited supports this national technological mission by engineering customized test benches, high-pressure gas systems, cryogenic fluid equipment, and turnkey ground support infrastructure designed to meet the rigorous demands of aerospace, defence, and high-technology manufacturing sectors.
